1960 D17 Series I Color Scheme
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
WoodysD17 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 09 Mar 2024
Location: Texas
Points: 7 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WoodysD17 Quote  Post ReplyReply Direct Link To This Post Topic: 1960 D17 Series I Color Scheme
    Posted: 09 Mar 2024 at 9:18pm
I have seen numerous posts about the color scheme for my 1960 D17 Series 1 gasoline wide front(s/n 29963). I've seen so many contradictory posts I don't know where to go and my hair is about to catch on fire. And since I don't have any hair that's a trick! Help! Mostly I need to know the color of the wheels, the rims, The steering wheel, the seat, The headlamps, and the grill. I realize the orange is the Persian orange but I'm confused about whether or not the grill has the black outlines or not. Generally I would like the entire scheme explained to me! Thanks in advance!
Back to Top
Sponsored Links


Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7342 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 10 Mar 2024 at 9:31am
All lights are black.

If your grille has 3 bars going across it, those bars and outline will be black while the mesh is aluminum color.  Persian orange 1 on wheel centers and inner front rims with aluminum on the outside.  Black steering wheel as well.  If your seat is the tin seat with no cushions, it is to be PO #1 as well.

Always a nice touch to paint the starter and generator black too.
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
Back to Top
WoodysD17 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 09 Mar 2024
Location: Texas
Points: 7 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WoodysD17 Quote  Post ReplyReply Direct Link To This Post Posted: 10 Mar 2024 at 10:40am
Thanks for the info! As much as I appreciate "nice touch" ideas like the starter/generator being painted black, I'm really looking for the OEM Factory look. So am I understanding that a 1960 D17 has NO cream color on it, except maybe the name plate?
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20580 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 10 Mar 2024 at 1:34pm
By the serial number provided, your tractor is what we'd refer to as a Series 2 model. At s/n 24001 and up, your grille screen is the same as a Series 3 and 4 tractor. Not the  old "x" pattern screen. So, this changes everything. Grille screen is cream color as are the wheel centers and steering wheel. The orange is Persian Orange NUMBER 2  !!! not the old persian orange number one. Your hoods may have the stamped aluminum ALLIS-CHALMERS plates riveted to the hood instead of decals.
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7342 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 10 Mar 2024 at 5:03pm
Originally posted by WoodysD17 WoodysD17 wrote:

Thanks for the info! As much as I appreciate "nice touch" ideas like the starter/generator being painted black, I'm really looking for the OEM Factory look. So am I understanding that a 1960 D17 has NO cream color on it, except maybe the name plate?


If you are going for the OEM factory paint job look, don't forget to add over spray and runs to your paint job. The whole tractor was painted on the assembly line in under 5 minutes! Yes, all the tractor's were painted, but not very good at all. I have several original D14s and WD45s - they all have plenty of imperfections!

As a result, the factory OEM look is nothing to aspire to in my opinion.
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
Back to Top
WoodysD17 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 09 Mar 2024
Location: Texas
Points: 7 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WoodysD17 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Mar 2024 at 12:46am

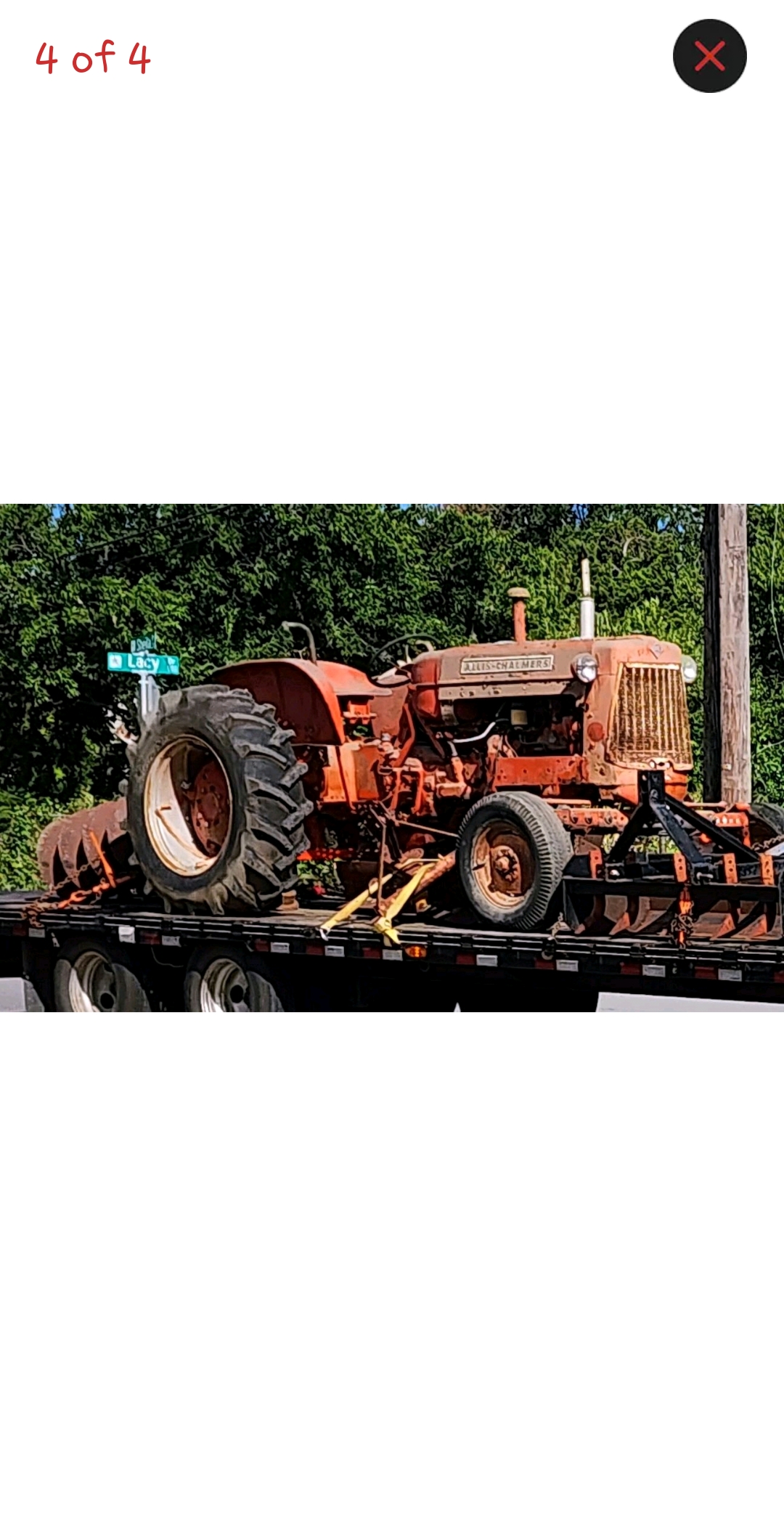

Thanks! My name plate is riveted on the hood. Isn't there supposed to be an oval D17 decal somewhere on each side? My grill is currently what's left of white or cream. I don't have the tractor with me right now and I'm going to try to attach a photo but it seems like the entire front wheels are orange And the rear wheels have orange centers but either white or cream or actually silver rims. I can't tell from the photo. How about the exhaust pipe and the lights?
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20580 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 11 Mar 2024 at 6:17am
No oval "D-17" decals on yours. That's for the early models. Yours should have a rectangle "D-17"  decal just above the rear hood snap latch.
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7342 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Mar 2024 at 3:13pm
Originally posted by DrAllis DrAllis wrote:

No oval "D-17" decals on yours. That's for the early models. Yours should have a rectangle "D-17"  decal just above the rear hood snap latch.

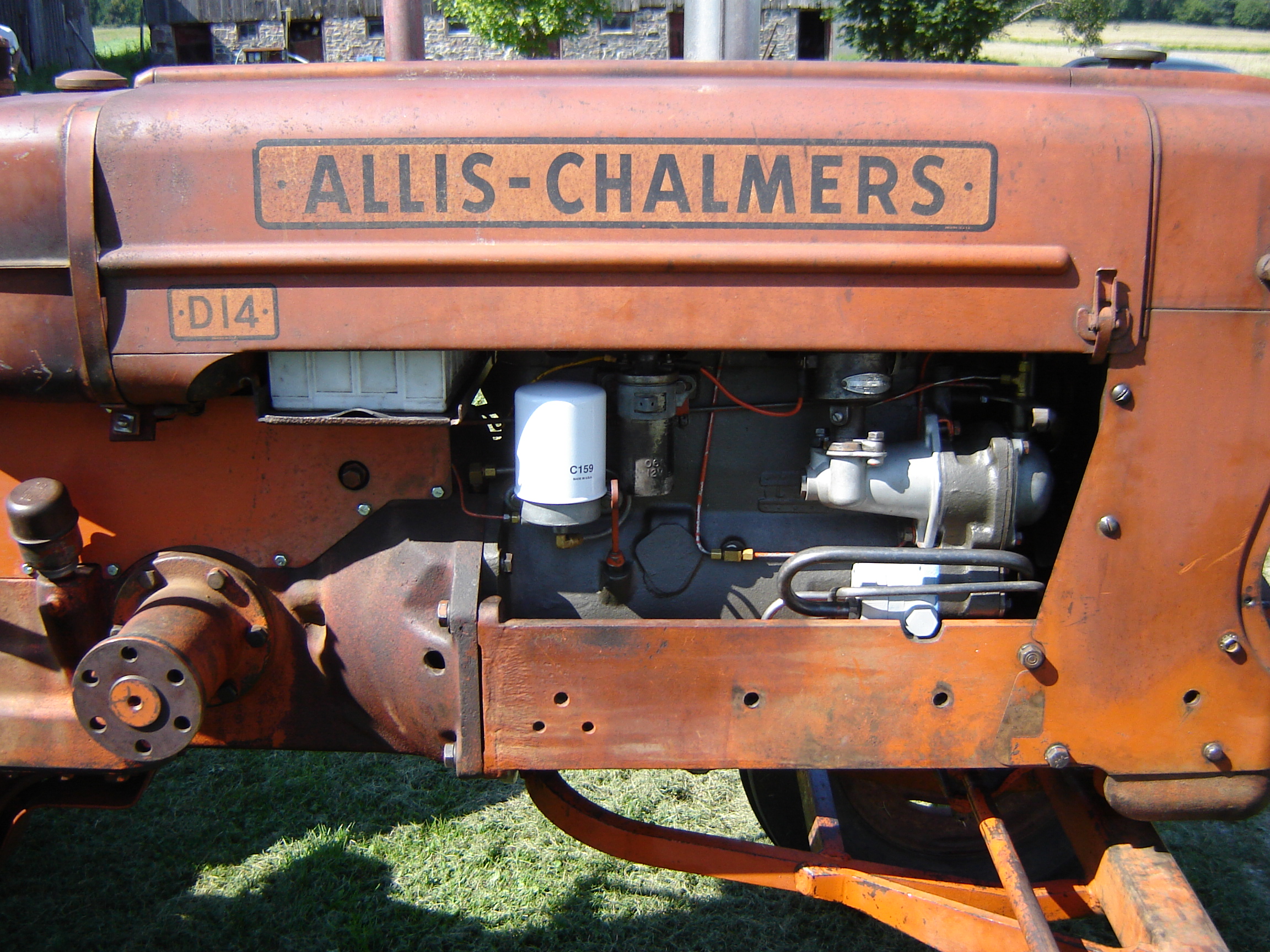

D14 decal for reference, D17s were similar (except for the aluminum nameplates).  Earlier models from 57 to early 59 had oval decals.  59 and up used these ones...
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
Back to Top
HudCo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3566 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HudCo Quote  Post ReplyReply Direct Link To This Post Posted: 11 Mar 2024 at 10:32pm
oval decals are down on the sheet metal below the tank on my series 1
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6358 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Mar 2024 at 6:31pm
Here is my D17 back when I redid it. The wheel hubs should be cream.
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6358 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Mar 2024 at 6:31pm
Oh and I think the air stack is supposed to be silver.
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
WoodysD17 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 09 Mar 2024
Location: Texas
Points: 7 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WoodysD17 Quote  Post ReplyReply Direct Link To This Post Posted: 16 Mar 2024 at 12:05am
Very NICE! The actual wheel rims are silver, correct?
Back to Top
Charlie175 View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6358 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Charlie175 Quote  Post ReplyReply Direct Link To This Post Posted: 16 Mar 2024 at 5:50am
Yes Silver or galvanized color.
Charlie

'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3752 		Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 16 Mar 2024 at 7:21am
Very nice Charlie!
