WD45 diesel wiring diagram question

 Post Reply Post Reply
Author
Message
Farrell(Utah) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Springville, Ut
Points: 517
Post Options Post Options   Thanks (0) Thanks(0)   Quote Farrell(Utah) Quote  Post ReplyReply Direct Link To This Post Topic: WD45 diesel wiring diagram question
    Posted: 01 Sep 2023 at 10:43pm
     I was looking at the wiring on my WD45 diesel and have a question about the L terminal on the voltage regulator.  The tractor has a 12 volt generator with a four terminal voltage regulator.  Currently, the L terrminal on the voltage regulator is connected to the light switch terminal in the instrument panel.  It appears to be providing power for the lights.
    Where should the L terminal on my voltage regulator be connected in the instrument panel?  Thanks.
A(1937), 2 G, 2 WD45 diesels, 6 WD45 gas, UC, 2 WD, D17 gas, WF, Farmall 400, D12, Kubota B3030
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81101
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 02 Sep 2023 at 8:42am
that should be correct... The "L" is just another HOT WIRE... It was a common terminal 50 years ago on some systems... normally it came from the ignition switch ... which fed the lights switch.

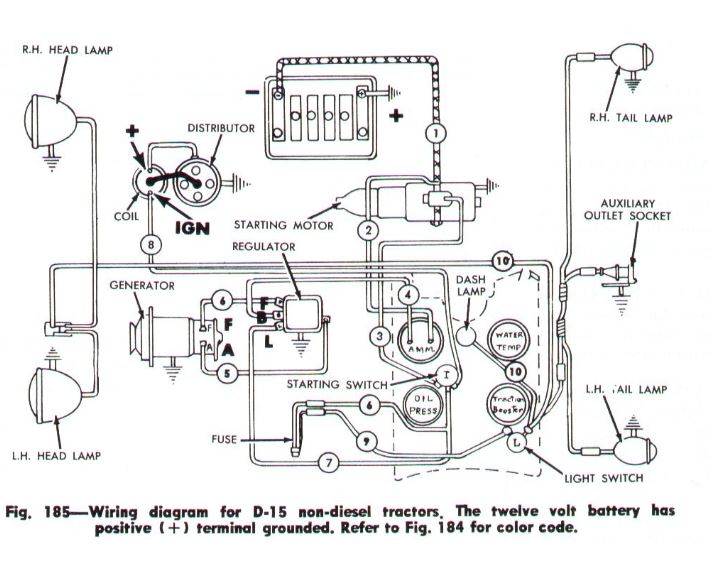

Here is a SIMILAR drawing... to give you an idea





Edited by steve(ill) - 02 Sep 2023 at 8:49am
Like them all, but love the "B"s.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81101
Post Options Post Options   Thanks (1) Thanks(1)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 02 Sep 2023 at 8:51am
As shown in Figure 3, the regulator has an extra terminal marked "L" which is connected with the lower contact point in the cutout relay. This extra terminal permits current from the generator to be diverted to the load  ( head lights) without its passing through the current-voltage regulator.

Edited by steve(ill) - 02 Sep 2023 at 8:52am
Like them all, but love the "B"s.
Back to Top
Les Kerf View Drop Down
Orange Level
Orange Level


Joined: 08 May 2020
Location: Idaho
Points: 777
Post Options Post Options   Thanks (0) Thanks(0)   Quote Les Kerf Quote  Post ReplyReply Direct Link To This Post Posted: 02 Sep 2023 at 10:00pm
Originally posted by steve(ill) steve(ill) wrote:

As shown in Figure 3, the regulator has an extra terminal marked "L" which is connected with the lower contact point in the cutout relay. This extra terminal permits current from the generator to be diverted to the load  ( head lights) without its passing through the current-voltage regulator.


Thanks Steve, I never have seen that before. It also bypasses the ammeter.
Back to Top
ciero2003 View Drop Down
Bronze Level
Bronze Level


Joined: 25 Sep 2023
Location: Michigan
Points: 2
Post Options Post Options   Thanks (0) Thanks(0)   Quote ciero2003 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Sep 2023 at 9:06am
I have a '51 WD with a 12V generator. Could I use this diagram in wiring a WD properly?
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81101
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 25 Sep 2023 at 9:18am
yes.... also determine if you want positive or negative ground.... but all the WIRES are the same.

if your regulator has an L terminal, you can run it to the light switch... If it does NOT have an L... just forget that part.


Edited by steve(ill) - 25 Sep 2023 at 9:21am
Like them all, but love the "B"s.
Back to Top
ciero2003 View Drop Down
Bronze Level
Bronze Level


Joined: 25 Sep 2023
Location: Michigan
Points: 2
Post Options Post Options   Thanks (0) Thanks(0)   Quote ciero2003 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Sep 2023 at 9:22am
Thanks so much!
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81101
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 25 Sep 2023 at 9:26am
from the above DELCO link...
