 Topic: M100 not allowing to drop the blade
Posted: 24 May 2022 at 8:10pm |

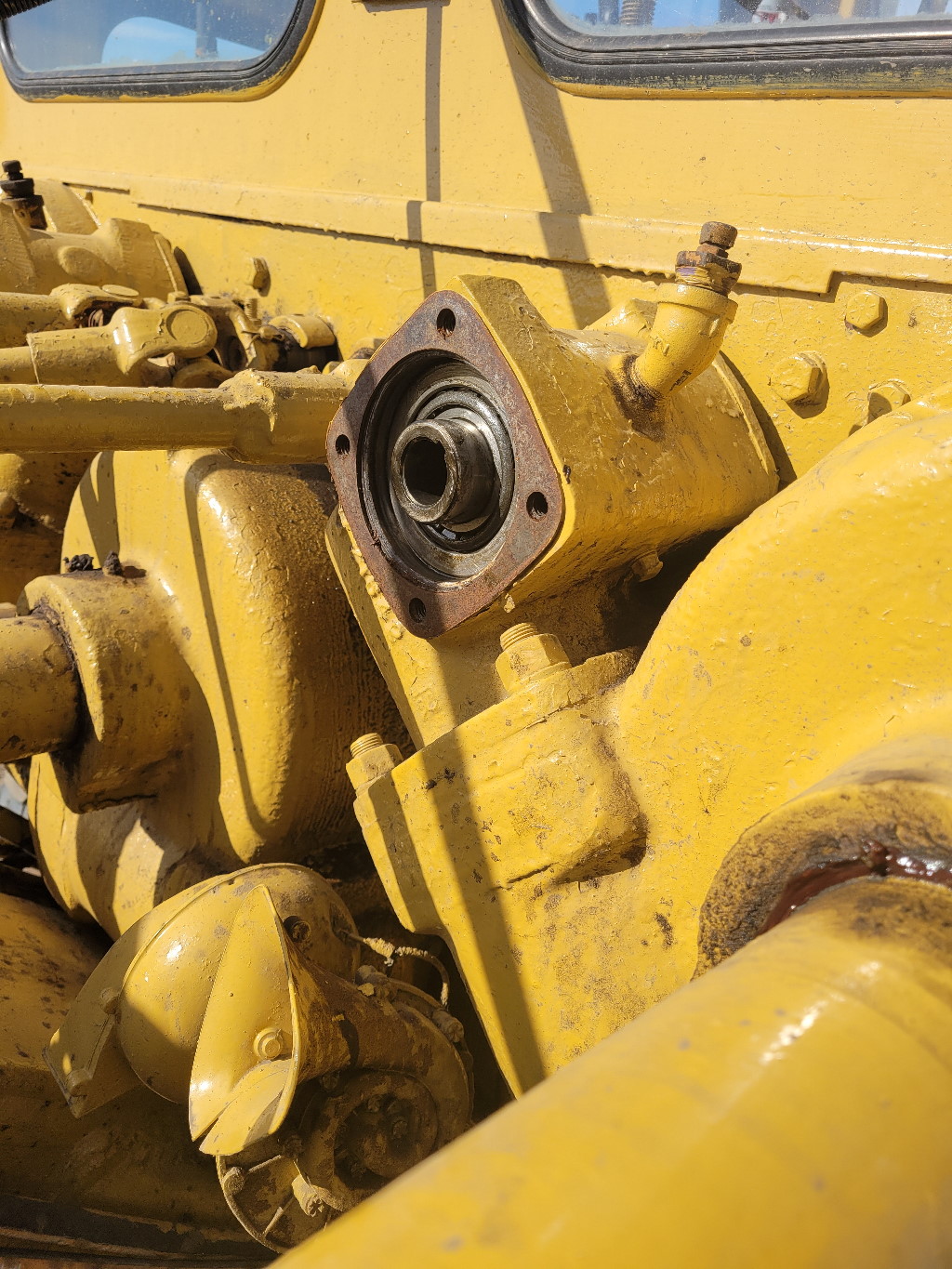

My "new" (to me) M100 1960 grader somehow moved the left blade height control against the mechanical endstop (see picture) and only "klicks" when trying to bring it back. I am not sure how this efunctions exactly and if there is (hopefully) an sherbolt or something similiar or did I just break everything? Removed the cover and it turns there when the lever is moved.... Ideas?
Edited by jhedmonton - 27 May 2022 at 12:14am
|
 |
|
Sponsored Links
|
|
|
jhedmonton
Bronze Level
Joined: 08 May 2022
Location: Canada
Points: 11
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 May 2022 at 8:11pm |
 Had tried to upload this first ....
|
|
Ian Beale
Orange Level
Joined: 03 Oct 2011
Location: New South Wales
Points: 973
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 May 2022 at 6:29am |
MinnPar parts catalogue
Have at it from about M 100 Manual Page 190 onwards

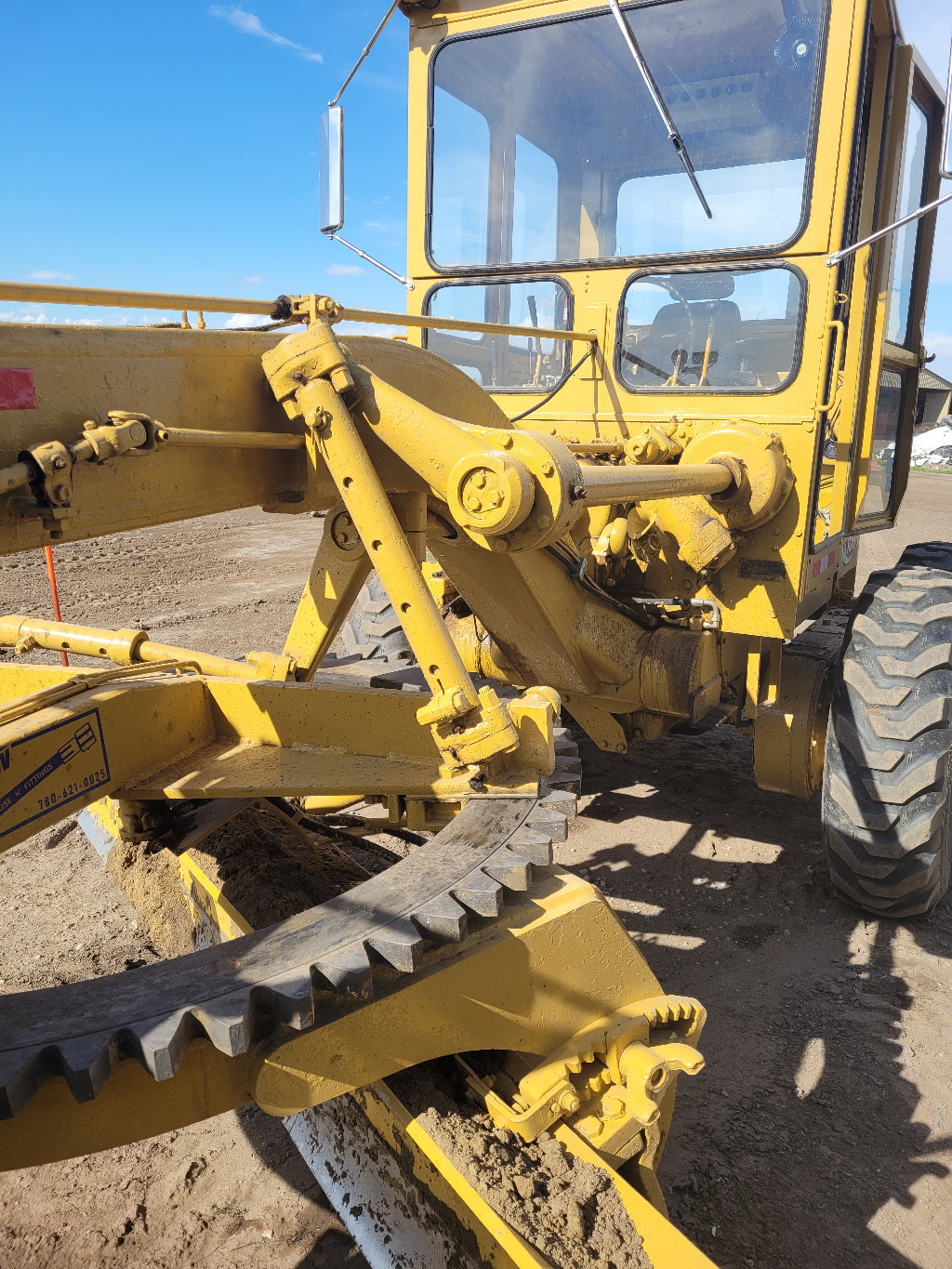

By the look of that circle it hasn't done a lot of work
Edited by Ian Beale - 25 May 2022 at 6:40am
|
|
jhedmonton
Bronze Level
Joined: 08 May 2022
Location: Canada
Points: 11
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 May 2022 at 11:00pm |
|
THANKS!! Only took a brief look... would you know if there is something like a safety or a sheerbolt? And yes the whole grader is in great shape. I own a farm and really hope I can keep my yard level with it ;-)
|
|
jhedmonton
Bronze Level
Joined: 08 May 2022
Location: Canada
Points: 11
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 May 2022 at 12:13am |

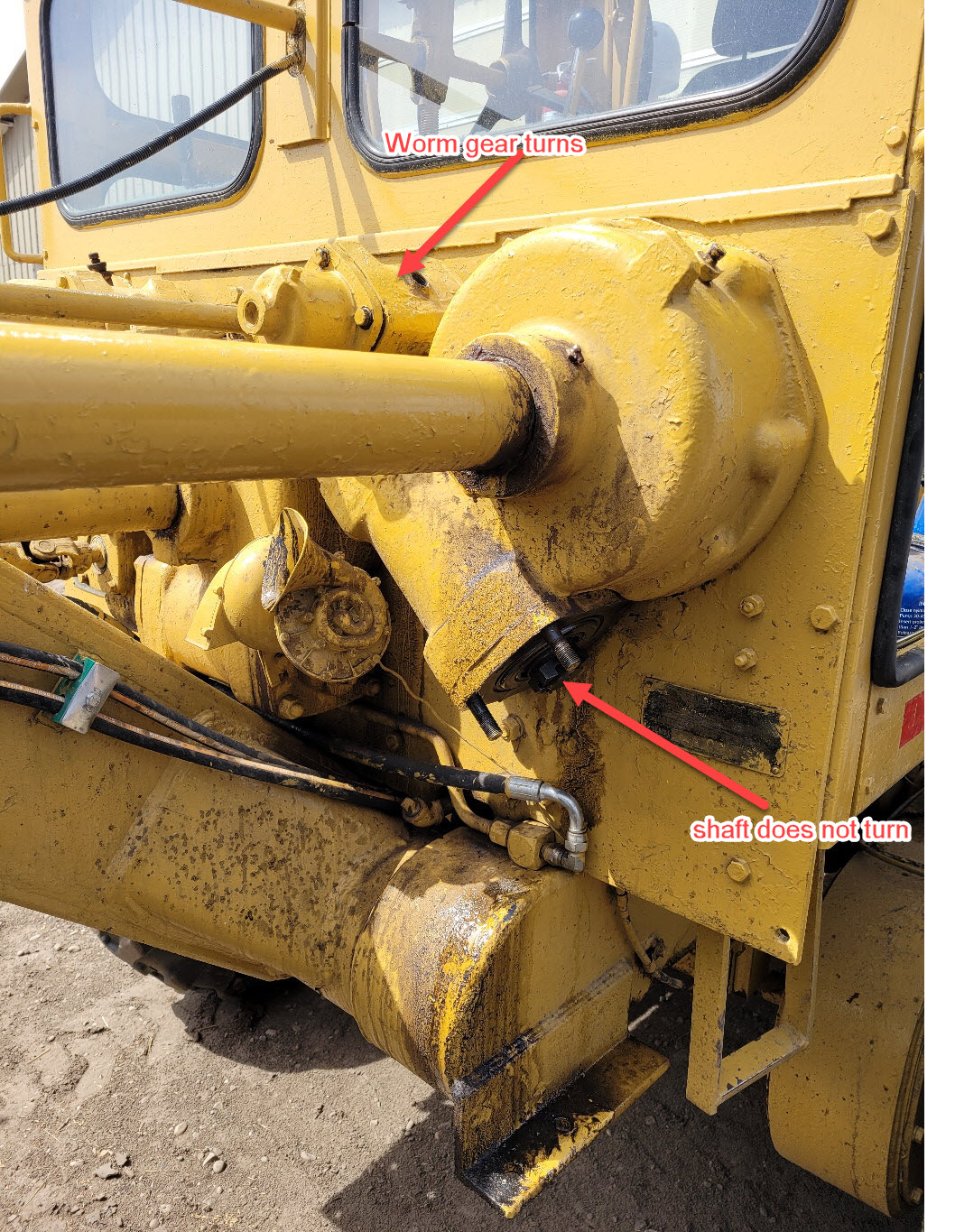

I opened up the assembly as much as possible, top worm gear turns, but the shaft going down does not, so it must be the worm gear on the shaft going down. Now this looks impossible to take apart as the top shaft goes to the inside of the cab and the one going down is connected to the large housing. Does anybody has any tips on how to take it apart and check for that top worm gear?
Edited by jhedmonton - 27 May 2022 at 12:14am
|
|
Ian Beale
Orange Level
Joined: 03 Oct 2011
Location: New South Wales
Points: 973
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 May 2022 at 5:05am |
I'd say you better find a service manual. I'd guess that whole assembly comes off so you can work on it - but that would be a deflated 2c worth.
Put "Allis Chalmers M 100 service manual" into your internet searcher and it turns up a couple of places that have that manual.
I got a Jensales copy of the Allis manual for an AC Forty Five. It is sketchy on the engine but useable on the rest. YMMV.
Others might add to this
|
|
jhedmonton
Bronze Level
Joined: 08 May 2022
Location: Canada
Points: 11
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 May 2022 at 10:20am |
Thanks! Yes searching for the M100 service manual appears to be difficult. I found the for the older 45 model or on jensales the operator manual for the M100, but can't seem to find the M100 service manual anywhere. Can anybody point me in the right direction?
|
|
Ian Beale
Orange Level
Joined: 03 Oct 2011
Location: New South Wales
Points: 973
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 May 2022 at 6:30pm |
Have a look at
The list doesn't mention mouldboard lift but at 663 pages -
Looks like they are both download .pdfs
There are others. But some show a front cover that says "Field Service Manual" - I'm not sure what that means. Price seems to be around $30 - US I presume
Maybe worth a look on ebay as well
|
|
jhedmonton
Bronze Level
Joined: 08 May 2022
Location: Canada
Points: 11
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 May 2022 at 9:28pm |

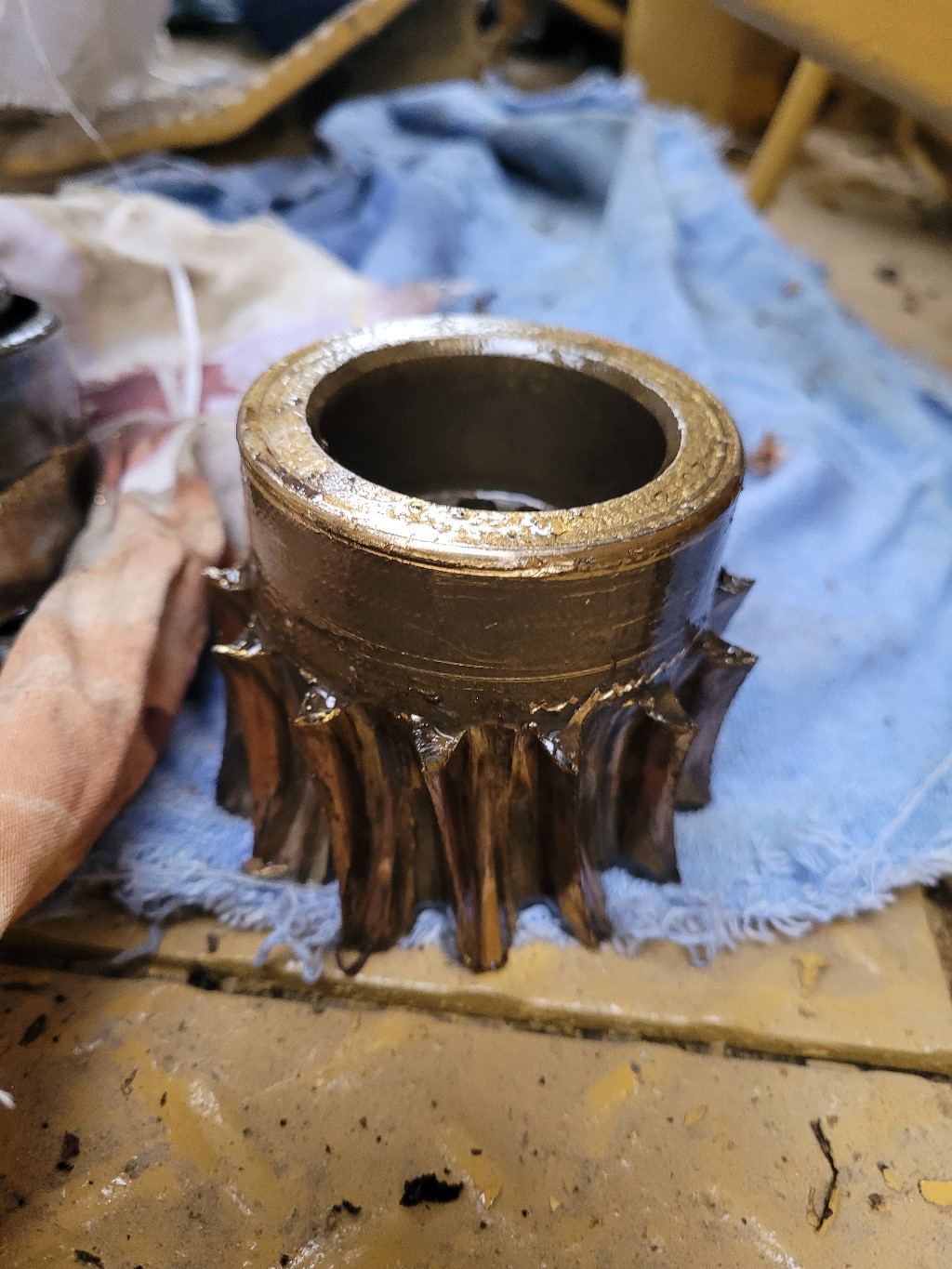

Thanks! Managed to take it apart and found the main culprit....
Now trying to find parts :-(. 70620727 GEAR, worm I can't seem to find anywhere.... Ideas? Need a few more of course.... Like 70050293, 70621652,....
|
|
Ian Beale
Orange Level
Joined: 03 Oct 2011
Location: New South Wales
Points: 973
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 May 2022 at 11:12pm |
MinnPar? I got a worm gear for the circle drive on our AC Forty Five from them - about 10 years ago
Hector Gemme over in your east might be worth a go - He probably keeps a watch here and is active on Red Power
Re manual - this might be worth a look
|
|
truckerfarmer
Orange Level Access
Joined: 26 Jan 2013
Location: Watertown, SD
Points: 3217
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 May 2022 at 6:08am |
|
Another option is General Gear.
|
|
Looking at the past to see the future.
'53 WD, '53 WD45, WD snap coupler field cultivator, #53 plow,'53 HD5B dozer
Duct tape.... Can't fix stupidity. But will muffle the sound of it!
|
|
DMiller
Orange Level Access
Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 31120
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 May 2022 at 8:33am |
|
Go to a google search
Simple method type in ‘Allis’ and the p/n is how I located NOS for that 7G I had.
|
|
Ian Beale
Orange Level
Joined: 03 Oct 2011
Location: New South Wales
Points: 973
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 May 2022 at 10:02pm |
Hector came in on the injector thread above and I name-dropped him for you. Reply is he has no M100 parts
Operator's manual on line here
General Gear link
There is this bloke in Australia
Could be expensive, though the parts we recently got quotes for weren't out of line in price
Edited by Ian Beale - 28 May 2022 at 10:28pm
|
|
rcwitzel
Bronze Level
Joined: 17 Feb 2020
Location: Omaha NE
Points: 14
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jun 2022 at 8:04am |
|
~40 years ago dad and I parted out several Allis graders. I believe one was an M100. I have one complete lift assembly. The part number for one of the housings matches the M100 parts book. Are you still looking for these parts? If yes, I will disassemble to check the condition of the parts. Private message me on the site with your phone number. I will send pictures.
|
|
