 Topic: Model K offset disc harrow?
Posted: 14 Mar 2017 at 7:55pm |
|
I have a model K offset disc harrow. It has a bracket broken-missing. It is the bracket that the transport chain hooks through. If someone has a disc and could be so kind as to make a sketch of bracket I would greatly appreciate it. The little arm that holds hyd hose is missing also. Easy to make if I had the dimensions. Thanks Tracy
|
|
No greater gift than healthy grandkids!
|
 |
|
Sponsored Links
|
|
|
Joe(TX)
Orange Level
Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Mar 2017 at 4:43pm |
How's this? My hose bracket was destroyed
|
|
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10735
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Mar 2017 at 5:12pm |
|
Joe, that is much appreciated.What type of lift cylinder does yours use?I need to get one, and was wondering what size and travel they were. Thanks Tracy
|
|
No greater gift than healthy grandkids!
|
|
Joe(TX)
Orange Level
Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Mar 2017 at 5:19pm |
|
I has a factory tie rod cylinder with a stoke limiting valve. I'll try to get a photo and do some measurements.
|
|
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
|
|
Joe(TX)
Orange Level
Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Mar 2017 at 5:42pm |

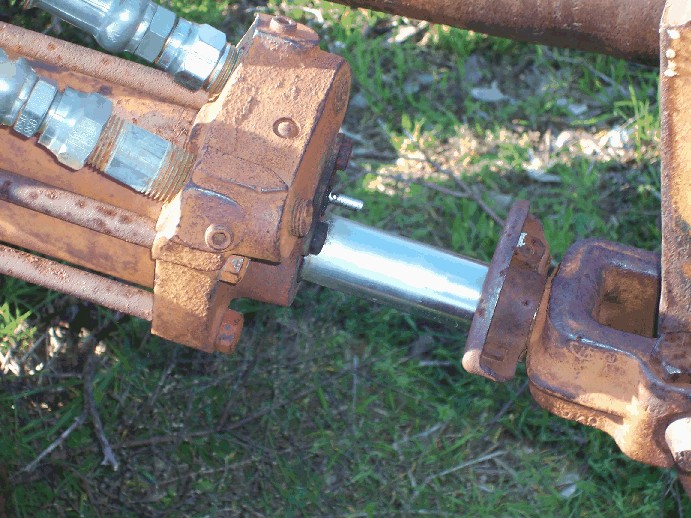

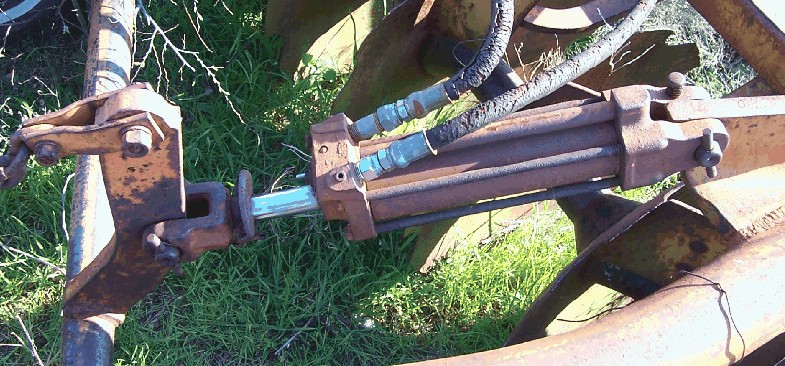

It looks like a 2 1/2 x 8 cylinder Here a couple of photos. The close up shows the stroke limiter.
|
|
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10735
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Mar 2017 at 7:03pm |
|
Joe, again, I appreciate the help. Thanks Tracy
|
|
