 Topic: 7060 steering orbit motor
Posted: 01 Jan 2017 at 7:15pm |
|
I got the seal kit for this few weeks ago. I'm gonna get it fixed if the weather holds out and stays kinda nice here.
sooo, before I start flinging wrenches,, are there any shortcuts, do's or don't's,,..does the dash and steering wheel hafta come off?? I fixed on of these on a 190 before and, IIRC its not that difficult once ya get the steering motor out repair kit consisted of 2 O-rings and 2 packings for like $26.00,,but if they fix the leak,,,I'm happy
|
 |
|
Sponsored Links
|
|
|
Ron(AB)
Orange Level
Joined: 27 Dec 2009
Location: Alberta
Points: 958
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jan 2017 at 11:21pm |
Take some pictures and show us how…  We would like to learn too!
|
|
shameless (ne)
Orange Level
Joined: 08 Jul 2016
Location: nebraska
Points: 7463
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Jan 2017 at 11:25pm |
|
take the dash out....starting in front of the radiator! (poke,poke)
|
|
darrel in ND
Orange Level
Joined: 22 Nov 2009
Location: Hebron, ND
Points: 8633
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2017 at 4:16am |
 shameless (ne) wrote:
take the dash out....starting in front of the radiator! (poke,poke)
|
good sound advice there. Darrel
|
|
victoryallis
Orange Level
Joined: 15 Apr 2010
Location: Ludington mi
Points: 2876
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2017 at 6:07am |
shameless (ne) wrote:
take the dash out....starting in front of the radiator! (poke,poke)
|
Another valuable post by shameless. I swore I was done posting on this site and just lurk but since you don't have any constructive advice here I go. You don't need to touch the dash I have done this atleast 3 times. I pulled the panel below the dash and the ones on the sides. I use colored zip ties and have a different color for each line and make a note of my color scheme. Stubby wrenches and gear ends help. Not a big job but not a comfortable one either. Them dashes are old and brittle don't touch. If you run into problems or my memory is off just PM me.
|
|
8030 and 8050MFWD, 7580, 3 6080's, 160, 7060, 175, heirloom D17, Deere 8760
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 20485
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2017 at 10:55am |
|
Don't disassemble the steering orbitrol any farther than replacing the shaft seal and O-ring. Going farther than that isn't needed.
|
|
tbran
Orange Level
Joined: 14 Sep 2009
Location: Paris Tn
Points: 3294
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2017 at 1:03pm |
|
what the Dr. is really saying is if you take it apart you will find what it is made of - then you will get to buy another one to make the tractor steer again. Quad ring and oring that is all...
|
|
When told "it's not the money,it's the principle", remember, it's always the money..
|
|
shameless (ne)
Orange Level
Joined: 08 Jul 2016
Location: nebraska
Points: 7463
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2017 at 2:50pm |
|
if I didn't mess with him, he'd think I didn't love him no more!
|
|
victoryallis
Orange Level
Joined: 15 Apr 2010
Location: Ludington mi
Points: 2876
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2017 at 6:27pm |
shameless (ne) wrote:
if I didn't mess with him, he'd think I didn't love him no more!
|
Some of us are on here to learn not play around. Production ag is a business let's act professional.
|
|
8030 and 8050MFWD, 7580, 3 6080's, 160, 7060, 175, heirloom D17, Deere 8760
|
|
Michael V (NM)
Orange Level Access
Joined: 12 Sep 2009
Location: NM
Points: 2404
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2017 at 8:24pm |

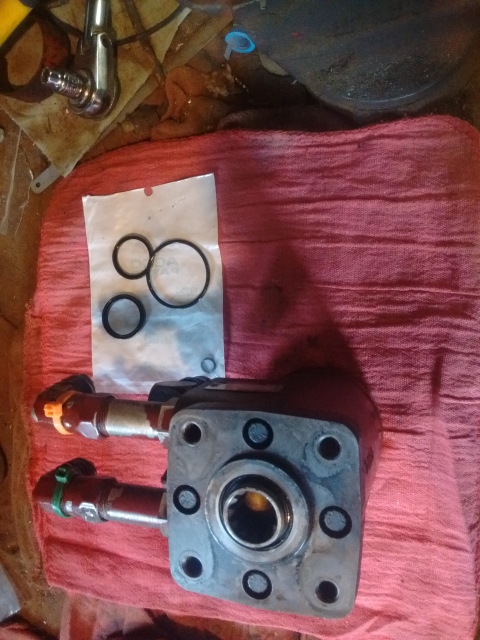

I got it done..no leaks so far...Ron I jus got some pics of a torn up tractor.....its really just nuts and bolts,,,just as the I-T manual says...its self evident.... what I really don't like is this is the 2nd time I've had to take out the NEW floor mat and take the cab-dash apart to clean up the MESS jan2_17_001_480x640.jpgjan2_17_002_480x640.jpgjan2_17_003_640x480.jpgShameless,,, I started the other way,, start at the 3 pt and work to the front,, DR. and t-bran... yea, I already knew not to go any further than just to fix the leak,,just the one small o-ring left,,,I did not see where it went,,hope I didn't F something up by not replacing it too I ran the tractor for about 30 minutes,,,so far, no leaks...
|
|
Michael V (NM)
Orange Level Access
Joined: 12 Sep 2009
Location: NM
Points: 2404
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2017 at 8:28pm |
|
for some reason the little tree with the up-arrow didn't work,,sorry,,click the links
crap.....
|
|
shameless (ne)
Orange Level
Joined: 08 Jul 2016
Location: nebraska
Points: 7463
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2017 at 10:22pm |
|
wow...you did tear a lot apart to gits to it!
|
|
shameless (ne)
Orange Level
Joined: 08 Jul 2016
Location: nebraska
Points: 7463
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2017 at 10:28pm |
|
when you send me a paycheck from that production ag business, then you can tell me what to do. until then.....
|
|
shameless (ne)
Orange Level
Joined: 08 Jul 2016
Location: nebraska
Points: 7463
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2017 at 10:34pm |
|
I've never had to take that much tin work off any of my tractors, where does that motor sit? then again, none of mine leak....yet.
|
|
Michael V (NM)
Orange Level Access
Joined: 12 Sep 2009
Location: NM
Points: 2404
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Jan 2017 at 9:35am |
|
Yea, I prolly went a little far on sheet metal removal,,I think I didn't hafta take off the top left panel. Jus the top and bottom ones, the most difficult was the 4 bolts that hold the orbit gear to the steering column,,,add some authuritis in,,well let's just say my fingers, wrists, and shoulder letting me know about it now.. Where did I hide the Aleve....
|
|
