Tell me about this Allis Threshing Machine...

 Post Reply Post Reply
Author
Message
DakotaSteve View Drop Down
Orange Level
Orange Level


Joined: 26 Apr 2017
Location: SD
Points: 715
Post Options Post Options   Thanks (0) Thanks(0)   Quote DakotaSteve Quote  Post ReplyReply Direct Link To This Post Topic: Tell me about this Allis Threshing Machine...
    Posted: 29 Jul 2017 at 8:26pm

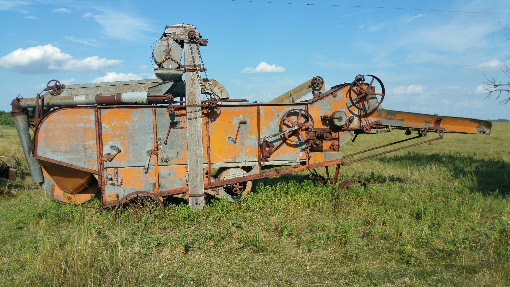

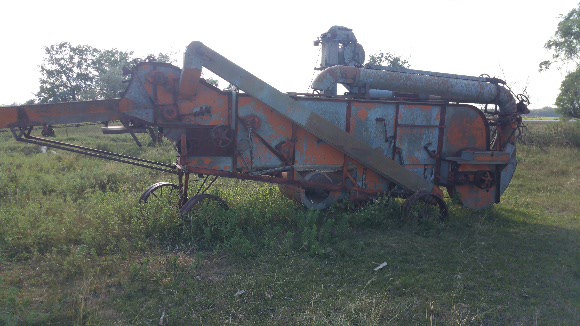

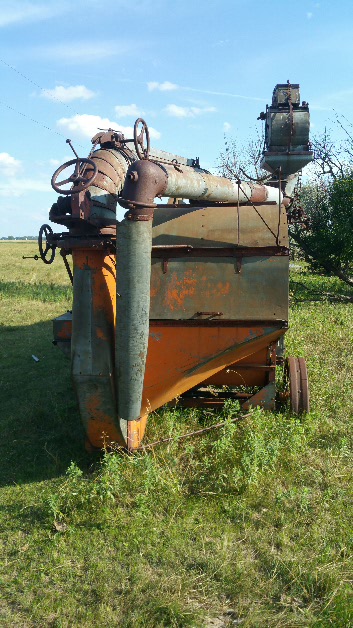

I just recently spotted this threshing machine. The fella is willing to part with it. Could someone tell me more about it? Can a person still get the belts? Am I crazy for thinking I could get this up and running? I have done a lot of fabrication work and am a mechanic by trade.[IMG]uploads/16988/2017-07-29_20_2017-07-29_20-21-51.13_2017-07-29_20-21-51.32_2017-07-29_20-21-51.jpg[/IMG
Back to Top
Sponsored Links


Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8391
Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2017 at 10:43pm
Looks good to me! I'd fix it up! Even if someone was just a shade tree mechanic, it shouldn't be a hard project, so you'll probably breeze through it with your background. To my knowledge, there aren't many of those around.
I believe those are Rumelys painted orange, but I could be wrong.
Yes, you can still get/make belts. Just simple flat belts with splicing in them.
Back to Top
DakotaSteve View Drop Down
Orange Level
Orange Level


Joined: 26 Apr 2017
Location: SD
Points: 715
Post Options Post Options   Thanks (0) Thanks(0)   Quote DakotaSteve Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2017 at 10:48pm
Some of the wood inside gas gone but i think i can make it unless someone makes parts. I just havent seen many AC threshers. Thanks for your post.
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8391
Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2017 at 10:51pm
No problem!
The wood parts should be easy. I rebuilt the left half of the straw rack on one of my 60A All-Crops, but that's a bit smaller than a thrasher. Lol
If you have a bandsaw or tablesaw that will make it much easier
Back to Top
DakotaSteve View Drop Down
Orange Level
Orange Level


Joined: 26 Apr 2017
Location: SD
Points: 715
Post Options Post Options   Thanks (0) Thanks(0)   Quote DakotaSteve Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2017 at 11:06pm
Yup this will need that. Are their any companies that specialize in these? As far as helping with parts....or manuals...?
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8391
Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2017 at 11:22pm
Originally posted by DakotaSteve DakotaSteve wrote:

Yup this will need that. Are their any companies that specialize in these? As far as helping with parts....or manuals...?
That'll be a question for somebody else....eBay might have a manual...maybe...I bet one of the vendors at Hutch had one. Those guys had original manuals/brochures for everything!
Back to Top
DakotaSteve View Drop Down
Orange Level
Orange Level


Joined: 26 Apr 2017
Location: SD
Points: 715
Post Options Post Options   Thanks (0) Thanks(0)   Quote DakotaSteve Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2017 at 11:24pm
I bet i picked up close to 40 manuals there. Great reference material! I didnt know about this thresher then.
Back to Top
Armand(AZ) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Mesa, AZ
Points: 858
Post Options Post Options   Thanks (0) Thanks(0)   Quote Armand(AZ) Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jul 2017 at 7:29am
Steve, wasn't there a machine at Hutch??   Seems I seen  one operating there in years past.   I have never seen a manual for one on Ebay and I check it daily.   Pretty basic machine so it shouldn't be too hard to restore to running condition.  Go for it!!  LOL
Back to Top
Ted in NE-OH View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Nov 2009
Location: Austinburg OH
Points: 1703
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ted in NE-OH Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jul 2017 at 5:08pm
Check with an Amish community they will know who has or makes parts for these.
CA, WD, C, 3 Bs, 2 Gs, WC, I-400, 914
Back to Top
DakotaSteve View Drop Down
Orange Level
Orange Level


Joined: 26 Apr 2017
Location: SD
Points: 715
Post Options Post Options   Thanks (0) Thanks(0)   Quote DakotaSteve Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jul 2017 at 9:36pm
Yes i believe so and if need be i will check with the brass at hutch to see if i can take photos of certain things if it comes to that.
Back to Top
DakotaSteve View Drop Down
Orange Level
Orange Level


Joined: 26 Apr 2017
Location: SD
Points: 715
Post Options Post Options   Thanks (0) Thanks(0)   Quote DakotaSteve Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jul 2017 at 9:36pm
The Amish is a good idea Ted.
Back to Top
DakotaSteve View Drop Down
Orange Level
Orange Level


Joined: 26 Apr 2017
Location: SD
Points: 715
Post Options Post Options   Thanks (0) Thanks(0)   Quote DakotaSteve Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jul 2017 at 9:37pm
I should know by the weeks end if its all gonna come together. I will keep you guys posted.
Back to Top
Ron Eggen View Drop Down
Orange Level
Orange Level


Joined: 15 Sep 2009
Location: Lohman, Missour
Points: 542
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ron Eggen Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jul 2017 at 9:43pm
Talk with Arland Lepper in Iowa, he has one.  A guy in Kansas is/has kept a registry of them , mine is on it.  They look a lot like a 60 combine.  Good Luck.  Go for it.
Back to Top
DakotaSteve View Drop Down
Orange Level
Orange Level


Joined: 26 Apr 2017
Location: SD
Points: 715
Post Options Post Options   Thanks (0) Thanks(0)   Quote DakotaSteve Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jul 2017 at 9:54pm
Ron, very good info. Could you message me more info for this fella or the registry?
Back to Top
combinechris View Drop Down
Silver Level
Silver Level
Avatar

Joined: 20 Jul 2015
Location: wittenberg,Wi.
Points: 424
Post Options Post Options   Thanks (0) Thanks(0)   Quote combinechris Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jul 2017 at 10:25pm
I have 2 of them. They are rumley machines painted the Allis Chalmers orange after Allis Chalmers bought rumley company. They used up the parts stock that rumley company had in it's inventory . Painted the machines,made a few changes to them and offered two sizes.
35 combines and 15 forage harvesters. mostly allis combines and equipment.WTB 2 row cornhead for a 90
Back to Top
combinechris View Drop Down
Silver Level
Silver Level
Avatar

Joined: 20 Jul 2015
Location: wittenberg,Wi.
Points: 424
Post Options Post Options   Thanks (0) Thanks(0)   Quote combinechris Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jul 2017 at 10:26pm
Dakota Steve do you need a manual for it?
35 combines and 15 forage harvesters. mostly allis combines and equipment.WTB 2 row cornhead for a 90
Back to Top
DakotaSteve View Drop Down
Orange Level
Orange Level


Joined: 26 Apr 2017
Location: SD
Points: 715
Post Options Post Options   Thanks (0) Thanks(0)   Quote DakotaSteve Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jul 2017 at 10:30pm
Chris, Thanks for the info. Yes any material would be appreciated. Where u located? Do yours operate?
Back to Top
51ACWD View Drop Down
Silver Level
Silver Level
Avatar

Joined: 24 Dec 2015
Location: United States
Points: 243
Post Options Post Options   Thanks (0) Thanks(0)   Quote 51ACWD Quote  Post ReplyReply Direct Link To This Post Posted: 10 Aug 2017 at 3:38am
I recently just purchased one of these as well. Many people claim that they are Rumely, and the larger sized threshers are, however; this one (22x38 thresher) is in fact Allis made. Yes, they used Rumely's design after they bought them out in 1931. My thresher is a 1936. Some of them say Rumely down the tailings elevator (diagonal elevator) and I believe even fewer had Allis-Chalmers down the side. Rumely's name was kept on some after the buyout as marketing material. Rumely was a well known name and Allis wanted their machine to sell. There were only 705 of these threshers made. As for belts, wouldn't be hard to find an old baler and pull the belts out of it and reuse them. That's my plan anyways!
Back to Top
combinechris View Drop Down
Silver Level
Silver Level
Avatar

Joined: 20 Jul 2015
Location: wittenberg,Wi.
Points: 424
Post Options Post Options   Thanks (0) Thanks(0)   Quote combinechris Quote  Post ReplyReply Direct Link To This Post Posted: 10 Aug 2017 at 6:27am
Both my 22x38 A-C threshers are all Rumley except for the few Allis parts used by Allis. Also my Rumley thresher looks identical except cosmetic changes to it.. also in my Rumley thresher literature book it shows the two sizes and compared side by side to Allis Chalmers they are the same machines. Allis Chalmers just used the inventory that Rumley had in stock til used up. So no Allis didn't build there own threshing machine. Allis Chalmers never had a threshing machine til they bought Rumley and dropped all but the two sizes which they sold under the allis name til inventory was depleted.


Edited by combinechris - 10 Aug 2017 at 7:16am
35 combines and 15 forage harvesters. mostly allis combines and equipment.WTB 2 row cornhead for a 90
Back to Top
combinechris View Drop Down
Silver Level
Silver Level
Avatar

Joined: 20 Jul 2015
Location: wittenberg,Wi.
Points: 424
Post Options Post Options   Thanks (0) Thanks(0)   Quote combinechris Quote  Post ReplyReply Direct Link To This Post Posted: 10 Aug 2017 at 7:25am
the 22x36 Allis Chalmers - Rumley threshers were built as distinctively A-C machines as a means of using up parts inventory from Rumely.
35 combines and 15 forage harvesters. mostly allis combines and equipment.WTB 2 row cornhead for a 90
Back to Top
DakotaSteve View Drop Down
Orange Level
Orange Level


Joined: 26 Apr 2017
Location: SD
Points: 715
Post Options Post Options   Thanks (0) Thanks(0)   Quote DakotaSteve Quote  Post ReplyReply Direct Link To This Post Posted: 18 Aug 2017 at 8:29pm
All great info.
Back to Top
TERDAL View Drop Down
Silver Level
Silver Level
Avatar

Joined: 26 Oct 2013
Location: Richmond, Mo.
Points: 148
Post Options Post Options   Thanks (0) Thanks(0)   Quote TERDAL Quote  Post ReplyReply Direct Link To This Post Posted: 18 Dec 2017 at 2:25pm
As well to get info for our machine.  Arland Leppers contact info

Edited by TERDAL - 18 Dec 2017 at 2:32pm
Back to Top
Lonn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29781
Post Options Post Options   Thanks (0) Thanks(0)   Quote Lonn Quote  Post ReplyReply Direct Link To This Post Posted: 18 Dec 2017 at 2:54pm
Does the All-Crop design get anything from the Rumley or was the All-Crop a completely new machine.
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8391
Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 18 Dec 2017 at 8:11pm
Originally posted by Lonn Lonn wrote:

Does the All-Crop design get anything from the Rumley or was the All-Crop a completely new machine.
The All-Crop got nothing from the Rumley threshers. They were a different animal all together.
Back to Top
CJKile906 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Nov 2024
Location: Michigan
Points: 27
Post Options Post Options   Thanks (0) Thanks(0)   Quote CJKile906 Quote  Post ReplyReply Direct Link To This Post Posted: 06 Nov 2024 at 2:12pm
Im hoping this forum is still active and that someone could help me indetify make/ year/ model of this old Allis Chalmers/Rumley threshing machine my father in law wants to get restored. I'm going to create a post tonight and get pictures uploaded of this beautifuul machine, as comparing it to similar machines online my guessis; this one is either a 1935,36, or 37. But its hard to tell and we cant find a serial or model number anywhere. ANY HELP is much appreciated. Thanks in advance
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8389
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 06 Nov 2024 at 9:40pm
Welcome to the forum. Good luck. Sounds like an interesting project.
Creston is still on here and probably will have good info. Combinechris hasn’t been on here in a year but lists a email, maybe try that.
Back to Top
combinechris View Drop Down
Silver Level
Silver Level
Avatar

Joined: 20 Jul 2015
Location: wittenberg,Wi.
Points: 424
Post Options Post Options   Thanks (0) Thanks(0)   Quote combinechris Quote  Post ReplyReply Direct Link To This Post Posted: 07 Nov 2024 at 12:47pm
The serial number for your threshing machine is on the left side up above and behind the cylinder pulley on the separator body when standing in front of the machine.
35 combines and 15 forage harvesters. mostly allis combines and equipment.WTB 2 row cornhead for a 90
Back to Top
CJKile906 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Nov 2024
Location: Michigan
Points: 27
Post Options Post Options   Thanks (0) Thanks(0)   Quote CJKile906 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Nov 2024 at 12:31am
what was the model of this thresher? Thanks in advance
Back to Top
combinechris View Drop Down
Silver Level
Silver Level
Avatar

Joined: 20 Jul 2015
Location: wittenberg,Wi.
Points: 424
Post Options Post Options   Thanks (0) Thanks(0)   Quote combinechris Quote  Post ReplyReply Direct Link To This Post Posted: 19 Nov 2024 at 6:48am
It's a 22x36 machine.
35 combines and 15 forage harvesters. mostly allis combines and equipment.WTB 2 row cornhead for a 90
Back to Top
