Unofficial Allis Homepage
Forum Home Forum Home > Allis Chalmers > Farm Equipment
  New Posts New Posts
  FAQ FAQ  Forum Search   Events   Register Register  Login Login


Stupid electrical question

 Post Reply Post Reply
Author
Message
dr p View Drop Down
Silver Level
Silver Level


Joined: 24 Feb 2019
Location: new york
Points: 269
Post Options Post Options   Thanks (0) Thanks(0)   Quote dr p Quote  Post ReplyReply Direct Link To This Post Topic: Stupid electrical question
    Posted: 07 Apr 2021 at 7:08pm
I have a wd 45 6 volt positive ground. When I rebuilt the motor, I rewired the tractor and had the generator upgraded to a voltage regulator. What do I do with the wire that went from resistor to the field generator. Do I still hook it up?
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56607
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Apr 2021 at 7:51pm

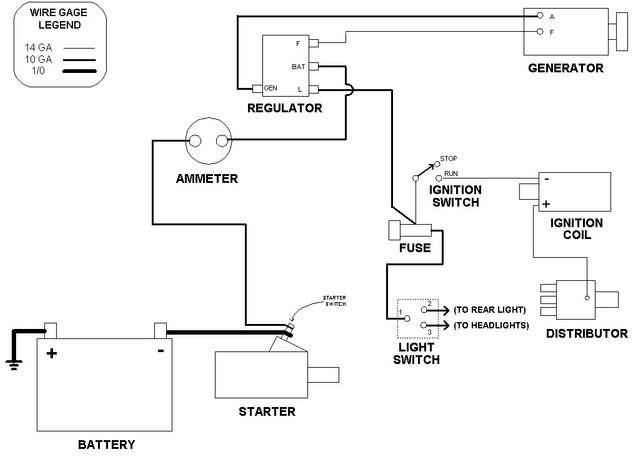

you no longer need the wire or the resistor.  The REGULATOR is going to adjust the voltage and current.  Generator should have 3 wires.. BAT goes to the amp meter ... two other terminals are ARMATURE (GEN) and FIELD (F) ... those two go the the generator.. You may or may not have a GROUND wire... Make sure you regulator is grounded good, or has a ground wire to the frame.
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56607
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Apr 2021 at 7:54pm
you may or may not have an "L" terminal... it is sometimes part of the BAT terminal.


Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
dr p View Drop Down
Silver Level
Silver Level


Joined: 24 Feb 2019
Location: new york
Points: 269
Post Options Post Options   Thanks (0) Thanks(0)   Quote dr p Quote  Post ReplyReply Direct Link To This Post Posted: 07 Apr 2021 at 7:58pm
Should I then get a two position switch?
Back to Top
dr p View Drop Down
Silver Level
Silver Level


Joined: 24 Feb 2019
Location: new york
Points: 269
Post Options Post Options   Thanks (0) Thanks(0)   Quote dr p Quote  Post ReplyReply Direct Link To This Post Posted: 07 Apr 2021 at 8:18pm
Should I then get a two position switch?
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 56607
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Apr 2021 at 8:24pm
You can keep your present switch... Just doesnt do anything extra with the generator.. all it controls is the lights.. Resistor can just go along for the ride.. If you WANT to make it more simple, you can get an ON- OFF head light switch.... But not necessary.
Trump Is Not A Lib or Conserv, He's a "Pragmatist." (someone who is practical and focused on reaching a goal. Has a straightforward, matter-of-fact approach and doesn't let emotion distract him or her
Back to Top
dr p View Drop Down
Silver Level
Silver Level


Joined: 24 Feb 2019
Location: new york
Points: 269
Post Options Post Options   Thanks (0) Thanks(0)   Quote dr p Quote  Post ReplyReply Direct Link To This Post Posted: 08 Apr 2021 at 5:53am
Thanks steve
Back to Top
 Post Reply Post Reply
  Share Topic

Forum Jump Forum Permissions View Drop Down

Forum Software by Web Wiz Forums® version 11.10
Copyright ©2001-2017 Web Wiz Ltd.

This page was generated in 0.092 seconds.


Help Support the
Unofficial Allis Forum
