Steiner Brake Pin Removal Tool
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
1terrygladys View Drop Down
Silver Level
Silver Level
Avatar

Joined: 03 Oct 2013
Location: SW Iowa
Points: 261 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 1terrygladys Quote  Post ReplyReply Direct Link To This Post Topic: Steiner Brake Pin Removal Tool
    Posted: 08 Sep 2016 at 9:13am
I was looking at the Steiner Tractor Parts site and found a special Brake Pin Removal Tool for AC WDs, WD-45s and early D17s.  Wondering if anyone had ever used one.  I need to replace brake pads on my wd-45 and know these pins can be very difficult to remove.  Don't want to spend $68.45 + shipping on a tool that doesn't work well.

Thanks for your replies!  God bless.
Terry
WD-45, WD, Unstyled WC, SC Disk, JD 4430D, JD 4010D, JD B, Iowa pastor & disciple of Jesus Christ
Back to Top
Sponsored Links


Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 9:53am
Start by soaking the pin with your fav panther Pi$$. Give it a shot every few days for as long a time as you have to put the job off.
 I think several guys have used the "store bought " ones, and some have made their own version. Some have worked the pins out after soaking and some just reach inside and cut the pin and drive it in to cut it again until the brake shoe can be removed. This might call for long sleeved welding shirt and some good gloves.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Stan IL&TN View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Elvis Land
Points: 6730 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Stan IL&TN Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 10:30am
Soaking the pin and patience is your best bet. Only if you do these brake jobs for a living where time is money would buying the tool make sense to me. Soaking, heat and a small pipe wrench worked for me.
1957 WD45 dad's first AC

1968 one-seventy

1956 F40 Ferguson
Back to Top
Fred in Pa View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Fred in Pa Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 11:07am

If u have a touch set U have the tool u need
He who dies with the most toys is,
nonetheless ,still dead.
If all else fails ,Read all that is PRINTED.
Back to Top
shameless (ne) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Jul 2016
Location: nebraska
Points: 7463 		Post Options Post Options   Thanks (0) Thanks(0)   Quote shameless (ne) Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 3:40pm
does Rachel come with it?
Back to Top
WDDave View Drop Down
Silver Level
Silver Level


Joined: 02 Jun 2016
Location: pa
Points: 68 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WDDave Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 4:25pm
shamless, that is a good question LOL.

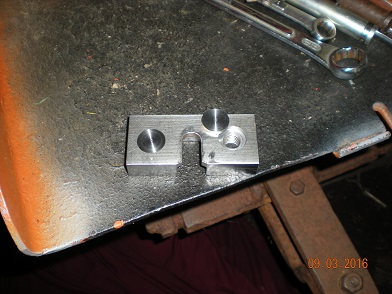

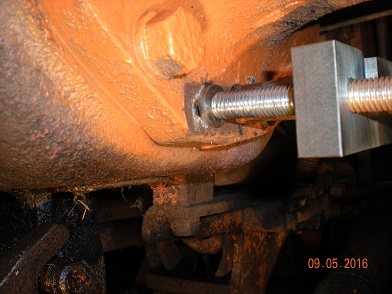

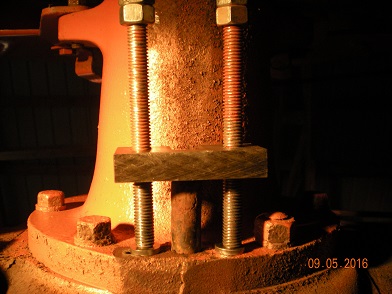

   Any way I would say they would work I didn't buy one but made my own.
I recently did the brakes on my WD,
WD ,wide front, with loader
Back to Top
Dave in PA View Drop Down
Orange Level
Orange Level


Joined: 13 Sep 2009
Location: Mars/Wexford PA
Points: 2627 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dave in PA Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 4:40pm
Originally posted by shameless (ne) shameless (ne) wrote:

does Rachel come with it?



And if she did??? Would ya go out and buy a wd?
Back to Top
GaryL View Drop Down
Orange Level
Orange Level


Joined: 18 Jan 2015
Location: Oklahoma
Points: 704 		Post Options Post Options   Thanks (0) Thanks(0)   Quote GaryL Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 6:38pm
$68 is cheap compared to a lot of swearing and fighting old parts.  I recently replaced the trailing arm bushings in my Mazda 3 which required a $200 special tool.  Overall, that tool saved me a lot of time and frustration, not to mention I can always sell it down the road and recoup a majority of my funds.

So, you could buy the tool, use it once, and then sell it in the classifieds (*hint*) to someone who will be doing a WD brake job down the road.
Back to Top
DougS View Drop Down
Orange Level
Orange Level
Avatar

Joined: 03 Nov 2011
Location: Iowa
Points: 2490 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougS Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 7:31pm
You're still going to have to soak the pin. Lest you break the head off the pin with the tool.
Back to Top
Tim NH View Drop Down
Orange Level Access
Orange Level Access


Joined: 16 Oct 2012
Location: Lancaster NH
Points: 1103 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tim NH Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 7:39pm
I just pulled one brake pin out, w/ a puller I made. Took me about 2 hours to get it out. I quickly found after slamming the weight , I couldn't move the brake shoes. So I moved them both back and forth. Then slam the weight 3 or 4 times, then loosen brakes again. I just kept doing that till it came out. I did use a torch w/ mapp gas at first. There is a lot of steel around that pin. So I don't know how effective that was.  I have $18.00 in the puller.
1950 WD 1959 D14 1955 WD45 1976 7000 B 207
Back to Top
1terrygladys View Drop Down
Silver Level
Silver Level
Avatar

Joined: 03 Oct 2013
Location: SW Iowa
Points: 261 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 1terrygladys Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 8:38pm
Thank you all for your help.  Your experience and skills are awesome.  Thank you for sharing.  This forum is awesome!

Shameless, I didn't see any note in the online catalog about Rachael coming with the tool.  I'm certain it would have a decidedly higher price if she did.  That girl is a good, and she reminds me of my daughter.

I will probably buy one of the tools, or make my own, like you guys did.  THANK YOU!

God bless,
Terry
WD-45, WD, Unstyled WC, SC Disk, JD 4430D, JD 4010D, JD B, Iowa pastor & disciple of Jesus Christ
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 9:27pm
If the pin is halfway free, any puller will pull it, BUT if the pin is TIGHT, all the pullers in the world will not move it.
 I would not give 15 cents for all the pullers out there.
 Drill a 3/4 hole in a piece of 1/4x1 1/4x24 flat iron, Slide Over pin and weld. After heating and soaking for a time, start working back and forth. If pin don' t move, twist head off and get the torch after the pin.       MACK
Back to Top
shameless (ne) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Jul 2016
Location: nebraska
Points: 7463 		Post Options Post Options   Thanks (0) Thanks(0)   Quote shameless (ne) Quote  Post ReplyReply Direct Link To This Post Posted: 08 Sep 2016 at 10:17pm
Dave...if she did, I sure would buy the tool!
Back to Top
DougS View Drop Down
Orange Level
Orange Level
Avatar

Joined: 03 Nov 2011
Location: Iowa
Points: 2490 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougS Quote  Post ReplyReply Direct Link To This Post Posted: 09 Sep 2016 at 7:32am
I noticed in the Utube video of Rachel demonstrating the D-17 brake job that she didn't use the tool. She went on to say how difficult the pin removal was and how they ended up using a torch. She only mentioned the tool after the job was completed. This tells me the tool didn't work in this stubborn case.
Back to Top
shameless (ne) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Jul 2016
Location: nebraska
Points: 7463 		Post Options Post Options   Thanks (0) Thanks(0)   Quote shameless (ne) Quote  Post ReplyReply Direct Link To This Post Posted: 09 Sep 2016 at 11:42am
maybe she didn't know about the tool til after the vid was mostly done?
Back to Top
Brian Jasper co. Ia View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Prairie City Ia
Points: 10508 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian Jasper co. Ia Quote  Post ReplyReply Direct Link To This Post Posted: 09 Sep 2016 at 12:18pm

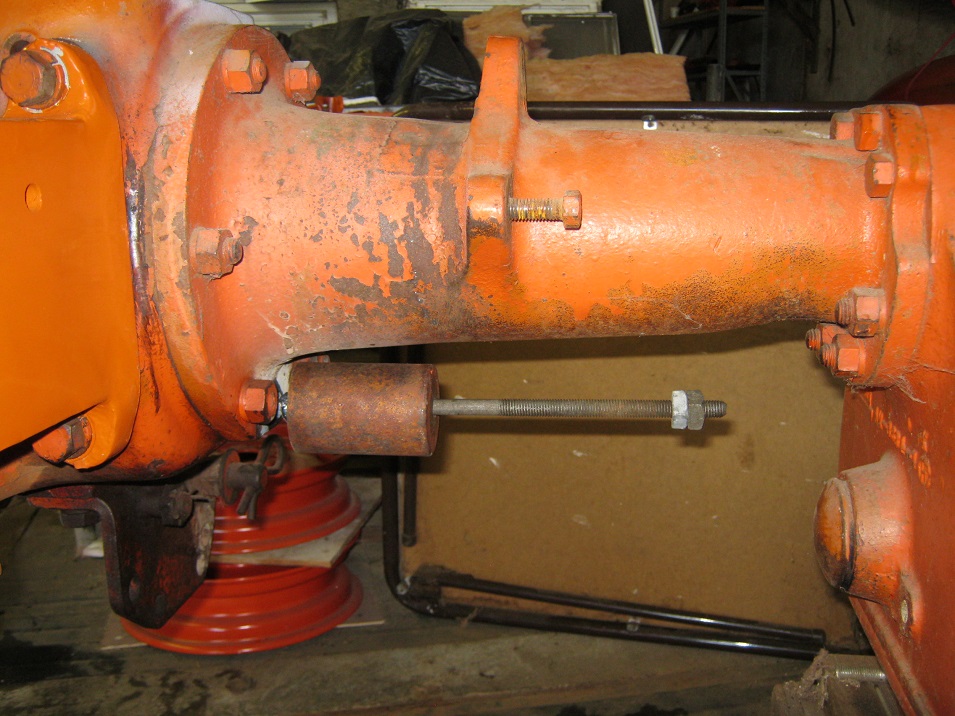

What I did on mine was weld a 1/2" grade 8 bolt about as long as the pin to the head of the pin. Next a piece of pipe slipped over the bolt with an old harmonic damper bolt washer, my lug nut installing thrust bearing and pulled them quickly and easily. As much pressure as it took to pull them, I'm certain it would have been quite a battle any other way.
"Any man who thinks he can be happy and prosperous by letting the government take care of him better take a closer look at the American Indian." Henry Ford
Back to Top
