Sp100 combine settings
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
N186364 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 05 Jan 2020
Location: Ontario, Canada
Points: 25 		Post Options Post Options   Thanks (0) Thanks(0)   Quote N186364 Quote  Post ReplyReply Direct Link To This Post Topic: Sp100 combine settings
    Posted: 02 Mar 2020 at 1:38pm
Does anyone have a chart or adjustment guide for the crop rolls located at the top end of the feeder house just ahead of the cylinder on the All Crop SP100 combine ? These crop rolls are adjustable and spring tensioned, one of the rolls is steel the other is rubber coated.  I have read where they should be set at 1/16" gap at a minimum but I have not seen a guide on how to set them up for wheat or soybeans etc. Any help would be most welcome.
Back to Top
Sponsored Links


Back to Top
DennisA (IL) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DennisA (IL) Quote  Post ReplyReply Direct Link To This Post Posted: 02 Mar 2020 at 6:51pm

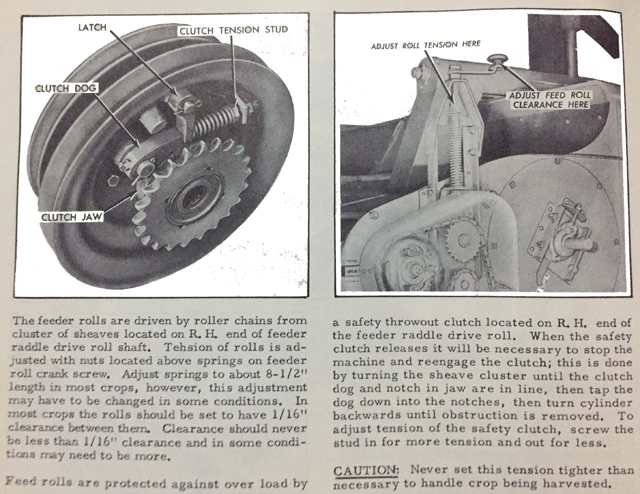

I've never seen any more info about the rollers. As long as the clutch is not slipping you should be good.
Thanks & God Bless

Dennis
Back to Top
N186364 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 05 Jan 2020
Location: Ontario, Canada
Points: 25 		Post Options Post Options   Thanks (0) Thanks(0)   Quote N186364 Quote  Post ReplyReply Direct Link To This Post Posted: 02 Mar 2020 at 7:34pm
OK, thanks Dennis. This is helpful.
Back to Top
