donw Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 27 Dec 2009 Location: Washington Points: 43	Post Options Post Reply Quote donw Report Post Thanks(0) Quote Reply Topic: Shuttle Clutch R & R Posted: 15 Feb 2010 at 8:12pm

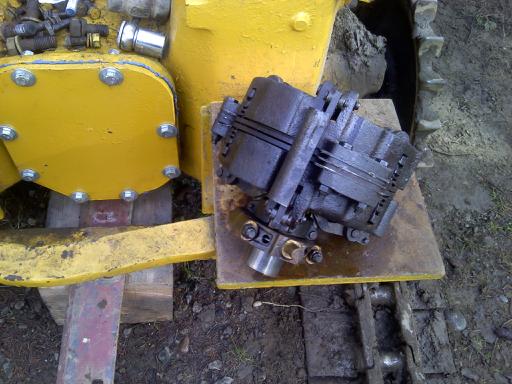

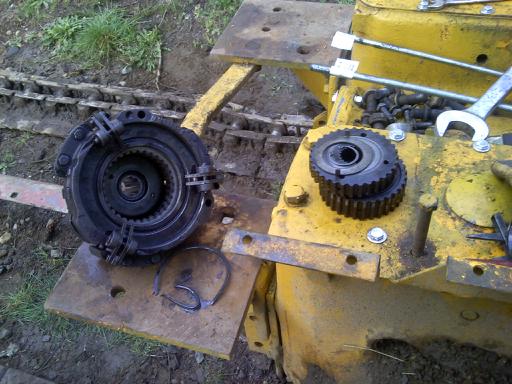

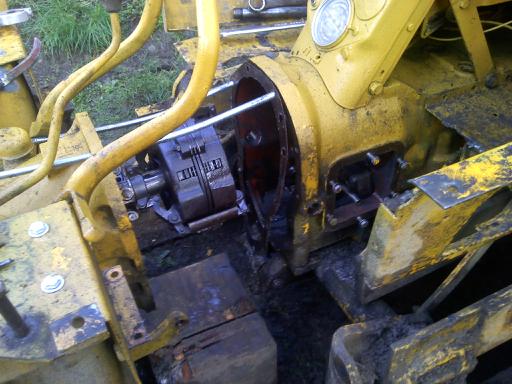

	Not rest or relaxation by any means! I removed the shuttle clutch today because I was having an issue with the machine not wanting to go backwards . Things came apart fairly easy but everything is so darn heavy... I used some allthread rod to help keep both halves of the machine in some sort of alignment. The throwout bearing needs to be replaced and I found one of the large C clips laying at the bottom of the case all beat up(shown in the bottom picture). It looks like one of the previous owners got a good deal on shims because there are more in there than is needed. After I took the shuttle clutch apart, I compared what I have to what my manual says I "should" have. The manual says I should have 4 disks in the low (front) half of the clutch and 3 in the rear half. I have 3 in each half. Anyone know for sure how many clutch disks I'm supposed to have and also what the spring length is supposed to be for each half. Thank you much! Don

Sponsored Links

Ages Cat Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Sep 2009 Location: Hutchinson, MN Points: 688	Post Options Post Reply Quote Ages Cat Report Post Thanks(0) Quote Reply Posted: 15 Feb 2010 at 10:07pm
	The shuttle is shimmed during assembly. I would suggest using the maintenance manual to reassemble it.

Bill Long Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Sep 2009 Location: Bel Air, MD Points: 4556	Post Options Post Reply Quote Bill Long Report Post Thanks(0) Quote Reply Posted: 23 Feb 2010 at 9:41pm
	Don, From memory only. The shuttle assembly or the hi low range assembly must keep the length exactly the same at all times. Therefore is a shim is removed from one clutch one must be replaced in the middle so that the lenght is exactly the same. I believe this has something to do with the linkage intregity. Good Luck! Bill Long

donw Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 27 Dec 2009 Location: Washington Points: 43	Post Options Post Reply Quote donw Report Post Thanks(0) Quote Reply Posted: 25 Feb 2010 at 11:15pm
	an update: These are such nice machines to work on. I rebuilt the shuttle with 3 clutches in each half of the shuttle and adjusted it like the book says. Works like a champ! I admit it looked pretty daunting to imagine splitting this thing in half, but it was pretty easy. I've been pushing dirt for the past week. Now on to gathering the parts to rebuild the diesel engine... You are right in that the sum total of shims need to remain within the shuttle but the individual shim locations can have different thicknesses depending on where they are needed in relationship to the thickness of the bellville washers located within the pressure plates. Don

orangeman Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Sep 2009 Points: 1812	Post Options Post Reply Quote orangeman Report Post Thanks(0) Quote Reply Posted: 26 Feb 2010 at 7:39am
	Don: Good to hear you got the Shuttle back together and working fine. Keep up the good work. Can you post a pic of your litte H-3 beauty?

Kipn Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Sep 2009 Location: Tewksbury, Ma Points: 800	Post Options Post Reply Quote Kipn Report Post Thanks(0) Quote Reply Posted: 26 Feb 2010 at 11:44am
	Glad to see you got it running Don. They are of a simple design easy to work on. Mine is still apart in the garage. Have been waiting for my free welder to come over.
