Series 15 Straight harrow disc parts
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Spuds View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 30 Mar 2020
Location: Forest Lake, MN
Points: 19 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Spuds Quote  Post ReplyReply Direct Link To This Post Topic: Series 15 Straight harrow disc parts
    Posted: 13 Apr 2020 at 4:12pm

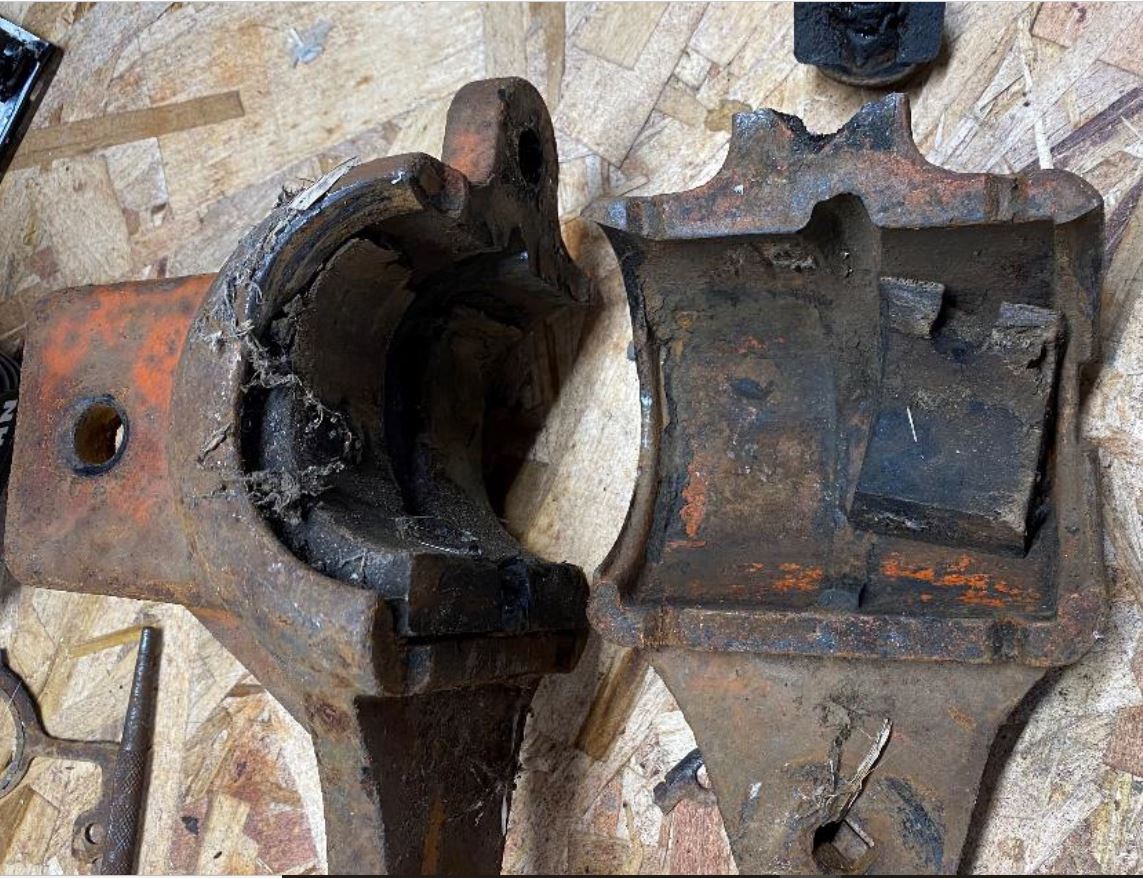

I am looking for some help locating parts to an Allis-Chalmers  No. 15 Series, 15 foot, single action tractor disc harrow.  The part with the bearing (wood bearings) broke and I had to take the one gang off.  the castings has two zurk fittings and has a number on the casting of 300626.bearing housinguploads/20858/Bearing_for_Disc.JPG
Back to Top
Sponsored Links


Back to Top
Spuds View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 30 Mar 2020
Location: Forest Lake, MN
Points: 19 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Spuds Quote  Post ReplyReply Direct Link To This Post Posted: 13 Apr 2020 at 4:14pm
bearing housing wood bearing
Back to Top
Spuds View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 30 Mar 2020
Location: Forest Lake, MN
Points: 19 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Spuds Quote  Post ReplyReply Direct Link To This Post Posted: 13 Apr 2020 at 4:16pm

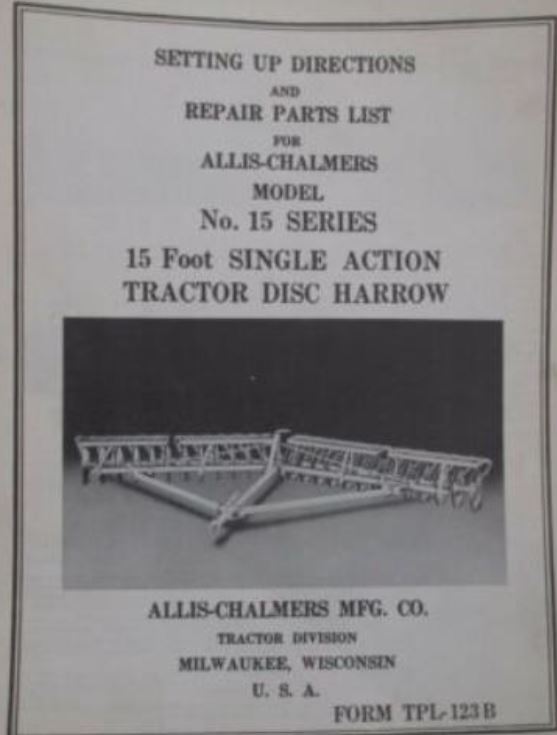

uploads/20858/manual_for_No._15.JPGmanual 1
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8417 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 13 Apr 2020 at 7:26pm
Ok I looked the casting number up, 300626 says bearing fitting 14,15,115 and numbers around it, 300625 bearing and 300627 cap and 300628 spool. Hoping the 300625 is what you need. Have cards on 300625 and 300627 and 300628 but will have to look to be sure.

Edited by Mikez - 13 Apr 2020 at 7:27pm
Back to Top
Spuds View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 30 Mar 2020
Location: Forest Lake, MN
Points: 19 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Spuds Quote  Post ReplyReply Direct Link To This Post Posted: 13 Apr 2020 at 9:52pm
Really? This is great! I about gave up hope.
Can’t wait to hear if there are parts to repair with. Thank you for your time on this.
