Road Grader Help

 Post Reply Post Reply
Author
Message
Brinkley View Drop Down
Bronze Level
Bronze Level


Joined: 25 Jun 2019
Location: Colorado
Points: 3
Post Options Post Options   Thanks (0) Thanks(0)   Quote Brinkley Quote  Post ReplyReply Direct Link To This Post Topic: Road Grader Help
    Posted: 25 Jun 2019 at 10:46am
HI all.

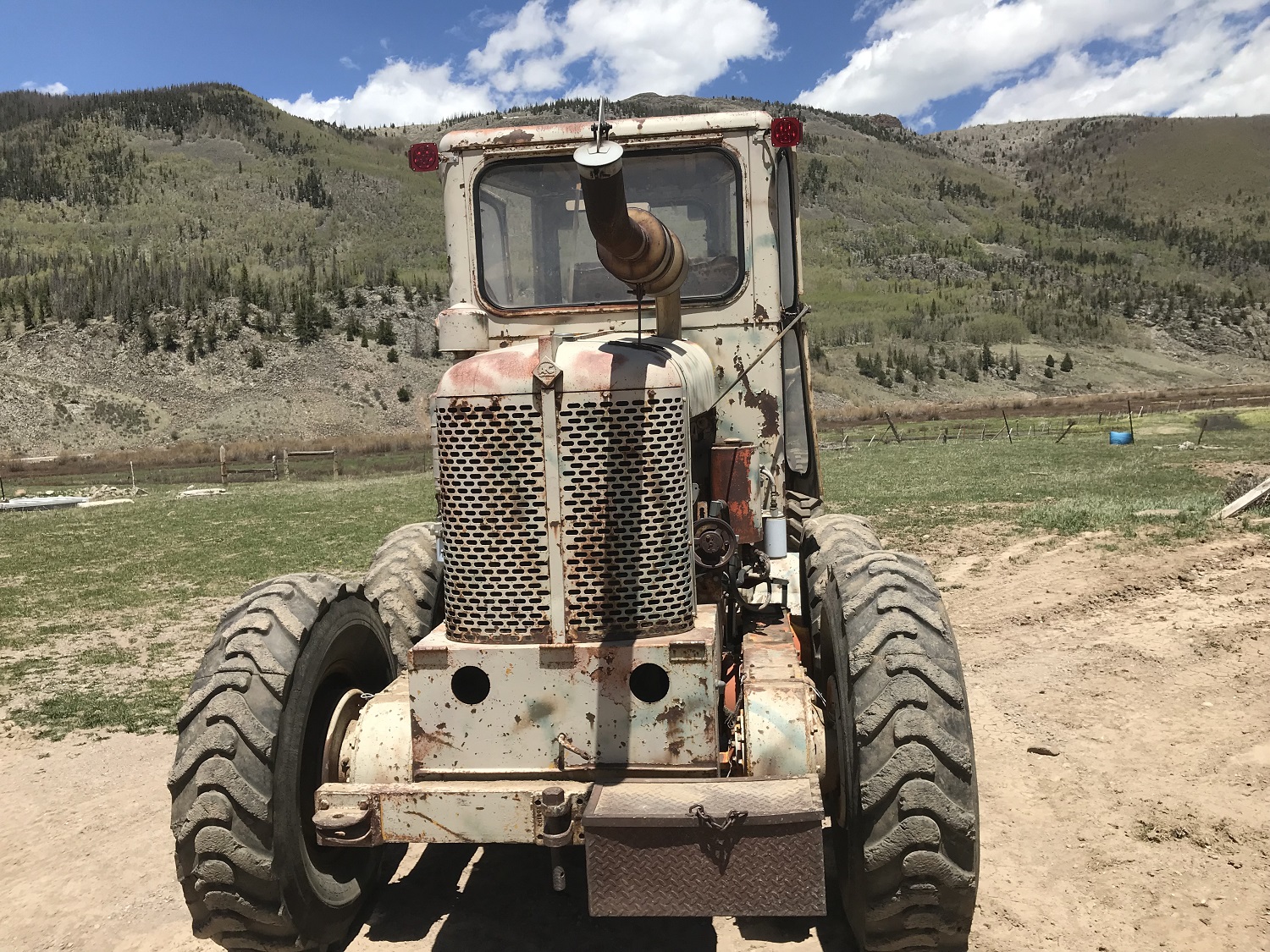

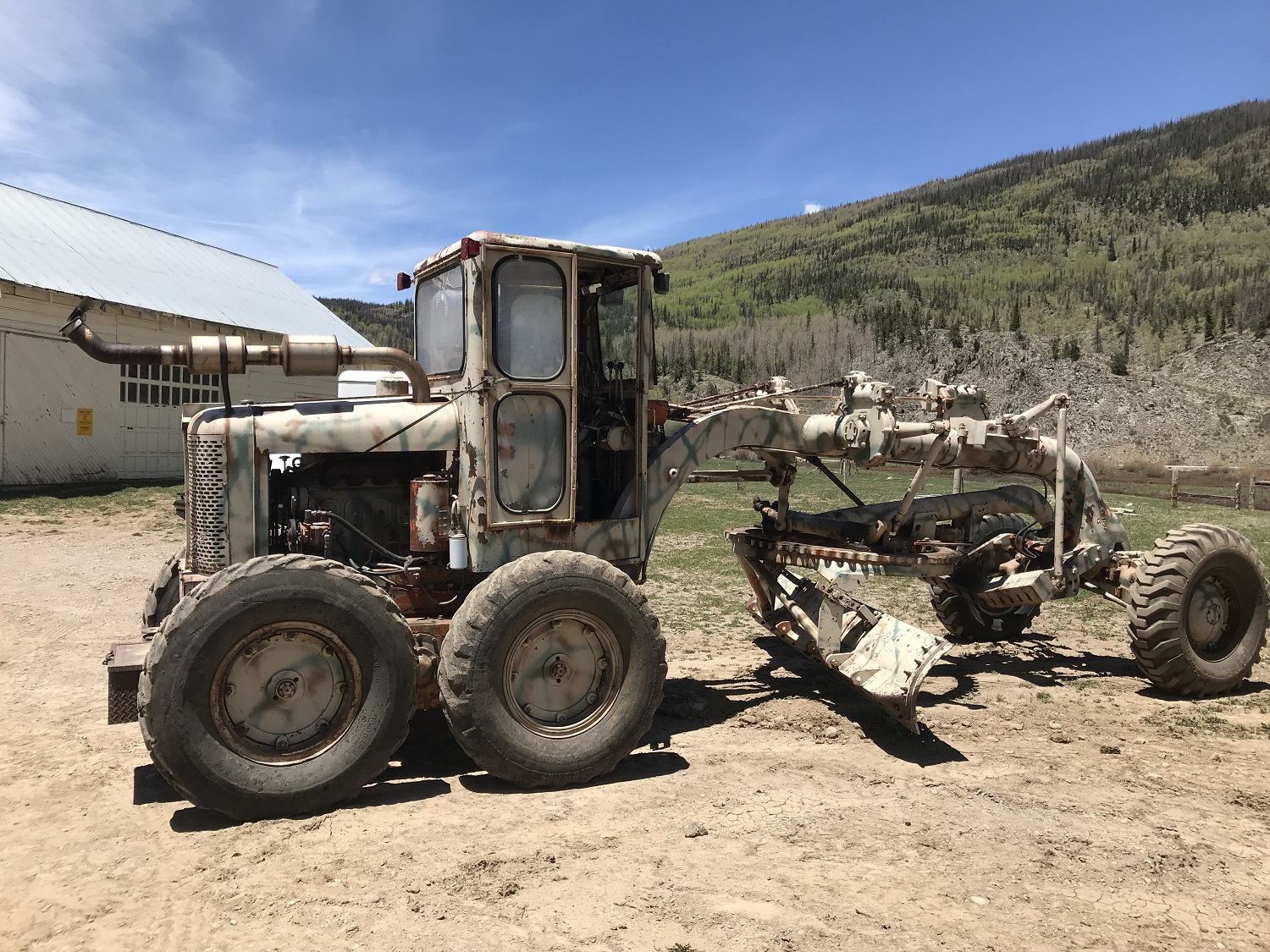

Does anyone have any idea of model year of this grader?
Im guessing late 40's early 50's.  I purchased it and it's scheduled
to be here tmrw.  I'm trying to find svc manual on it.  I found one
for Allis-Chalmers 45 road grader but its not year specific.  It looks like a 45
when i googled it.
It has a new motor and everything is mechanical but the power steering.
Round frame.  I can locate alot of the grease fitting but I'm sure there's stuff i.ll miss.

Thanks for any help
Thomas
Back to Top
Sponsored Links


Back to Top
CAL(KS) View Drop Down
Orange Level
Orange Level


Joined: 18 Sep 2009
Location: Chapman, KS
Points: 3266
Post Options Post Options   Thanks (0) Thanks(0)   Quote CAL(KS) Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jun 2019 at 10:47am
looks like an AD4 or AD40 with  the 4-71 GM engine.  these would be the predecessors to the 45 which had the AC buda engine.  very similar models with changes to main frame, blade control box and other small items



Edited by CAL(KS) - 25 Jun 2019 at 10:50am
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD10W,HD16

Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, R62, R72 HD15
Back to Top
DonBC View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Courtenay, BC,
Points: 724
Post Options Post Options   Thanks (0) Thanks(0)   Quote DonBC Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jun 2019 at 12:55pm
You may get more responses if you post this on the construction section as well. Just a suggestion.
Jack of all trades, master of none
Back to Top
Brinkley View Drop Down
Bronze Level
Bronze Level


Joined: 25 Jun 2019
Location: Colorado
Points: 3
Post Options Post Options   Thanks (0) Thanks(0)   Quote Brinkley Quote  Post ReplyReply Direct Link To This Post Posted: 26 Jun 2019 at 1:43pm
Thanks I will.
Back to Top
AD3grader View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 12 Dec 2019
Location: Windsor Ontario
Points: 1
Post Options Post Options   Thanks (0) Thanks(0)   Quote AD3grader Quote  Post ReplyReply Direct Link To This Post Posted: 12 Dec 2019 at 8:57pm
AD4
Back to Top
SteveM C/IL View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 5156
Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 12 Dec 2019 at 10:55pm
AD4...need a 6-71 for pushing V plow in big drifts
Back to Top
DiyDave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 32888
Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 13 Dec 2019 at 4:36am
Look for the Data plate, on bottom rail of the cab, where you step up into operators position.  Right side, IIRR...Wink
Source: Babylon Bee
Back to Top
SteveM C/IL View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 5156
Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 13 Dec 2019 at 9:16am
AD40 had 2 year levers up through floor.Pwr steering wasn't around when that was made. Should have electric brakes. A 40 was an improvement over 4. Moved gear boxes for better visibility.
Back to Top
ac fleet View Drop Down
Orange Level
Orange Level


Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 1444
Post Options Post Options   Thanks (0) Thanks(0)   Quote ac fleet Quote  Post ReplyReply Direct Link To This Post Posted: 13 Dec 2019 at 2:22pm
Not a fourty five, I had one of them, also had 2 of the BD-3's, they had 3-71 detroits in them.
