Topic: WD Farm Crane
Posted By: iron79head
Subject: WD Farm Crane
Date Posted: 17 Dec 2022 at 11:34am
|
Hello everyone, I am in process of fabricating. Bit of a purist, please bear with. Was original Crane arms, bent to their shape? All photos I have seen appear so…. I’m also needing a measurement…. Where the Crane arms slip over the lift arms, what’s the dimensions, of the 2 “C” shaped pieces? These pieces hold Crane in place. One has quick hitch pin. My book shows that they are not a tight/snug fit. Anyone who has an original, any measurements/ close pictures/with a ruler would be great! Hope you guys are doing well, thanks again! |
Replies:
Posted By: JohnCinMd
Date Posted: 17 Dec 2022 at 5:56pm
| I'll post some pics of mine for you tomorrow. |
Posted By: iron79head
Date Posted: 17 Dec 2022 at 6:16pm
|
That’s awesome. Thank you. |
Posted By: captaindana
Date Posted: 17 Dec 2022 at 6:53pm
|
Interested …can hardly wait! ------------- Blue Skies and Tail Winds Dana |
Posted By: orangereborn
Date Posted: 17 Dec 2022 at 9:11pm
| I am not very good at the search game but maybe someone else can help..this topic has been discussed in depth on this site. Pictures, concepts, measurements....Maybe this subject is eligible to be placed in the knowledge section?? I know I have contributed to that post in the past...HTH....Dale |
Posted By: Travis2766
Date Posted: 17 Dec 2022 at 10:40pm
|
https://allischalmers.com/forum/forum_posts.asp?TID=89408&title=wd-farm-crane" rel="nofollow - https://allischalmers.com/forum/forum_posts.asp?TID=89408&title=wd-farm-crane ------------- 190XT Series III, D17 Series IV, D15 Series II, All Crop 66 and a whole mess of equipment. |
Posted By: iron79head
Date Posted: 18 Dec 2022 at 6:03am
|
Yes,this topic,has been shared,to great extent, and give me instructions on how to get started. I actually received some great information from you Dale,few years ago.I have since acquired a dealers parts catalog for the cranes. I have 4” channel, I just don’t think it was cut? I think, by the pictures, channel looks bent, to fit, not cut. I set up, a bending rig, crude but very effective. Turned out GREAT. After placing bent channels on Allis,in place,lots of clamps,wedge and shims , with careful measurements. I bent flat stock, to surround the the Lift arms, nearest the lift arm bushing. Nice snug fit. I can assume, is needed? Further up the lift arm where the quick hitch pin is, where my question lies. What’s the dimensions, how snug a fit? Going off pictures, in your email sent, and my catalog, these are also For a lack of better words, a free swing ? |
Posted By: JohnCinMd
Date Posted: 18 Dec 2022 at 11:05am

|
Posted By: JohnCinMd
Date Posted: 18 Dec 2022 at 11:23am
| Hope these help. If you need something different, let me know. |
Posted By: JohnCinMd
Date Posted: 18 Dec 2022 at 11:30am

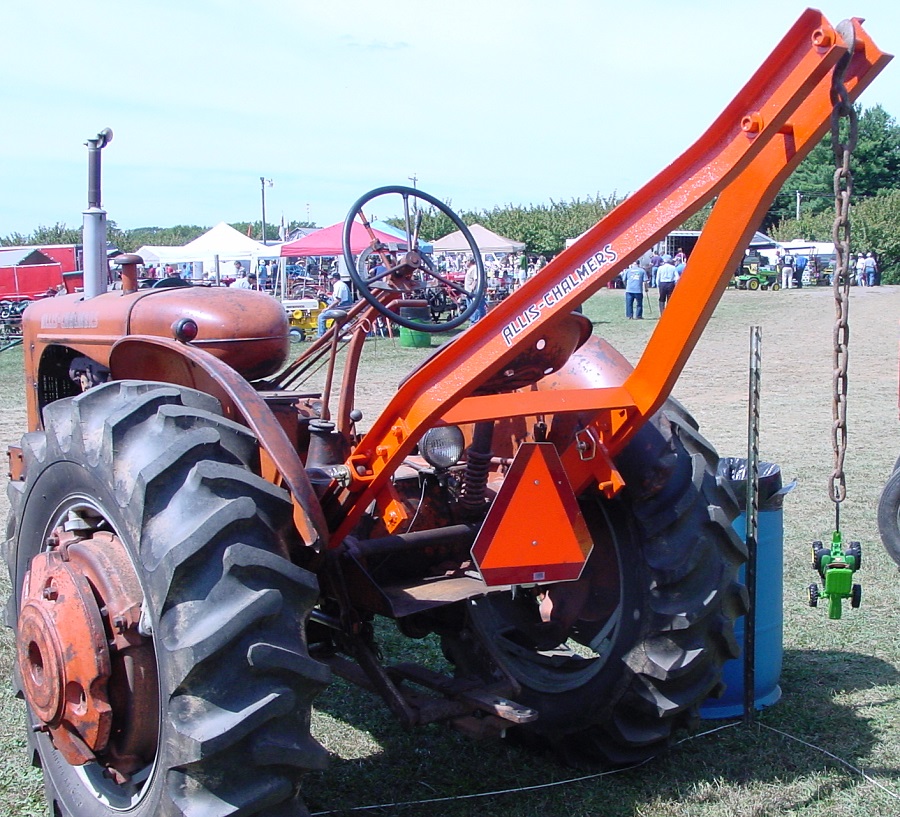

 This is how I display it at shows........ |
Posted By: iron79head
Date Posted: 18 Dec 2022 at 11:43am
|
You ARE THE MAN! Much thanks! |
Posted By: IBWD MIke
Date Posted: 19 Dec 2022 at 8:58am
|
Some day I'm going to build one or possibly two of these things. Ted J sent me the plans for them years ago. TIME is the big reason It's not been accomplished yet! So many stupid little projects I'd like to get kn knocked out but can't seem to get to. |
Posted By: HudCo
Date Posted: 19 Dec 2022 at 9:21am
| how wide is it out at the end between the channels where the chain is hooked hanging the john deere |
Posted By: tadams(OH)
Date Posted: 19 Dec 2022 at 10:42am
Posted By: tadams(OH)
Date Posted: 19 Dec 2022 at 10:45am

|
Posted By: tadams(OH)
Date Posted: 19 Dec 2022 at 10:48am
| There's pictures of my crane the main tube is 42" and the one that slide in is 41" and there was a hook with a swivel on the end till I tryed to drag with it and broke it off. It was copied after a AC one. |
Posted By: Fred in Pa
Date Posted: 19 Dec 2022 at 1:28pm
|
John thanks for painting it for me . LOL i have some literature for these and it shows extra brackets that bolt on at cylinders for more lifting ------------- He who dies with the most toys is, nonetheless ,still dead. If all else fails ,Read all that is PRINTED. |
Posted By: steve(ill)
Date Posted: 19 Dec 2022 at 1:48pm
NOW THATS FUNNY !!! ------------- Like them all, but love the "B"s. |
Posted By: JohnCinMd
Date Posted: 19 Dec 2022 at 2:02pm
4 inches |
HudCo wrote:Posted By: JohnCinMd
Date Posted: 19 Dec 2022 at 2:03pm
;-) |
Posted By: captaindana
Date Posted: 19 Dec 2022 at 5:21pm
|
Lololol that’s hilarious ------------- Blue Skies and Tail Winds Dana |
Posted By: littlemarv
Date Posted: 20 Dec 2022 at 5:26pm
|
Now that I see pictures of an original, mine turned out pretty good! ------------- The mechanic always wins. B91131, WC23065, WD89101, CA29479, B1, Early B10, HB212, 416H |
Posted By: Joe(TX)
Date Posted: 23 Dec 2022 at 4:26pm
Here's a picture of the bale spike someone had on the D19 I bought. ------------- 1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A |
Posted By: Dave (Mid-MI)
Date Posted: 26 Dec 2022 at 5:07pm
| What are the pins mounted on the brackets underneath the frame for? |
Posted By: JohnCinMd
Date Posted: 26 Dec 2022 at 5:48pm
To attach to rams for added lifting strength. |
Posted By: orangereborn
Date Posted: 27 Dec 2022 at 12:40am
|
Posted By: JimIA
Date Posted: 30 Dec 2022 at 9:37pm
Thats a Little Giant. I have a few of them and even some literature for it. ------------- An open eye is much more observant than an open mouth |
Posted By: Mikez
Date Posted: 30 Dec 2022 at 10:26pm
| If you were to have the additional lift rams for that crane. Where do they attach on the tractor end. |
Posted By: orangereborn
Date Posted: 30 Dec 2022 at 11:53pm
 Mike. The original RAM gets removed from its position on the rocker arm shaft and reattached to point number one on the picture I posted. Realistically all it does is extend the length of the original crankshaft arm for more leverage. I have a good pic of it but can not get uploaded...Dale....got it |
Posted By: truckerfarmer
Date Posted: 31 Dec 2022 at 8:12am

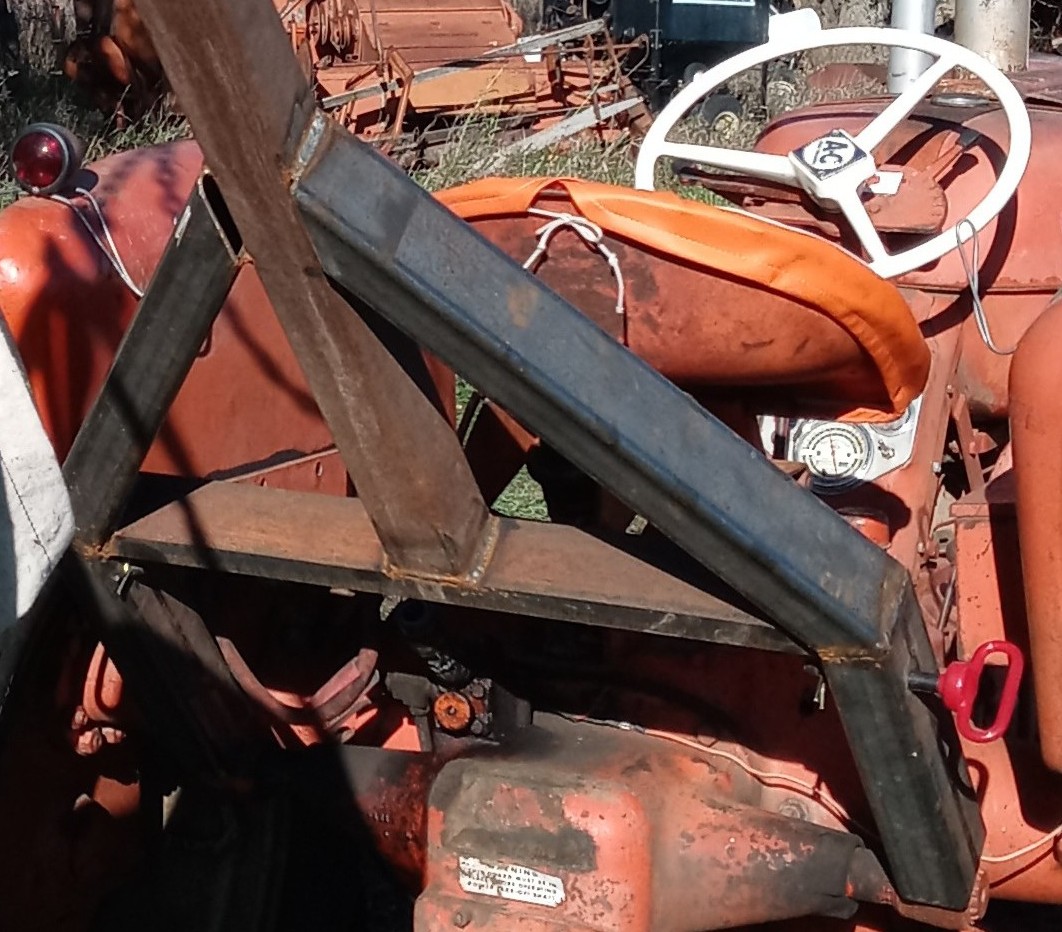

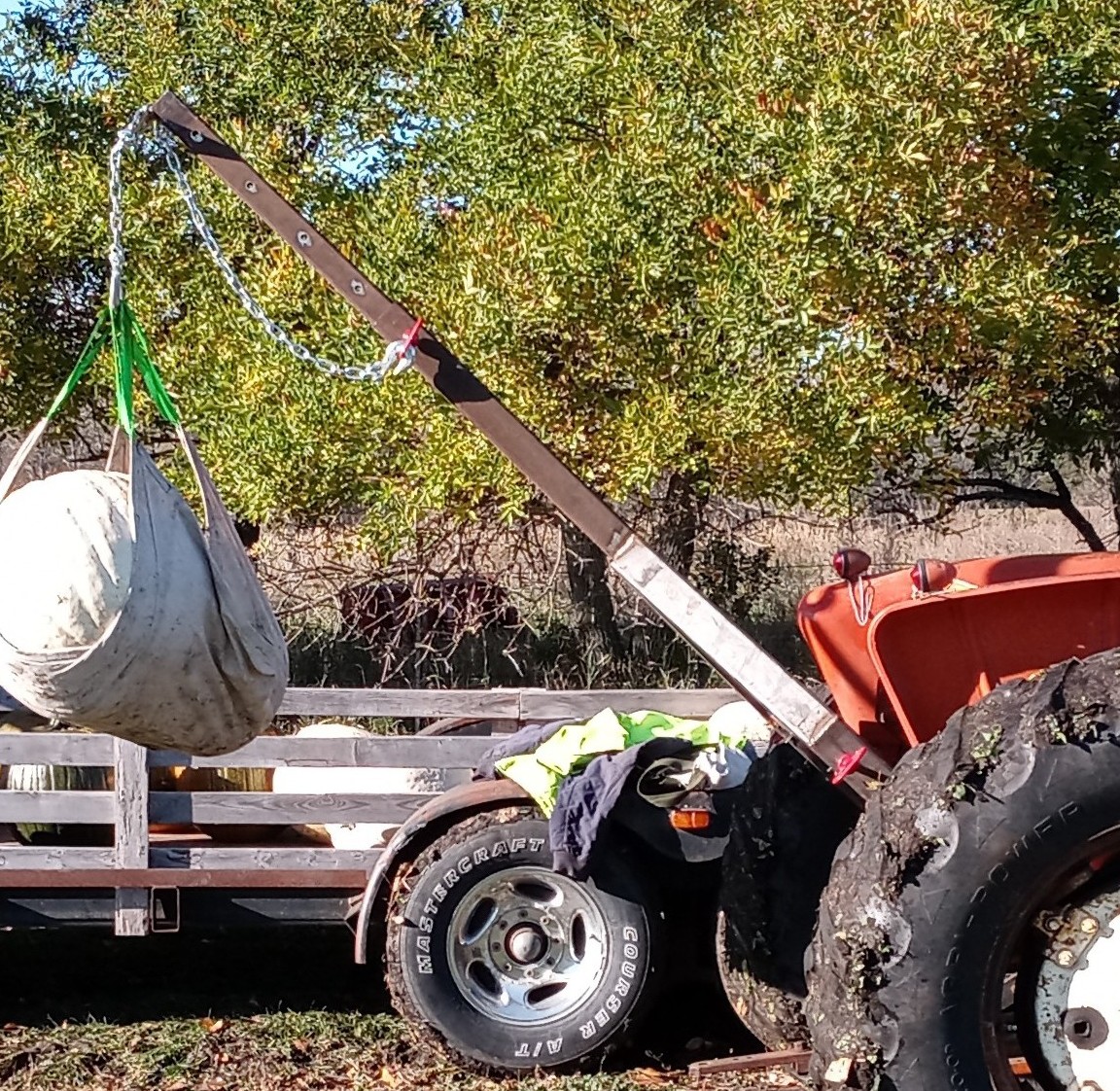

  For you purists, this is definitely not original. This is my farm crane I built a couple years ago on my D17. Mostly built for getting large pumpkins out of the field. Extended fully it is all of 8' above the ground. Haven't used it for anything else, but, was able to lift my #2 3-16 plow with boom retracted. Going from memory, the tubes that slide over the lift arms are 2"x3" 1/4" wall. The telescoping boom is 2"x2"x1/4" inside of 2 1/2" x 2 1/2" x 1/4". On the end of the boom is a plate with keyhole slots so I can adjust the length of the chain. The chain has regular chain hook on one end, and choker hook on other end. The holes that pin it to the lift arms are towards the bottom of the tubes to increase lift angle. ------------- Looking at the past to see the future. '53 WD, '53 WD45, WD snap coupler field cultivator, #53 plow,'53 HD5B dozer Duct tape.... Can't fix stupidity. But will muffle the sound of it! |
Posted By: Fred in Pa
Date Posted: 31 Dec 2022 at 8:30am
 ------------- He who dies with the most toys is, nonetheless ,still dead. If all else fails ,Read all that is PRINTED. |
Posted By: JoeO(CMO)
Date Posted: 31 Dec 2022 at 3:03pm
|
I have a drawing by Rick Mul. I saved off of this site, not sure about posting something I didnt create, he should get the credit for it! It is really good!
|
Posted By: DON G
Date Posted: 04 Jan 2023 at 7:24pm
|
Posted By: DON G
Date Posted: 04 Jan 2023 at 7:26pm
|
