Topic: Allis 620 rectifier and voltage regulator problem
Posted By: MichelM
Subject: Allis 620 rectifier and voltage regulator problem
Date Posted: 29 Aug 2019 at 11:56am
I bought a non functional Allis Chalmers 620 garden tractor. I'm putting the Onan CCKB together and need to replace the broken rectifier and voltage regulator. These two parts seem hard to find and pretty expansive. Has anyone replace them with something else? Is there a single module replacement available without too much modifications? Any help would be appreciated.



Replies:
Posted By: TimCNY
Date Posted: 29 Aug 2019 at 5:56pm
I just replaced one on my 4020 Ingersoll powered by an Onan P-220. $42.95 shipped, could've gone cheaper but this was recommended by many others. The exact same part $85.00 from the local dealer and other local sources. Initially a neighbor took one off his Onan-powered bandsaw mill, but I bought this one and returned his.
https://www.ebay.com/itm/Oregon-Replacement-33-411-Voltage-Regulator-Onan-191-1748-191-2106-191-2277/123840830431?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2060353.m2749.l2649" rel="nofollow - https://www.ebay.com/itm/Oregon-Replacement-33-411-Voltage-Regulator-Onan-191-1748-191-2106-191-2277/123840830431?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2060353.m2749.l2649
Not sure if it's the same as yours requires, but I hope this helps.


Posted By: MichelM
Date Posted: 03 Sep 2019 at 10:09am
Thanks for the reply. Mine is the 2 pieces setup. I have a separate rectifier and voltage regulator. Has anyone done the conversion from the 2 pieces to a single module and what modifications need to be made?


Posted By: AC720Man
Date Posted: 04 Sep 2019 at 8:07pm
I had to replace my stator, rectifier, and voltage regulator due to a deck fire from the previous owner. Your right, not cheap. Over $300 if I remember correctly. That was 8 years ago so I am sure prices have went up. I was doing a restoration so I did not go beyond factory parts. I’m sorry I cant help you with your question.

-------------
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD


Posted By: jaybmiller
Date Posted: 06 Sep 2019 at 8:27am
OK you have...

SR-------->VR--------->key switch

rewire as...

COMBO----------------->key switch

Jay


-------------
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water


Posted By: MichelM
Date Posted: 16 Oct 2019 at 3:25pm
Thanks Jay for the reply. Where would the third wire coming from the stator go? Do I just ignore it?


Posted By: jaybmiller
Date Posted: 17 Oct 2019 at 6:11am
3rd wire ? hmm, I'd have to see a diagram of the setup.
My 'hunch' is that the stator has a ground wire, and 2 'outputs'. In electrical terms it's a 'center tapped' tranfomer.

---------> AC
|
|
---------> GND
|
|
---------> AC

Both AC terminals go to the 'rectifier/regulator' unit
GND is connected to ground

Some B&S engines have the GND connected to a stator mounting screw (under the flywheel), some don't have the 3rd connection , so having a wiring diagram is really helpful. I'm more familiar with B&S stuff, sigh, 33 years worth....but electrical is electrical...

Jay


-------------
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water


Posted By: MichelM
Date Posted: 17 Oct 2019 at 8:50am

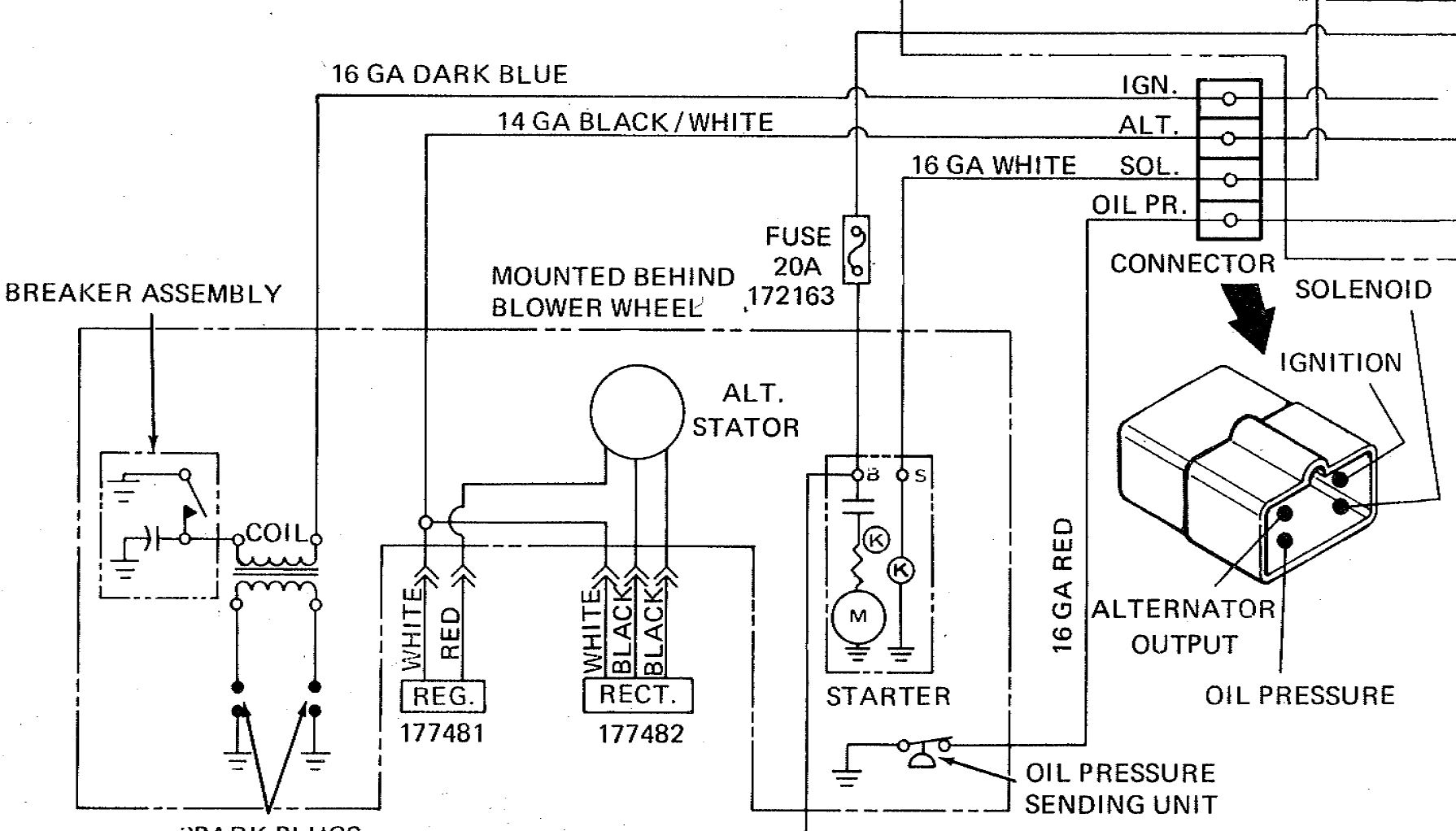

The setup is weird or I just don't understand it. Attached is a picture of the wiring diagram.


Posted By: jaybmiller
Date Posted: 18 Oct 2019 at 6:11am
great  that helps but need to see where thet 14 ga balck/white wire goes right of the connector labelled 'sol.'.
Jay


-------------
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water


Posted By: jaybmiller
Date Posted: 18 Oct 2019 at 7:17am
Ok, I did some 'surfing' and 'thinking'....
What I would do...
connect the 2 black wires from the stator to a 'rectifier/regulator' module
 AC terminals
then connect the 'rectifier/reg module' + terminal to the  white wire of the original 'rect'  module connector
disconnect and tape up the red wire from the stator
remove original 'reg' unit
tape up the white connector of the 'reg' unit.

in short.. remove 'reg' module and tape up those wires, replace the original 'rect' module with a 'rect/reg' module.

clear as mud ?
any problems, I'll try to draw a picture...
Jay


-------------
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water


Posted By: MichelM
Date Posted: 22 Oct 2019 at 1:00pm
Thanks Jay, I'll try this when I have a little bit of time. I had to put this project on hold until I finish remodeling my basement!!! BTW, the b/W wire goes to the ignition switch on the accessories position. Thanks a lot.


Posted By: jaybmiller
Date Posted: 22 Oct 2019 at 3:26pm
yeah 'projects'.... the ones WE want to do ALWAYS come 2nd to those 'she' wants done.....lol,hahaha,btdt....


-------------
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water


Posted By: Coke-in-MN
Date Posted: 09 Nov 2019 at 11:28pm
https://www.facebook.com/photo.php?fbid=2630034083683627&set=g.2314599211&type=1&theater&ifg=1" rel="nofollow - https://www.facebook.com/photo.php?fbid=2630034083683627&set=g.2314599211&type=1&theater&ifg=1 No photo description available.

You can get this Bridge Rectifier which is good for 600 V / 400 A
KCP 3506  2 wires go to alternator 1 to ground and 1 output to battery
It is a common part in electronics and a solid state unit - may not need a heat sink but can be used with one . Cost from $4 to $10 - might need a zener diode also to bleed voltage over 13.6  but will work without also .


-------------
Faith isn't a jump in the dark. It is a walk in the light. Faith is not guessing; it is knowing something.


Posted By: Coke-in-MN
Date Posted: 10 Nov 2019 at 6:45pm
https://www.amazon.com/ap/signin?openid.pape.max_auth_age=0&openid.return_to=https%3A%2F%2Fwww.amazon.com%2Fs%3Fk%3Dbridge%2Brectifier%2Bkbpc3510%26gclid%3DEAIaIQobChMIiam-xvXg5QIVAv5kCh0Wxwo5EAMYASAAEgL8y_D_BwE%26hvadid%3D314661769401%26hvdev%3Dc%26hvlocphy%3D9019466%26hvnetw%3Dg%26hvpos%3D1o1%26hvqmt%3Db%26hvrand%3D14985449632175787875%26hvtargid%3Dkwd-300345862713%26hydadcr%3D2984_9782395%26tag%3Dgooghydr-20%26ref%3Dnav_ya_signin&openid.identity=http%3A%2F%2Fspecs.openid.net%2Fauth%2F2.0%2Fidentifier_select&openid.assoc_handle=usflex&openid.mode=checkid_setup&openid.claimed_id=http%3A%2F%2Fspecs.openid.net%2Fauth%2F2.0%2Fidentifier_select&openid.ns=http%3A%2F%2Fspecs.openid.net%2Fauth%2F2.0&" rel="nofollow - https://www.amazon.com/ap/signin?openid.pape.max_auth_age=0&openid.return_to=https%3A%2F%2Fwww.amazon.com%2Fs%3Fk%3Dbridge%2Brectifier%2Bkbpc3510%26gclid%3DEAIaIQobChMIiam-xvXg5QIVAv5kCh0Wxwo5EAMYASAAEgL8y_D_BwE%26hvadid%3D314661769401%26hvdev%3Dc%26hvlocphy%3D9019466%26hvnetw%3Dg%26hvpos%3D1o1%26hvqmt%3Db%26hvrand%3D14985449632175787875%26hvtargid%3Dkwd-300345862713%26hydadcr%3D2984_9782395%26tag%3Dgooghydr-20%26ref%3Dnav_ya_signin&openid.identity=http%3A%2F%2Fspecs.openid.net%2Fauth%2F2.0%2Fidentifier_select&openid.assoc_handle=usflex&openid.mode=checkid_setup&openid.claimed_id=http%3A%2F%2Fspecs.openid.net%2Fauth%2F2.0%2Fidentifier_select&openid.ns=http%3A%2F%2Fspecs.openid.net%2Fauth%2F2.0&

-------------
Faith isn't a jump in the dark. It is a walk in the light. Faith is not guessing; it is knowing something.
