Topic: SHOW YOUR "B" IMPLEMENTS!
Posted By: DakotaSteve
Subject: SHOW YOUR "B" IMPLEMENTS!
Date Posted: 01 Jan 2018 at 9:16pm
| Thought it would be fun to start a thread where folks could share pics of their B attachments and or implements that were designed to be pulled behind and matched up to the B. I enjoy the little B! Snap coupler B pics from the back welcome! |
Replies:
Posted By: DakotaSteve
Date Posted: 01 Jan 2018 at 9:40pm
| This could turn into a great information source for all. |
Posted By: HaroldOmaha
Date Posted: 01 Jan 2018 at 9:48pm
| I have a set of inside rear wheel weights, all painted ready to go. will fit others besides the B, C, D10 |
Posted By: R.W
Date Posted: 01 Jan 2018 at 10:05pm
|
A late dual belt sickle bar I had. I gave it to a family member because it had the small PTO shaft and was pretty clunky. http://s1204.photobucket.com/user/Randy_Walker/media/IMG_20161228_171231_zpsvxirwr4i.jpg.html" rel="nofollow">
------------- In Search Of: 1958 Allis Chalmers D17 Diesel serial #9643D |
Posted By: CrestonM
Date Posted: 01 Jan 2018 at 11:15pm
|
I have an identical mower to that one, but mine has a single "C" size belt to drive it. Also have a pair of rear wheel weights, but that's all. |
Posted By: PaulB
Date Posted: 02 Jan 2018 at 3:09am
|
Those mowers that have a double bet drive are a #5 mower. That is an improved version of the B/C mower that has the big single belt. The #5 will also mount on the CA whereas the B/C will not mount on a CA. I have 2 #5 mowers that could make one working unit available. I also have many other implement for B tractors available, as well as parts for them. ------------- If it was fun to pull in LOW gear, I could have a John Deere. Real pullers don't have speed limits. If you can't make it GO... make it SHINY |
Posted By: Charlie175
Date Posted: 02 Jan 2018 at 6:18am
I used a Oliver 2-14 Rooster Plow for a number of years. ------------- Charlie '48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD |
Posted By: Charlie175
Date Posted: 02 Jan 2018 at 6:21am
A model "C" front bolt right on the B. You have to use the Grill from the C  ------------- Charlie '48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD |
Posted By: Charlie175
Date Posted: 02 Jan 2018 at 7:31am
|
Simple video using the B/C Sickle Mower [TUBE]gSFfAnkLBDQ[/TUBE]
------------- Charlie '48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD |
Posted By: DakotaSteve
Date Posted: 02 Jan 2018 at 8:12am
| Very nice. Creston....Don't u have a pull type No. 9 disc for a B as well? |
Posted By: DakotaSteve
Date Posted: 02 Jan 2018 at 8:14am
| Charlie175 Do u have a pic of the front of your B? |
Posted By: DakotaSteve
Date Posted: 02 Jan 2018 at 8:16am
| R.W....Great looking tractor. |
Posted By: 1939Dodge
Date Posted: 02 Jan 2018 at 8:28am
| I'm stil looking for hardware to mount a pair of plows to a B, if anyone has.... |
Posted By: Charlie175
Date Posted: 02 Jan 2018 at 8:41am
I mainly did it for something different and to be able to haul my D17 and B at the same time as the narrow fronts would overlap. To truly to get it to work right, the "C" steering box would need to be used to get the right geometry. As I have it, it steered hard.  ------------- Charlie '48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD |
DakotaSteve wrote:Posted By: Charlie175
Date Posted: 02 Jan 2018 at 8:43am
The B/C Sickle and plow are simple designs, either hand lift or with the optional hydraulic ram  ------------- Charlie '48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD |
Posted By: Charlie175
Date Posted: 02 Jan 2018 at 8:47am
|
The B Monroe seat was an option you could get. Sorry for the divergence  ------------- Charlie '48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD |
Posted By: DakotaSteve
Date Posted: 02 Jan 2018 at 10:28am
| Thanks Charlie |
Posted By: Wdtractorman
Date Posted: 02 Jan 2018 at 2:22pm
http://s1166.photobucket.com/user/wdtractorman1984/media/Mobile%20Uploads/image_zps8209e911.jpg.html" rel="nofollow"> http://s1166.photobucket.com/user/wdtractorman1984/media/Mobile%20Uploads/40F04928-5048-43EB-8E37-44DE50075C5F_zpsyxbnpetx.jpg.html" rel="nofollow"> http://s1166.photobucket.com/user/wdtractorman1984/media/Mobile%20Uploads/12E3FCEF-8B84-4AC8-AB3F-B3A79A0CF37F_zpstt8btg9q.jpg.html" rel="nofollow"> http://s1166.photobucket.com/user/wdtractorman1984/media/Mobile%20Uploads/F157EBF7-409D-4CE3-B4FD-7587BC6FEAC2_zpskoeiuuji.jpg.html" rel="nofollow"> http://s1166.photobucket.com/user/wdtractorman1984/media/Mobile%20Uploads/9F5C1C77-07BB-483C-9C09-759CF05E7549_zpsqvnzf3gj.jpg.html" rel="nofollow"> http://s1166.photobucket.com/user/wdtractorman1984/media/Mobile%20Uploads/20160616_195434_zps5kukzgnh.jpg.html" rel="nofollow"> May not be what you want but I'm not passing up a chance to show off lol. |
Posted By: DakotaSteve
Date Posted: 02 Jan 2018 at 2:23pm
| Awesome! Keep it coming. |
Posted By: RLBPA1
Date Posted: 02 Jan 2018 at 3:49pm
39 B with 6 foot mower
|
Posted By: RLBPA1
Date Posted: 02 Jan 2018 at 3:55pm
53 B with plows. I had problems finding the B tractor hardware so I used one from a donor C
|
Posted By: steve(ill)
Date Posted: 02 Jan 2018 at 4:03pm
rear blade made from plow beam ------------- Like them all, but love the "B"s. |
Posted By: steve(ill)
Date Posted: 02 Jan 2018 at 4:04pm
 ------------- Like them all, but love the "B"s. |
Posted By: steve(ill)
Date Posted: 02 Jan 2018 at 4:06pm
 ------------- Like them all, but love the "B"s. |
Posted By: Wdtractorman
Date Posted: 02 Jan 2018 at 7:31pm
Found another one http://s1166.photobucket.com/user/wdtractorman1984/media/Mobile%20Uploads/E948F791-0E96-49BF-9A98-105EB3B3D5EB_zpsjpuyuagx.jpg.html" rel="nofollow">
|
Posted By: Hubnut
Date Posted: 02 Jan 2018 at 7:43pm
Had to join in. I hope a mower is considered an implement. One of my garage queens. ------------- 1940 B "Lucy" 1941 B w/ Woods L59 "Flavia" 1942 B w/ finish mower "Dick" 1941 C w/ 3-point "Maggie" 1947 C SFW w/ L306 "Trixie" 1972 314H |
Posted By: DakotaSteve
Date Posted: 02 Jan 2018 at 7:44pm
| Steve ill.....what is that big hydraulic cylinder? |
Posted By: Randy MN
Date Posted: 02 Jan 2018 at 8:12pm
AC pull type implements and non AC implements!     ------------- 34 WC #477, 38 B #1935, 1-116 on steel, #8 7ft dbl action disc, #9 5ft dbl action disc, 295 Chainsaw |
Posted By: CrestonM
Date Posted: 02 Jan 2018 at 9:29pm
|
Steve, yes, I have a No. 9 disc. (But the only photo I have is of my 8N pulling it) It's a bit newer than Randy's (spring loaded adjustment pins), but it's a 7 footer, and I'm thinking it would be a bit much for the B if I wanted to do any aggressive tillage. Haven't had a chance to try it out yet with the B, though. I know at the farm where the disc is, (extremely sandy soil) the 8N struggles to pull it. Has power, but without any weights, it loses traction and digs itself in a hole very quick. Of course, it wasn't designed for implements like that anyway. Here's a photo of my B. Mower and umbrella are A-C, plow is an Oliver 2-12 rooster lift, like was already mentioned. Pulls that plow very nicely in all soils, but struggles for traction in the sticky gumbo that plows like asphalt just a few miles west of me. Oh, also, Steve...it's a '42 war baby. Well, supposed to be anyway.  |
Posted By: DakotaSteve
Date Posted: 02 Jan 2018 at 10:08pm
| Very cool Creston! My war B is a 42 as well it would be interesting to see what your sn is and what the AM dash number is on the side of your block....should be a -13 or -14... |
Posted By: DakotaSteve
Date Posted: 02 Jan 2018 at 10:09pm
| Randy MN. Love the pic of the one bottom all shined up! |
Posted By: CrestonM
Date Posted: 03 Jan 2018 at 9:09am
My S/N is B-58292. I think the engine has been swapped over the years to an early 1943 block. The S/N on it is CE-10163K, but I've never found a list that includes a number that low.
|
Posted By: Alberta Phil
Date Posted: 03 Jan 2018 at 10:11am
Here is my '47 'B' running the post pounder when fencing. |
Posted By: Ranse
Date Posted: 03 Jan 2018 at 10:00pm

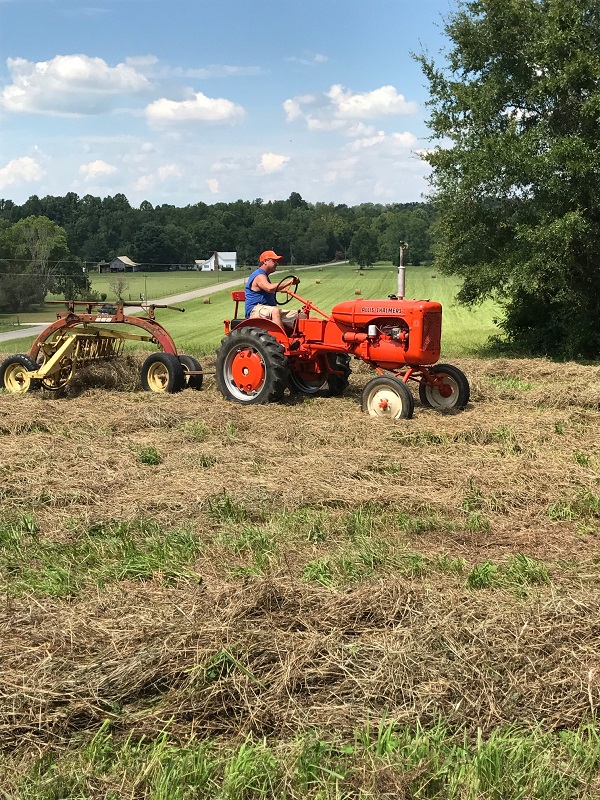

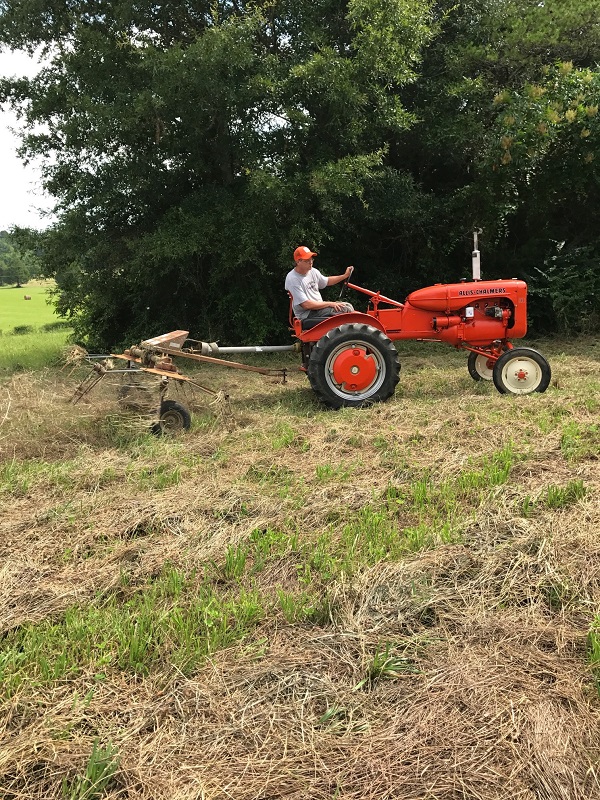

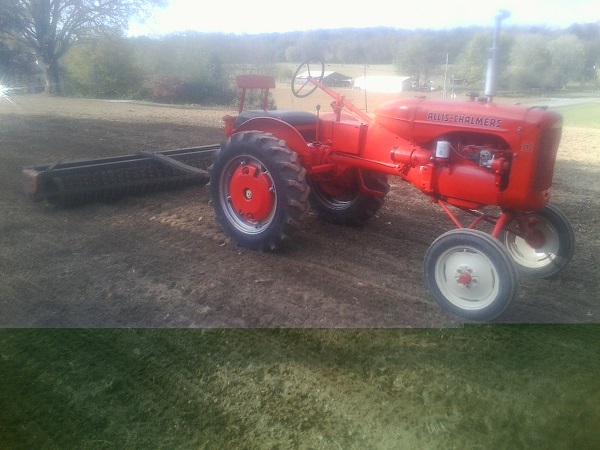

These implements not specifically for a B, but works nicely behind it.
|
Posted By: DakotaSteve
Date Posted: 03 Jan 2018 at 10:25pm
|
Looks Great! Creston....can u get the AM number off the side of the block? R.H side.. |
