Pics of CA with 3pt hitch
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
BV View Drop Down
Silver Level
Silver Level
Avatar

Joined: 12 Sep 2009
Location: Bono Arkansas
Points: 484 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BV Quote  Post ReplyReply Direct Link To This Post Topic: Pics of CA with 3pt hitch
    Posted: 04 Jun 2017 at 8:08pm
I have a CA pin hitch I would like to put a 3 pt on, can someone post pics of their tractor with the hitch please?
Back to Top
Sponsored Links


Back to Top
DSpears N IL View Drop Down
Silver Level Access
Silver Level Access
Avatar

Joined: 11 Sep 2009
Location: Rockford,Ill
Points: 408 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSpears N IL Quote  Post ReplyReply Direct Link To This Post Posted: 04 Jun 2017 at 8:51pm
Hi BV

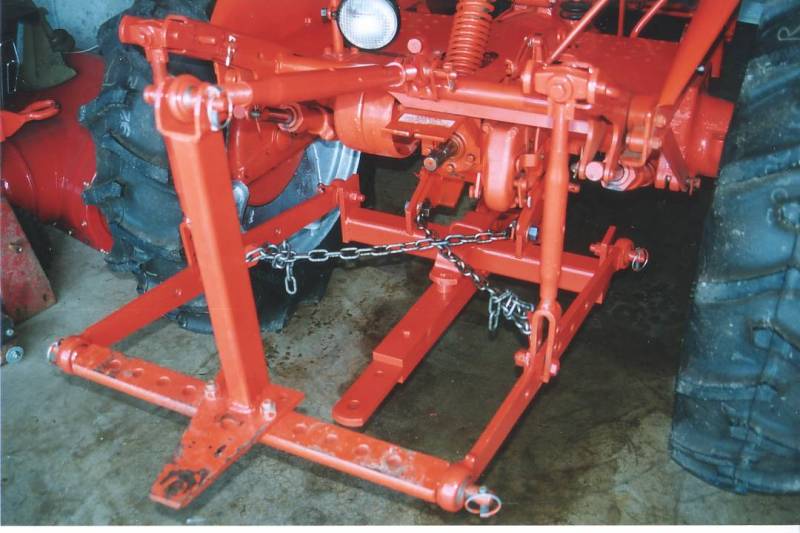

I have a CA with the Snap  couple system. It may give you some ideas to work with for your pin hitch setup.
I designed and had built the first bracket and bought the arms & draw-bar to fit. the lift arm brackets are early AC components. I also had to make a top-link bracket for the lift arm shaft.

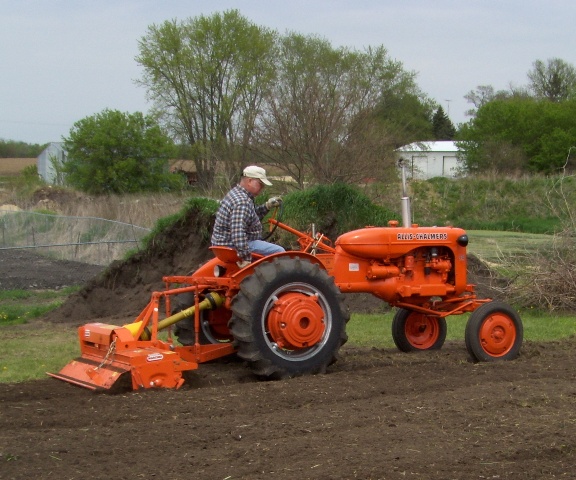

The 2nd hitch is from an AC plow hitch that I had 3-point eyes welded onto the ends for the draw-bar. I also use this hitch for using a 4 foot tiller.

Hope that this will inspire you to design your own system!
DeWayne



Edited by DSpears N IL - 04 Jun 2017 at 8:55pm
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22823 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 04 Jun 2017 at 8:55pm
I'd like to see that myself. Since the pin hitch set up uses the lift arms for the drawbar bail, you can't have a drawbar  on it with a 3 point hitch.
 It might be easiest to go with a "wishbone" style 3 point .

 OK tractor has one that will pin up to the early CA. Notice the insert in the lower right corner. http://oktractor.com/zen/index.php?main_page=popup_image&pID=204


Edited by CTuckerNWIL - 04 Jun 2017 at 8:56pm
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
BV View Drop Down
Silver Level
Silver Level
Avatar

Joined: 12 Sep 2009
Location: Bono Arkansas
Points: 484 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BV Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2017 at 3:05pm
Thank you very much both of these setups look good to me, thanks again
Back to Top
Brian F(IL) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 14 Sep 2009
Location: Paxton, IL
Points: 2700 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian F(IL) Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2017 at 4:14pm
DeWayne's got all the neat toys.  I'm jealous! Wink
Back to Top
DSpears N IL View Drop Down
Silver Level Access
Silver Level Access
Avatar

Joined: 11 Sep 2009
Location: Rockford,Ill
Points: 408 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSpears N IL Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jun 2017 at 7:28pm
Brian has the new garage for his toys!!!!
I need More Space!!!!!
DeWayne
