 Topic: Now here's a Truck!
Posted: 02 Jan 2025 at 8:05pm |
Good video about a '75 Hayes logging truck. What a beautiful rig! I used to work on these many years ago installing the logging rigs on the trucks. The Hayes was always a favorite. They were built in Vancouver BC.. I worked for a branch of the company here in Alberta.
|
 |
|
Sponsored Links
|
|
|
AC7060IL
Orange Level
Joined: 19 Aug 2012
Location: central IL
Points: 3431
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 Jan 2025 at 8:52pm |
|
Enjoyed the video. Thanks for sharing.
So I’ll take a stab about truck’s approximate GVWR ~ 144,000 lbs ?
2-12k steer = 24k,
2-20k drives = 40k,
4-20k trailer = 80k.
Edited by AC7060IL - 02 Jan 2025 at 8:53pm
|
|
DMiller
Orange Level Access
Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 32034
|
Post Options
Thanks(0)
Quote Reply
Posted: 03 Jan 2025 at 4:34am |
|
Most likely closer to 160K, 44-46,000 drives, 14-18,000 steers.
|
|
Pat the Plumber CIL
Orange Level
Joined: 11 Sep 2009
Location: Springfield,Il
Points: 4833
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jan 2025 at 2:55pm |
|
Do both front sets of wheels turn ? Never seen anything like that . Thanks for posting
|
|
You only need to know 3 things to be a plumber;Crap rolls down hill,Hot is on the left and Don't bite your fingernails
1964 D-17 SIV 3 Pt.WF,1964 D-15 Ser II 3pt.WF ,1960 D-17 SI NF,1956 WD 45 WF.
|
|
DMiller
Orange Level Access
Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 32034
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jan 2025 at 3:58pm |
Twin Steer they both Steer. Generally the Rear axle has a Parasitic Hydraulically Connected gear, set at a ratio to not over steer the lead axle.
Kenworth has added this to their line up, so a Mixer truck can go 12 yards capacity without a trailing axle.
Edited by DMiller - 05 Jan 2025 at 4:04pm
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1361
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jan 2025 at 5:27pm |
 Tandem steer. Tri drive. We have sold a bunch of these at the IH dealership where I work.
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1361
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jan 2025 at 5:32pm |
|

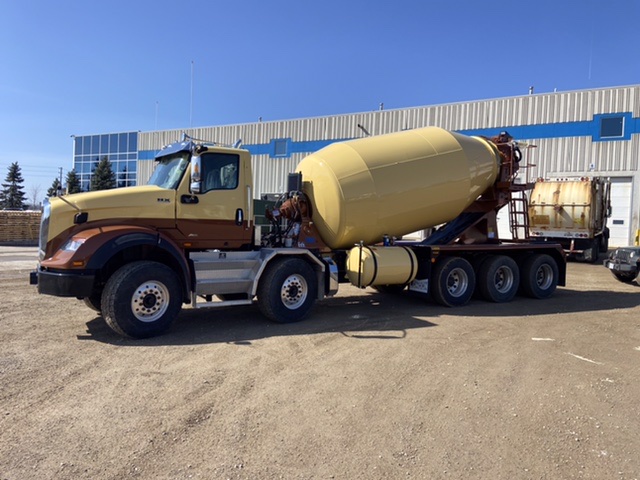

In Ontario this setup is good for 92,000 lbs gvw. They drive like a caddy. I pick them up at London Equipment and deliver to various locations around the province. Handle well and go around the roundabouts easy. 😀😀 This is International truck.
Edited by Ed (Ont) - 05 Jan 2025 at 5:33pm
|
|
DMiller
Orange Level Access
Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 32034
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jan 2025 at 7:01pm |
|
All major builders have them now. Axle spreads for Bridge Formula.
Edited by DMiller - 07 Jan 2025 at 11:23am
|
|
plummerscarin
Orange Level Access
Joined: 22 Jun 2015
Location: ia
Points: 3608
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jan 2025 at 7:11pm |
|
When I worked at CEI a couple trucks were built on Freightliner chassis. Twin steer under a cabover day cab. 30ft box. Twin screw and a tag. Neat looking truck.
Edited by plummerscarin - 05 Jan 2025 at 7:12pm
|
|
Unit3
Orange Level
Joined: 17 Oct 2009
Location: NC Iowa
Points: 5559
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jan 2025 at 2:55pm |
|
50 years ago, I still can remember talking with a trucker who had that setup under an Autocar. He said it work great. He said you couldn't tell it from a single front axle.
|
|
