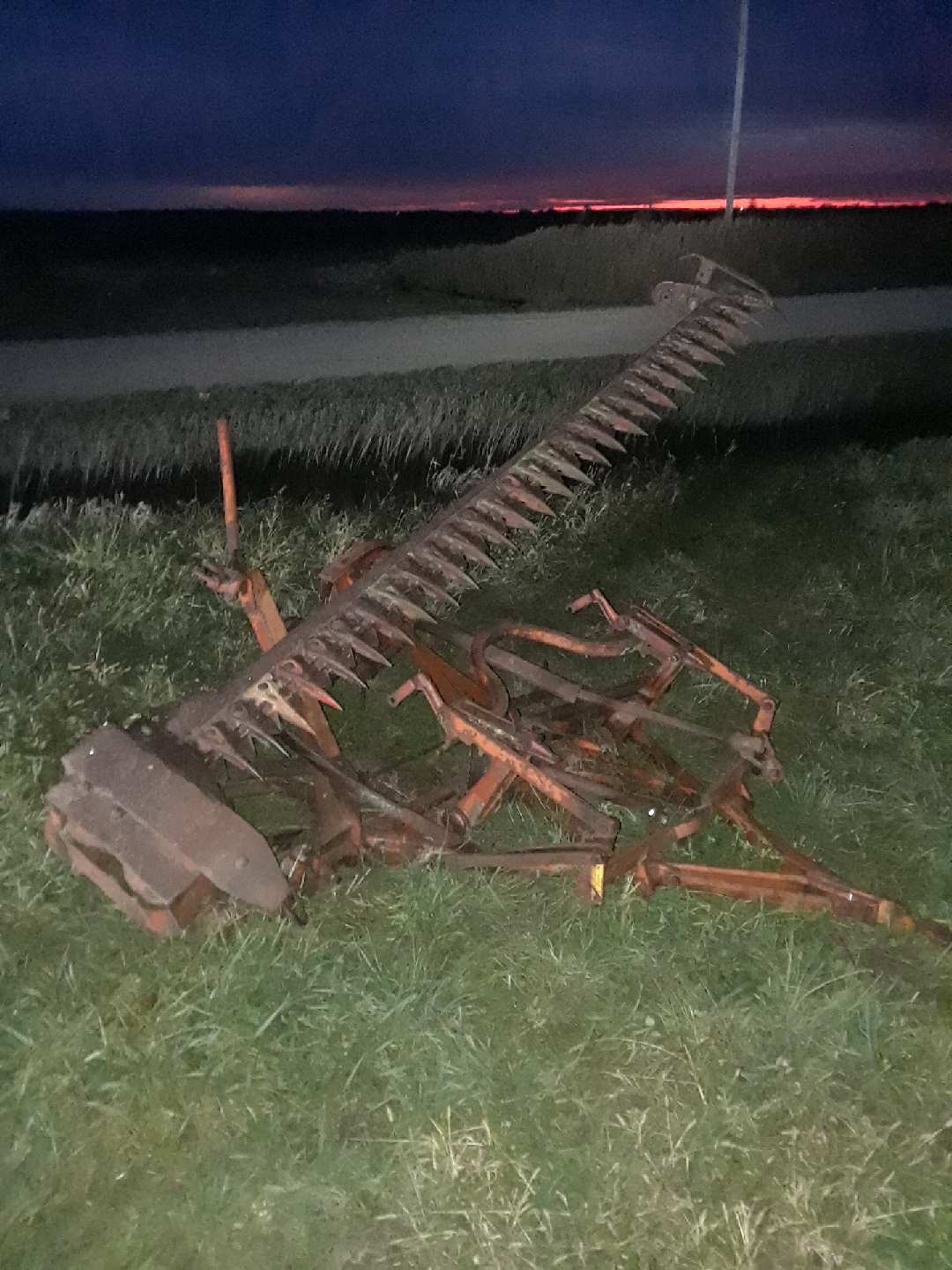

 Topic: No. 7 Sickle Bar Mower?
Posted: 14 Nov 2017 at 4:15pm |
|
|
 |
|
Sponsored Links
|
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5874
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Nov 2017 at 6:19pm |
|
|
|
Don(MO)
Orange Level
Joined: 12 Sep 2009
Location: Bates City MO.
Points: 6862
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Nov 2017 at 6:58pm |
|
Yes it's a number 7. If you are buying it look for the counter-balance spring bracket too.
|
|
3 WD45's with power steering,G,D15 fork lift,D19, W-Speed Patrol, "A" Gleaner with a 330 corn head,"66" combine,roto-baler, and lots of Snap Coupler implements to make them work for their keep.
|
|
smokeythebear
Bronze Level
Joined: 13 Nov 2017
Location: Iowa
Points: 21
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Nov 2017 at 7:54pm |
What does the counter-balance spring bracket do? I was told that it was all complete. I can't tell if it has it from the pictures. I'm going to buy it regardless because I'm getting it at a good price. Also, I looked up what that bracket looked like. Here's a couple pictures for anybody that is curious.
|
|
Don(MO)
Orange Level
Joined: 12 Sep 2009
Location: Bates City MO.
Points: 6862
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Nov 2017 at 8:57pm |
That's the bracket I was talking about, it keeps weight off the bar when it's on the ground. FYI that's my pic's of my bracket and no it's not for sale. lol
|
|
3 WD45's with power steering,G,D15 fork lift,D19, W-Speed Patrol, "A" Gleaner with a 330 corn head,"66" combine,roto-baler, and lots of Snap Coupler implements to make them work for their keep.
|
|
smokeythebear
Bronze Level
Joined: 13 Nov 2017
Location: Iowa
Points: 21
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Nov 2017 at 9:00pm |
|
Haha that's funny! I just thought it would be a helpful picture for others down the road so I thought I might share it. Do you see this bracket in the pictures that I posted? Because I can't seem to find it if it's there...
|
|
Don(MO)
Orange Level
Joined: 12 Sep 2009
Location: Bates City MO.
Points: 6862
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Nov 2017 at 9:28pm |
 smokeythebear wrote:
Haha that's funny! I just thought it would be a helpful picture for others down the road so I thought I might share it. Do you see this bracket in the pictures that I posted? Because I can't seem to find it if it's there... |
Good to see the pic's are getting looked at. I didn't see the bracket in your shots of the mower. If the #7 was mounted on a WD or D17 it will be on the right side of the axle.
|
|
3 WD45's with power steering,G,D15 fork lift,D19, W-Speed Patrol, "A" Gleaner with a 330 corn head,"66" combine,roto-baler, and lots of Snap Coupler implements to make them work for their keep.
|
|
smokeythebear
Bronze Level
Joined: 13 Nov 2017
Location: Iowa
Points: 21
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Nov 2017 at 9:45pm |
|
So you don't need that bracket for other tractors? I was looking to put this on a D14.
|
|
orangereborn
Orange Level
Joined: 12 Sep 2009
Location: NW WI
Points: 1455
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Nov 2017 at 11:53pm |
|
D14 amd CA are basically the Same....And hard to find.....Dale
|
|
littlemarv
Orange Level
Joined: 10 Jun 2013
Location: Wisconsin
Points: 1829
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2017 at 8:53am |
|
The balance beam bolts to the right final drive, same place as the fender. It helps hold up the right side of the sickle, without it it doesn't hang level.
That is a later #7, you can tell by the U shaped cross bar, and the belt tensioner.
Those are the exact same pictures Don posted four years ago when I was asking about a snap coupler mower. Too funny.
The balance beams are hard to find. Usually the sickle mower went in the weeds and the tractor to the scrapyard with the balance beam attached. I found one in Washington State and snapped it up.
|
|
The mechanic always wins.
B91131, WC23065, WD89101, CA29479, B1, Early B10, HB212, 416H
|
|
Tom IA
Silver Level
Joined: 17 Sep 2009
Location: Donahue IA
Points: 255
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2017 at 8:55am |
|
I have one that came of a WD I would sell can anyone tell me what going price is I was thinking 50.00 is that about right
|
|
LayneFarms74
Bronze Level
Joined: 28 Jun 2017
Location: Pineville MO
Points: 1
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Aug 2018 at 10:07pm |
|
Is that no7 mower off a WD for sale still?
Edited by LayneFarms74 - 19 Aug 2018 at 10:07pm
|
|
Gary Burnett
Orange Level Access
Joined: 11 Sep 2009
Location: Virginia
Points: 3005
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Aug 2018 at 1:10am |
|
I'd keep looking for a 80R those number 7 mowers aren't really very well built or designed and I mowed with one on a WD for years growing up.
|
|
orange knight
Orange Level
Joined: 28 Apr 2011
Location: Scarville, Ia
Points: 2895
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Aug 2018 at 7:41am |
|
I've got the correct spring for a D14 if you need one.
|
|
L&L Tractor Parts (Wells, MN-just off I-90)
Specializing in AC tractor and Equiment Parts
Call 952-290-1063 or email llacparts@gmail.com
|
|
TOM H
Bronze Level
Joined: 19 Oct 2012
Location: ND
Points: 43
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Aug 2018 at 8:01pm |
The serial number is on outer flange of main drive housing that holds twin wheel box. Like this. 7-xxxx
|
|
