 Topic: New to me - Fiat Allis 645B
Posted: 25 Aug 2024 at 4:17pm |

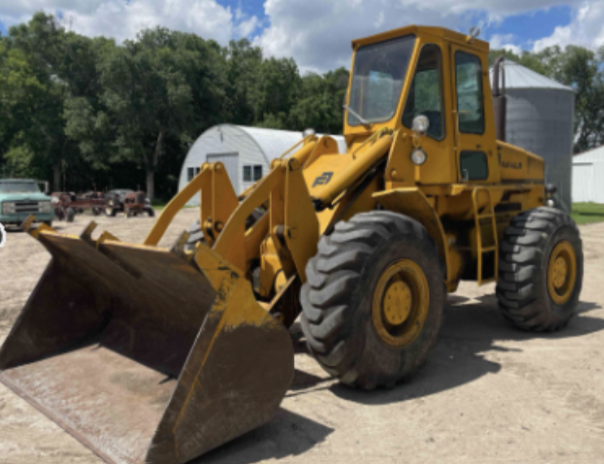

I have my first "construction" style machine coming to the farm and it's a Fiat Allis 645B.
I have it going to Alex at A&W tractor first for a look over before I get it trailered to OK. I've been reading up on these machines and I have a lot to learn but know that the good community here has my back.
The one thing I really want for this machine is a set of forks. Are forks "universal" enough that I can utilize any type/brand? Or am I looking for a specific set of forks for this machine? Any insight on where to even start looking for a set?
Edited by Mosin9130 - 25 Aug 2024 at 4:23pm
|
|
'56 WD 45...'63 D15 II...'66 D17 IV
|
 |
|
Sponsored Links
|
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 51703
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Aug 2024 at 4:37am |
You see those 3 hooks on the bucket? yours is already set up for an over the bucket style fork...
Length and diameter of the bar TBD by the hooks and their spacing on the bucket...
Edited by DiyDave - 26 Aug 2024 at 4:41am
|
|
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8391
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Aug 2024 at 7:11am |
|
Nice looking loader
|
|
Mosin9130
Bronze Level
Joined: 23 Jul 2012
Location: North Texas
Points: 136
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Aug 2024 at 10:20am |
Well, now that is interesting, learn something everyday! Didn't realize there was a fork over bucket configuration, thanks for sharing! It looks like it provides alot of convenience when needing a bucket one minute and forks the next. That may be something I want to invest in.
I did read that there will be some reduction in lifting capacity and looking at some of my projects such as moving alot of stationary "stuff" around, I think I still want to go with a dedicated set of forks.
Is it safe to assume that the correct forks are unavailable unless I can find on Ebay, junkyard, etc??
|
|
'56 WD 45...'63 D15 II...'66 D17 IV
|
|
orangeman
Orange Level
Joined: 12 Sep 2009
Points: 1764
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Aug 2024 at 1:30pm |
|
These units were produced and sold to the Department of Defense as the 645M Wheel Loader. Great Machine! ~ Orangeman
|
|
DougG
Orange Level
Joined: 20 Sep 2009
Location: Mo
Points: 8108
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Aug 2024 at 3:08pm |
|
They have good reviews over the years,,, Id like to find one myself!
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 51703
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Aug 2024 at 4:02pm |
 Mosin9130 wrote:
Well, now that is interesting, learn something everyday! Didn't realize there was a fork over bucket configuration, thanks for sharing! It looks like it provides alot of convenience when needing a bucket one minute and forks the next. That may be something I want to invest in.
I did read that there will be some reduction in lifting capacity and looking at some of my projects such as moving alot of stationary "stuff" around, I think I still want to go with a dedicated set of forks.
Is it safe to assume that the correct forks are unavailable unless I can find on Ebay, junkyard, etc?? |
A good assumption. Note the link I provided was the first one that had a picture, when I googled over the bucket forks... You might have a welder rig you up a set. Problem with otb forks is letting an idiot use them, especially on undulating ground. Sod pallets are what they were mainly designed for. The alternative is bucket forks that clamp to the bottom of the bucket, but they can bend the bottom of the bucket with a heavy load, and are prone to pulling off, when backing out...
|
|
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
|
|
Amos
Orange Level
Joined: 11 Sep 2009
Location: Ontario
Points: 1316
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Aug 2024 at 9:15pm |
That is a real nice shape unit!! I have a 645B that i use for stacking logs and anything else I feel like around the farm. I built forks for mine off an old forklift that I scrapped out. You will not have any trouble picking up items with these they are heavy duty excellent loaders. The pin placing/spacing for the loader arms and tip cylinder/mechanism is a common dimension for loaders from that era and newer. If you call around to the heavy machinery wrecking yards near you you could just find what you are looking for that will fit right on your machine.
|
|
Mosin9130
Bronze Level
Joined: 23 Jul 2012
Location: North Texas
Points: 136
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Aug 2024 at 6:48am |
|
Thanks alot guys, feeling much better now about getting some forks on this machine! I'll update accordingly once I get my hands on it but that could still be a month or two...fingers crossed Alex at A&W issues a clean bill of health for it.
|
|
'56 WD 45...'63 D15 II...'66 D17 IV
|
|
