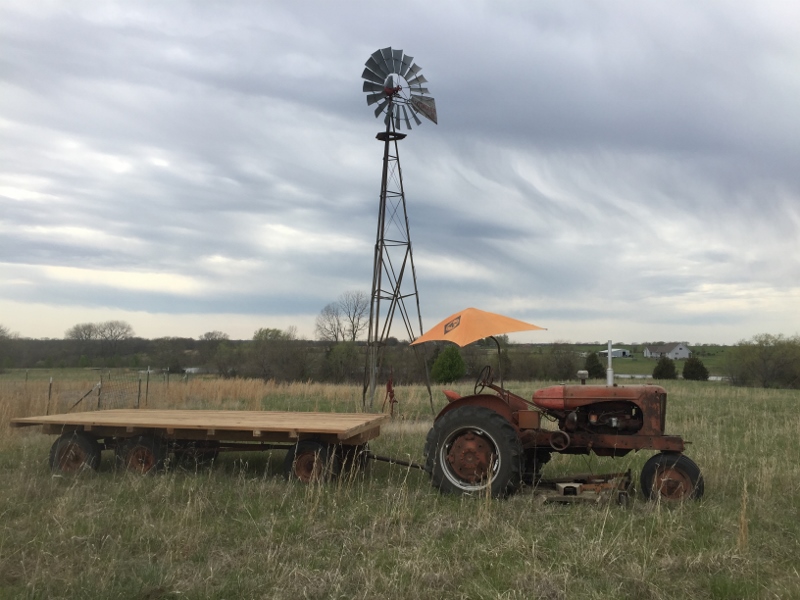

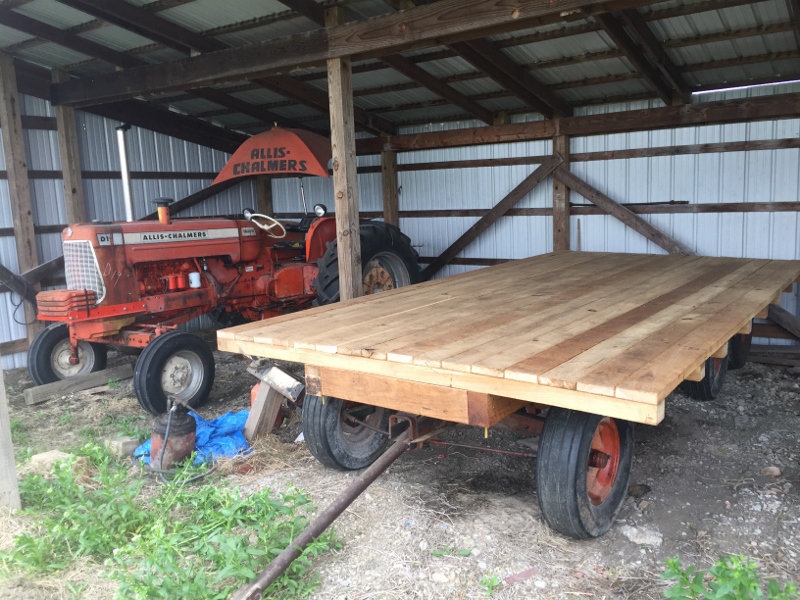

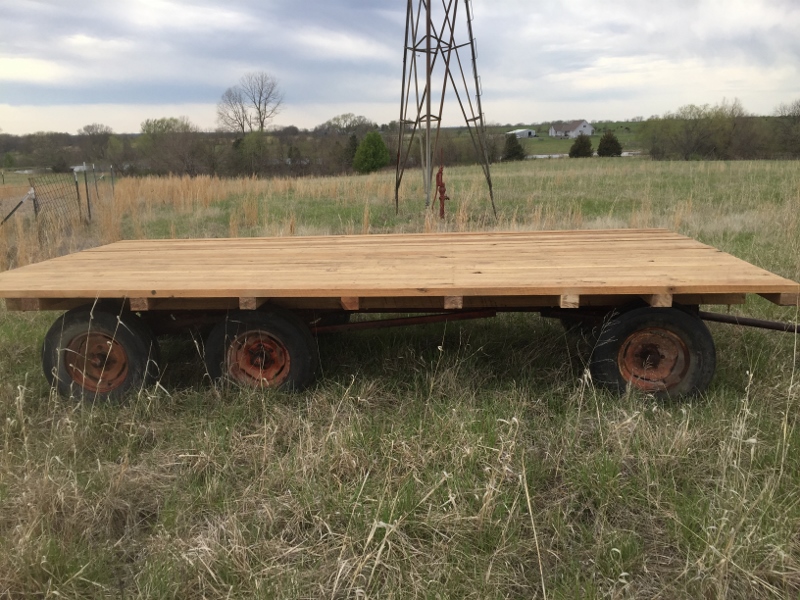

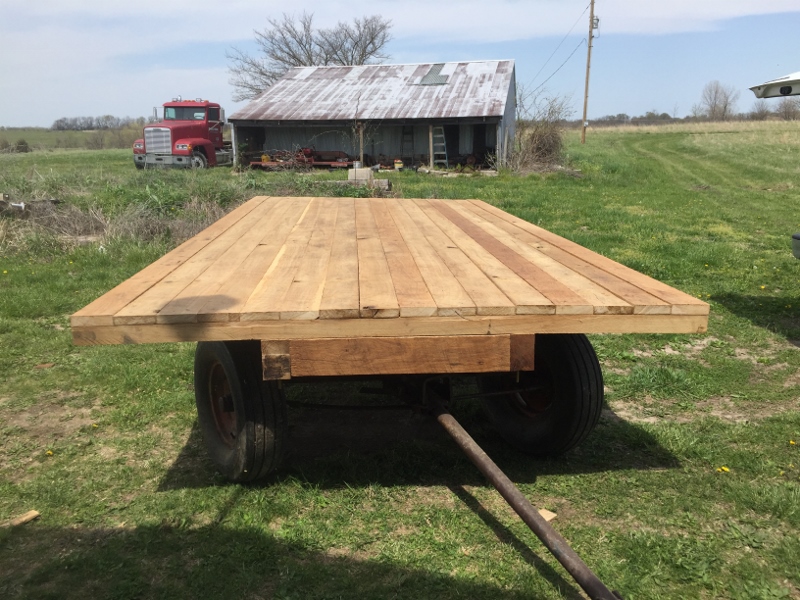

Well, I finally got the new deck put on the wagon. Just wanted to share pictures.
![]() ![]() ![]() ![]() |
|
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
|
|
![]() |
|
Sponsored Links | |
![]() |
|
truckerfarmer ![]() Orange Level Access ![]() ![]() Joined: 26 Jan 2013 Location: Watertown, SD Points: 3196 |
![]() ![]() ![]() ![]() ![]() |
Looks good. Heavy duty.
|
|
Looking at the past to see the future.
'53 WD, '53 WD45, WD snap coupler field cultivator, #53 plow,'53 HD5B dozer Duct tape.... Can't fix stupidity. But will muffle the sound of it! |
|
![]() |
|
shameless dude ![]() Orange Level ![]() ![]() Joined: 10 Apr 2017 Location: east NE Points: 13611 |
![]() ![]() ![]() ![]() ![]() |
good job Michael! you gonna put an edge on it?
|
|
![]() |
|
Michael Crowe ![]() Orange Level ![]() ![]() Joined: 11 Sep 2009 Location: Kansas City Points: 1722 |
![]() ![]() ![]() ![]() ![]() |
Yes I’ve got the boards but ran out of time.
|
|
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
|
|
![]() |
|
AC7060IL ![]() Orange Level ![]() Joined: 19 Aug 2012 Location: central IL Points: 3310 |
![]() ![]() ![]() ![]() ![]() |
Great job! 8'x14'?
|
|
![]() |
|
Don(MO) ![]() Orange Level ![]() Joined: 12 Sep 2009 Location: Bates City MO. Points: 6862 |
![]() ![]() ![]() ![]() ![]() |
This what it looked like before his started, I think he has done a fine job rebuilding it maybe he will tell just what it needed done to the wagon gear. ![]() |
|
3 WD45's with power steering,G,D15 fork lift,D19, W-Speed Patrol, "A" Gleaner with a 330 corn head,"66" combine,roto-baler, and lots of Snap Coupler implements to make them work for their keep.
|
|
![]() |
|
Michael Crowe ![]() Orange Level ![]() ![]() Joined: 11 Sep 2009 Location: Kansas City Points: 1722 |
![]() ![]() ![]() ![]() ![]() |
It is 8’ x 16’, 4”x 6” x 16’ stringers, 9 3” x 4” x 8’cross braces on 2’ centers, 1.5” x 6” x 16’ top boards with the two side boards being 1.75” to make a lip so stuff won’t slide off. All the wood is dimensional rough sawn white oak with 3 coats of linseed oil.I still have to put the two front boards to make the 1/4” lip on the front and back and then the side boards. To the gear itself I was lucky Albert at the AGCO dealer in maryville mo found me the following new idea nos parts: set of wheel bearings and seals, front spindle, center steering bushing, 2 stringer braces, eyebolt for the 3rd axel. So I pulled the pole apart and wire brushed it and cleaned it good so it won’t freeze up again, cleaned and repacked the 5 good Bearings, installed the new set udjusted the tie in and out on the deck. don sold me the gear in the first place which was earful nice of him to part with it. I built it to use in case I ever need to but truth is it won’t ever get used much except for a chore wagon and wagon rides and taken to some ac shows. I was able to even find 2 oos old old stock Goodyear tires from Austin’s salvage to match the other 4. Matching old tires is nearly as hard as finding nos parts. Thanks to all who have commented.
Edited by Michael Crowe - 02 May 2018 at 6:57pm |
|
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
|
|
![]() |
|
AC7060IL ![]() Orange Level ![]() Joined: 19 Aug 2012 Location: central IL Points: 3310 |
![]() ![]() ![]() ![]() ![]() |
Do you know what year your wagon gear was built? I think it's six bolt hubs help out for easier rim selections. It's hubs look like their rim face sets back and then the outer bearing housing protrudes out farther than most. What hub # are they?
|
|
![]() |
|
Michael Crowe ![]() Orange Level ![]() ![]() Joined: 11 Sep 2009 Location: Kansas City Points: 1722 |
![]() ![]() ![]() ![]() ![]() |
New idea when by lit no meet and going from memory I think it is a 1952 Model year. The hubs are 6 bolt; I’ll confirm the year when I get my books out.
|
|
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
|
|
![]() |
|
Michael Crowe ![]() Orange Level ![]() ![]() Joined: 11 Sep 2009 Location: Kansas City Points: 1722 |
![]() ![]() ![]() ![]() ![]() |
The wagon even came with a spare wheel and before I found the 6th Goodyear to match I found a firestone with the same tread so it’s the spare.
Edited by Michael Crowe - 02 May 2018 at 11:40pm |
|
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
|
|
![]() |
|
copyrite1972 ![]() Orange Level ![]() ![]() Joined: 26 Feb 2016 Location: idaho Points: 331 |
![]() ![]() ![]() ![]() ![]() |
Great job! I am lookin' for a hay wagon myself. Never seen one with 6 wheels before. Way cool!
|
|
D15 Series II
|
|
![]() |
|
shameless dude ![]() Orange Level ![]() ![]() Joined: 10 Apr 2017 Location: east NE Points: 13611 |
![]() ![]() ![]() ![]() ![]() |
now...who gets to throw the bales up on the wagon Michael?
|
|
![]() |
|
Sugarmaker ![]() Orange Level ![]() ![]() Joined: 12 Jul 2013 Location: Albion PA Points: 8220 |
![]() ![]() ![]() ![]() ![]() |
Nice project! You did a great job on that running gear and rack!
Thanks for sharing! Regards, Chris
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
![]() |
|
Michael Crowe ![]() Orange Level ![]() ![]() Joined: 11 Sep 2009 Location: Kansas City Points: 1722 |
![]() ![]() ![]() ![]() ![]() |
I haven’t figured out to quote and another post wanted to see finished pics do I’m just replying to bump the post up.
|
|
The 14th Annual Exclusive AC Swap Meet will be held in Boonville, MO, March 7-8, 2025. See the club website for details: http://www.moacclub.com/
|
|
![]() |
|
JC-WI ![]() Orange Level Access ![]() Joined: 11 Sep 2009 Location: wisconsin Points: 33765 |
![]() ![]() ![]() ![]() ![]() |
Well Michael, That is a fine looking wagon you have there now. ![]() And it was I that was asking for the finished pictures so now with this thread, you have replied. Thank you. Now, are you ready to make another rack, but 18' long? Got an EZ Trail 872 waiting for a rack. I stopped in at the local sawmill and he had nothing in white oak for a wagon rack, even at 16'... Said lot of the truckers have gone over to using Douglas Fir for their truck beds because its lighter despite it isn't as strong. ... and he wants a nickel more for it too.
|
|
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that." |
|
![]() |
|
Michael Crowe ![]() Orange Level ![]() ![]() Joined: 11 Sep 2009 Location: Kansas City Points: 1722 |
![]() ![]() ![]() ![]() ![]() |
The sawmill I got the lumber from is in butler mo.
The wagon is more stout than I’ll ever need but I wanted to be usable and you can easily get more on it that you think. |
|
