 Topic: New Allis Chalmers owner
Posted: 06 Oct 2019 at 6:30pm |
I just bought a Model B. Could not decipher if there was a number next to the shift lever but on the axle housing left of the driver was the number ?m-2787-13. It has a magneto and the wide operator seat. Anyone know what year range this may be?
|
 |
|
Sponsored Links
|
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8649
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Oct 2019 at 6:56pm |
|
Welcome to the forum. If you post some pictures, these guys on here are great for helping. Good job picking orange as a hobby
|
|
Joe(TX)
Orange Level
Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Oct 2019 at 8:30pm |
|
The number is probably AM 2787 13 which is a casting number. The serial number is stamped on the transmission.
|
|
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 86276
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Oct 2019 at 9:14pm |
all of the "B" tractors came originally with a wide seat.. They started building about 1938 and ran for 20 years. There were a few changes, but nothing that you need the serial number to worry about... There might be a MOTOR serial number on the flange at the bell housing area... but the serial number on the TRANS by the shift lever is the real TRACTOR Serial Number.. Very early numbers had hand brakes, and rims held to the hub with rivets. The motor was 116 cubic inch, then changed to 125 inch. During the war, there were tractors with tall air cleaners, cast iron valve covers and oil pans, and steel wheels... After the war there were very few changes from the late 1940s to the late 1950s .... when the CA came out after 1950, there were extra lugs cast into the torque tube, etc .... All parts interchange thru the years, so you don't have to worry about the "year" unless your just curious.
|
|
Like them all, but love the "B"s.
|
|
chaskaduo
Orange Level
Joined: 26 Nov 2016
Location: Twin Cities
Points: 5200
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Oct 2019 at 9:38pm |

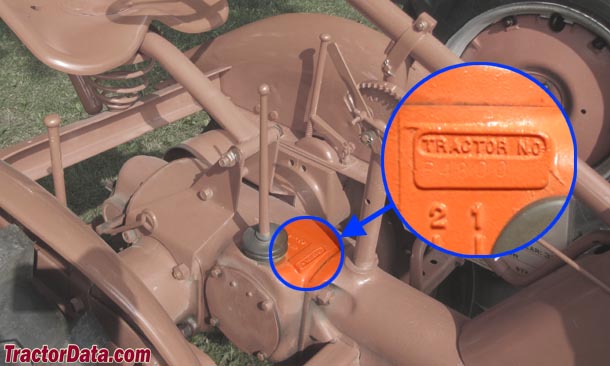

Serial Number is on the transmission next to the shifter
|
|
1938 B, 79 Dynamark 11/36 6spd, 95 Weed-Eater 16hp, 2010 Bolens 14hp
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8649
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Oct 2019 at 10:02pm |
|
What's that picture of, we looked at a B today with a seat set up a lot like that
Edited by Mikez - 07 Oct 2019 at 7:59am
|
|
chaskaduo
Orange Level
Joined: 26 Nov 2016
Location: Twin Cities
Points: 5200
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Oct 2019 at 7:17am |
|
Serial number says B4800, makes it a 1938 B. It has a aftermarket or dealer add on Monroe Seat.
|
|
1938 B, 79 Dynamark 11/36 6spd, 95 Weed-Eater 16hp, 2010 Bolens 14hp
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8649
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Oct 2019 at 8:01am |
|
Oh ok thanks.
|
|
Bill Long
Orange Level
Joined: 12 Sep 2009
Location: Bel Air, MD
Points: 4556
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Oct 2019 at 9:49pm |
Scooter90, Welcome to the Unofficial Allis Chalmers Forum. You have received information from some of the B tractor experts. I can only ask that you take good care of my favorite.
Good Luck! Bill Long
ps: from the posts on this forum looks like my favorite is getting some good owners
|
|
JeremyShaw
Bronze Level
Joined: 03 Oct 2019
Location: Texas
Points: 5
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Oct 2019 at 2:25am |
|
Hi man, welcome to :)
Edited by JeremyShaw - 09 Oct 2019 at 4:12am
|
|
|
|
Scooter90
Bronze Level
Joined: 06 Oct 2019
Location: Westlake, Ohio
Points: 15
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Oct 2019 at 4:20am |
|
Thanks everyone. I now found the correct number and it looks like I have a 1941.
|
|
