new a part for an 80 series mower
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Richmar View Drop Down
Silver Level
Silver Level
Avatar

Joined: 03 Aug 2010
Location: Ia
Points: 205 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Richmar Quote  Post ReplyReply Direct Link To This Post Topic: new a part for an 80 series mower
    Posted: 08 Jun 2021 at 4:36pm
I need the serrated bushing that connects the twin arm to the sickle head on an 80 series mower .  It uses a 1/2 x 2inch fine threaded  # 8 bolt.  Please let me know where there might be one available.    Thank You !

Rich
Back to Top
Sponsored Links


Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8679 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 08 Jun 2021 at 8:26pm
Alex on here was looking into having new ones manufactured
Back to Top
Alvin M View Drop Down
Orange Level
Orange Level


Joined: 24 Jun 2018
Location: PA
Points: 797 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alvin M Quote  Post ReplyReply Direct Link To This Post Posted: 09 Jun 2021 at 6:25am
Agco part # 70804518 Agco price is 126.50
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1737 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 09 Jun 2021 at 11:32pm
Thanks Mike!
Rich- Just sold my last NOS 804518 bushing last week, we tried making a brand new one but the serrations were a hair off. Give me a couple weeks yet, I hope to be in the $50 or less ballpark.
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
only AC orange View Drop Down
Orange Level Access
Orange Level Access


Joined: 06 Dec 2014
Location: Eastern Indiana
Points: 508 		Post Options Post Options   Thanks (0) Thanks(0)   Quote only AC orange Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2021 at 6:59am
I have a suggestion for a sickle knife head that has the threads stripped out - drill out and thread for 9/16" fine thread, saves having to buy a new one!
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 2259 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G. NY Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2021 at 8:51am
Originally posted by only AC orange only AC orange wrote:

I have a suggestion for a sickle knife head that has the threads stripped out - drill out and thread for 9/16" fine thread, saves having to buy a new one!

Mine wasn't totally wore out but the threads were getting a little "thin". I simply welded a nut on the bottom of the knife head and bought a longer Gr8 bolt. There was no clearance problem. I lost my serrated bushing while mowing years ago. Believe it or not, with the help of a magnet, I found it. Glad I did considering what they want for a new one.
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1172 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2021 at 8:57am
I have one of these mowers can somebody tell me what exact part we're talking about here? I believe mine is gone also...
A picture would help with the description.
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1737 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2021 at 6:27pm
#11 is the bushing. Later were grooved face, earlier were smooth face to mate with the knifehead.
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
PaulB View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5043 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulB Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2021 at 6:36pm
Originally posted by only AC orange only AC orange wrote:

I have a suggestion for a sickle knife head that has the threads stripped out - drill out and thread for 9/16" fine thread, saves having to buy a new one!
 I have re-done the standard 1/2" threads with a HeliCoil insert. That keeps everything using stock hardware.
  I think I have a few NOS knifeheads. I don't think I have any bushings.
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
Back to Top
Gatz in NE View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Lincoln, NE
Points: 1044 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gatz in NE Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2021 at 6:42pm
Originally posted by Alex09(WI) Alex09(WI) wrote:

Thanks Mike!
Rich- Just sold my last NOS 804518 bushing last week, we tried making a brand new one but the serrations were a hair off. Give me a couple weeks yet, I hope to be in the $50 or less ballpark.

Serrations on top/bottom..... or the OD ?
Back to Top
Tracy Martin TN View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10735 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tracy Martin TN Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2021 at 6:57pm
The serrations on bottom of bushing, mates with the serrations on top of knife head. This puts load on bushing, not bolt. HTH Tracy
No greater gift than healthy grandkids!
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21668 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jun 2021 at 9:54pm
A good bit of advice, keep the serrations clean when assembling, get that 1/2" gr 8 bolt TIGHT, recheck the bolt often and keep the crossbar hole tension bolts adjusted so there is no slack. ANY looseness in this area and it destroys itself. Also, keep the sickle SHARP !! for easier cutting.
Back to Top
Unit3 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 17 Oct 2009
Location: NC Iowa
Points: 5589 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Unit3 Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jun 2021 at 11:51am
I think we have a NOS #12. I think I have seen one in the shelving.
2-8070FWA PS/8050PS/7080/7045PS/200/D15-II/2-WD45/WD/3-WC/UC/C
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 2259 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G. NY Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jun 2021 at 3:14pm

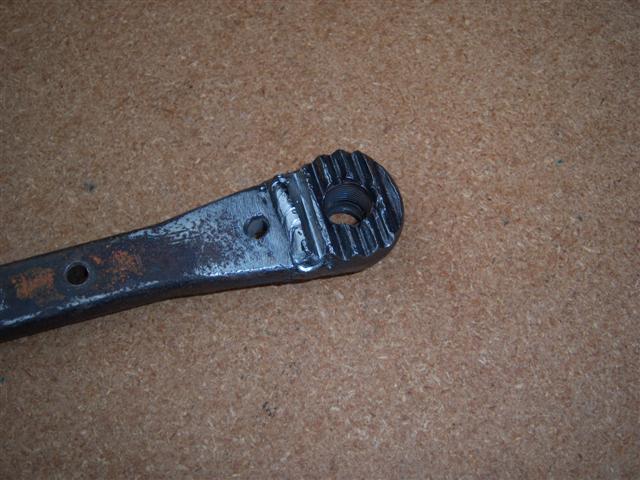

This is what the serrated knifehead looks like.....I had just broken mine and had to weld it back together.
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jun 2021 at 8:36pm
I just bought one for salvage yesterday , should have the bushing. May pick it up tomorrow. Will let you know when it is home.            MACK
Back to Top
Gary Burnett View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Virginia
Points: 3051 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Burnett Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jun 2021 at 7:31am
Make sure the bushing fits snugly inside the cross arms,if the bushing and/or cross arms have much wear it'll let the bushing move back and forth some and end up breaking the
knife head and/or the bolt.Also make sure the bushing slots are mated to the slots on the knife.
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jun 2021 at 6:38pm
The salvage mower the bushing.
660 663 9173.             MACK
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1737 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 04 Sep 2022 at 11:23am

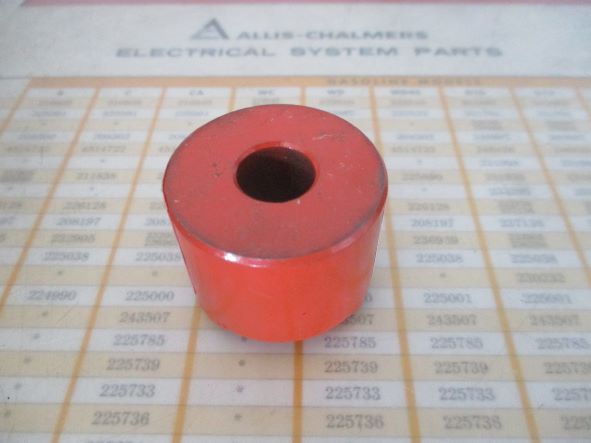

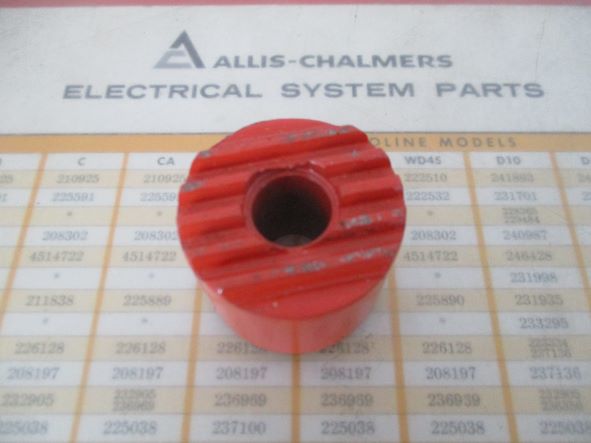

We have the 804518 serrated bushings available now, it took us a while to get the serrations correct. They are heat treated just like the originals. I have one on my 80s mower and have been using it to make sure it fits and functions properly. Price is $93. Be sure to use flat washer 920309, lock washer 916966 and proper grade 8 bolt 805306-->927236 to keep the bolt and bushing tight against sickle.



www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 04 Sep 2022 at 9:00pm
I still have some.                   MACK
