 Topic: Need help wiring router to phone jack
Posted: 13 Feb 2021 at 3:01pm |
|
I have internet in the house through the phone company, 2 wires, wired to one regular phone jack, red & green that is then wired to a wireless router. I ran phone lines from the house out to my shop years ago and am wanting to set up a wireless router out there as wireless won't reach plus it's a metal building. The router I bought has a Cat 5 cable which has 4 wires, Blue, Orange, Black on the left side and yellow in the middle. Don't want to guess and screw up home internet unless I'm gonna be out of town for a few days and give the wife cool off time.
|
|
Maximum use of available resources!
|
 |
|
Sponsored Links
|
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5874
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2021 at 3:48pm |
|
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 85443
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2021 at 4:22pm |
a CAT 5 cable should have 4 PAIRS of wires.... Your looking for the BLUE and WHITE/blue ......... unless your cable is different from standard CAT5
Edited by steve(ill) - 13 Feb 2021 at 4:23pm
|
|
Like them all, but love the "B"s.
|
|
JW in MO
Orange Level
Joined: 16 Feb 2010
Location: South KC Area
Points: 2641
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2021 at 5:46pm |

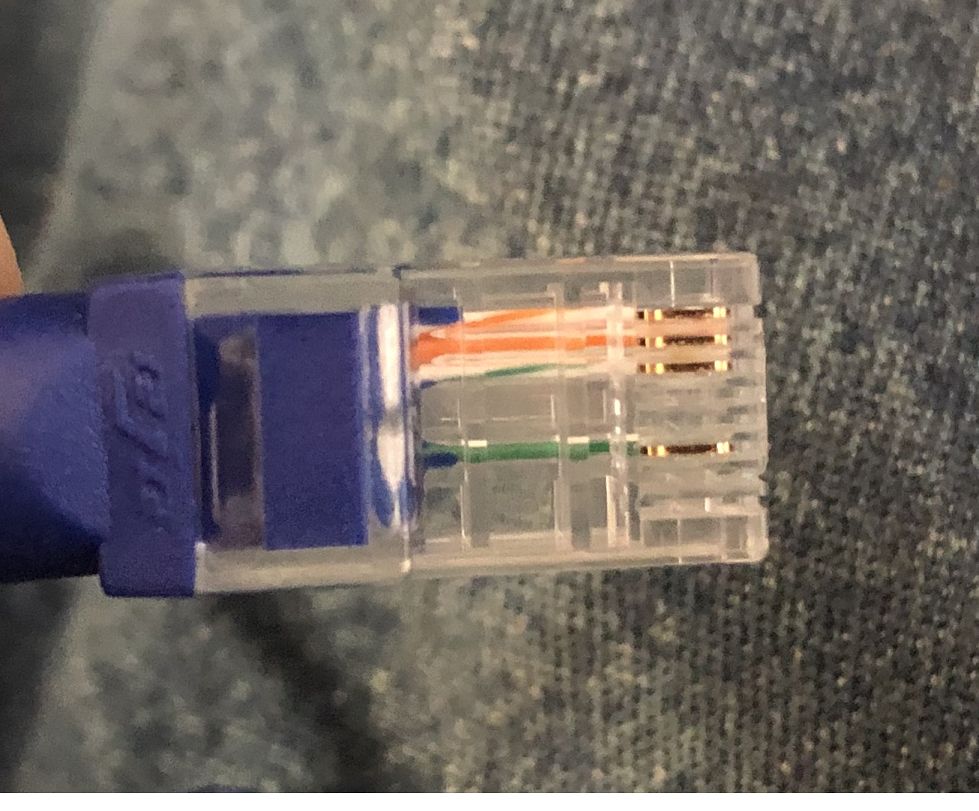

I have narrowed it down, the thing is, only 2 phone wires coming in, router has 4, I figure only 2 are used, I just need to figure out which 2. I have an idea using the SWAG factor. Here is a pic of the Cat 5 cord to the router.
|
|
Maximum use of available resources!
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 85443
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2021 at 6:27pm |
The two in the middle that are GONE are the BLUE and WHITE.... Pair #2 are on each side of them GREEN / GrWHITE ... Pair #3 in on the end ORANGE/ OrWHITE ...Pair #4 is GONE on the opposite end...
It is either ORANGE/ OrWHITE ............. or GREEN/GrWHITE...
the SOLID ORANGE or GREEN matches to the phone RED... the mate WHITE is the Green phone wire
Edited by steve(ill) - 13 Feb 2021 at 6:29pm
|
|
Like them all, but love the "B"s.
|
|
JW in MO
Orange Level
Joined: 16 Feb 2010
Location: South KC Area
Points: 2641
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2021 at 6:43pm |
|
My guess was; Orange Cat5 to Red phone line and Green Cat5 to white phone line. I will open the box on the side of the house tomorrow and give it a shot.
|
|
Maximum use of available resources!
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 85443
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2021 at 6:49pm |
|
it should be wire in PAIRS... The WHITE STRIPE wire goes with the mate SOLID wire.
|
|
Like them all, but love the "B"s.
|
|
john(MI)
Orange Level
Joined: 12 Sep 2009
Location: SE MI
Points: 9262
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2021 at 10:50pm |
|
Where is your wireless router in the house? You can try a wifi extender in a window in the barn. My main router is in the basement, I put an extender in the cabinet above the microwave. I can get wifi on most of the property, and in the barn. I took an old dongle down to the neighbors plugged it into his computer in the barn and hung it in the window and he got wiifi. He can't get phone calls in the barn, but he has wifi.
|
|
D14, D17, 5020, 612H, CASE 446
|
|
JW in MO
Orange Level
Joined: 16 Feb 2010
Location: South KC Area
Points: 2641
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2021 at 11:43am |
 john(MI) wrote:
Where is your wireless router in the house? You can try a wifi extender in a window in the barn. My main router is in the basement, I put an extender in the cabinet above the microwave. I can get wifi on most of the property, and in the barn. I took an old dongle down to the neighbors plugged it into his computer in the barn and hung it in the window and he got wiifi. He can't get phone calls in the barn, but he has wifi.
|
I thought of that but with the extender, you loose about 50% of your wireless speed and the whole reason for the wireless is I have group meetings for work in the mornings and my work computer is wireless only. With the lag on slow a connection could lead to problems answering questions.
I see our local phone guy around town every once in a while, I'll probably hold off until I can catch up with him also.
|
|
Maximum use of available resources!
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24334
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2021 at 12:11pm |
Normally yYou need 4 wires ( 2 pairs) to make the router work. 1 pair(transmit and it's ground, receive and it's ground). My cable modem ( internet/tv box from cable company) has a 'telephone jack' RJ11 that the home phone plugs into as well as a 'internet jack' RJ45.
There's no way you can run internet through 'telephone wire' as shown in Steve's picture. 'CAT5' cables are 4 twisted PAIRS of wires, 'Quad' is just 4 wires in the same cable.
You should post the make/model of the box you have, though Google can find/show how to do whatever you want.
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 85443
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2021 at 12:38pm |
Jay, im not sure i understand your post.. You are using a CABLE line input... In the USA we have something called DSL... Dont ask how it works, but you plug your router into the phone jack and it uses 2 wires to send and receive the signal... all done INSIDE the router box... You can also have a phone plugged into the same two wires... but need a filter on that line. --------------------- How many wires are needed for DSL? Your DSL signal will come to the NID over two wires in the telephone line and thence to the dsl "modem" where your ethernet cable would connect. Your telephone voice and dsl will run over the same line. Usually, one employs a filter at the telephone to filter out the noise of the dsl signal.
Edited by steve(ill) - 14 Feb 2021 at 12:39pm
|
|
Like them all, but love the "B"s.
|
|
JW in MO
Orange Level
Joined: 16 Feb 2010
Location: South KC Area
Points: 2641
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2021 at 1:32pm |
Sorry for piece mealing info, I don't realize sometimes everybody can't see what I see. It is a 2 wire DSL, house has 3 phone lines, I once used one for personal one for business one and when DSL became available, I called the phone company, they said there were 3 pair coming to interface box so he just hooked the third pair up and came in and separated my phone wire and wired one outlet for the router.
The new router is a Netgear AC1200.
|
|
Maximum use of available resources!
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24334
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2021 at 1:52pm |
hmm..bifocals son't work so well THAt far away  Yeah DSL is different........ Most everybody uses CAT5 ( RJ45 jacks) for Ethernet....I was going by the cable wrongle assuming it was a 'cable' modem....
Sounds like JW has a '3 pair drop' ( 3 pairs of 'phone lines' ) from the pole. I have a 6 pair drop (same price). Sad thing is there's 144 fibreoptic lines across the street and only 8 are dedicated to the casino up the road......
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
Dakota Dave
Orange Level
Joined: 12 Sep 2009
Location: ND
Points: 3964
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2021 at 10:56pm |
|
dsl only uses 1 pair but it needs to go to a dsl modem. your dsl modem could incorperate a router. mine did not so a cat 5 cable went from the modem to the wireless router. i no longer have dsl it was replaced with fiberoptic and my router now plugs into the port on it. to extend it i just run a cat 5 cable from the router to a wireless extender. it wont work wirelessly trough the steel lined steel pole building that is my shop
|
|
JW in MO
Orange Level
Joined: 16 Feb 2010
Location: South KC Area
Points: 2641
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Feb 2021 at 1:09pm |
The more I investigate this the more I may have more unit than I need or can use. With the bad weather, everybody is staying home and internet is super slow now anyway, especially with the wife watching movies. I may just pedal this unit and buy another. I’m having to think waaaay too hard on this project!
|
|
Maximum use of available resources!
|
|
DMiller
Orange Level Access
Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 33108
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Feb 2021 at 4:01pm |
|
Side Note, standard 4 wire phone plug will insert where the Cat 5 goes, lines up correctly as have a old corded phone I use on occasion in a Cat5 jack when power goes down.
Edited by DMiller - 15 Feb 2021 at 4:02pm
|
|
