	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
grinder220 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Jan 2012 Location: Clinton Iowa Points: 2342	Post Options Post Reply Quote grinder220 Report Post Thanks(0) Quote Reply Topic: Mounted tiller questions Posted: 07 May 2019 at 4:18pm
	I have a tiller that came with a 712 I bought several years ago and have never mounted it. It's missing the drive belt and whatever it needs to lift it. Previous owner had rigged up a cable and pulley system to lft it. I wanted to put it on my 917 this spring but need to find the missing parts to do it correctly. As far as the belt goes the 917 says the part numbers on the underside of the hood and lists 2 options depending on tiller size so now my question is do I have a 36 or 38 inch tiller? It measures 38 inches from one side of hood to the other and 36 from tine to tine. And does anyone have the correct cable or rod it needs to raise it?

Sponsored Links

Mikez Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 16 Jan 2013 Location: Usa Points: 8384	Post Options Post Reply Quote Mikez Report Post Thanks(0) Quote Reply Posted: 08 May 2019 at 12:00am
	Does your 917 have the sleeve hitch on back, I'll try to get some pictures. There is like a an idler pulley set up that goes on the side of sleeve hitch that the belt runs on

grinder220 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Jan 2012 Location: Clinton Iowa Points: 2342	Post Options Post Reply Quote grinder220 Report Post Thanks(0) Quote Reply Posted: 08 May 2019 at 8:42am
	Yeah it has the sleeve hitch and idler pulley.

ac fleet Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Jan 2014 Location: Arrowsmith, ILL Points: 2316	Post Options Post Reply Quote ac fleet Report Post Thanks(0) Quote Reply Posted: 08 May 2019 at 9:18am
	Mine is called a 36" --- never saw a 38" Mine came with the 917,--worked good till the tines gave out, put new set of tines on it, ($225.) and 2 uses later the chain drive inside broke. Got new chains cut and put in , now cant get gasket, or hollow bolt that has the zerk in it. My pardner on MBN made me a bolt on his lathe, but the gasket is the problem so the tiller lays on the bench apart and I gave up on it and will probably toss it in the junk with the other allis stuff. The hitch is as said a sleeve hitch, AND I was told that the cable is special made for just that. --No room to put clamps for a homemade cable in there, in fact getting a new one in would be a bear. Also was told that new ones are NLA and if you find old stock new one it's $ 110. I have no proof of this cost, but the info came from a reliable source. If somebody could do a super good crimp on the right sleeve over the cable, I would think it should work. The tiller has its own sleeve hitch, but I have another sleeve hitch for the brinly plow and cultivator that uses a sleeve hitch. The tiller mounts with 2 lower pins after you slide the lift sleeve into the tube and flip the belt over the pulley, hook the tension spring and go. Not a biggie to mount. I never take my belt off the clutch pulley end, just tie it over the fender with a strap so its loose and use the 917 for other stuff. IF working the tiller does the best job of any tiller on the market. It turns the dirt into flower fine powder. really did a nice job. If you need pix. of the hitch , mine is laying on the bench, so it wouldn't be hard to photo it.
	http://machinebuildersnetwork.com/

grinder220 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Jan 2012 Location: Clinton Iowa Points: 2342	Post Options Post Reply Quote grinder220 Report Post Thanks(0) Quote Reply Posted: 08 May 2019 at 7:47pm
	I actually mounted it to the tractor the other day just to make sure I knew what I needed to make it work. The belt and cable are all I assume I need.

grinder220 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Jan 2012 Location: Clinton Iowa Points: 2342	Post Options Post Reply Quote grinder220 Report Post Thanks(0) Quote Reply Posted: 08 May 2019 at 7:51pm
	here's a picture of the hitch and pulley and the decal under the hood

irlbeck A-C'S Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 28 Sep 2009 Location: Crestview FL. Points: 684	Post Options Post Reply Quote irlbeck A-C'S Report Post Thanks(0) Quote Reply Posted: 08 May 2019 at 8:28pm
	I found a replacement cable online. It was a direct replacement for the original. I'll have to get back home where i can post the part# I'm thinking it also fit a murray and some other models. The tough thing to find was the clevis from the sleeve hitch to the cable but one could be made easily. It has to be the right length. If it's too short it cause will cause the drive pulleys to contact the top of the tiller deck when it is raised. I'll be able to give you the clevis measurements later as well. Also if your 917 is a hydro you'll need a idler pulley kit that keeps the belt from hitting the hydro filter. Edited by irlbeck A-C'S - 08 May 2019 at 8:35pm
	B,C,CA,(2)WC's,(4)WD's,(2) WD45'S, 45Diesel, (2)D12'S Series 2, D12 Hiclear,(2)D12 Series 3, HD3, D17NF (3)D17 Series 4 Diesels, M-100 Grader,8550,A few Lawn tractors lots of other AC stuff

grinder220 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Jan 2012 Location: Clinton Iowa Points: 2342	Post Options Post Reply Quote grinder220 Report Post Thanks(0) Quote Reply Posted: 11 May 2019 at 9:17pm
	It is a hydro but the filter is mounted in the center just ahead of the rear end.

irlbeck A-C'S Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 28 Sep 2009 Location: Crestview FL. Points: 684	Post Options Post Reply Quote irlbeck A-C'S Report Post Thanks(0) Quote Reply Posted: 12 May 2019 at 9:10am

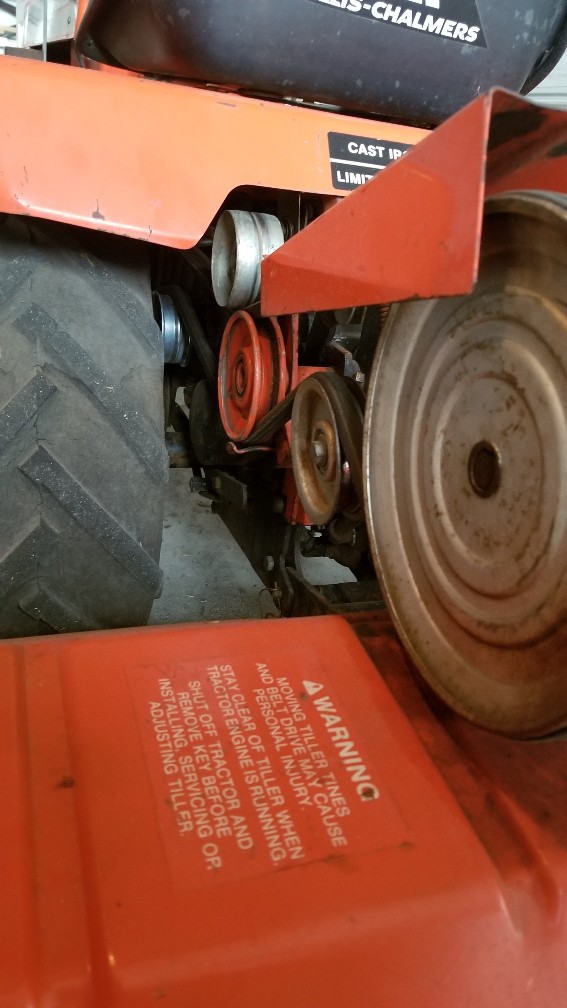

	The idler pulley kit keeps the belt from the pto drive from rubbing on that filter.I'll post some pics of what you need when i get back to my tractors. Should be later today.
	B,C,CA,(2)WC's,(4)WD's,(2) WD45'S, 45Diesel, (2)D12'S Series 2, D12 Hiclear,(2)D12 Series 3, HD3, D17NF (3)D17 Series 4 Diesels, M-100 Grader,8550,A few Lawn tractors lots of other AC stuff

jaybmiller Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Location: Greensville,Ont Points: 22452	Post Options Post Reply Quote jaybmiller Report Post Thanks(0) Quote Reply Posted: 12 May 2019 at 9:56am
	that's an A-C style 'sleeve hitch' NOT compatible with the rest of the World of Garden Tractor Implements.....I found that out the hard way....sigh...
	3 D-14s,A-C forklift, B-112 Kubota BX23S lil' TOOT( The Other Orange Tractor) Never burn your bridges, unless you can walk on water

ac fleet Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Jan 2014 Location: Arrowsmith, ILL Points: 2316	Post Options Post Reply Quote ac fleet Report Post Thanks(0) Quote Reply Posted: 12 May 2019 at 11:22am
	Thats why my plow/cultivator and rake have the different hitch.
	http://machinebuildersnetwork.com/

irlbeck A-C'S Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 28 Sep 2009 Location: Crestview FL. Points: 684	Post Options Post Reply Quote irlbeck A-C'S Report Post Thanks(0) Quote Reply Posted: 12 May 2019 at 9:55pm
	The simplicity number for cable is 1657563sm Idler pulley bracket is 1671233asm I'll post the part #"s for the pulley and the clevis when i get them. I'll also post the length of the cable and the total length of cable with the clevis installed to help with setting the lift right. The cable, pulley bracket and clevis could be made rather easy. I found the cable cheaper somewhere by a cross reference to other manufacturers but i can't remember what else it fit. Will be searching for that too. After reading your post again. It seems from your description like your hydro filter is one that is mounted out of the of the way and you won't need the idler kit. I've included the idler kit info to hopefully help someone else on tiller mounting with the side mount filter. https://www.allischalmers.com/forum/uploads/1434/20190512_174446-567x1008.jpg Edited by irlbeck A-C'S - 12 May 2019 at 10:47pm
	B,C,CA,(2)WC's,(4)WD's,(2) WD45'S, 45Diesel, (2)D12'S Series 2, D12 Hiclear,(2)D12 Series 3, HD3, D17NF (3)D17 Series 4 Diesels, M-100 Grader,8550,A few Lawn tractors lots of other AC stuff

Mikez Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 16 Jan 2013 Location: Usa Points: 8384	Post Options Post Reply Quote Mikez Report Post Thanks(0) Quote Reply Posted: 12 May 2019 at 11:10pm
	Good pictures Edited by Mikez - 12 May 2019 at 11:11pm

grinder220 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Jan 2012 Location: Clinton Iowa Points: 2342	Post Options Post Reply Quote grinder220 Report Post Thanks(0) Quote Reply Posted: 16 May 2019 at 4:53pm
	Thanks for the numbers and pictures..now I need to figure out which belt I need. One is a ⅝×96 the other is ⅝×106.

jaybmiller Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Location: Greensville,Ont Points: 22452	Post Options Post Reply Quote jaybmiller Report Post Thanks(0) Quote Reply Posted: 16 May 2019 at 6:35pm
	OK, I gotta ask... what's with all the black dots or holes in that tape measure ??
	3 D-14s,A-C forklift, B-112 Kubota BX23S lil' TOOT( The Other Orange Tractor) Never burn your bridges, unless you can walk on water

grinder220 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Jan 2012 Location: Clinton Iowa Points: 2342	Post Options Post Reply Quote grinder220 Report Post Thanks(0) Quote Reply Posted: 20 May 2019 at 12:37pm
	Can someone show me how the cable is ran and mounted to the tractor. I'm assuming there needs to be a pulley or 2 for it the run on?

Kuzrichki Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 09 May 2019 Location: Michigan Points: 7	Post Options Post Reply Quote Kuzrichki Report Post Thanks(0) Quote Reply Posted: 21 May 2019 at 9:21pm
	Great pictures. I have a 712H, and a tiller, but I am missing the idler pulley and the pulleys that go on the rear hitch. I only have one big pulley on the tiller, so I think I'm missing 3 or 4 pulleys all together. Anybody have any of those parts laying around they want to get rid of? Thanks!

irlbeck A-C'S Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 28 Sep 2009 Location: Crestview FL. Points: 684	Post Options Post Reply Quote irlbeck A-C'S Report Post Thanks(0) Quote Reply Posted: 22 May 2019 at 8:17pm
	I'll post some pics of the cable path too. It's not hard to route it. It runs down the center of the tractor, it turns downward running over a small pulley with a little guard around it and pins to the rockshaft under the bottom of the tractor. I'll post all the lengths of cable and what you'll need to get it connected. It will be this weekend before i can. The tape measure has holes in it for ventilation. It's hot here in florida. Need all the moving air we can get. No really it's for use in the wind. It won't blow the tape around when you stretch it out hold it just right and the wind will whistle a tune for you...lol I have no idea what they are for. Hopefully someone will fill us in on that.
	B,C,CA,(2)WC's,(4)WD's,(2) WD45'S, 45Diesel, (2)D12'S Series 2, D12 Hiclear,(2)D12 Series 3, HD3, D17NF (3)D17 Series 4 Diesels, M-100 Grader,8550,A few Lawn tractors lots of other AC stuff

irlbeck A-C'S Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 28 Sep 2009 Location: Crestview FL. Points: 684	Post Options Post Reply Quote irlbeck A-C'S Report Post Thanks(0) Quote Reply Posted: 26 May 2019 at 7:41pm

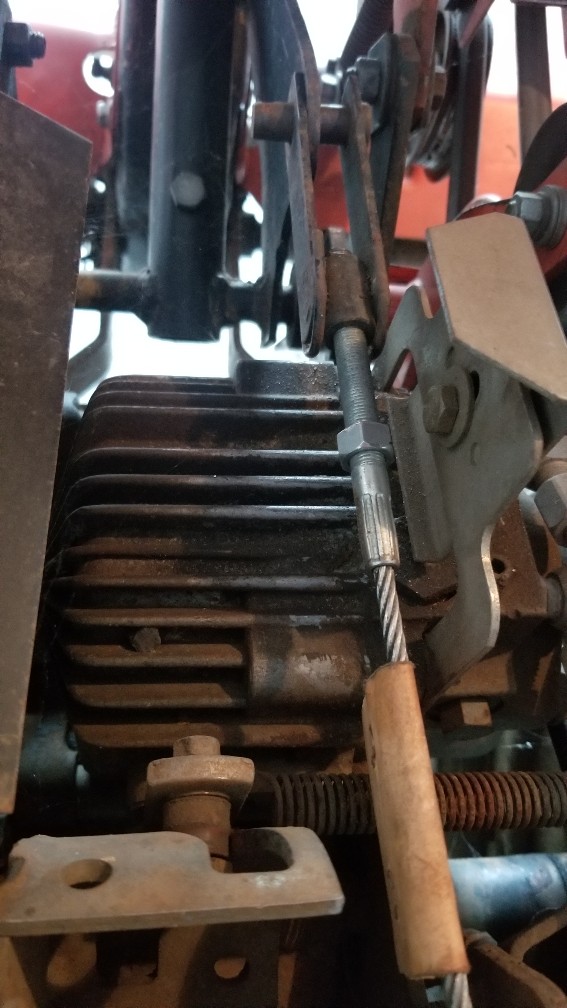

	The belt on mine measured 96in I'm adding a few pics of the cable route. Also the nut on the cable end should be jammed to the end of the clevis. On this pic the top right of the pic shows the cable coming over the small pulley and attaching to the rockshaft The pulley attaches between two ears above the rockshaft. The bottom of the pic is looking toward the rear. The rockshaft has two places to connect cables. The cable from the rear sleeve hitch attaches to the left side of the rockshaft looking at it from the rear. The attachment on the right side rockshaft would be for another attachment such as a mower deck In the middle of this pic You can see a little of the cable coming from the rear on left side towards the front. [IMG]uploads/1434/20190526_115302- The cable length was about 39 inches. I think the part description gives the exact cable length Length of clevis from end of cable to sleeve hitch.
	B,C,CA,(2)WC's,(4)WD's,(2) WD45'S, 45Diesel, (2)D12'S Series 2, D12 Hiclear,(2)D12 Series 3, HD3, D17NF (3)D17 Series 4 Diesels, M-100 Grader,8550,A few Lawn tractors lots of other AC stuff

grinder220 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Jan 2012 Location: Clinton Iowa Points: 2342	Post Options Post Reply Quote grinder220 Report Post Thanks(0) Quote Reply Posted: 27 May 2019 at 12:04pm
	Awesome,thanks for the pictures.
