Hutchinson Show Coming Out Party: 42S Grader

Message Rating: Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

Hi guys-Here are some pictures of the 42S I have been working on.   Picked it up in November 2013.  She still isn't pretty but I hope to get it to the show.
Here is some background on it:
1939
42S is based on the UC tractor (same mechanicals engine back)
It appears that it had been sitting for 10+ years (based on tree growth around it).  Lucky for it, it was parked next to a nudist colony (I'm serious!  East Bethel, MN).
Front rims were shot...I ended up finding some 20" split rims to put on it.
Original rear rims were gone (it is suppose to have 24" duals similar to an on-highway truck of that era).  After much searching, I selected the same solution that the previous owner had...26" tractor rims.
The reason for parking it was that it dropped a valve in #1 cylinder and put a hole in the head.   These valves did not have a keeper ring on them that you see on many UM engines.
It was used for spreading asphalt at one time.  It's last use was clearing snow from parking lots.
The drives are all mechanical driven off the front of the engine...all this stuff was shelled out so someone had mounted a Briggs and Stratton engine near the main control box.
Left to do...get the canopy done and get all the actuators working.
Someone had painted "Happy Birthday Jan" on the side...several Allis friends have reported that they have used a picture of this to convince their wives that they are "normal"  ;-).
Enjoy the pics.

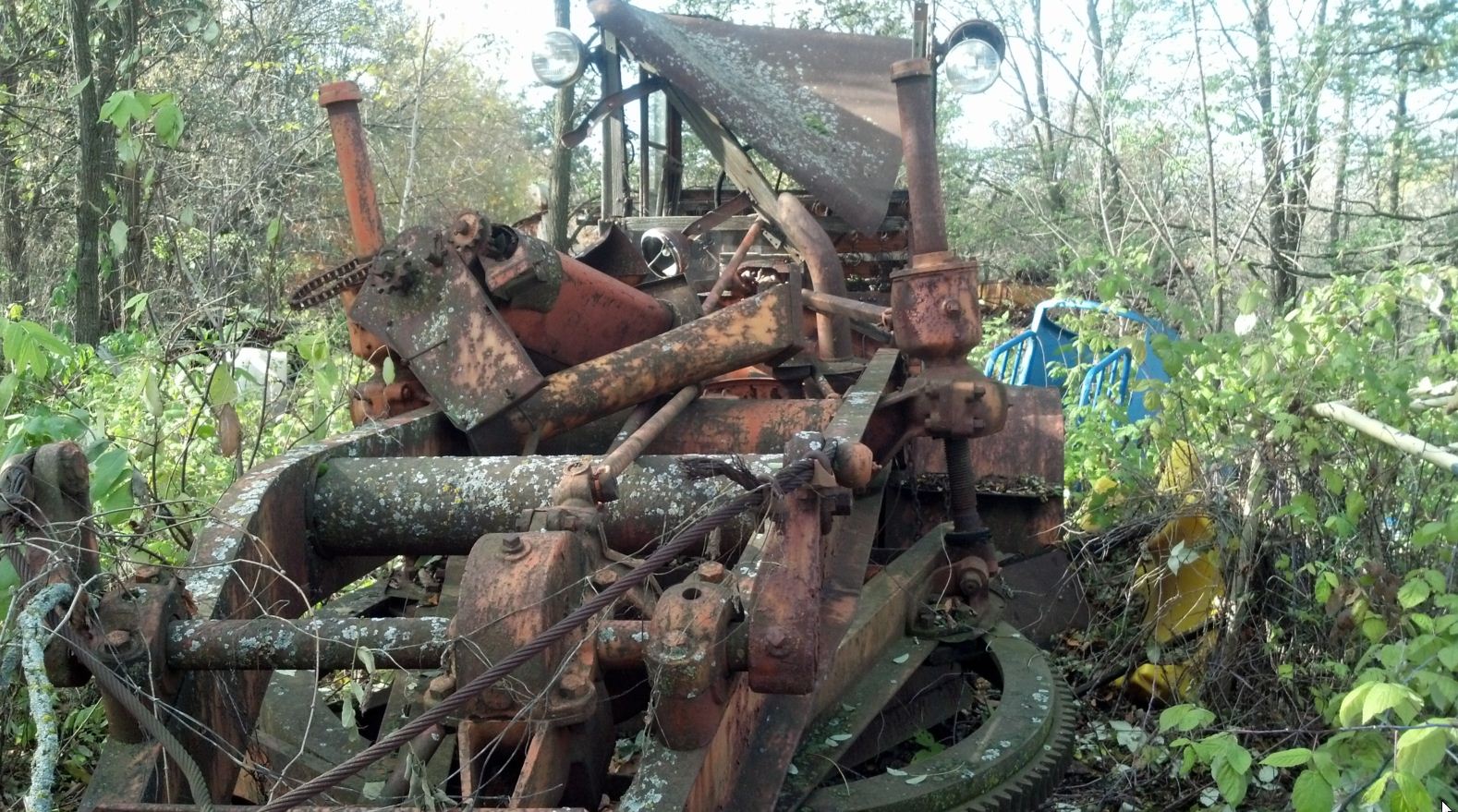

As found:

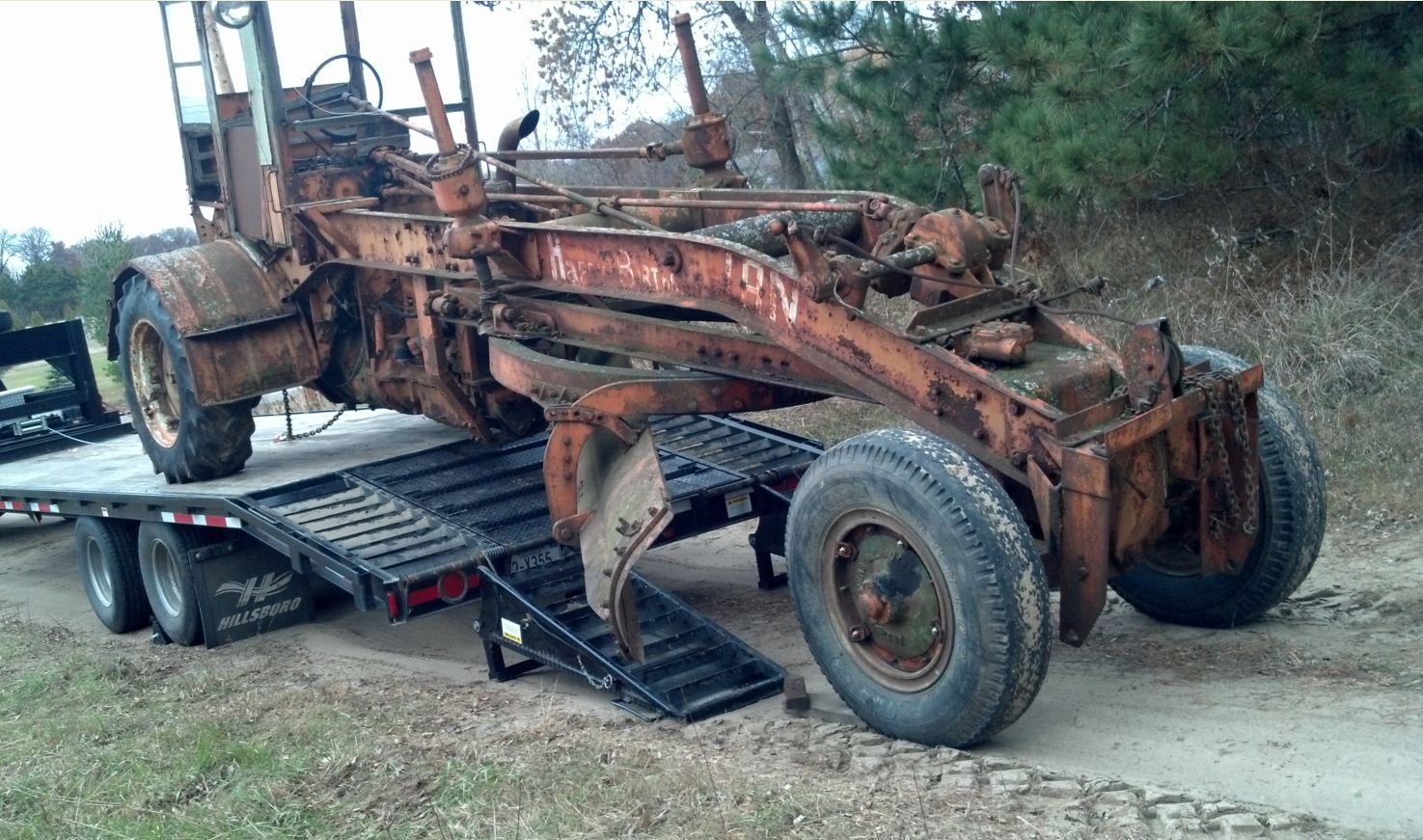

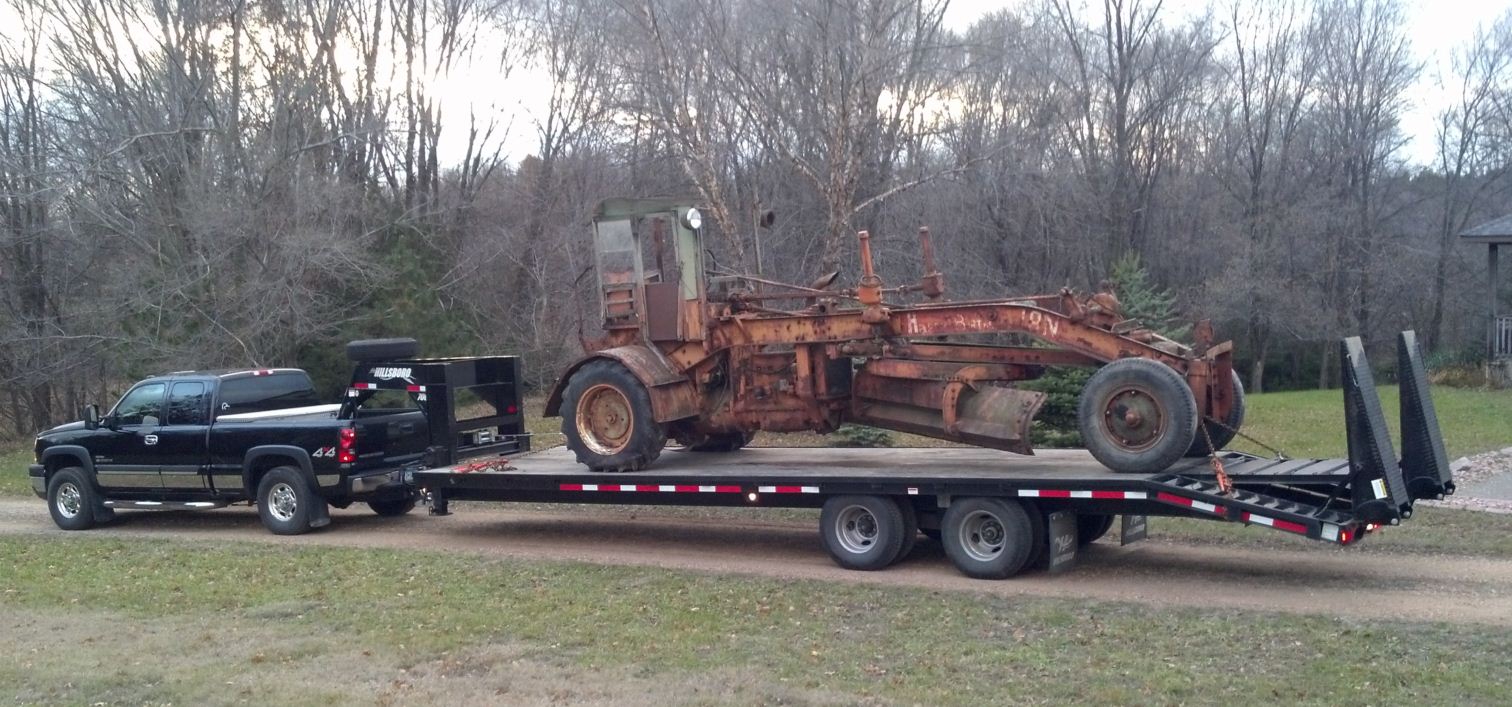

As I moved it:

Today:
