How much to remove off hollow shafts
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
KansRustbuzzard View Drop Down
Bronze Level
Bronze Level


Joined: 08 May 2019
Location: Kansas
Points: 25 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KansRustbuzzard Quote  Post ReplyReply Direct Link To This Post Topic: How much to remove off hollow shafts
    Posted: 12 Jul 2022 at 4:23pm

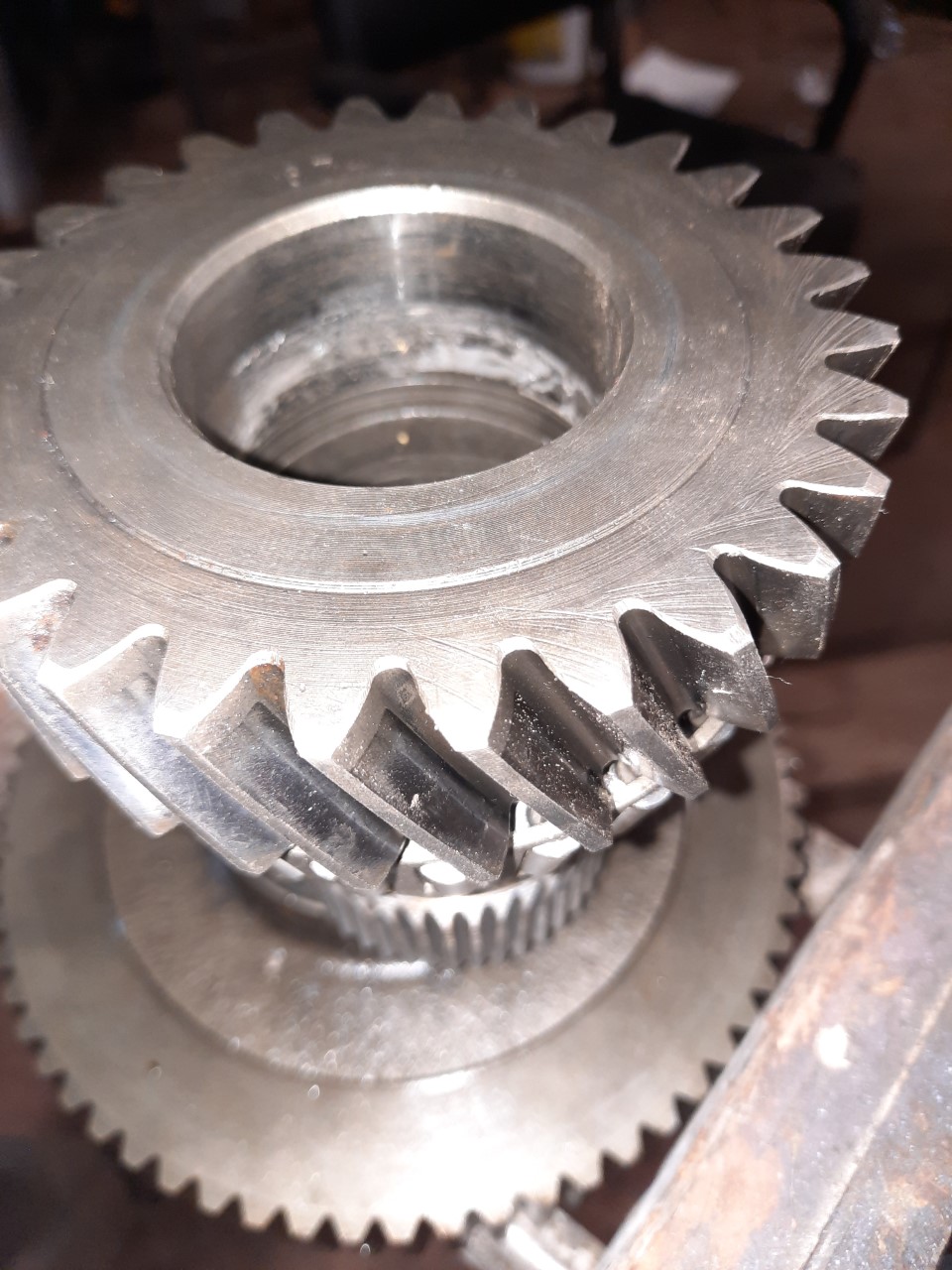

When polishing out the galling, how much can I remove  without getting in trouble? The inside  shaft polished off real clean while chucked in the lathe but the short shaft is a lot worse right under the gear as in picture.  Am I going to mess up by taking too much out of the inside? Thanks
Back to Top
Sponsored Links


Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20553 		Post Options Post Options   Thanks (1) Thanks(1)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jul 2022 at 7:40pm
They run pretty close together. That is why they occasionally seize when bearings get worn a bit. I have opened them up as much as .010" (removing .005" x two) without any regrets. Too loose and they can't ever do what they did.
Back to Top
KansRustbuzzard View Drop Down
Bronze Level
Bronze Level


Joined: 08 May 2019
Location: Kansas
Points: 25 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KansRustbuzzard Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jul 2022 at 11:39am
Thank you for that information, I am going to take some more off, no reason to do this twice!
