Hidden Transmission Plug

 Post Reply Post Reply
Author
Message
#2Son View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Sep 2013
Location: United States
Points: 14
Post Options Post Options   Thanks (0) Thanks(0)   Quote #2Son Quote  Post ReplyReply Direct Link To This Post Topic: Hidden Transmission Plug
    Posted: 12 Jan 2024 at 7:03pm
Back to Top
Sponsored Links


Back to Top
#2Son View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Sep 2013
Location: United States
Points: 14
Post Options Post Options   Thanks (0) Thanks(0)   Quote #2Son Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2024 at 7:12pm
In the brake housing, part of the Transmission case, is a port that is in line with the access hole on the side of the housing. Whatever plug was in this port came out while I was mowing and I lost all the transmission fluid. I cannot find this plug in the parts manual or the service manual. Can anyone help me with this? I can't order it if I don't know size, threads, etc.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81065
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2024 at 8:48pm
are you talking about plug #8 ?... I dont know the tractor.... or the size of the plug, but there is a fiber or copper washer on it, so im guessing a fine thread BOLT thread... You can make a GUESS.... maybe 5/8 or 3/4 inch ???  Get a couple bolts at the hardware store and test ?  Might even be able to use a short bolt and gasket ?
Like them all, but love the "B"s.
Back to Top
JoeM(GA) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Cumming,GA
Points: 4647
Post Options Post Options   Thanks (0) Thanks(0)   Quote JoeM(GA) Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2024 at 8:50pm
always kinda helpful to give a model number
Allis Express North Georgia
41 WC,48 UC Cane,7-G's,
Ford 345C TLB
Back to Top
Fred in Pa View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fred in Pa Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2024 at 5:58am
looks to be a D 17 housing
He who dies with the most toys is,
nonetheless ,still dead.
If all else fails ,Read all that is PRINTED.
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20479
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2024 at 6:10am
We're not talking the  horizontal "pin" that holds the lift arm cylinder in place are we ???  The oil drain plug is directly above the drawbar and directly under the seat shock absorber, not hard to see and not hidden.
Back to Top
#2Son View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Sep 2013
Location: United States
Points: 14
Post Options Post Options   Thanks (0) Thanks(0)   Quote #2Son Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2024 at 7:52am

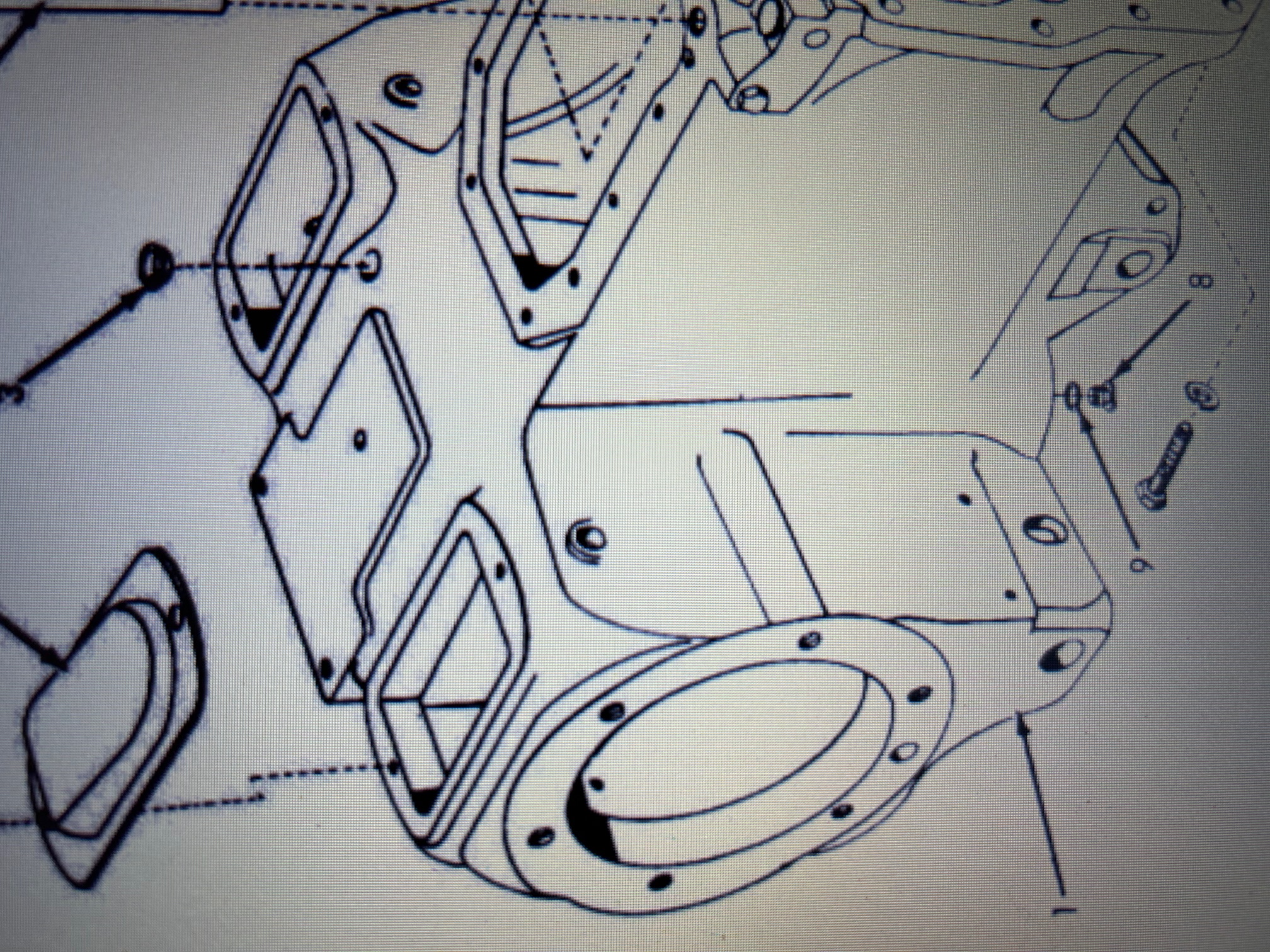

Sorry, this is a D17. Item 1 on the drawing is pointing at the housing. Just to the right of the 1 is an access hole on the outside of the housing. That hole gives access to the brake area. Directly in line with that hole is a hole to the differential. It is threaded. There is no reference in the Maintenance Manual or the Parts Manual, that I can find, as to what type of plug or why it is there. There is no need for a drain there as the drain is on the bottom, item #8.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81065
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2024 at 8:11am
OK... here is the horizontal hole.... Is the THREADED hole below this pointing UP ?  Like a pin retainer bolt ?


Like them all, but love the "B"s.
Back to Top
#2Son View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Sep 2013
Location: United States
Points: 14
Post Options Post Options   Thanks (0) Thanks(0)   Quote #2Son Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2024 at 11:59am
No. If you were to put your finger in that hole you would be pointing at the hole I'm talking about.
Back to Top
#2Son View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Sep 2013
Location: United States
Points: 14
Post Options Post Options   Thanks (0) Thanks(0)   Quote #2Son Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2024 at 12:31pm
BTW the hole I'm talking about cannot be seen unless the brake toggle shoe is removed.
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20479
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2024 at 2:04pm
That's that lower lift arm cylinder pin. The 3/8" bolt must have fallen out and the pin has moved outward enough to expose the Oring and now it leaks oil. Get a flashlite and look inside the hole. There should be a 3/8" bolt laying there loose.
Back to Top
#2Son View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Sep 2013
Location: United States
Points: 14
Post Options Post Options   Thanks (0) Thanks(0)   Quote #2Son Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2024 at 3:06pm

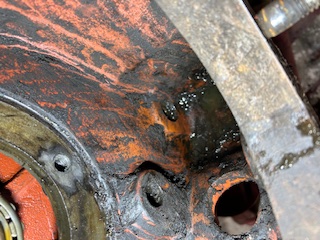

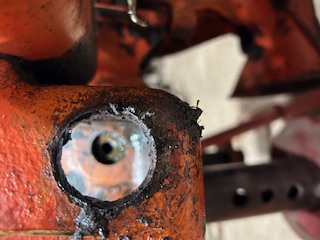

In the first picture the hole is in the lower right.  The second picture is looking straight on through the outer access hole.

Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81065
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2024 at 7:21pm
John, i personally have never pull or installed the pin... Watch this movie at 11:00 to 12:00 minute mark and you will get an idea of WHAT is inside..  PIN + BOLT



Like them all, but love the "B"s.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81065
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2024 at 7:26pm
also watch this about the 9 minute mark on removal...


I believe the small bolt in the end of the PIN sets the DEPTH so you dont poke it in too far... then you install a bolt from the BOTTOM to hold the shaft in place ??

Like Dr said... look in the HOLE and you might see a small bolt and washer.. And the "thread" should be in the end of the PIN .. which i believe is 1/2 inch fine thread ?



Edited by steve(ill) - 13 Jan 2024 at 7:29pm
Like them all, but love the "B"s.
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20479
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2024 at 8:50pm
Series 3 ??     or Series 4 ??? makes a difference.
Back to Top
#2Son View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 06 Sep 2013
Location: United States
Points: 14
Post Options Post Options   Thanks (0) Thanks(0)   Quote #2Son Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jan 2024 at 9:34am
Thank you all.  I'm beginning to get the picture. It is a series I, 1959. Is there anyway it could have fallen out inside the differential case?
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20479
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jan 2024 at 1:14pm
You must be missing the square headed set bolt that secures the cylinder pin. It goes in from the bottom. The hole in the end of your pin is to attach a long 3/8" bolt to pull/push the cylinder pin into place from the outside. I have to laugh that this guy went to all the trouble to reseal the lift arm cylinder and reused the old hydraulic hose !!!!!!!!!!!! DUH !!!
Back to Top
