 Topic: HD6B Identification
Posted: 29 Dec 2022 at 4:16pm |
I am trying to confirm the year that my HD6B as manufactured to obtain the service manuals for it and the parts catalog. I was told that this was a '64, however the serial number on the tag indicates that it is much earlier than that.
The tag on the instrument panel was highly corroded and barely readable. I have photos of the tag before I cleaned it off with steel wool to verify the serial number.
Tractor: 6-9550 Engine :6-9559

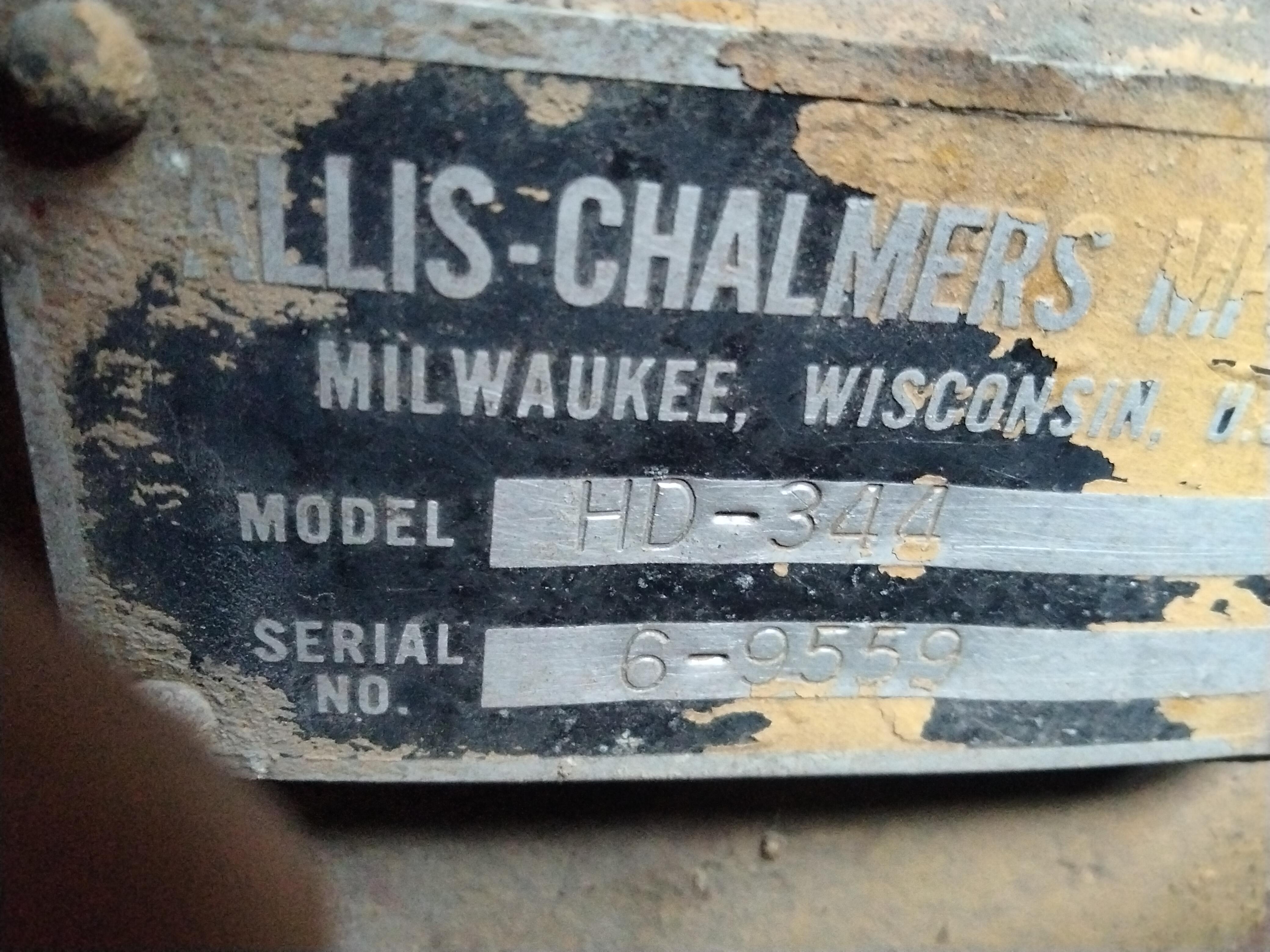

Engine Tag:

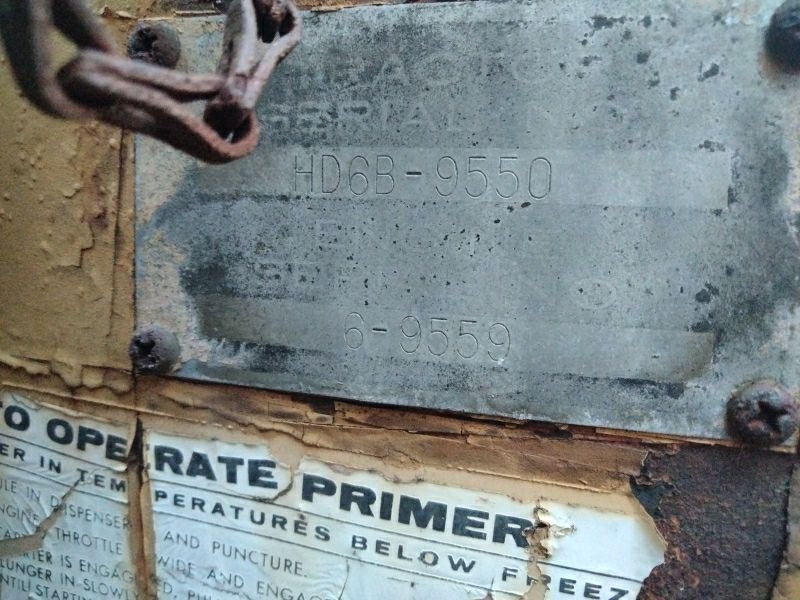

Instrument Panel Tag:
|
 |
|
Sponsored Links
|
|
|
HD6 Merv
Silver Level Access
Joined: 03 Aug 2010
Location: New Zealand
Points: 481
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Dec 2022 at 4:23pm |
|
your HD6B is 1958 build with the HD344 Buda design, indirect injection engine
|
|
tits tyres and tracks
they all cost you money
|
|
youngbuck_oldiron
Bronze Level
Joined: 29 Dec 2022
Location: ohio
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Dec 2022 at 4:43pm |
|
Thank you very much. This is going to be a long process. I know that i will need a hydraulic pump and mount bracket, starter solenoid needs to be rebuilt, and steering and brakes at the minimum.
|
|
youngbuck_oldiron
Bronze Level
Joined: 29 Dec 2022
Location: ohio
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Dec 2022 at 4:45pm |

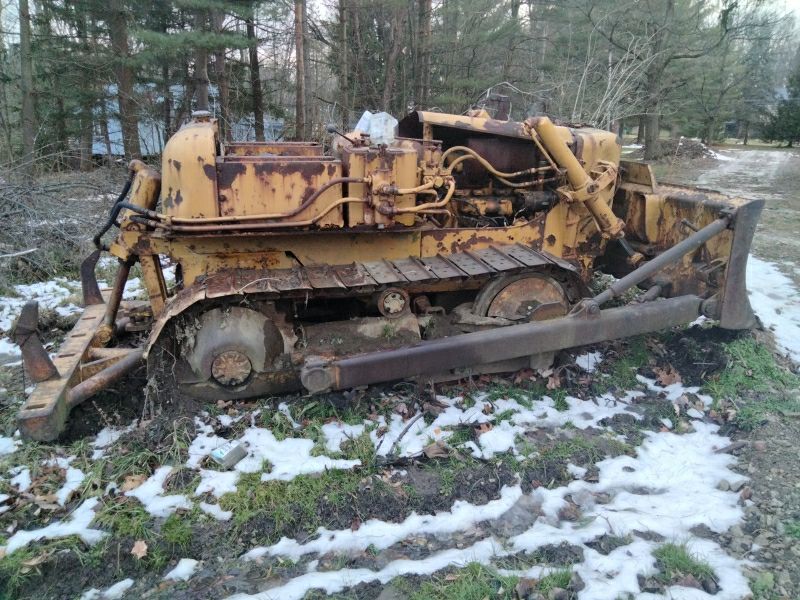

 Here is the picture of it. Been sitting for 10 years now. tracks and throw out bearing are still free, moved it this year with a Cat 420.
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 2047
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Dec 2022 at 6:56pm |
|
Those track pads have sure seen some use. Looks like a neat project. Does the engine turn over? I have kicked around an HD-11 project that is close to me, but I pretty well got scared off by the unavailability of engine parts for the old AC/Buda engines in that era of crawlers.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
200Tom1
Orange Level
Joined: 03 Jun 2019
Location: Iowa
Points: 1232
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Dec 2022 at 11:53pm |
|
You might as well tackle the job, its just nuts and bolts.
|
|
youngbuck_oldiron
Bronze Level
Joined: 29 Dec 2022
Location: ohio
Points: 10
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Dec 2022 at 9:50am |
|
Motor spins freely. Removed the fuel filters and drained the old diesel out. All lines are not blocked. Working on rebuilding the starter now, the one terminal melted, new battery cables being installed and electric system overhaul.
|
|
