Gas D 15 series 1 muffler
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 3003 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Topic: Gas D 15 series 1 muffler
    Posted: 27 Dec 2021 at 1:00pm
Santa brought me a Nelson #233450 muffler . I pulled the 2 year old Stanley and the Nelson won't fit . Looks like the rain skirt is gonna need massaging . Just thought I'd ask if anyone else has had this issue ? I replaced my exhaust/intake manifold a few years ago . Maybe the repop ain't quite right ? THANKS !!
Back to Top
Sponsored Links


Back to Top
DiyDave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54190 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2021 at 6:02pm
Is the muffler sitting an inch or so to the left, and won't fit the sheet metal of the hood?
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 3003 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2021 at 6:27pm
No, it won't line up enough to fit down in the manifold . I was hoping someone else had also run into this before I started making it fit . Thanks for your reply
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7509 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Dec 2021 at 7:22pm
I put a new muffler on my D14 2 years ago and I had to trim back the rain shirt a bit.  I matched it up to the old Nelson that I had taken off and noticed it did not look the same.  After all was said and done, I got it to fit.
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '63 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
Back to Top
ACinSC View Drop Down
Orange Level
Orange Level


Joined: 16 Dec 2015
Location: South Carolina
Points: 3003 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ACinSC Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2021 at 7:19am
Thanks Myron . Good to know , I'll figure it out
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1751 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 28 Dec 2021 at 8:59pm

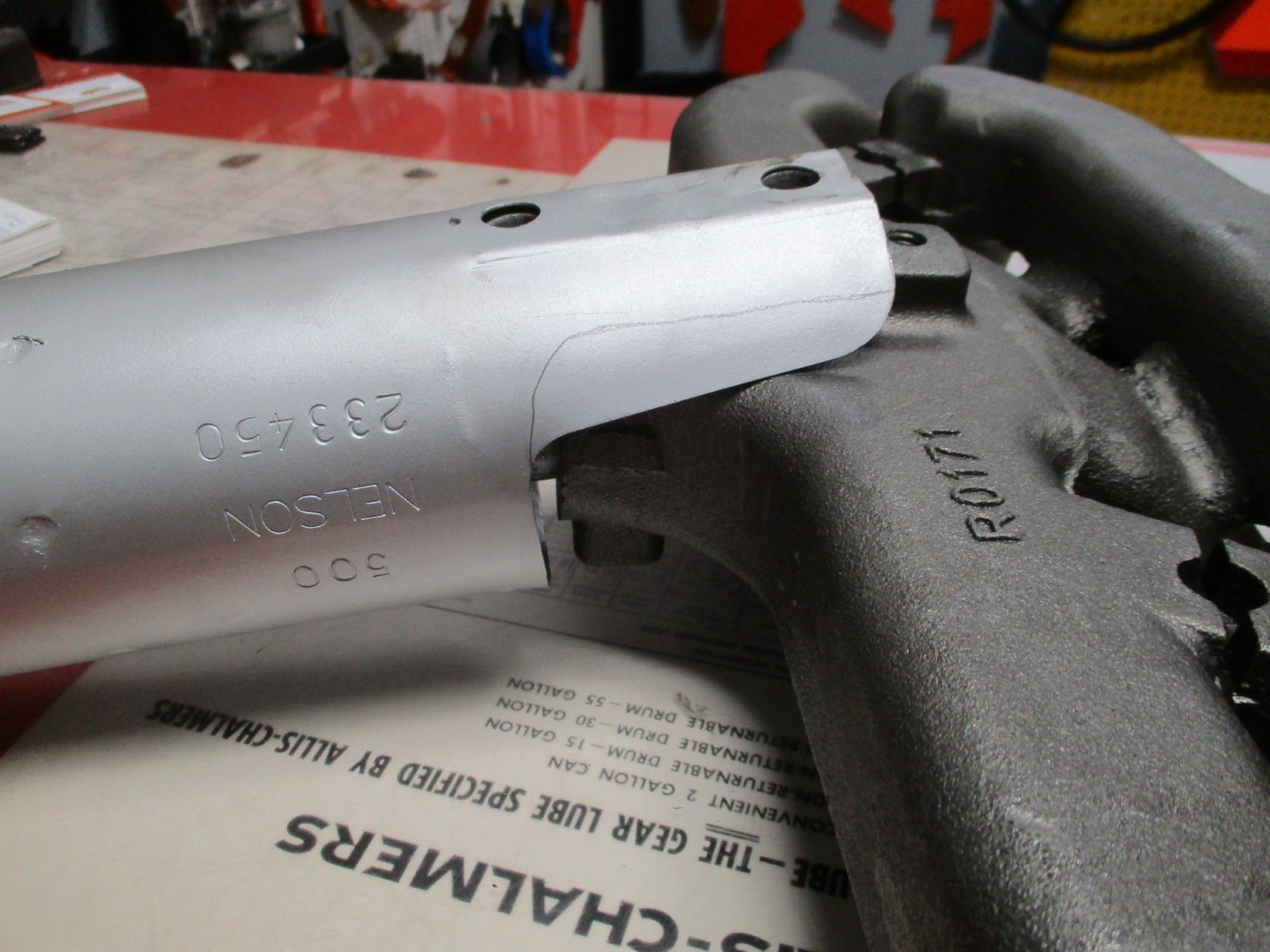

Here is the Nelson muffler on an aftermarket D14/D15 manifold. Looks like the rain shield would have to be trimmed to slide the muffler into the manifold. From the way the manifold is shaped, looks like the original D14/D15 manifolds would have the same problem. I will test a muffler on an original manifold when I get a chance.
