Further adjustments on my '37 WC
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
H_36754 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 04 Jul 2023
Location: Georgia
Points: 11 		Post Options Post Options   Thanks (0) Thanks(0)   Quote H_36754 Quote  Post ReplyReply Direct Link To This Post Topic: Further adjustments on my '37 WC
    Posted: 10 Jul 2023 at 7:58pm
UPDATE for the '37 WC: After further analysis, I found a crack in the top half of the casting that causes leaks. I took upon it to order a refurbished carburetor and once it came today I put it on and after several tries to pull start the tractor it did turn over and run adequately enough I could drive with it. However it still has several issues. It sounds as though it's running on only 2 cylinders. I checked and all four plugs have a spark. Any thoughts?
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 88179 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jul 2023 at 8:31pm

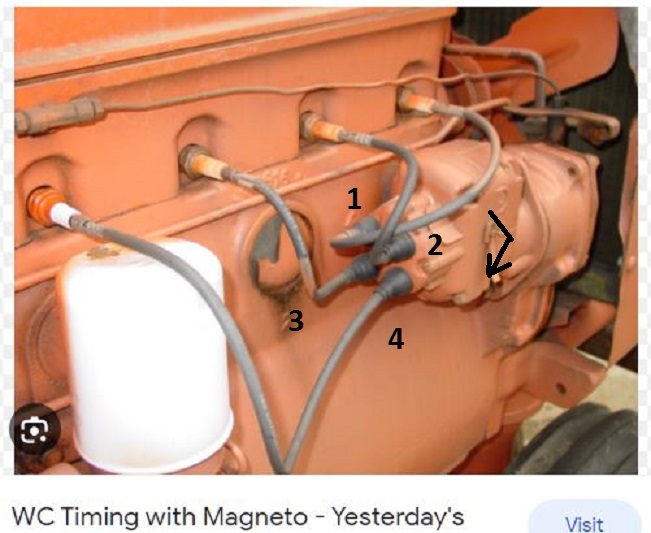

timing 1-2-4-3..... front is #1  ?
Like them all, but love the "B"s.
Back to Top
H_36754 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 04 Jul 2023
Location: Georgia
Points: 11 		Post Options Post Options   Thanks (0) Thanks(0)   Quote H_36754 Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jul 2023 at 8:32pm
Yes.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 88179 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jul 2023 at 8:37pm
sometimes hard to narrow down if its fuel related or electrical...If we ASSUME the new carburetor is correct......... how about the mag condenser / coil /  plug wires  / spark plug age ?
Like them all, but love the "B"s.
Back to Top
H_36754 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 04 Jul 2023
Location: Georgia
Points: 11 		Post Options Post Options   Thanks (0) Thanks(0)   Quote H_36754 Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jul 2023 at 8:41pm
It's got a new mag and plugs. The wires are original.
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8647 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jul 2023 at 8:54pm
got the order right....do you have the rotation right?
Back to Top
H_36754 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 04 Jul 2023
Location: Georgia
Points: 11 		Post Options Post Options   Thanks (0) Thanks(0)   Quote H_36754 Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jul 2023 at 9:07pm
All that's right.
Back to Top
Wispitfiremike View Drop Down
Silver Level
Silver Level


Joined: 28 Mar 2017
Location: Milwaukee, WI
Points: 204 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Wispitfiremike Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jul 2023 at 9:36pm
Compression about all thats left if fuel, electric and timing are correct.
Back to Top
WF owner View Drop Down
Orange Level
Orange Level


Joined: 12 May 2013
Location: Bombay NY
Points: 5035 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WF owner Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jul 2023 at 2:58am
The first thing I would do is to try to figure out which cylinders are firing. Grounding the plugs out should let you know which cylinders are dead.

A few potential problems come to mind.

Champion spark plugs? They are junk right out of the box.

You say "original wires". Are you sure they are solid wire?

Do you have consistent, steady fuel flow?  MANY of these old tractors have fuel issues.

Do you have any moisture inside the magneto cap? This is one of the very few places I find WD-40 useful.

As was said earlier, check your mag rotation. #2 and #3 can be easily switched.
Back to Top
H_36754 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 04 Jul 2023
Location: Georgia
Points: 11 		Post Options Post Options   Thanks (0) Thanks(0)   Quote H_36754 Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jul 2023 at 11:55am
Since I got the new magneto I haven't taken the cap off.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 88179 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 11 Jul 2023 at 12:27pm
Sounds like you have replaced or repaired almost everything....When you go thru the list and nothing appears to be wrong, its time to start over... Obviously something has a problem even thou it is new or repaired or adjusted correctly..

Checking compression might be a good idea . Were the valves adjusted  ? Could one be too tight ?  NEW spark plugs do fail... OLD wires could have cracks and short out... etc..
Like them all, but love the "B"s.
Back to Top
