Freeman 2 inch cyl seals

 Post Reply Post Reply
Author
Message
CraiginMO View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 13 Sep 2009
Location: Rockford, IL
Points: 43
Post Options Post Options   Thanks (0) Thanks(0)   Quote CraiginMO Quote  Post ReplyReply Direct Link To This Post Topic: Freeman 2 inch cyl seals
    Posted: 01 Aug 2021 at 9:48am
Got my new to me Freeman model 90 loader home yesterday.
She bolts right up.  The hyd cyl are 2" and I have only found
seal kits for the smaller cyl.  Anyone have part #'s for the 2" cyl?
I will have to fabricate the rear brackets.  The ones that came with it are for a WD45.


Edited by CraiginMO - 01 Aug 2021 at 9:52am
Back to Top
Sponsored Links


Back to Top
JTOOL View Drop Down
Silver Level Access
Silver Level Access


Joined: 28 Feb 2021
Location: 64720
Points: 346
Post Options Post Options   Thanks (0) Thanks(0)   Quote JTOOL Quote  Post ReplyReply Direct Link To This Post Posted: 01 Aug 2021 at 11:32am
The rods are 2"?
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5155
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 01 Aug 2021 at 12:26pm

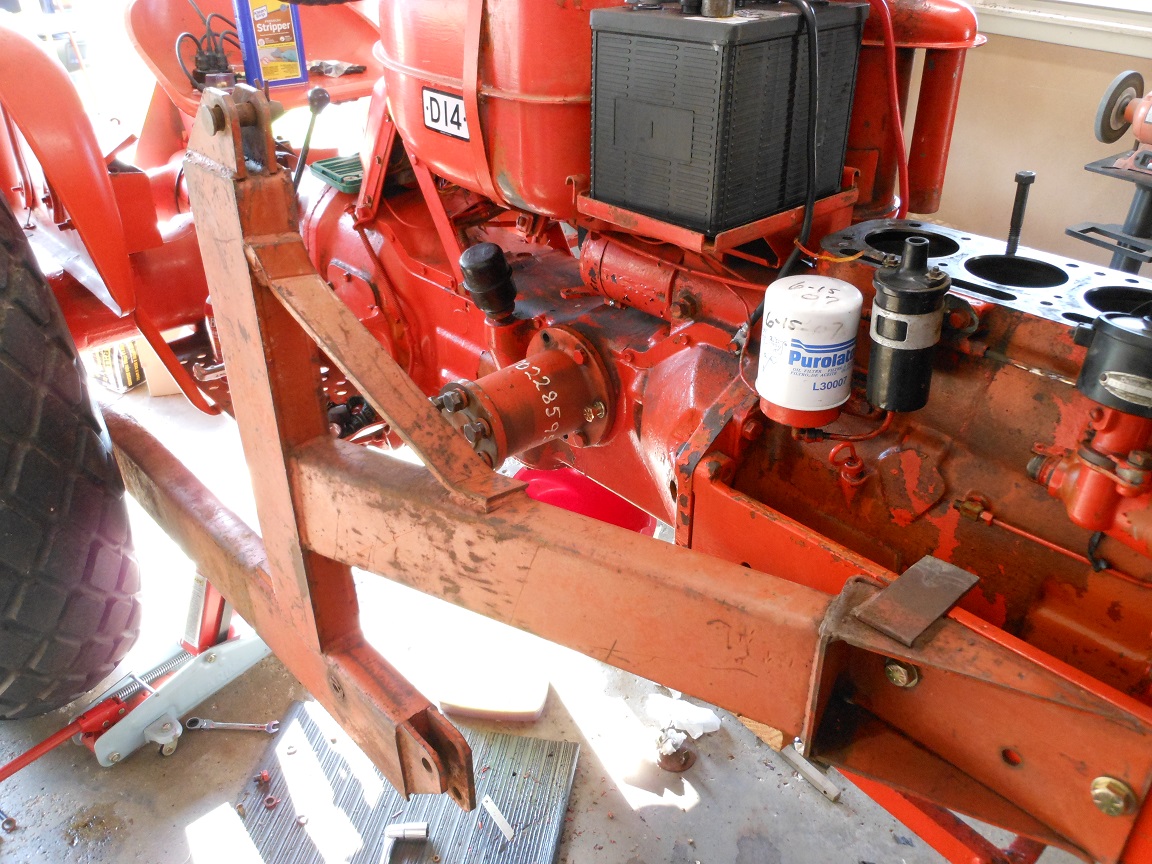

That loader side frame in your picture is not from a Model 90.

Model 90 is for a WD or WD-45 and are tubular.

What you have appears to be the correct side frame for a D-14, and would be a Model 140.

Gary
Back to Top
CraiginMO View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 13 Sep 2009
Location: Rockford, IL
Points: 43
Post Options Post Options   Thanks (0) Thanks(0)   Quote CraiginMO Quote  Post ReplyReply Direct Link To This Post Posted: 01 Aug 2021 at 1:33pm

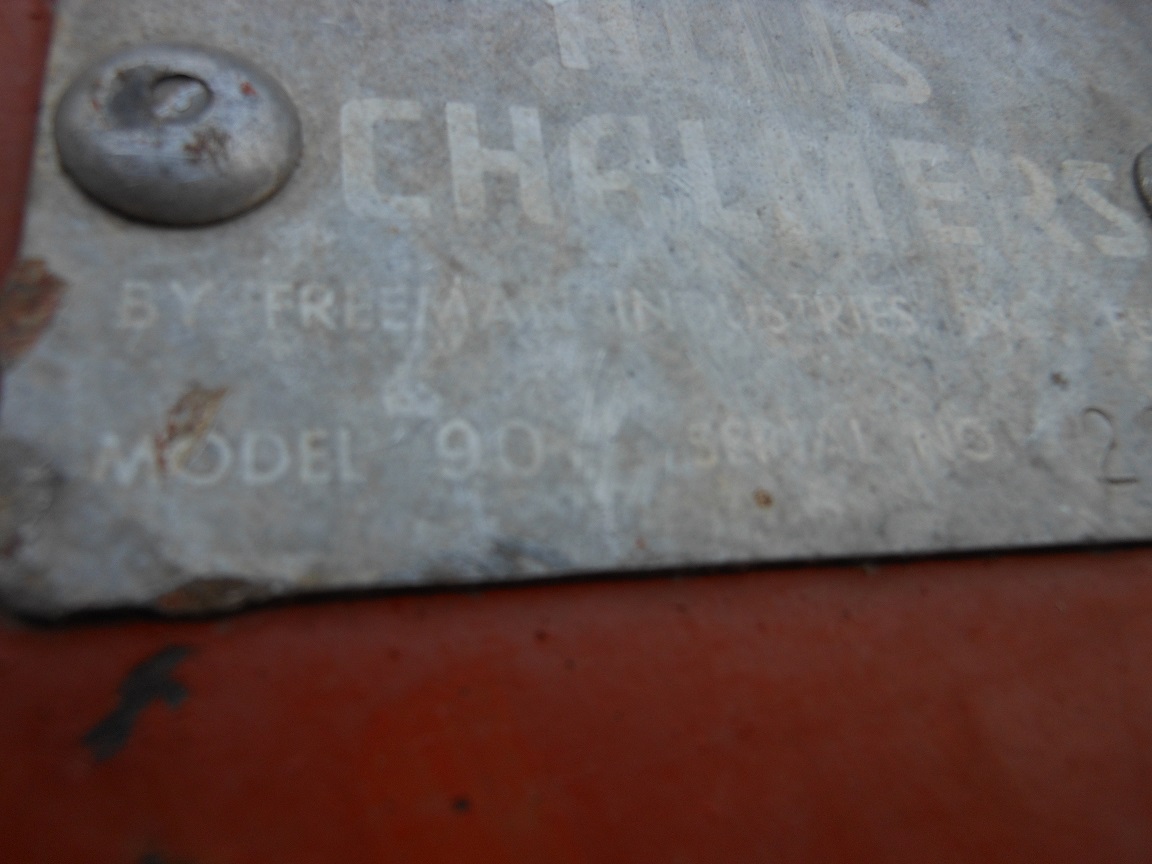

Hmmm, the data plate says otherwise.  The WD90 was a tube frame
but this is just a model 90.




Originally posted by Gary Gary wrote:

That loader side frame in your picture is not from a Model 90.

Model 90 is for a WD or WD-45 and are tubular.

What you have appears to be the correct side frame for a D-14, and would be a Model 140.

Gary


Edited by CraiginMO - 01 Aug 2021 at 1:52pm
Back to Top
CraiginMO View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 13 Sep 2009
Location: Rockford, IL
Points: 43
Post Options Post Options   Thanks (0) Thanks(0)   Quote CraiginMO Quote  Post ReplyReply Direct Link To This Post Posted: 01 Aug 2021 at 1:34pm
Yes the pistons are 2"


Originally posted by JTOOL JTOOL wrote:

The rods are 2"?
Back to Top
Gatz in NE View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Lincoln, NE
Points: 1028
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gatz in NE Quote  Post ReplyReply Direct Link To This Post Posted: 01 Aug 2021 at 2:06pm
Craig,
I have mounting brackets that might work for your loader.
However, they came from a Freeman loader mounted to a D17.

What size is the lower horizontal rectangular tube ?

Back to Top
CraiginMO View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 13 Sep 2009
Location: Rockford, IL
Points: 43
Post Options Post Options   Thanks (0) Thanks(0)   Quote CraiginMO Quote  Post ReplyReply Direct Link To This Post Posted: 01 Aug 2021 at 4:25pm
Originally posted by Gatz in NE Gatz in NE wrote:

Craig,
I have mounting brackets that might work for your loader.
However, they came from a Freeman loader mounted to a D17.

What size is the lower horizontal rectangular tube ?



These are 5.5x2.5 inches
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5155
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 01 Aug 2021 at 6:17pm

That loader boom would originally been part of a complete loader package meant to be installed on a WD or WD-45. Thus the ID of Model 90.

It's predecessor was the Model 9.   There was no loader identified as WD90.

CA's had a Model 9, D-14 had Model 14, then Model 140. D-15 Model 15, then 150.

Gary

BTW WD, D-15, and D-17 used the same Boom.
Back to Top
Gatz in NE View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Lincoln, NE
Points: 1028
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gatz in NE Quote  Post ReplyReply Direct Link To This Post Posted: 01 Aug 2021 at 6:21pm
Originally posted by CraiginMO CraiginMO wrote:

Originally posted by Gatz in NE Gatz in NE wrote:

Craig,
I have mounting brackets that might work for your loader.
However, they came from a Freeman loader mounted to a D17.

What size is the lower horizontal rectangular tube ?



These are 5.5x2.5 inches


hmmm, that's odd
The brackets that came off the D17 have a 2 3/4 x 5 1/4 opening which would be ample clearance for 2 1/2 x 5" tubing.
Are you sure about the 5.5 dimension?  2 1/2 x 5 1/2 is kinda odd size tubing too.


Edited by Gatz in NE - 01 Aug 2021 at 6:24pm
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5155
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 01 Aug 2021 at 6:29pm

   Original Factory Allis Loader Manuals on Ebay:

CA Model 8 and WD Model 9

https://www.ebay.com/itm/154451694028?hash=item23f609d1cc:g:FSQAAOSwXwhgnUC0

D-14 Model 14, and D-17 Model 17

https://www.ebay.com/itm/393171069883?hash=item5b8ad26bbb:g:hv4AAOSwdRdgQCRe

G
Back to Top
CraiginMO View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 13 Sep 2009
Location: Rockford, IL
Points: 43
Post Options Post Options   Thanks (0) Thanks(0)   Quote CraiginMO Quote  Post ReplyReply Direct Link To This Post Posted: 01 Aug 2021 at 8:52pm
I checked again.  Those are correct.  No problem I think there are 2 mounting hole in the axle under the fender that are free to use.


Originally posted by Gatz in NE Gatz in NE wrote:

Originally posted by CraiginMO CraiginMO wrote:

Originally posted by Gatz in NE Gatz in NE wrote:

Craig,
I have mounting brackets that might work for your loader.
However, they came from a Freeman loader mounted to a D17.

What size is the lower horizontal rectangular tube ?



These are 5.5x2.5 inches


hmmm, that's odd
The brackets that came off the D17 have a 2 3/4 x 5 1/4 opening which would be ample clearance for 2 1/2 x 5" tubing.
Are you sure about the 5.5 dimension?  2 1/2 x 5 1/2 is kinda odd size tubing too.
Back to Top
CraiginMO View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 13 Sep 2009
Location: Rockford, IL
Points: 43
Post Options Post Options   Thanks (0) Thanks(0)   Quote CraiginMO Quote  Post ReplyReply Direct Link To This Post Posted: 02 Aug 2021 at 8:35am

Ok I was a little off.  I was measuring the bracket opening and not the tube.  The tube is 2.5 x 5.25.


Originally posted by Gatz in NE Gatz in NE wrote:

Originally posted by CraiginMO CraiginMO wrote:

Originally posted by Gatz in NE Gatz in NE wrote:

Craig,
I have mounting brackets that might work for your loader.
However, they came from a Freeman loader mounted to a D17.

What size is the lower horizontal rectangular tube ?



These are 5.5x2.5 inches


hmmm, that's odd
The brackets that came off the D17 have a 2 3/4 x 5 1/4 opening which would be ample clearance for 2 1/2 x 5" tubing.
Are you sure about the 5.5 dimension?  2 1/2 x 5 1/2 is kinda odd size tubing too.
Back to Top
john(MI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: SE MI
Points: 9263
Post Options Post Options   Thanks (0) Thanks(0)   Quote john(MI) Quote  Post ReplyReply Direct Link To This Post Posted: 02 Aug 2021 at 12:17pm
On my D14 the rear mounting bracket goes on two mounts cast on the read of the axle.  They are bent at the mounting end at 90*, probably a little over an inch.  there are two bolt holes on either side.  Since those holes are vertical, it took me quite a while getting the dirt out of them.  My loader has a round tube frame, but I would suspect yours would mount the  same way.

From your picture I see you have a more pressing issue than mounting the loader!LOL
D14, D17, 5020, 612H, CASE 446
Back to Top
CraiginMO View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 13 Sep 2009
Location: Rockford, IL
Points: 43
Post Options Post Options   Thanks (0) Thanks(0)   Quote CraiginMO Quote  Post ReplyReply Direct Link To This Post Posted: 03 Aug 2021 at 7:47pm
Yup same holes here.  That is what I will use.  The head was original.  Once off it was obvious it needed a complete valve job.  $500 later and I am ready to reinstall

Originally posted by john(MI) john(MI) wrote:

On my D14 the rear mounting bracket goes on two mounts cast on the read of the axle.  They are bent at the mounting end at 90*, probably a little over an inch.  there are two bolt holes on either side.  Since those holes are vertical, it took me quite a while getting the dirt out of them.  My loader has a round tube frame, but I would suspect yours would mount the  same way.

From your picture I see you have a more pressing issue than mounting the loader!LOL
Back to Top
CraiginMO View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 13 Sep 2009
Location: Rockford, IL
Points: 43
Post Options Post Options   Thanks (0) Thanks(0)   Quote CraiginMO Quote  Post ReplyReply Direct Link To This Post Posted: 17 Sep 2021 at 5:12pm
SO I finally ID my 2 inch piston cylinders with my local dealers help.  The loader is a model 90 but the cylinders are from a model 170.  AGCO cannot help with seals but I found them online at Sealsales.com  If you need them they are as all sold EACH. so you need 2x VR2000X2500FF females, 2x VR2000X2500MF males and 6x VR2000X2500VF packings to do both cylinders
Gleaner E, D17, WD, D-14
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8089
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 18 Sep 2021 at 8:12am
think we have some nos packings
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1698
Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 18 Sep 2021 at 12:03pm
Originally posted by Mikez Mikez wrote:

think we have some nos packings

part # should be 2000501/2000502 --> 2000652
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
