engine removal stand

 Post Reply Post Reply
Author
Message
Monte Mahan View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 30 Dec 2021
Location: Grèley Ks
Points: 28
Post Options Post Options   Thanks (0) Thanks(0)   Quote Monte Mahan Quote  Post ReplyReply Direct Link To This Post Topic: engine removal stand
    Posted: 25 Jan 2022 at 8:37am

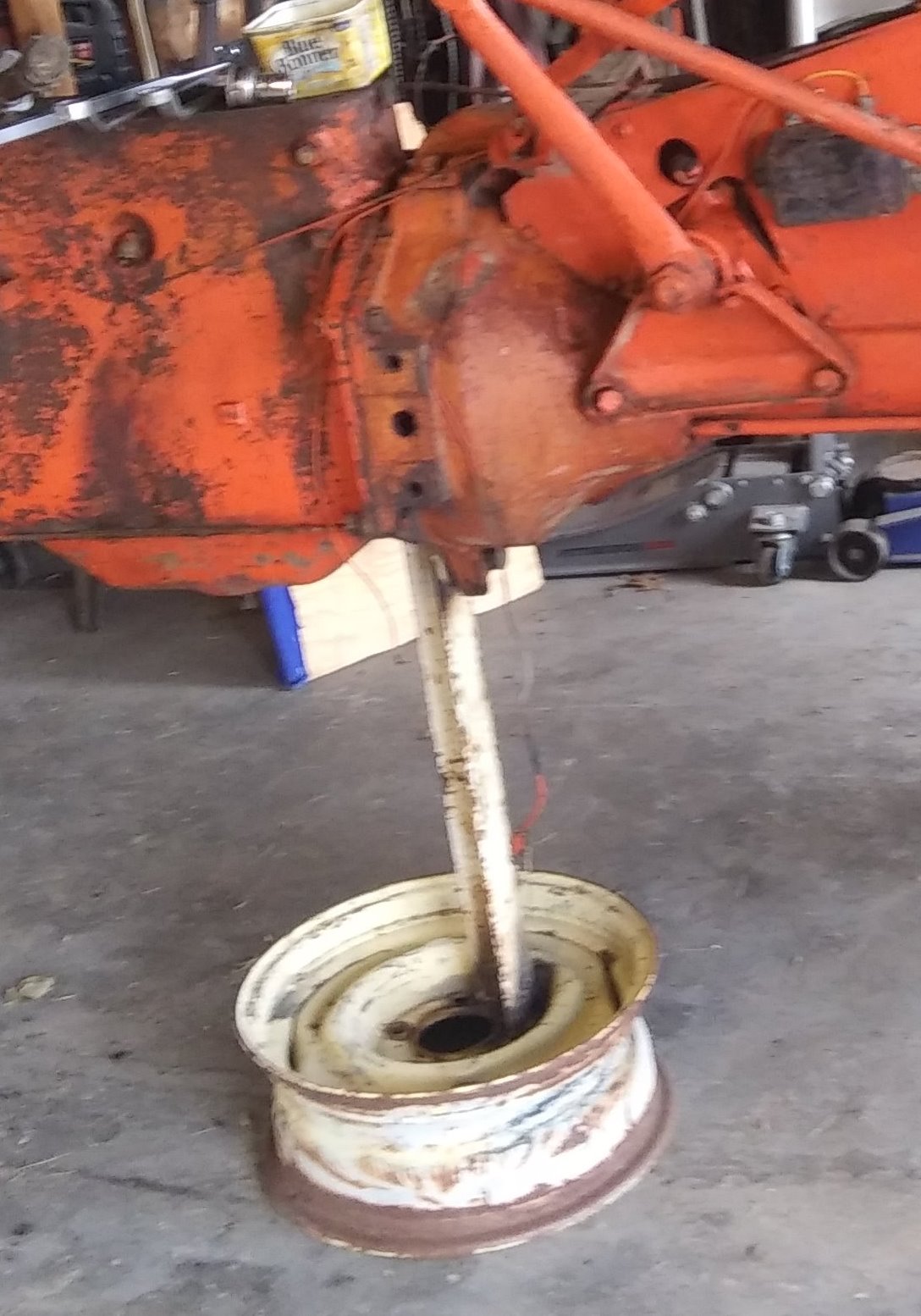

wanting to pull engine from my C and not wanting to use jacks and blocks to hold it up for a while, I spent 15 minutes to fab this stand from an old rim and a piece of 2x2 angle with a 3/4" bolt thru the loupe on bellhousing.
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81384
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jan 2022 at 9:38am
my stand has two uprights... one on each side of the bell housing... just got to make sure you leave room to pull the engine mounting bolts.... One leg may work , but better not have any side load while your removing or working..
Like them all, but love the "B"s.
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 22511
Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jan 2022 at 10:03am
I tossed an Ibeam up on steel posts, across the garage. with 2 trolleys and chain hoists it's almost pleasant to split the D-14s..... super SAFE....
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664
Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 25 Jan 2022 at 8:00pm
I would be more concerned with front to back movement. Needs a brace.             MACK
Back to Top
DaveKamp View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Apr 2010
Location: LeClaire, Ia
Points: 5756
Post Options Post Options   Thanks (0) Thanks(0)   Quote DaveKamp Quote  Post ReplyReply Direct Link To This Post Posted: 26 Jan 2022 at 7:59pm
I don't like overcomplexity, but I DO like being able to roll the front and back half apart easily, so they can be shoved around the shop like cabinets... it opens up floor space so nice.

The tricky part, is getting 'em lined up right afterwards.  My trick, is to use old space-saver spares and junk car hubs as casters, and when it comes time to mate 'em, the tire pressures are low enough so that when they're ready to line up, a little lean on one will get 'em started, and socking down the bolts will not put critical stress on anything.  If the height isn't quite enough, a shot of air in just one of the tires solves it.  Wink
Ten Amendments, Ten Commandments, and one Golden Rule solve most every problem. Citrus hand-cleaner with Pumice does the rest.
