ED40 Rod Shift Size
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
John426 View Drop Down
Silver Level
Silver Level


Joined: 14 Aug 2012
Location: France
Points: 310 		Post Options Post Options   Thanks (0) Thanks(0)   Quote John426 Quote  Post ReplyReply Direct Link To This Post Topic: ED40 Rod Shift Size
    Posted: 04 Jun 2023 at 3:59am
Hi

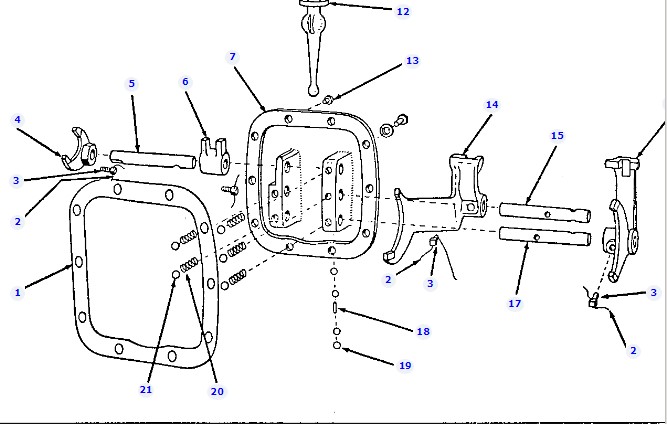

I am looking for the drawing of the gear rod shift size on a Allis Chalmers ED40

Mainly I would like to know the distance between the different indexing holes with the ball

on the different shift , rep 5 ; 15 ; 17
Back to Top
Sponsored Links


Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5900 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 04 Jun 2023 at 5:06am

John

Those Transmission Shift Rods may be the same as a number of North American Manufactured Allis Tractors of that era.

Many of the Main Shaft and Pinion Shaft Gears are interchangeable as long as you used them in pairs.

Common Models are CA, D-10, D-12, D-14, D-15, D272, and ED-40

Gary
