 Topic: D17 wiring clips
Posted: 26 Jun 2023 at 10:31pm |
|
Anyone have a source for the clips that hold the wiring in place around the transmission housing and rear lights for a early D17? They are NLA from AGCO. Mine are either broken or missing.
Thanks
Rob
Edited by AC720Man - 26 Jun 2023 at 10:31pm
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
 |
|
Sponsored Links
|
|
|
Charlie175
Orange Level
Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6369
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 5:08am |
This place has a wide assortment of clamps
|
|
Charlie
'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5250
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 1:00pm |
|
Thanks Charlie, was hoping to stay with factory style but I may have to go that route. Maybe some NOS out there somewhere?
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8755
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 2:19pm |
|
Looked quick and there’s multiple clip part numbers. Which ones you need
|
|
Steve in NJ
Orange Level Access
Joined: 12 Sep 2009
Location: Andover, NJ
Points: 12027
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 2:30pm |
Rob, I have some of the harness holddowns that are still on the old OEM setup harnesses. I'm not sure which ones you need, but if you send me a pic and I have the ones you need on the old harnesses, I'll carefully remove them and you can have em'. I also have bins of different size aftermarket ones that I use when I have a vehicle in the big shop that I'm wiring like what Charlie sent ya.
Steve@B&B
|
|
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5250
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 5:22pm |
|
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5250
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 5:27pm |
|
Steve I hope you can make out the clip. I will count how many there are when I get on AGCO parts book tonight. Basically looking for those clips, fender wiring clips, and the ones that attach to the rear remote line that the wiring loom follows to get the rear lighting. I realize I can use tie wraps but I would like to have originals if possible. If you have an old harness that still has the clips to feed the front of the tractor that would be great to!
Thanks buddy
Edited by AC720Man - 27 Jun 2023 at 5:28pm
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5250
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 9:21pm |
|
Looks like part # 70229498.
Need 4 for the rear transmission housing.
|
|
1968 B-208, 1976 720 (2 of them)Danco brush hog, single bottom plow,52" snow thrower, belly mower,rear tine tiller, rear blade, front blade, 57"sickle bar,1983 917 hydro, 1968 7hp sno-bee, 1968 190XTD
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8755
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2023 at 8:40am |
|
I don’t have any of that number available.
|
|
Steve in NJ
Orange Level Access
Joined: 12 Sep 2009
Location: Andover, NJ
Points: 12027
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2023 at 9:59am |

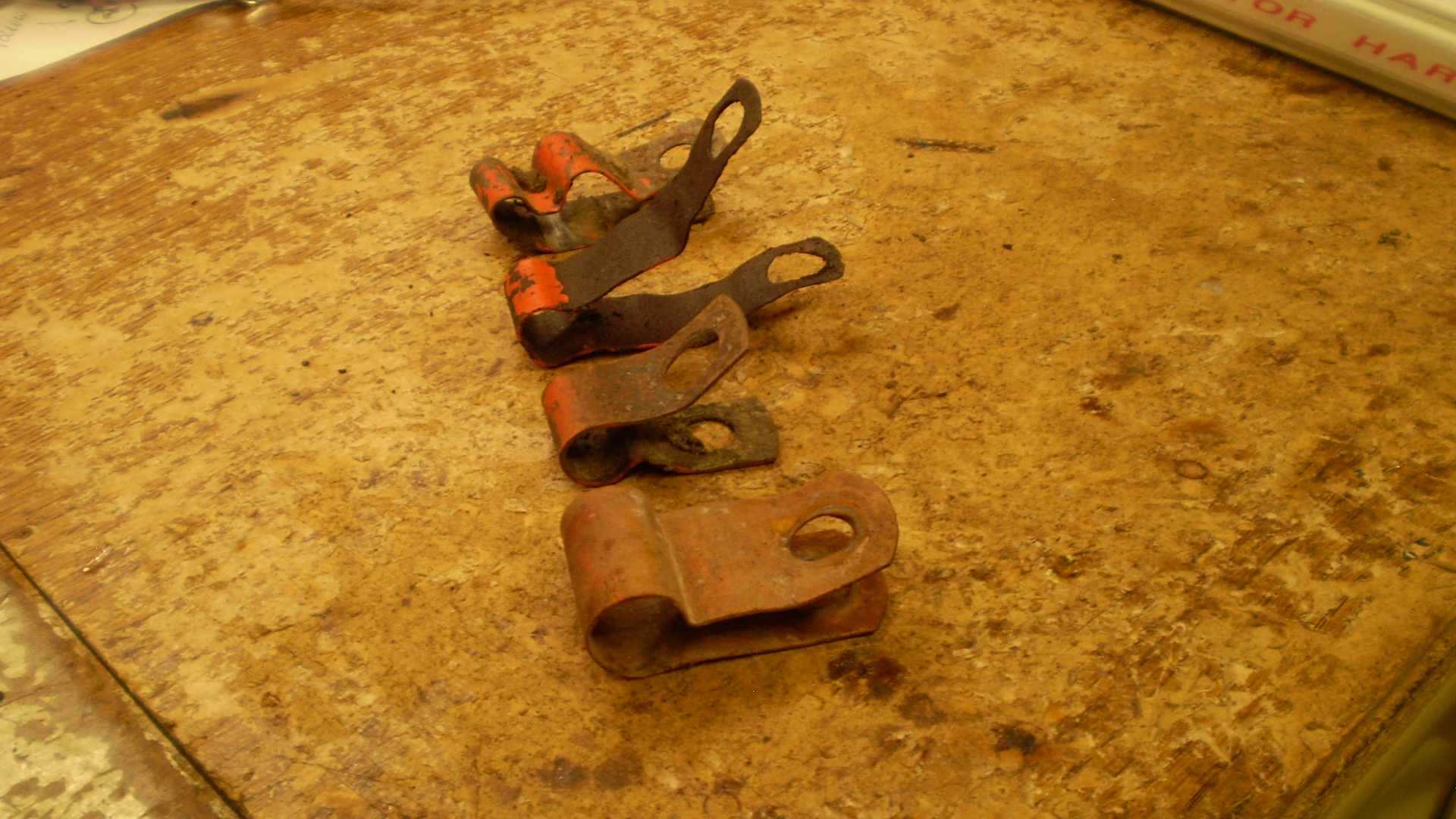

Hey Rob! How bout' somethin' like this? All these clamps were off of the same D19 harness that I use as a pattern. I have other OEM harnesses with clips on them as well. I'd Have to dig out the old patterns, but I never bothered to take the clamps off....
|
|
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
|
|
Steve in NJ
Orange Level Access
Joined: 12 Sep 2009
Location: Andover, NJ
Points: 12027
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2023 at 10:02am |
The large clamp closest was at the back of the dash. The next one was sorta in the middle. The next one was off the engine area, and the last one was at the Generator. HTH Steve@B&B
|
|
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
|
|
AC720Man
Orange Level
Joined: 10 Oct 2016
Location: Shenandoah, Va
Points: 5250
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2023 at 10:51pm |
|
Thanks Steve for looking for me. I still have a little time before I can borrow the paint room since there is a broken down Blue tractor in it waiting for fancy injectors! I will give you a call.
Thanks
Rob
|
|
