D17 tranny drain plug
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
truckerfarmer View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 26 Jan 2013
Location: Watertown, SD
Points: 3217 		Post Options Post Options   Thanks (0) Thanks(0)   Quote truckerfarmer Quote  Post ReplyReply Direct Link To This Post Topic: D17 tranny drain plug
    Posted: 24 Nov 2023 at 8:51pm

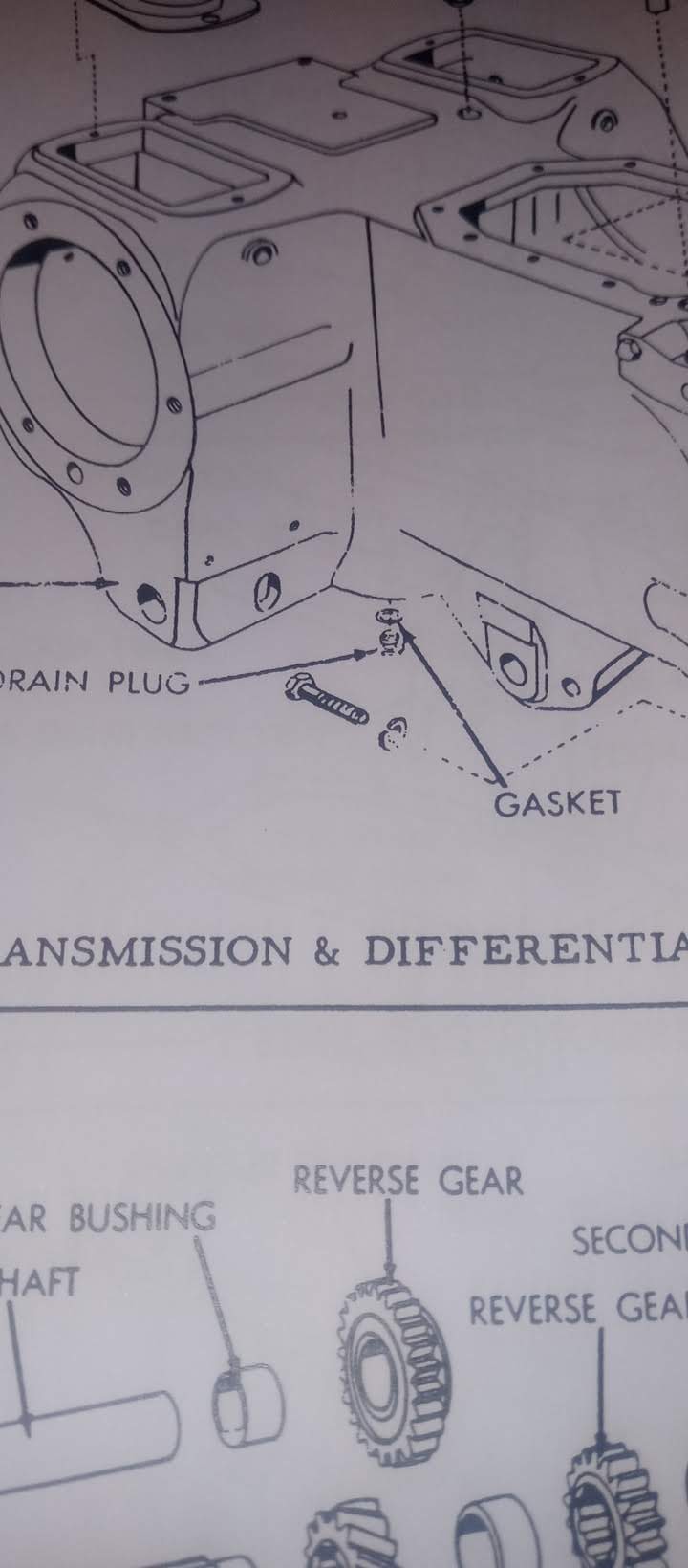

Trying to change the transmission fluid in my D17. Pulled what I thought was the drain plug, but nothing came out. Looking at the drawing in the service manual, I think I have the right one. Only thing is, it isn't a regular drain plug. Square head screw with a lock nut. Pointing to it picture.


Do I have the right spot. Transmission is full of fluid.
Just to be sure I have the right dipstick. The one I am pointing to is for the power director, and the one above it with the vented cap, is for the transmission.
Looking at the past to see the future.
'53 WD, '53 WD45, WD snap coupler field cultivator, #53 plow,'53 HD5B dozer

Duct tape.... Can't fix stupidity. But will muffle the sound of it!
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81819 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 24 Nov 2023 at 9:17pm
that might be the lock/ pin for the 3 point hydraulic cylinder ??

Internet = The drain plug for the transmission is directly under the seat !!!! and above the drawbar and would hold 6 gallons of oil (preferably 80/90 wt) and the filler/dipstick is to the right of the gearshift with the big breather on it.  The HYDRAULIC system has two drain plugs....one under the clutch pedal and the other on the RH side of the sump that the hyd pump draws oil from. Filler/dipstick is the the left of the gearshift and uses universal hydraulic oil/fluid and holds 6 1/2 gallons to the upper mark on the dipstick (do not use the lower mark). All three drain plugs take 1 1/8" wrench....


Edited by steve(ill) - 24 Nov 2023 at 9:23pm
Like them all, but love the "B"s.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 81819 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 24 Nov 2023 at 9:18pm
https://www.allischalmers.com/forum/what-lube-to-use-in-d17-transmission_topic161960.html#:~:text=The%20transmission%2Fdifferential%20is%20the,used%2080%2F90w%20gear%20lube.

Like them all, but love the "B"s.
Back to Top
truckerfarmer View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 26 Jan 2013
Location: Watertown, SD
Points: 3217 		Post Options Post Options   Thanks (0) Thanks(0)   Quote truckerfarmer Quote  Post ReplyReply Direct Link To This Post Posted: 24 Nov 2023 at 9:45pm
Thanks, Steve. The link helped. The reference to the size of wrench made me look at my manual again.
Picture makes it look like it goes straight up. I'm guessing it's the big hole to the right.
Looking at the past to see the future.
'53 WD, '53 WD45, WD snap coupler field cultivator, #53 plow,'53 HD5B dozer

Duct tape.... Can't fix stupidity. But will muffle the sound of it!
