D17 Series I

 Post Reply Post Reply
Author
Message
acwd45ca View Drop Down
Bronze Level
Bronze Level


Joined: 11 Jan 2010
Location: Holland, MI
Points: 33
Post Options Post Options   Thanks (0) Thanks(0)   Quote acwd45ca Quote  Post ReplyReply Direct Link To This Post Topic: D17 Series I
    Posted: 12 Dec 2019 at 2:14pm
I am restoring a D17 Series I that I inherited from my dad. It has a leak in the power steering. I cannot find where to add power steering fluid on this tractor. Can anyone help me with this problem?
Rod
Rod Folkert
Back to Top
Sponsored Links


Back to Top
A-C_220 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 05 Jan 2019
Location: Canada
Points: 70
Post Options Post Options   Thanks (0) Thanks(0)   Quote A-C_220 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Dec 2019 at 2:30pm
Behind the grill on the right there should be a screw in cap. If you look down inside you should see some teeth of a gear, I fill mine so that it's just covering the gear
Back to Top
frnkeore View Drop Down
Orange Level
Orange Level
Avatar

Joined: 07 May 2019
Location: Southern Oregon
Points: 354
Post Options Post Options   Thanks (0) Thanks(0)   Quote frnkeore Quote  Post ReplyReply Direct Link To This Post Posted: 12 Dec 2019 at 2:31pm
The filler is behind the grill screen, on the right side, facing the tractor.


Edited by frnkeore - 12 Dec 2019 at 2:32pm
Frank
1959 D17 Series I #24001+, '59 D14
'55 & '59 Ford 850 & 861
Ferguson TO 35 Deluxe, Oliver 70 and 5 more.
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 1952
Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G.  NY Quote  Post ReplyReply Direct Link To This Post Posted: 13 Dec 2019 at 4:17pm
The operator's manual says to fill 5/8" above the top of the sector gear.
Back to Top
john(MI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: SE MI
Points: 8349
Post Options Post Options   Thanks (0) Thanks(0)   Quote john(MI) Quote  Post ReplyReply Direct Link To This Post Posted: 13 Dec 2019 at 7:42pm
Mine has a riser tube in the fill hole, about 2 - 3 inches long with a cap on top, appears to be factory.  The manual steering one has the plug in the hole.  And they would use different fluid depending on the type.

But yep, it is behind the grill screen.  Take out the two screws and the grill lifts off.
D14, D17, 5020, 612H, CASE 446
Back to Top
LeonR2013 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 01 Jan 2013
Location: Fulton, Mo
Points: 3390
Post Options Post Options   Thanks (0) Thanks(0)   Quote LeonR2013 Quote  Post ReplyReply Direct Link To This Post Posted: 13 Dec 2019 at 7:46pm
If you don't know where the leak is, fill it with brake fluid. I'll cause the seal to swell enough to stop the leak.    Leon
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 5971
Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 13 Dec 2019 at 8:47pm
IF you are going to restore the tractor, find the leak and fix it.  That's part of restoring!
'49 G, '54 WD45, '57 WD45, '58 D14, '59 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '85 6080
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 1952
Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G.  NY Quote  Post ReplyReply Direct Link To This Post Posted: 14 Dec 2019 at 3:04pm
Originally posted by LeonR2013 LeonR2013 wrote:

If you don't know where the leak is, fill it with brake fluid. I'll cause the seal to swell enough to stop the leak.    Leon

I do not believe this is good advice!
I once worked on a snow plow where someone had added brake fluid
to the hydraulic system........the congealed mess was unbelievable.

I also once worked on a floor jack where someone had also added
brake fluid......same mess there!

From my experience, alcohol based brake fluid and petroleum based hydraulic fluid are not compatible.
Back to Top
acwd45ca View Drop Down
Bronze Level
Bronze Level


Joined: 11 Jan 2010
Location: Holland, MI
Points: 33
Post Options Post Options   Thanks (0) Thanks(0)   Quote acwd45ca Quote  Post ReplyReply Direct Link To This Post Posted: 14 Dec 2019 at 3:55pm
I need to fix it right as I am going to restore it. I spent about two hours this afternoon scraping and blowing 40 + years of grease off that area. Does this cap have a tube running through it? Do I have to take the hood shroud off to get to it? The area I should be looking is opposite the generator correct? I know I sound stupid but this is my 11th tractor and this one is a mess.
Thanks for your help.
Rod
Rod Folkert
Back to Top
lowell66dart View Drop Down
Orange Level
Orange Level


Joined: 10 Jul 2013
Location: Paulina La.
Points: 954
Post Options Post Options   Thanks (0) Thanks(0)   Quote lowell66dart Quote  Post ReplyReply Direct Link To This Post Posted: 14 Dec 2019 at 4:54pm
Take the GRILL off. My series III has a vent tube attached to the plug. Use a wrench and grab the BOTTOM of this tube/plug thing.
AC 6080 (8030,7060,200,175,D-17HC, 6040,160,6140 all gone) Farmall 1066 & 656 Hi-Clear (for sale), White 2-62 High Clearance, JD 4255 Hi Clear.
Back to Top
Jim.ME View Drop Down
Orange Level
Orange Level


Joined: 19 Nov 2016
Location: Maine
Points: 555
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jim.ME Quote  Post ReplyReply Direct Link To This Post Posted: 14 Dec 2019 at 5:16pm

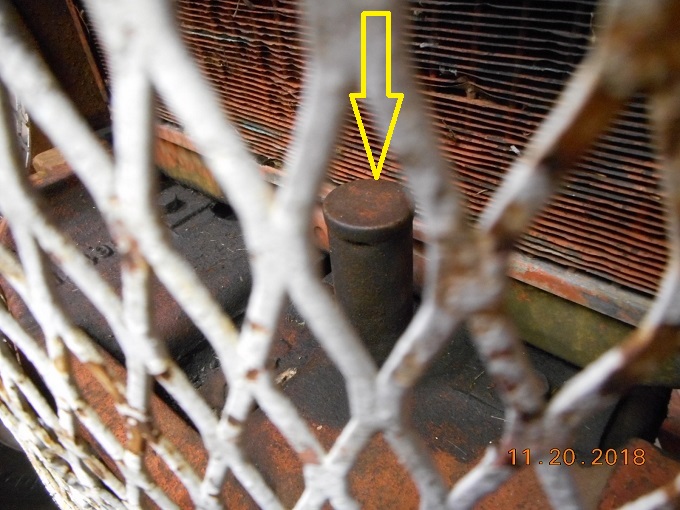

This photo is of a D14 with power steering but yours should look the same.

Back to Top
acwd45ca View Drop Down
Bronze Level
Bronze Level


Joined: 11 Jan 2010
Location: Holland, MI
Points: 33
Post Options Post Options   Thanks (0) Thanks(0)   Quote acwd45ca Quote  Post ReplyReply Direct Link To This Post Posted: 15 Dec 2019 at 11:17am
Thank you for the picture. This clears up a lot. I am looking in the wrong place. The tractor was being used to bushhog  a pasture when a small tree punched a hole in the bottom line hence the leak. Need to get fluid in it to get it to my fix it man to patch the line.
Rod
Rod Folkert
