d17 Hydraulics

 Post Reply Post Reply
Author
Message
05chummins View Drop Down
Bronze Level
Bronze Level


Joined: 14 Jun 2014
Location: Central PA
Points: 13
Post Options Post Options   Thanks (0) Thanks(0)   Quote 05chummins Quote  Post ReplyReply Direct Link To This Post Topic: d17 Hydraulics
    Posted: 16 Jun 2014 at 8:54pm
I have a series 1 D17. It has a hydraulic control valve with a single outlet bolted on the left side of the tractor. It seems to be stuck and I'm not sure if it just slides in and out or what. I was wondering if this could make my hydraulic lift on my 3 pt not stay up? I have checked the oils and they are good so it must not be the cylinder or the internal hose. I had one recommendation on here about a valve on the pump being bad but i wanted to ask about the aux hydraulic valve before I go tearing into the pump.
Back to Top
Sponsored Links


Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22807
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jun 2014 at 9:01pm
Show us a picture and save a thousand words. If the "add on" valve has a return line to the sump, it could possibly leak past the valve and back to the sump letting pressure off of your lift arm cylinder. There is no way for us to know without seeing it or a drawing of it.
 I doubt that add on is your problem though.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
05chummins View Drop Down
Bronze Level
Bronze Level


Joined: 14 Jun 2014
Location: Central PA
Points: 13
Post Options Post Options   Thanks (0) Thanks(0)   Quote 05chummins Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jun 2014 at 9:03pm
I will get a pic tomorrow night after work and post it.
Back to Top
05chummins View Drop Down
Bronze Level
Bronze Level


Joined: 14 Jun 2014
Location: Central PA
Points: 13
Post Options Post Options   Thanks (0) Thanks(0)   Quote 05chummins Quote  Post ReplyReply Direct Link To This Post Posted: 18 Jun 2014 at 5:35am
uploads/11870/0617142108.jpg   uploads/11870/0617142108a.jpg   uploads/11870/0617142109.jpg

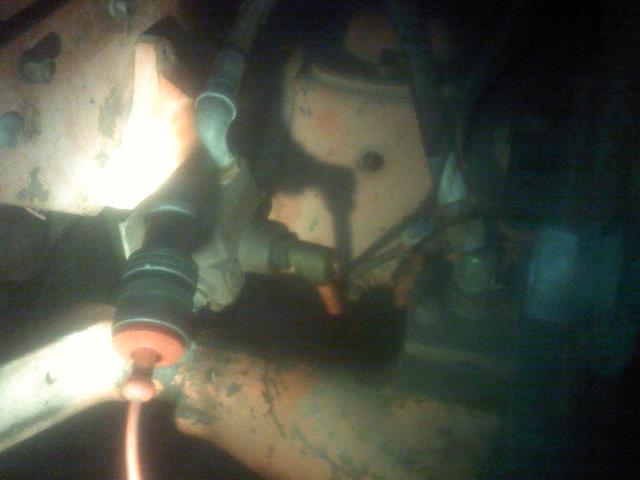

Not very good pics but this is what I have. Looks to me like the round black knob should slide in and out but I'm not sure and seems pretty stiff.
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 18 Jun 2014 at 7:19am
It looks like the transport valve was replaced with a selector valve. The knob should slide in and out. It looks like it is only a shuoff for the remote. Normaly a selector valve is used along with the transport valve.
The problem would seem to be in the pump. Nay be a check valve not seating or a control linkage problem.
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22807
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 18 Jun 2014 at 7:49am
Like Joe says, that looks like a selector valve to put fluid to the remote or the lift arms. I don't believe there is any way that can be letting your lift arms sink. since the system is one way and there is no return line there.

http://www.allischalmers.com/forum/uploads/11870/0617142109.jpg


Edited by CTuckerNWIL - 18 Jun 2014 at 7:52am
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
05chummins View Drop Down
Bronze Level
Bronze Level


Joined: 14 Jun 2014
Location: Central PA
Points: 13
Post Options Post Options   Thanks (0) Thanks(0)   Quote 05chummins Quote  Post ReplyReply Direct Link To This Post Posted: 18 Jun 2014 at 11:31am
Not what I was hoping for but will be a good winter project. I'll have to hit the manuals. The only way to get to the pump is split the tractor right?
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 19359
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 18 Jun 2014 at 5:05pm
Nope. It drops out the bottom of the torque housing directly under the fuel tank.
Back to Top
05chummins View Drop Down
Bronze Level
Bronze Level


Joined: 14 Jun 2014
Location: Central PA
Points: 13
Post Options Post Options   Thanks (0) Thanks(0)   Quote 05chummins Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jun 2014 at 1:20pm
So today I went out and put a water pump on the D17, I decided to mess with the auxiliary Hydraulic valve. If I Have the valve pushed in towards the front of the tractor it will raise the brush hog but then almost immediately creeps down pretty fast. If I have the valve pulled out toward the back it will not raise the brush hog but if i raise it in forward position and then hurry and switch valve to back position it held the brush hog for a couple hours. Does this make sense to anyone
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 19359
Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 21 Jun 2014 at 1:45pm
It means the tractors hydraulic pump hold valve has a problem. All you're doing is blocking the flow so it can't settle down when you lock-out the add-on selector valve.
Back to Top
05chummins View Drop Down
Bronze Level
Bronze Level


Joined: 14 Jun 2014
Location: Central PA
Points: 13
Post Options Post Options   Thanks (0) Thanks(0)   Quote 05chummins Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jun 2014 at 6:45am
I called my local AC dealer yesterday and he was unsure of the valve and had to call me back Monday. Anybody know where I can buy it online?
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22807
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 22 Jun 2014 at 8:47am
The control "valve" as far as I know is a series of check balls and springs. If you read the repair manual, it may be evident that a simple cleaning and maybe a couple replacement parts will put tours back in order.
 The manual also takes you through a diagnosis with a pressure gauge installed in your remote connection, to figure out what might need attention.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
1950A.C.WD View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 19 Sep 2012
Points: 13
Post Options Post Options   Thanks (0) Thanks(0)   Quote 1950A.C.WD Quote  Post ReplyReply Direct Link To This Post Posted: 03 Dec 2014 at 1:33pm
I got a 1963 Allis Chalmers d17 series 3 and this is the first time I ever been around a d17 so every thing is new to me. Well any ways I'm having some problems with the hydraulics they raise up but their real slow and also I was wonder if this is normal remote hydraulic set up for the D17.





Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664
Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 10 Jan 2016 at 9:53pm
There is a oring in hold posion valve that could leak. Replace both orings when you work on hold posion valve.    MACK
