D17 Front Support Picture
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
tractorboy View Drop Down
Silver Level
Silver Level


Joined: 03 Oct 2009
Location: southern Va
Points: 474 		Post Options Post Options   Thanks (0) Thanks(0)   Quote tractorboy Quote  Post ReplyReply Direct Link To This Post Topic: D17 Front Support Picture
    Posted: 09 Mar 2019 at 2:41pm

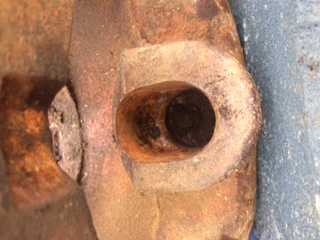

D17 front support seems to be wallowed out.  Not sure how much build it up.  Anyone have a picture or measurement would be helpful?  I am guessing if too tight it will be hard to put back.  Thanks, Keith
Back to Top
Sponsored Links


Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21752 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 09 Mar 2019 at 5:00pm
Surely the pin that goes into that hole is worn out too ???
Back to Top
Pat the Plumber CIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Springfield,Il
Points: 4925 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Pat the Plumber CIL Quote  Post ReplyReply Direct Link To This Post Posted: 09 Mar 2019 at 8:33pm
Doc , can that be bored , machined , drilled out and have a bushing installed ? And yes then have the other end built up .
You only need to know 3 things to be a plumber;Crap rolls down hill,Hot is on the left and Don't bite your fingernails

1964 D-17 SIV 3 Pt.WF,1964 D-15 Ser II 3pt.WF ,1960 D-17 SI NF,1956 WD 45 WF.
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21752 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 09 Mar 2019 at 10:32pm
It may need to be welded up some and then bored and then a bushing installed. All depends how bad it is.
Back to Top
tractorboy View Drop Down
Silver Level
Silver Level


Joined: 03 Oct 2009
Location: southern Va
Points: 474 		Post Options Post Options   Thanks (0) Thanks(0)   Quote tractorboy Quote  Post ReplyReply Direct Link To This Post Posted: 10 Mar 2019 at 1:12am
Makes no sense but the pin didn't wear much at all. thanks
Back to Top
Clay View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Udall, Kansas
Points: 9829 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Clay Quote  Post ReplyReply Direct Link To This Post Posted: 11 Mar 2019 at 9:43am
Not a problem.
The hole on our D-17 was in the same condition as the one in the photo. Over 20 years ago, I rebuilt it with Belzona 1111 (Super Metal) and a new bushing.
Replaced the worn out pivot pin with new pivot pin.
This tractor has a 500 loader.  Most of the time, it is used to move round bales.
