These kits are now available to make your old reliable tractor more useful around the farm with modern style hydraulics!

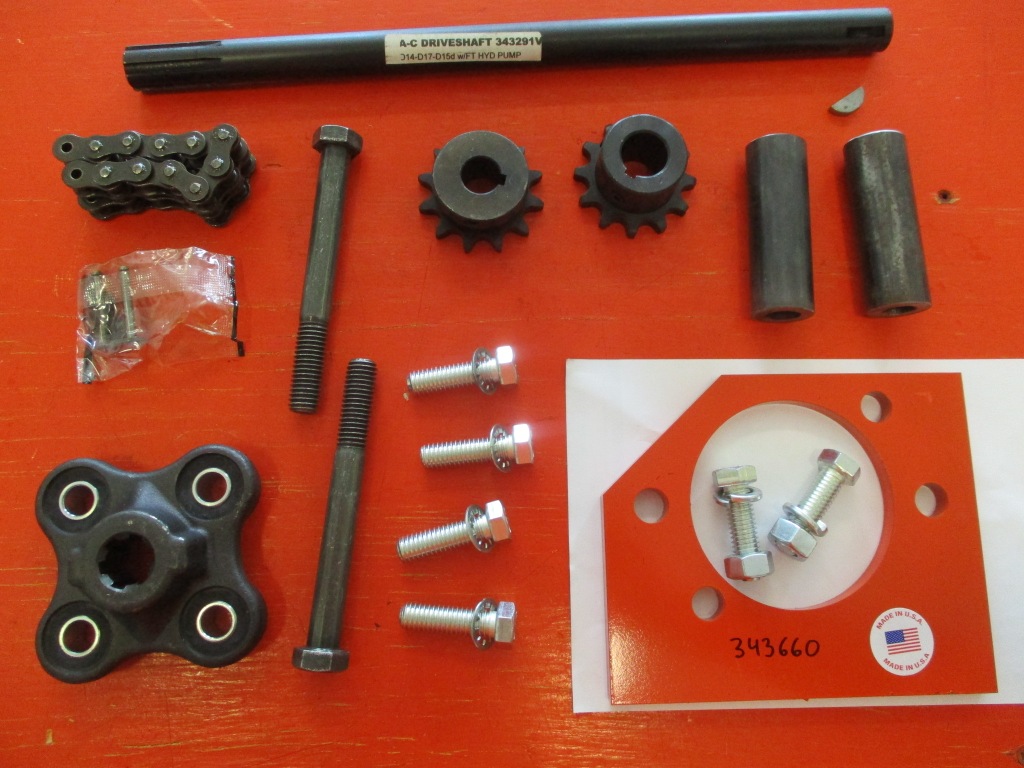

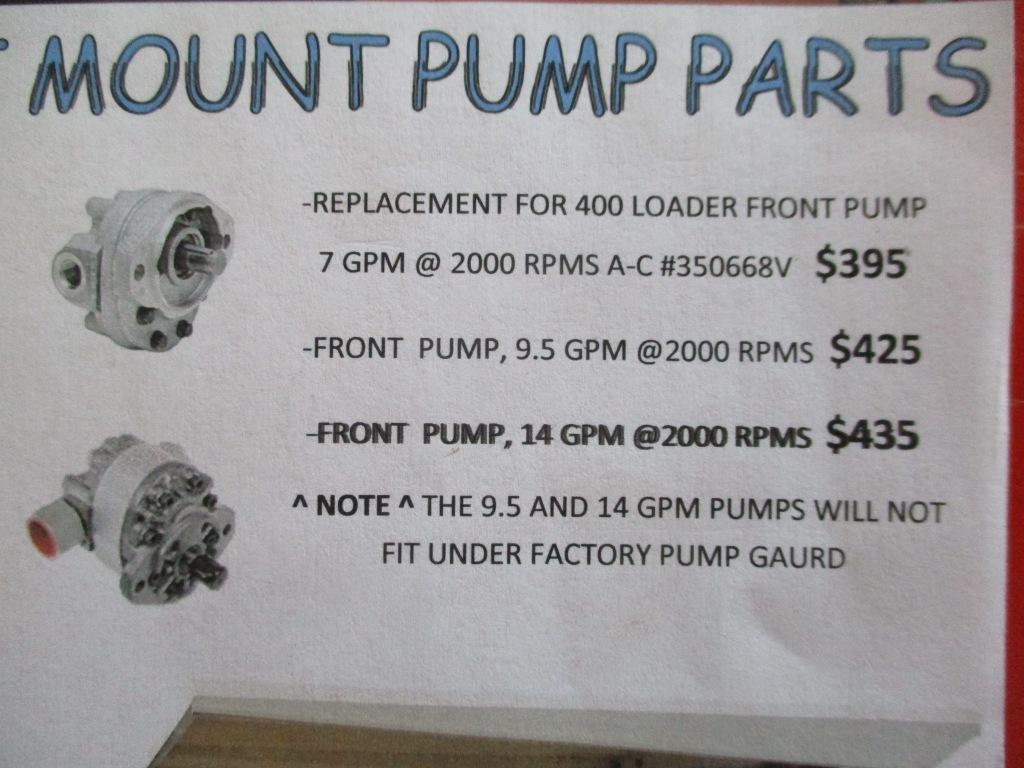

D17 D14 D15d pump mounting kits: $154 (1st pic)
D15 gas pump mounting kit: $212

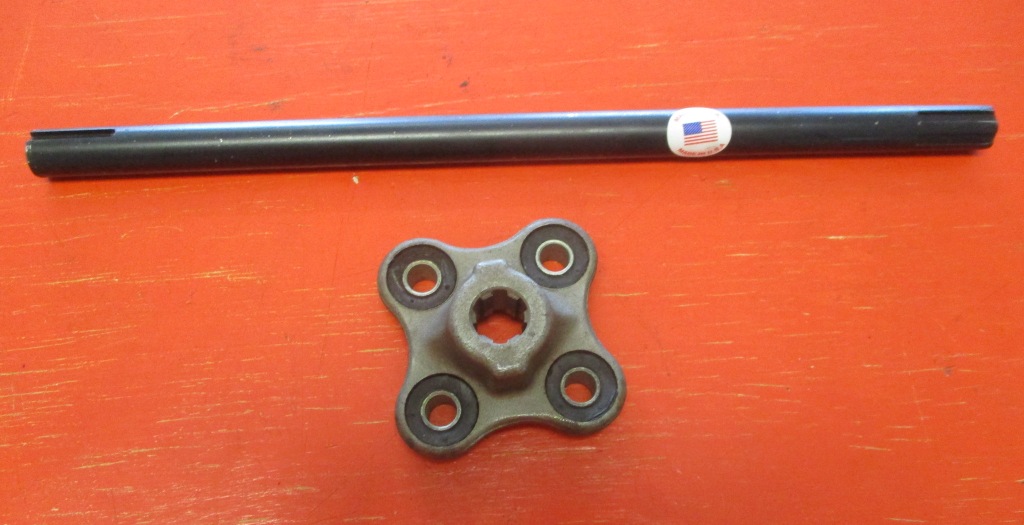

D17 D14 D15d driveshaft kit: $85
D15 gas driveshaft kit: $133.50 (2nd pic)

Call 920-598-1287
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
Sponsored Links


Back to Top
Gary Burnett View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Virginia
Points: 2943 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Burnett Quote  Post ReplyReply Direct Link To This Post Posted: 26 Jul 2020 at 5:53am
Nice,would you plumb into the tractor for fluid or just get a tank,valves etc and have a totally different system?
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20701 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 26 Jul 2020 at 7:14am
What has worked very well for me (on S-2 D-15 and S-3 D-17) is using the tractors hydraulic oil. Remove the belly pump sump and drill/tap a 3/4" pipe thread hole on the front left side corner. One must take care to get it centered as there is just barely enough room to do this. Then, connect a 3/4" pipe tee to this hole. Oil goes forward to the new live pump from the tee and returns (filtered) to the rear of the tee coming from your hydraulic valve stack. The oil in this continuous loop is always filtered and the only time oil ever leaves the tractors sump is when you extend a cylinder, so some internal oil gets filtered that way. The internal pump really gets no filtering from the factory design. This way it does.
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1701 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 26 Jul 2020 at 11:30am
I would also use the tractor hyd reservoir. I plan to offer lines, filter, valves and oil cooler for these front pumps in the future. In theory, to prevent the hyd oil from overheating, you need the same reservoir capacity in gallons as your max pump flow. as long as you don't overwork the hydraulics, the tractor reservoir should be fine.
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
DaveWisc. View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Oct 2009
Location: Wisc.
Points: 992 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DaveWisc. Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2020 at 12:14pm
Are you going to sell parts too or just the complete kit????
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1701 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2020 at 12:34pm
Originally posted by DaveWisc. DaveWisc. wrote:

Are you going to sell parts too or just the complete kit????


All parts are available separately, should a customer want just the chain coupler assembly or just the shaft, for example.
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20701 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2020 at 1:26pm
On the sump/tank size, a series 4 D-17 is 12 GPM at full throttle and the hydraulic sump is less than 6 gallons.  A One-Seventy is the same size sump and with the power steering circuit added, it is 20 GPM.
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2020 at 3:14pm
Nice going.
I was wondering if you had the overall length of the D15 gas shaft. I thought I could edit my post in the knowledge base.
I also added a drawing of the pump mount plate from measurements from the plates I have.
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1701 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2020 at 7:24pm
Originally posted by DrAllis DrAllis wrote:

On the sump/tank size, a series 4 D-17 is 12 GPM at full throttle and the hydraulic sump is less than 6 gallons.  A One-Seventy is the same size sump and with the power steering circuit added, it is 20 GPM.


Well, given those numbers with the D17IV and 170, I would say a hyd oil cooler isn't nessessary. A D15 has 2.5 gal hyd oil capacity (separate from PD compartment) and the factory loader pump was ~7GPM.
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1701 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2020 at 7:28pm
Originally posted by Joe(TX) Joe(TX) wrote:

Nice going.
I was wondering if you had the overall length of the D15 gas shaft. I thought I could edit my post in the knowledge base.
I also added a drawing of the pump mount plate from measurements from the plates I have.


Yeah just noticed it when you posted the plate diagram! Nice! The D15 gas shaft is 15" long and has 6 spline x 3/4dia and the 3/16x3/16 square key at the other end.

www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 20701 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2020 at 7:32am
I think you'll find the 400 series loader reservoir in the left tower wasn't more than 2 1/2 gallons of oil either, same as the tractors hydraulic sump.
Back to Top
CAL(KS) View Drop Down
Orange Level
Orange Level


Joined: 18 Sep 2009
Location: Chapman, KS
Points: 3786 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CAL(KS) Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2020 at 9:25am
why nothing for the D19 as far as front pump kits?  werent they the t**d of the bunch when it came to hydraulics?
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD16,HD20

Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, 2-S77, HD15
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2020 at 4:33pm
see previous post
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1701 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2020 at 8:15pm

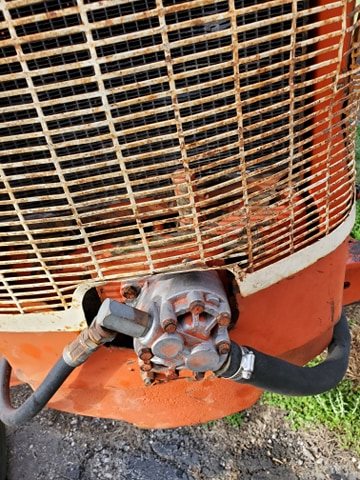

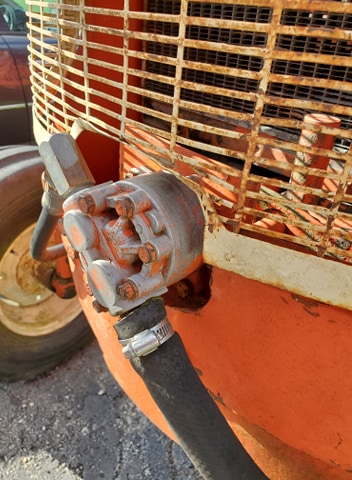

I didn't realize this post would have so much 'discussion' lol. Thats the 2nd guy that inquired about a D19 ft pump in 3 days. I think these are pictures showing how a D17 setup was made to work with a shorter driveshaft. They might have cut out the shroud for the pump.




With a longer shaft and spacers you could space the pump out in front of the grill like Joe said. You already have a valve stack to route the oil to, I might have to experiment on my friends D19...
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
AllisD17AndyOk View Drop Down
Silver Level
Silver Level
Avatar

Joined: 06 Apr 2020
Location: Colbert, OK
Points: 51 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AllisD17AndyOk Quote  Post ReplyReply Direct Link To This Post Posted: 11 Nov 2020 at 12:29pm
