 Topic: D-14 snap coupler attachment
Posted: 15 Nov 2022 at 1:50pm |
|
|
 |
|
Sponsored Links
|
|
|
mruhlig77
Orange Level
Joined: 19 Aug 2014
Location: central Indiana
Points: 595
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2022 at 1:52pm |
|

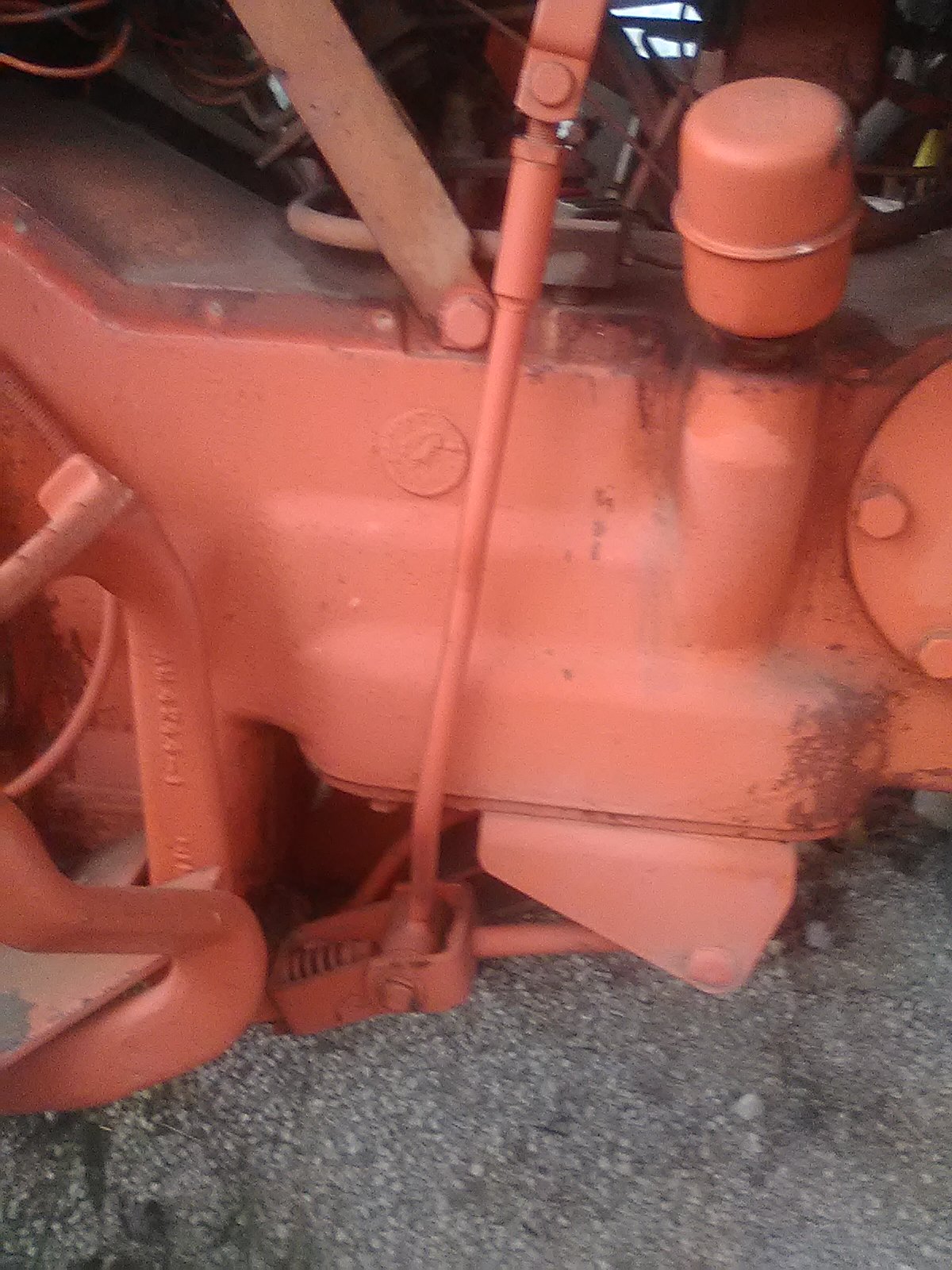

Here is an attachment on a D-14...kinda know what it is...anyone know for sure....I can speculate...you can if you must...thanks Mark
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5160
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2022 at 2:44pm |
|
That is a Power-Director release. If you hit a big rock or root with a plow or whatever it will kick the PD into neutral.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24768
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2022 at 3:49pm |
yup, Paul B is right ! I have one 'on the shelf, somewhere', came off 'Troy'. Only rocks that hurt me are the softball sized ones the rototiller finds.....
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
mruhlig77
Orange Level
Joined: 19 Aug 2014
Location: central Indiana
Points: 595
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2022 at 4:30pm |
Paul is probably right..where does it attach to the PD...could not find a schematic of one in the books...anyone have one...Mark
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7533
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2022 at 4:39pm |
Has nothing to do with the snap coupler. It mounts to the hand clutch.
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '63 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
Gary
Orange Level Access
Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5905
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2022 at 7:58pm |
|
Myron
You can see in your picture one end of the rod is attached to the PD Lever.
What is the mechanism the other end of the rod is attached to, and how does it work?
Gary
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54385
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Nov 2022 at 8:29pm |
 Gary wrote:
Myron
You can see in your picture one end of the rod is attached to the PD Lever.
What is the mechanism the other end of the rod is attached to, and how does it work?
Gary |
Its attached to the traction booster spring, in the bell coupler. Idea is to stop the forward motion instead of allowing the TB to transfer weight. Gives you the option of lifting the plow to test the size of the rock, or to lift, as you reverse out of the situation...
|
|
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
|
|
mruhlig77
Orange Level
Joined: 19 Aug 2014
Location: central Indiana
Points: 595
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2022 at 7:32am |
|
In the original picture...nothing is attached to the PD .....kinda why I was asking...need to find a parts breakdown picture to figure it out..thanks to all ...Mark
|
|
mruhlig77
Orange Level
Joined: 19 Aug 2014
Location: central Indiana
Points: 595
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2022 at 8:15am |
|
I guess that my grade is a D- in mechanical aptitude...my picture shows the kick out in stow position and the later picture is in operating position... still do not know how it kicks out in both PD positions...Mark
|
|
tomstractorsandtoys
Orange Level Access
Joined: 11 Feb 2015
Location: wi
Points: 515
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2022 at 1:56pm |
If I remember right my dad said it only worked to kick it out of high range. Sort of like the clutch release on the WD. Had one hanging in the shop years ago.
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24768
|
Post Options
Thanks(1)
Quote Reply
Posted: 16 Nov 2022 at 3:29pm |
|
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
mruhlig77
Orange Level
Joined: 19 Aug 2014
Location: central Indiana
Points: 595
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2022 at 4:10pm |
Jay..thanks for the parts breakdown...
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24768
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Nov 2022 at 5:07pm |
|
Always happy to help if I can !
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
BrettPhillips
Orange Level
Joined: 11 Sep 2009
Location: Strasburg, VA
Points: 808
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Nov 2022 at 6:32pm |
|
The linkage clamps to the Power Director lever when you need to use the kick out feature. Mine works great in both low and high range when I use the #4 subsoiler on the D14.
|
|
