 Topic: D14 Running funny
Posted: 10 Jun 2017 at 9:22pm |
|
Been working on one of my D14s and it is running funny. It will idle or run wide open not really a middle range. I have taken the governor out to inspect it. Looks brand new or hardly used. Timed correctly and the carb has been cleaned twice. Anyone have this issue before?
|
|
Can't fix stupid
|
 |
|
Sponsored Links
|
|
|
Acfarm
Bronze Level
Joined: 05 Oct 2014
Location: Portland,Or
Points: 143
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jun 2017 at 11:46pm |
|
Are the throttle and governor linkages free of binding?
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24774
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2017 at 6:16am |
|
Did the 'funny' looking spring from the carb linkage to manifold fall off ??
It's called the 'anti-surge' spring, I think....
Jay
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7533
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2017 at 8:51am |
 jaybmiller wrote:
Did the 'funny' looking spring from the carb linkage to manifold fall off ??
It's called the 'anti-surge' spring, I think....
Jay
|
Anti surge spring would not cause this problem. It sounds more like the governor weights. Also wouldn't hurt to check the linkage for binding or wallowed holes.
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '63 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
AJ
Orange Level
Joined: 31 Oct 2010
Location: mo
Points: 5244
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2017 at 10:40am |
|
Weights look excellent condition
|
|
Can't fix stupid
|
|
David Maddux
Orange Level
Joined: 13 Sep 2009
Points: 2543
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2017 at 11:48am |
|
Sounds like governor rod not matched up right.
|
|
AJ
Orange Level
Joined: 31 Oct 2010
Location: mo
Points: 5244
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Jun 2017 at 1:49pm |
|
How does a person check that Dave?
|
|
Can't fix stupid
|
|
David Maddux
Orange Level
Joined: 13 Sep 2009
Points: 2543
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Jun 2017 at 7:38am |
|
If I remember right, with the tractor shut off, you open the carb throttle full open, then open the governor wide open and the throttle rod should be about 1/8th of an inch shy of fitting in the hole of the carb. You can bent the rod to get that match.
|
|
AJ
Orange Level
Joined: 31 Oct 2010
Location: mo
Points: 5244
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jun 2017 at 7:59am |
|
I will give that a try Dave, thanks
|
|
Can't fix stupid
|
|
AJ
Orange Level
Joined: 31 Oct 2010
Location: mo
Points: 5244
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jun 2017 at 3:12pm |

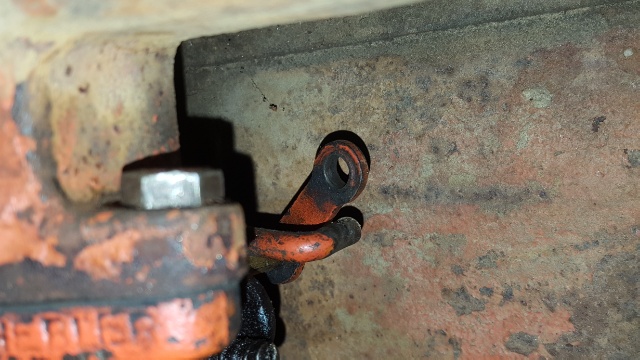

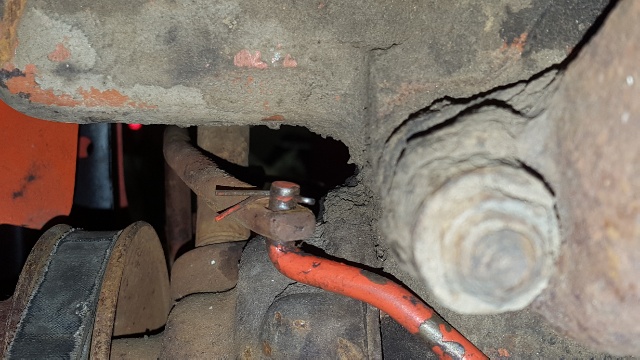

Throttle wide open...
|
|
Can't fix stupid
|
|
AJ
Orange Level
Joined: 31 Oct 2010
Location: mo
Points: 5244
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jun 2017 at 3:14pm |
|
|
|
Can't fix stupid
|
|
AJ
Orange Level
Joined: 31 Oct 2010
Location: mo
Points: 5244
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jun 2017 at 5:17pm |
|

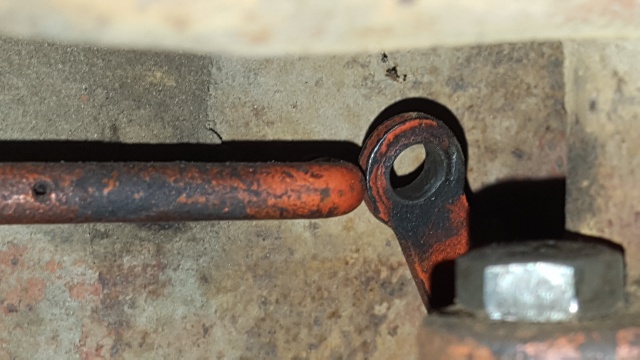

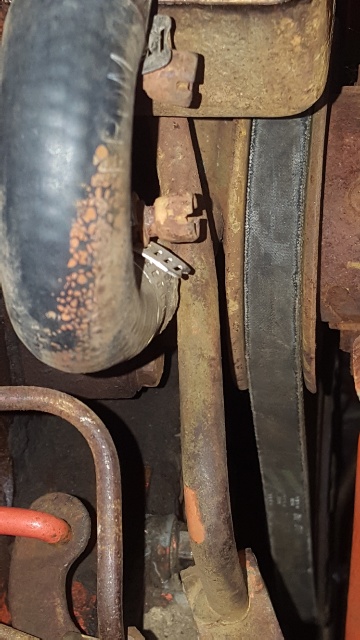

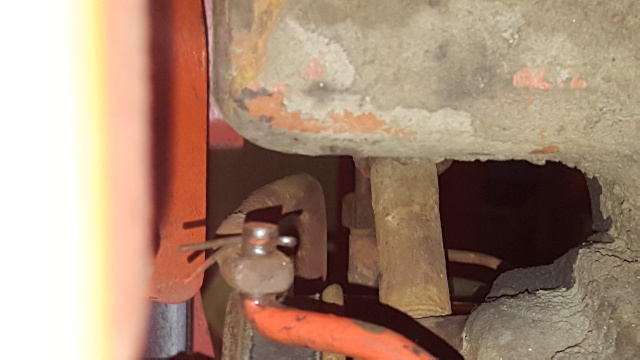

Is there something wrong with these positions?
|
|
Can't fix stupid
|
|
David Maddux
Orange Level
Joined: 13 Sep 2009
Points: 2543
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jun 2017 at 7:01pm |
|
From rhe way I see the photos, the rod may be a little short. Can you take some of the bend out of the rod to get it within an 1/8" from fitting in the hole?
|
|
AJ
Orange Level
Joined: 31 Oct 2010
Location: mo
Points: 5244
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jun 2017 at 11:21pm |
|
Bend the governor rod toward the carb more? I can but then that rod will hit the front of the block/head I'm pretty sure because when the throttle is at idle it's almost touching as is. (See first picture of throttle all the way down)
Edited by AJ - 14 Jun 2017 at 11:23pm
|
|
Can't fix stupid
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 22136
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jun 2017 at 9:15am |
|
Don't try and bend the governor arm that crosses in the front of the block UNLESS you absolutely have to. Too much of a chance of damaging something else if you aren't an expert on this. Your link rod (governor arm to carb rod) is too short. Remove it and straighten out some of the bends and see if you can't get it to proper length to just slide back into the holes. VERIFY THE LINK ROD DOESN'T RUB AGAINST ANYTHING WHEN DONE. If it doesn't idle down fully after this adjustment, correct that by changing the throttle rod length under the gas tank.
|
|
AJ
Orange Level
Joined: 31 Oct 2010
Location: mo
Points: 5244
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jun 2017 at 3:13pm |
|
Thanks for the help boys. That's what it was. I have been playing with the linkages and kept tweaking it a little here and there she kept getting better and better. She runs like a top now. I can tell she does need to be worked some. This engine hasn't really ran in years. Think some plow time is in this tractor's future.
I appreciate it
