 Topic: Can you overtorque Model B front lugbolts?
Posted: 09 Mar 2024 at 8:27pm |
|
So, let's say there was this guy and he wanted to flip his front wheels around to get the extra width for stability. He soaked the lug bolts in Free All overnight, but stil needed a breaker bar and hammer to get them loose.
After flipping the wheels, this gentleman started merrily tightening the lug bolts, but they never felt quite tight. Considering they took all his might to get off, he was thinking they needed to be pretty tight
When one did start to feel tight, all of the sudden he felt a little give.
He looked between the wheel and the hub and noticed there was an air gap where the bolt goes through? Seems like just a place for mud and rust to collect...are there supposed to be spacers or washers?
So, the dude is wondering if you can go Magilla Gorilla enough on the lug bolts to actually bend the wheel at that air gap. And if you were a gorilla about it, how big of a deal would it be?
Edited by resurrection20 - 09 Mar 2024 at 8:27pm
|
 |
|
Sponsored Links
|
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 81092
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Mar 2024 at 9:08pm |
|
the wheels are not made to be flipped... If you do, there might be a gap as you said... "something" will contact the hub and stop moving.. Continue to tighten will probably distort the rim slightly around the bolt holes. Since this is a low speed tractor, you probably dont need the precision fit.... I think the bolts are 1/2 inch so i would tighten to about 80 ft pounds and NOT distort the rim.. Something will be metal to metal and a 5 MPH i doubt you will have a problem.
|
|
Like them all, but love the "B"s.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 81092
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Mar 2024 at 9:10pm |
|
If you wanted to pull it down metal to metal... I would put a washer between the hub and the rim on each bolt..
|
|
Like them all, but love the "B"s.
|
|
resurrection20
Bronze Level
Joined: 14 Nov 2023
Location: Oregon
Points: 78
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Mar 2024 at 9:50pm |

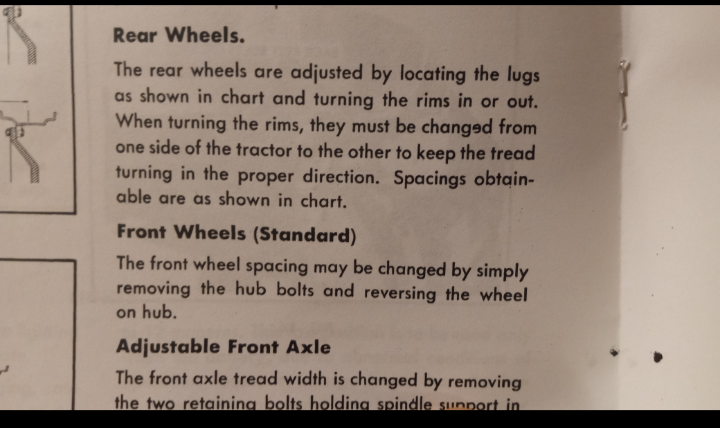

This is what that super cool dude read in the owner's manual:  He says he doesn't care about going metal to metal, but is just wondering if those holes in the wheel being a little deformed are going to make them fall off.  He's a little mad at himself.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 81092
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Mar 2024 at 8:16am |
|
I am surprised the book says you can reverse the wheels... because as you say, they dont really "FIT" when reversed... But it would not Overtorque them.. Just snug to 80 ft pounds and leave the air gap and small distortion... As you torque them, SOMETHING it touching metal to metal.
|
|
Like them all, but love the "B"s.
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 1986
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Mar 2024 at 9:25am |
|
It should be okay to run with the front wheels flipped around - as you noted it is mentioned in the manual. I've seen it more often on C and CA tractors where they were used for bedding/listing. On a B with the standard wide front end that is the only option to adapt to a slightly different row spacing.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4727
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Mar 2024 at 2:56pm |
|
probably the reason they don't fit "well" is rust. I've seen many "good" rims that had been reverses and fit right up against the hub.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
Les Kerf
Orange Level
Joined: 08 May 2020
Location: Idaho
Points: 777
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Mar 2024 at 4:46pm |
|
I would put washers behind it so as to have solid contact behind the wheel
|
|
resurrection20
Bronze Level
Joined: 14 Nov 2023
Location: Oregon
Points: 78
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Mar 2024 at 10:44pm |
 steve(ill) wrote:
I am surprised the book says you can reverse the wheels...tor |
I'm a sucker for instruction manuals. In another life I wrote them. The only weird thing is my reproduction manual has the triangle logo, not the diamond one. I mowed blackberries for about two hours today. Drove down the driveway in 3rd. We're both still here! I didn't notice any difference in turning radius or difficulty. I did notice a positive difference in stability- totally different beast with the wheels reversed! It's funny that that six inches you get plays such large a factor with physics. I reversed the rears, too, FYI.
|
|
resurrection20
Bronze Level
Joined: 14 Nov 2023
Location: Oregon
Points: 78
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Mar 2024 at 10:46pm |
wjohn wrote:
It should be okay to run with the front wheels flipped around - as you noted it is mentioned in the manual. I've seen it more often on C and CA tractors where they were used for bedding/listing. On a B with the standard wide front end that is the only option to adapt to a slightly different row spacing. |
I don't know much about farming, but I can mow, lol. I flipped them to get a wider stance for some extra stability as my property is pretty gnarly in spots.
|
|
