 Topic: CA allis electrical diagram
Posted: 30 Sep 2024 at 7:41pm |
|
|
 |
|
Sponsored Links
|
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 88476
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 Sep 2024 at 8:44pm |

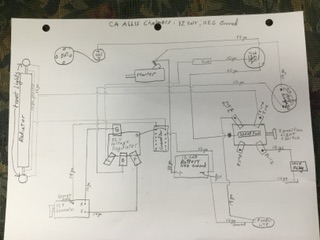

your drawing is too small for me to see details, but it appears to be hand drawn, have a 12 v battery with a voltage regulator and negative ground.. dont see a distributor or mag... something like this ?? What is the question ?
OK.. i see the coil / distributor and push switch on the starter.... my terminals on the coil and BACKWARD....power comes into the + terminal..
Edited by steve(ill) - 30 Sep 2024 at 8:49pm
|
|
Like them all, but love the "B"s.
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5162
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Oct 2024 at 8:14am |

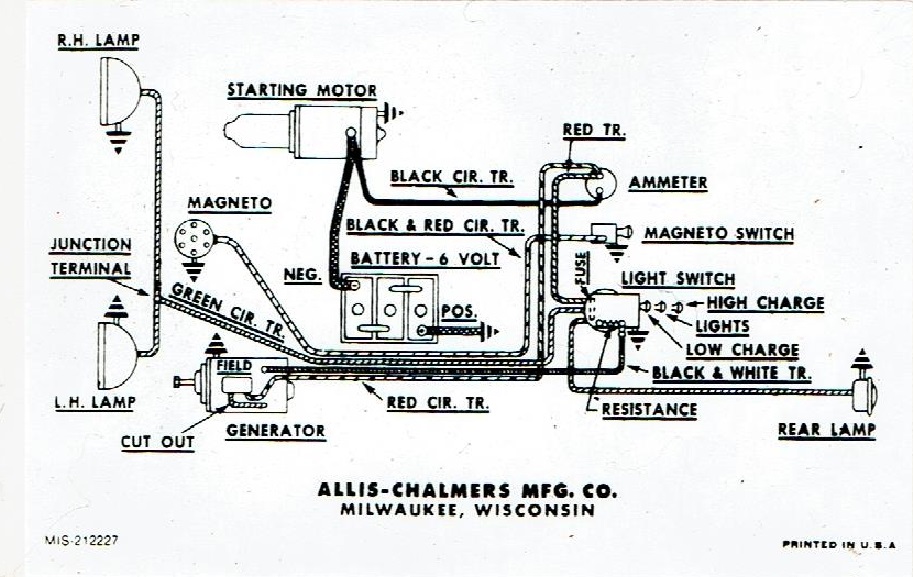

This is the ALLIS CHALMERS wiring diagram for magneto equipped B,C & CA tractors. For distributer equipped tractors a key switch and wire from the ammeter is use in place of the grounding magneto switch.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 88476
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Oct 2024 at 8:37am |
|
He has a 12 v Negative ground system with a 4 terminal voltage regulator and a distirbutor / coil ignition system..... not close to a factory CA wire system.
|
|
Like them all, but love the "B"s.
|
|
CentralMNCA
Bronze Level
Joined: 23 Oct 2021
Location: Minnesota
Points: 30
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Oct 2024 at 11:36am |
|
Thank you guys for your reply's, this is my first time at trying to install a picture on the forum, and I failed, I will try again with a better picture, please be patient with me as I try to get it correct and readable, I tried posting with an apple I pad, Steve awhile back you posted an explanation on how to post a picture somewhere on the forum and I have not been able to locate that information. once I figure out the procedure for pictures it will make better sense, Again thanks for all you help
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 88476
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Oct 2024 at 12:39pm |
Make your photo about 800 x 600 pixels in size.. you can do that on a computer PAINT, or e-mail it to yourself and resize on a cell phone..
Click on POST REPLAY icon at the bottom left side of this page.
that brings up a box... click on the GREEN TREE icon at the top of the box..
|
|
Like them all, but love the "B"s.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 88476
|
Post Options
Thanks(0)
Quote Reply
Posted: 01 Oct 2024 at 12:40pm |
reference with drawings...
|
|
