b212 snowblower question

 Post Reply Post Reply
Author
Message
NATHAN CAIRNS View Drop Down
Silver Level
Silver Level
Avatar

Joined: 07 Feb 2016
Location: Brighton IL
Points: 104
Post Options Post Options   Thanks (0) Thanks(0)   Quote NATHAN CAIRNS Quote  Post ReplyReply Direct Link To This Post Topic: b212 snowblower question
    Posted: 17 Feb 2016 at 12:15pm
how did the snowblower attach to the b212, and what drove it?
B212, WD45, B, 912 Hydro
Back to Top
Sponsored Links


Back to Top
Steve in NJ View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Andover, NJ
Points: 10557
Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve in NJ Quote  Post ReplyReply Direct Link To This Post Posted: 17 Feb 2016 at 1:46pm
It attached to the front frame, and a bracket with a group of pulleys called a "mule drive" which connected the belt on the Tractor to the snow blower belt mule drive. I have two snow blowers for the B series Tractors. I think one is 36" and the other is 42"? Don't remember. Someone will come on that knows the sizes.
Steve@B&B
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
Back to Top
NATHAN CAIRNS View Drop Down
Silver Level
Silver Level
Avatar

Joined: 07 Feb 2016
Location: Brighton IL
Points: 104
Post Options Post Options   Thanks (0) Thanks(0)   Quote NATHAN CAIRNS Quote  Post ReplyReply Direct Link To This Post Posted: 18 Feb 2016 at 12:19pm
thanks. my tractor has a pto looking thing sticking out of the grill near the bottom of the grill. i dont know if thats custom or original. someone else owned it before me. when it start it, it spins and no switches turn it off
B212, WD45, B, 912 Hydro
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3699
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 18 Feb 2016 at 2:13pm
that is the front PTO. to run the snoblower you put a pulley on it. the belt runs down to the mount and goes around a couple pulleys. than foward to the centere of the blower. the pulley on the right side is a belt tightner. when you push foward on the long rod going back to the seat it engages the blower pulling back disengages it the pulley spins the whole time the engine is running. no switches involved. just a simple push pull rod. I dont have any pictures of mine operating since i havent used it in many years. it worked pretty good when i used it but was to small for my needs. right now it sits on the top shelf in the shed. next to the push blade and garden plow I dont use.
Back to Top
NATHAN CAIRNS View Drop Down
Silver Level
Silver Level
Avatar

Joined: 07 Feb 2016
Location: Brighton IL
Points: 104
Post Options Post Options   Thanks (0) Thanks(0)   Quote NATHAN CAIRNS Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb 2016 at 11:35am
ok  it looked original so i thought it was but i wasnt sure    so does the blowe mount where the blade lift does?
B212, WD45, B, 912 Hydro
Back to Top
AaronSEIA View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Mt Pleasant, IA
Points: 2401
Post Options Post Options   Thanks (0) Thanks(0)   Quote AaronSEIA Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb 2016 at 7:23pm
Yes. Pins under the axle. Bit tricky to mount as the blower actually sets on the axle as well as pinned under where the deck pins.
AaronSEIA
Back to Top
Glockhead SWMI View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: South West Mich
Points: 2657
Post Options Post Options   Thanks (0) Thanks(0)   Quote Glockhead SWMI Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb 2016 at 9:04pm
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 6575
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb 2016 at 9:19pm

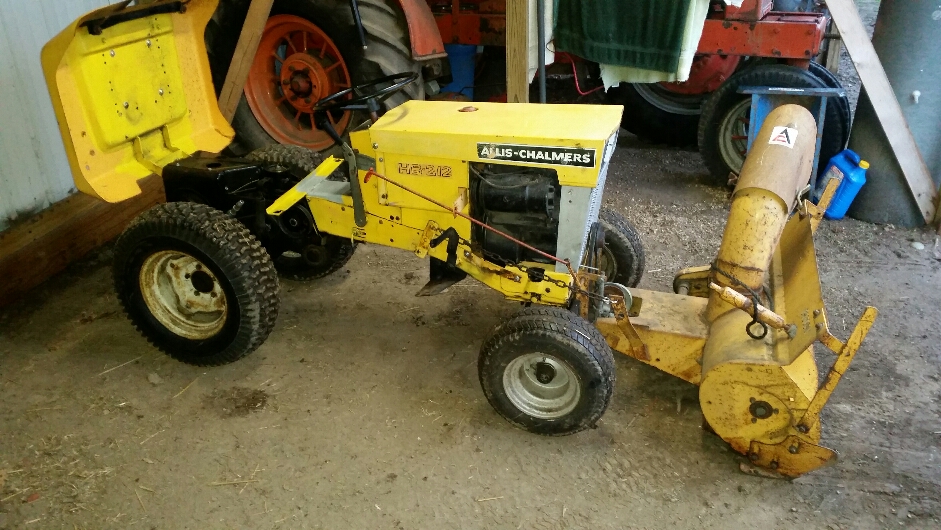

That's an old blower you have there, like off a B-1. The hood on the H-200 series had the scoop look thing that flipped up over the gas tank and battery
Back to Top
Glockhead SWMI View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: South West Mich
Points: 2657
Post Options Post Options   Thanks (0) Thanks(0)   Quote Glockhead SWMI Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb 2016 at 9:44pm
The b112 has the cowl. The blower I have was bought new with a big ten in 1965.
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 6575
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb 2016 at 9:50pm
Oh yea that's right sorry spoke faster then memory, the B-110 an112 had it
Back to Top
AaronSEIA View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Mt Pleasant, IA
Points: 2401
Post Options Post Options   Thanks (0) Thanks(0)   Quote AaronSEIA Quote  Post ReplyReply Direct Link To This Post Posted: 23 Feb 2016 at 5:48am
That's the single belt attaching parts on what looks like an older 32" blower housing.
AaronSEIA
Back to Top
NATHAN CAIRNS View Drop Down
Silver Level
Silver Level
Avatar

Joined: 07 Feb 2016
Location: Brighton IL
Points: 104
Post Options Post Options   Thanks (0) Thanks(0)   Quote NATHAN CAIRNS Quote  Post ReplyReply Direct Link To This Post Posted: 23 Feb 2016 at 11:18am
ok thanks  i have a blade on it now
B212, WD45, B, 912 Hydro
Back to Top
DEATHHAULER View Drop Down
Bronze Level
Bronze Level


Joined: 26 Oct 2021
Location: Iowa
Points: 1
Post Options Post Options   Thanks (0) Thanks(0)   Quote DEATHHAULER Quote  Post ReplyReply Direct Link To This Post Posted: 26 Oct 2021 at 9:35am
I have a b110 and can’t figure out where the bet stops or guides for the crank shaft pulley bolt on for snowblower
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3699
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 27 Oct 2021 at 1:05pm
Mine has no belt guides or stops. On the tractor there are belt guides on the two angle pulleys on the snowblower mount. They look like j shaped pieces held on withe the pulley mount bolt and prevent the belt from falling off when disengaged

Edited by Dakota Dave - 27 Oct 2021 at 1:10pm
