B10 pulley question
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Huckleberry8961 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 09 Aug 2016
Location: WNY
Points: 48 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Huckleberry8961 Quote  Post ReplyReply Direct Link To This Post Topic: B10 pulley question
    Posted: 18 Dec 2022 at 2:05pm
I recently bought a B10 that came with the mower deck and the snow blower attachment. Unfortunately it didn't come with the belts for either and I'm also missing the front pulley that mounts to the gear box on the motor and one of the small pulleys on the snowblower. Could someone help and tell me the sizes I need for the front pulley and belts? Also if someone has a picture of how the pulleys and belt run for the snow blower that would be appreciated.
Back to Top
Sponsored Links


Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8604 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 18 Dec 2022 at 2:35pm

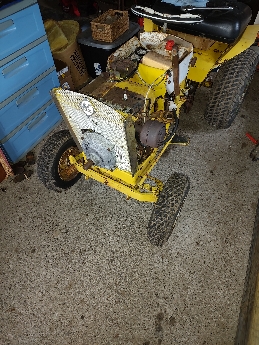

Could you post pictures of what you have
Back to Top
Huckleberry8961 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 09 Aug 2016
Location: WNY
Points: 48 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Huckleberry8961 Quote  Post ReplyReply Direct Link To This Post Posted: 18 Dec 2022 at 4:07pm
Back to Top
Huckleberry8961 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 09 Aug 2016
Location: WNY
Points: 48 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Huckleberry8961 Quote  Post ReplyReply Direct Link To This Post Posted: 18 Dec 2022 at 4:12pm

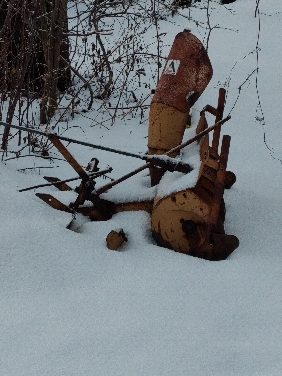

From what I can tell the pulley on the blower that I'm missing is the idler pulley. Hopefully sometime this week after work I can get it cleaned off and drug into the garage
