 Topic: B Side Mount Sickle Mower ID
Posted: 13 Jul 2020 at 12:47pm |
Hi All, I am new to the Forum and looking for the guys that know. I have my Grandpa's model B (1941 model) and mounted on it is a sickle mower. Had no ID tags or stampings that I can find. Its a side mount with a 5' bar. The pitman arm does not connect straight to the cutting bar it connects to an intermediate linkage. This linkage is the problem. It is missing parts and I don't know what I am looking for. Any help i'd appreciate.
|
 |
|
Sponsored Links
|
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 82312
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 1:37pm |
yours has the wooden arm running from the offset crank under the motor ? .... and there is a sliding "ball socket" that attaches to the sickle bar that is gone ? ... this type bar will only cut in the HORIZONTAL position.
There was an OPTIONAL unit that had the crank near the sickle bar and it would rotate upward and cut when in a somewhat vertical position also ..... ????
|
|
Like them all, but love the "B"s.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 82312
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 1:46pm |

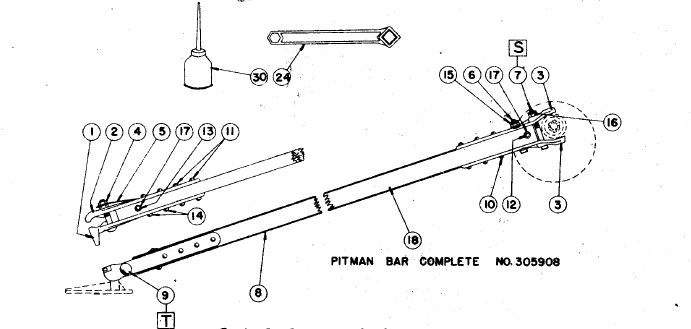

horizontal only version... wooden arm ... ball socket at cutter bar
|
|
Like them all, but love the "B"s.
|
|
Idle Hands
Bronze Level
Joined: 13 Jul 2020
Location: Kansas
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 2:02pm |
|
The offset crank is under the motor but from the offset crank it does not attach to the sickle ball. I will get some pictures this afternoon when I get back to the house.
|
|
Idle Hands
Bronze Level
Joined: 13 Jul 2020
Location: Kansas
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 2:03pm |
|
Definitely not the horizontal only model.
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4829
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 2:17pm |

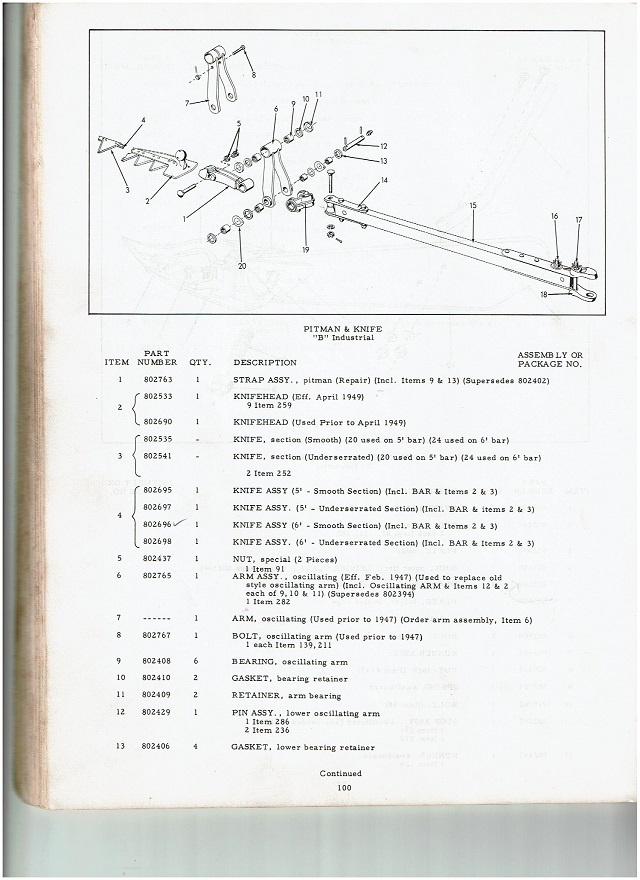

There is a version of the B/C mower for the B Industrial tractor. This had a 2 piece pitman that would allow for much more up and down travel.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
Idle Hands
Bronze Level
Joined: 13 Jul 2020
Location: Kansas
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 3:29pm |
|
The B industrial is what I was looking for! That does match what I am trying to fix.
|
|
Idle Hands
Bronze Level
Joined: 13 Jul 2020
Location: Kansas
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 3:49pm |
|
Been trying to upload photos unsuccessfully but I am certain the industrial mower schematic is what I am looking for. I am missing some parts. Any ideas where to start looking for not only parts but manuals?
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 82312
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 4:03pm |
|
Do you have a "B tractor or an "IB" tractor with a c-channel frame around the front end and back to both fenders ?
|
|
Like them all, but love the "B"s.
|
|
Idle Hands
Bronze Level
Joined: 13 Jul 2020
Location: Kansas
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 4:26pm |
|
I have a B tractor not the industrial B
|
|
Idle Hands
Bronze Level
Joined: 13 Jul 2020
Location: Kansas
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 4:28pm |
|
SN B52112
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 82312
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 4:44pm |
OK.... i have only seen the INDUSTRIAL mower mounted to the c-channel frame of an IB... Never seen one on a B ..... sounds like there may be a THIRD option which was the B sickle frame and pitman arm with a "MODIFIED" end at the outboard end...I have never seen that.
Paul, if you have any additional info on a "B" setup with an Industrial mower, jump in here !!
If you need help with photos, send to me and i will post for you........... i sent you an e-mail.
Edited by steve(ill) - 13 Jul 2020 at 4:49pm
|
|
Like them all, but love the "B"s.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 82312
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 5:52pm |

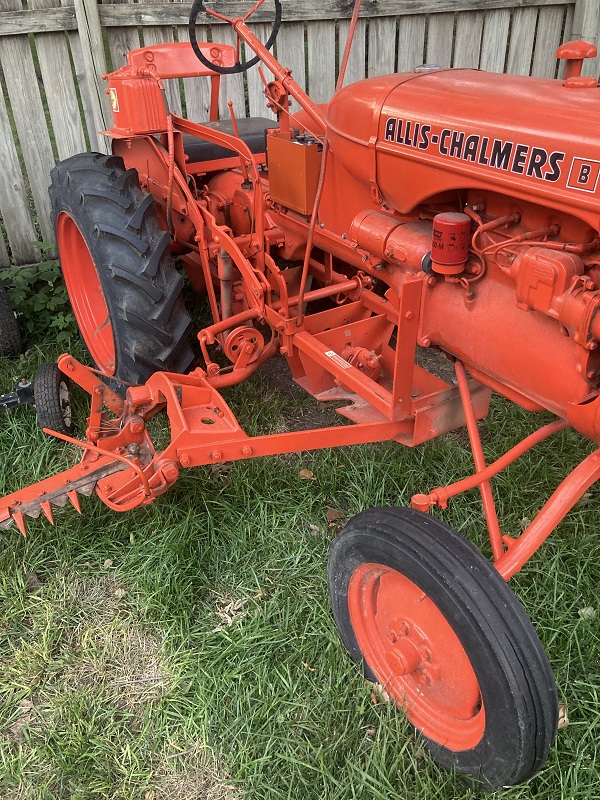

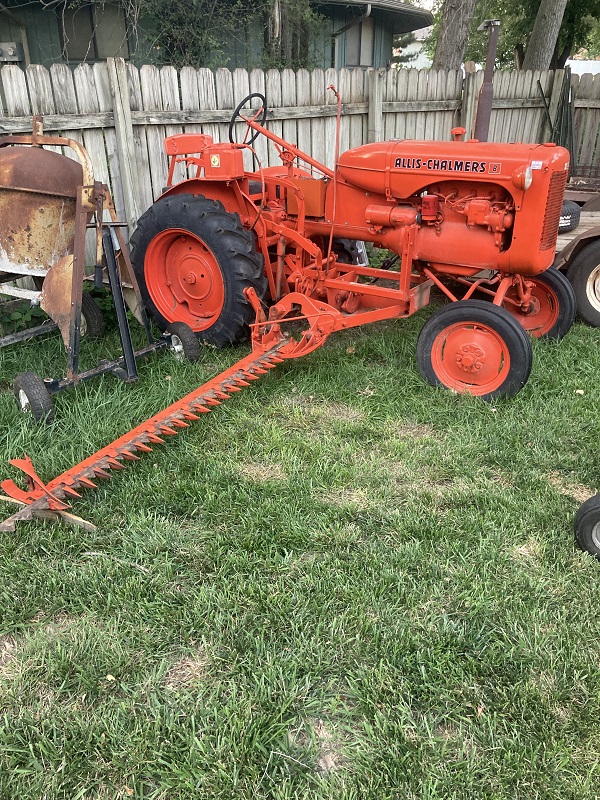

OK, William sent me 5 photos of his sickle and i will post below. I have never seen this setup. It appears to be the "standard" B sickle frame on the tractor, with a different "PIVOT UNIT" at the bottom that allows SOME vertical travel... William, it appears in the photos that you have MOST of the parts you need... what i dont see is the WOODEN STICK that connects your steel pitman arm to the bell crank under the motor ??? Is that what you need, the WOOD pitman and its steel ends ?
Look at PAULS parts book drawing a few posts UP..
Edited by steve(ill) - 13 Jul 2020 at 5:59pm
|
|
Like them all, but love the "B"s.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 82312
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 5:56pm |
|
William, you phone or camera is set on HIGH RESOLUTION.. The photos you are taking are 4000 x 3000 pixel size and take up about 2.5 MB each... To post on this site you want to open your picture on your computer in "paintbrush" or similar and shrink it to 800 x 600 pixel and it will take up about 100 KB in size .......... then the site will let you download.
|
|
Like them all, but love the "B"s.
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4829
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 8:19pm |

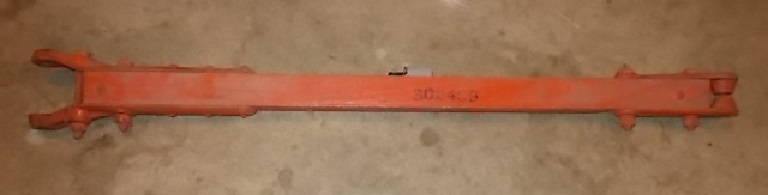

I've never actually seen an IB mower. However all the pictures do seem to match up with the parts book. I had hoped to find one someday to swap the head onto my #5 mower. I do have a NOS IB mower pitman assembly 802439. I also have a NOS 802803 IB mower swathboard. The IB swathboard is shorter that the regular mower swathboard.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
Idle Hands
Bronze Level
Joined: 13 Jul 2020
Location: Kansas
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 8:48pm |
|
I am missing parts #14 and #15 according to the schematic. I went out and looked and I may be missing the swathboard as well.
|
|
Idle Hands
Bronze Level
Joined: 13 Jul 2020
Location: Kansas
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 8:51pm |
|
|
|
Idle Hands
Bronze Level
Joined: 13 Jul 2020
Location: Kansas
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jul 2020 at 8:51pm |
|
|
|
Gary Burnett
Orange Level Access
Joined: 11 Sep 2009
Location: Virginia
Points: 2952
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jul 2020 at 1:41am |
 PaulB wrote:
I've never actually seen an IB mower. However all the pictures do seem to match up with the parts book. I had hoped to find one someday to swap the head onto my #5 mower. I do have a NOS IB mower pitman assembly 802439. I also have a NOS 802803 IB mower swathboard. The IB swathboard is shorter that the regular mower swathboard. |

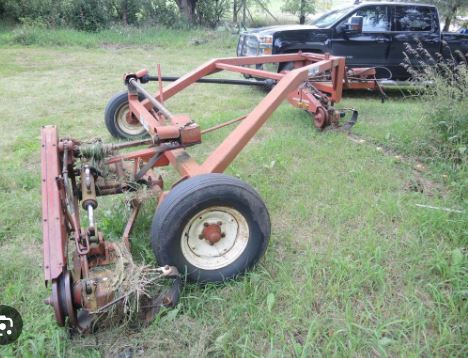

Paul I have a mower that looks like that over in the field on a C.
|
|
Charlie175
Orange Level
Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6358
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jul 2020 at 5:19am |
Paul you need to measure those parts to replicate that pitman! How do you raise the end of the sickle?
Edited by Charlie175 - 14 Jul 2020 at 5:19am
|
|
Charlie
'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
|
|
Idle Hands
Bronze Level
Joined: 13 Jul 2020
Location: Kansas
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jul 2020 at 5:22am |
|

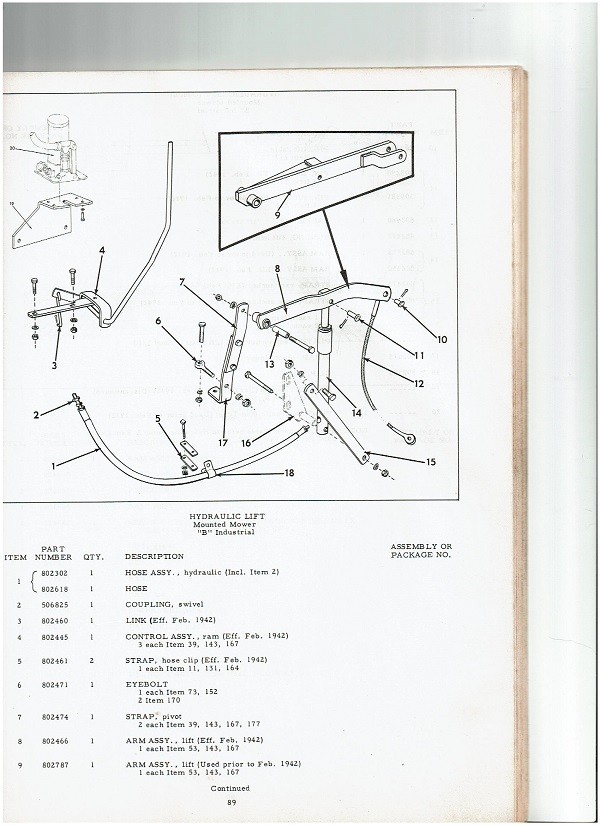

The handle is out of it right now but on the fender is mounted a hand operated hydraulic jack. That jack operates a cylinder and arm that tensions the cable and lifts the cutting bar. Maybe I should put it all together and post some operational photos.
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4829
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jul 2020 at 6:25am |
|
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
Charlie175
Orange Level
Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6358
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jul 2020 at 7:44am |
|
I learned the hard way not to over elevate the standard sickle mower. The pitman didn't last long :)
|
|
Charlie
'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
|
|
Bill Long
Orange Level
Joined: 12 Sep 2009
Location: Bel Air, MD
Points: 4556
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jul 2020 at 8:59am |
Idle Hands, Yes you have a B-C industrial mower. There were not too many of them made but I do remember my father sent me to my Grandfather's farm to mow for him. I was sent with a C with an industrial mower. Excellent unit. Worked very well Evidently there were some counties that wanted a standard B tractor with the vertical mower for mowing their highways. This unit was made to accommodate them. All the parts shown remind me of that mower. By the way nice looking B. Thanks for taking such good care of my favorite. Good Luck! Bill Long
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 82312
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jul 2020 at 9:33am |
I am having a hard time picturing the pitman arm working when the cutter BAR is vertical... Did it really go vertical and cut or was it like 30 degree angle ??
The IB mower that i once saw was mounted to the C channel frame, not under the belly. That mower ( not Allis) was capable of vertical cutting..
Edited by steve(ill) - 14 Jul 2020 at 9:45am
|
|
Like them all, but love the "B"s.
|
|
Bill Long
Orange Level
Joined: 12 Sep 2009
Location: Bel Air, MD
Points: 4556
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Jul 2020 at 10:37am |
Steve, Believe it it worked vertical. The linkage shown in paulB's post allow the power to "turn the corner". The customer LOVED this "Industrial Sickle Bar" cause he had an estate to trim and he could trim the entrance way hedge very easily with the sickle bar. I may have seen several of these type of mowers. At the time my father was in the business the Industrial and Agricultural sales were separated. Good Luck! Bill Long
|
|
Idle Hands
Bronze Level
Joined: 13 Jul 2020
Location: Kansas
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Aug 2020 at 12:02pm |

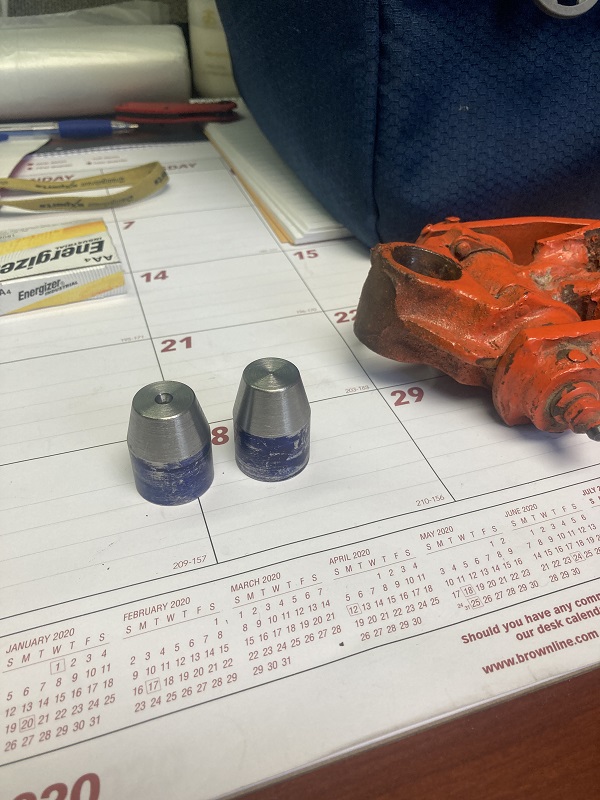

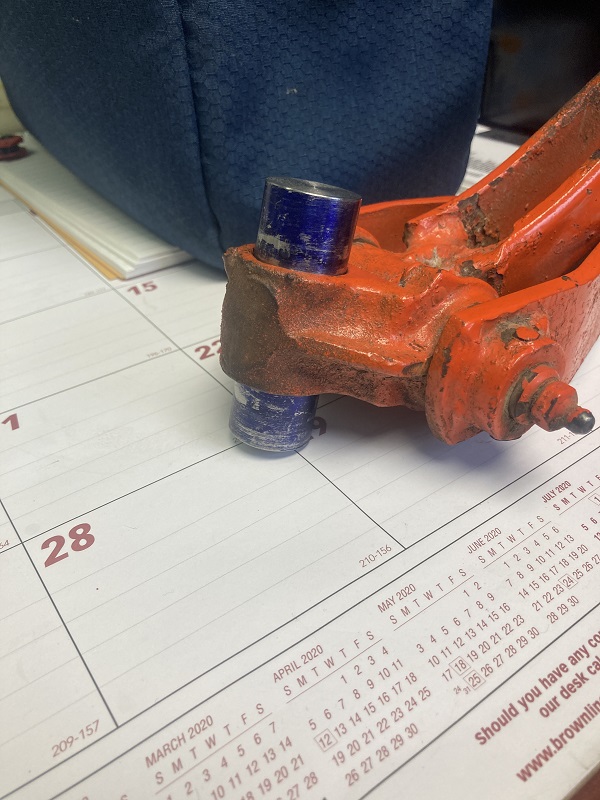

Thanks for the help from everyone. Quick Update: I have been unable to find the parts I needed so I have begun to make them. Thought it would interest some.
Edited by Idle Hands - 10 Aug 2020 at 12:03pm
|
|
tractorman
Orange Level
Joined: 22 Sep 2009
Location: west central wi
Points: 1046
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Aug 2020 at 8:16pm |
|
do you have the name for # 24 the wrench ? I have on and have seens lots neverknew what they went to .
|
|
Play on 38 B 49 WF , working on D14, D15 B10, Bee 12 B110. use 185 and 190
|
|
