 Topic: B Rear Plow Linkage
Posted: 01 May 2010 at 10:12pm |
I've been trying to find a good picture on the internet of how the plow hooks up to the back of a B. I can find pictures with the hand lift but that setup appears to be a little different, or maybe just the older B's were a little different? Mine's a '39. Anybody have a good pic they can post? Just curious, thanks!

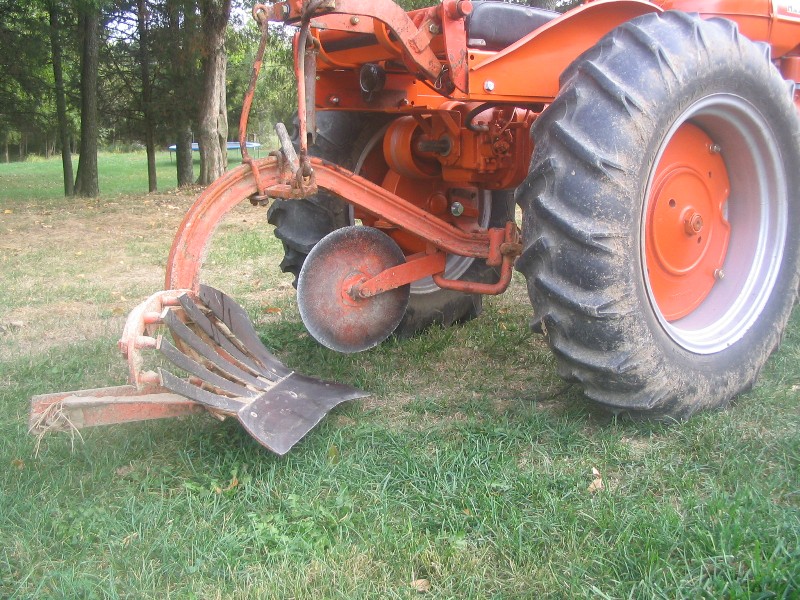

I have an interesting ditch-digger plow that a previous owner rigged up for this tractor, but I know it's not the proper setup. Someday I'll take a pic of that rig. I do however have the correct drawbar up front. Down the road I plan on getting the correct plow for it. Here's what my rear lift shaft looks like... it may not even be compatible with the standard plow anymore after the modifications.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
 |
|
Sponsored Links
|
|
|
GlenninPA
Orange Level
Joined: 11 Sep 2009
Location: Ashley, PA
Points: 5054
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 May 2010 at 8:23am |
|
There were at leat 3 versions of the B pickup plow, before they settled on what is the most common design. There was a '38 version, a '38/39 version and a version in 1940. The Dealer Parts Manual for the B pickup plow shows all the types, you might try to find one of those books....
|
|
Rick of HopeIN
Orange Level
Joined: 11 Sep 2009
Location: Hope, Indiana
Points: 1324
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 May 2010 at 8:31am |
|
|
|
1951 B, 1937 WC, 1957 D14, -- Thanks and God Bless
|
|
Rick of HopeIN
Orange Level
Joined: 11 Sep 2009
Location: Hope, Indiana
Points: 1324
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 May 2010 at 8:35am |
|
|
|
1951 B, 1937 WC, 1957 D14, -- Thanks and God Bless
|
|
Rick of HopeIN
Orange Level
Joined: 11 Sep 2009
Location: Hope, Indiana
Points: 1324
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 May 2010 at 8:51am |

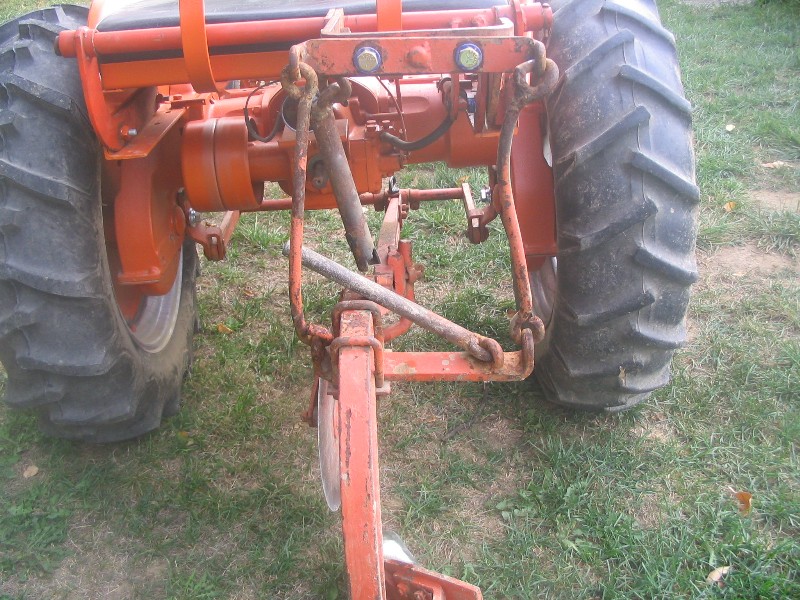

This may show the rockshaft better. It still has part of the plow lift bolted on, that part comes off on mine...
|
|
1951 B, 1937 WC, 1957 D14, -- Thanks and God Bless
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 2044
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 May 2010 at 11:10am |
Okay, so the above pictures are from the 1940-onward setup? And I'll need to look for a 38/39, correct?
I notice how the rockshaft supports curve upward on your tractor, whereas mine sit pretty much right on top the fender supports.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
GlenninPA
Orange Level
Joined: 11 Sep 2009
Location: Ashley, PA
Points: 5054
|
Post Options
Thanks(0)
Quote Reply
Posted: 02 May 2010 at 7:32pm |
yes, the rockshaft supports on the later tractors are much taller than the early ones, like you show in your picture.
The earliest plow had a hole on the bracket on the front of the beam that the round plow drawbar went through. The next version used the detachable bracket on the drawbar that the plow beam pinned to, I believe. If I were not so hot and tired tonight I would go dig out the book and give you more details, but I am beat... and just want to sit here a while...
|
|
