Another CA Pickup Plow Spacer Question

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   The pickup plow manual shows a spacer that goes on top of the rear end of the pull bar (spacer is missing).  In the line drawing, it seems to show it side-on as a straight piece of U channel with no cutouts for the through bolt in the sides.  However, in the image of the installation earlier in the manual, it appears to show the end view of the U channel as if it would need a cutout in the sides for the through bolt to go through (and presumably keep it from sliding out).  Not finding a suitable sized U channel, I'll probably make something.Does anyone know the design/dimensions of this spacer?  The max gap is almost exactly 5/16 inch so the web thickness would be 5/16 or less I assume.  I could also install it side to side so that the bolt goes through the channel, but that's not how the plow image shows it.

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
dfwallis Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 09 Mar 2023 Location: DFW Points: 931	Post Options Post Reply Quote dfwallis Report Post Thanks(0) Quote Reply Topic: Another CA Pickup Plow Spacer Question Posted: 22 hours 41 minutes ago at 12:38pm
	The pickup plow manual shows a spacer that goes on top of the rear end of the pull bar (spacer is missing). In the line drawing, it seems to show it side-on as a straight piece of U channel with no cutouts for the through bolt in the sides. However, in the image of the installation earlier in the manual, it appears to show the end view of the U channel as if it would need a cutout in the sides for the through bolt to go through (and presumably keep it from sliding out). Not finding a suitable sized U channel, I'll probably make something.Does anyone know the design/dimensions of this spacer? The max gap is almost exactly 5/16 inch so the web thickness would be 5/16 or less I assume. I could also install it side to side so that the bolt goes through the channel, but that's not how the plow image shows it.
	1952 CA13092

Sponsored Links

Tim NH Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 16 Oct 2012 Location: Lancaster NH Points: 1153	Post Options Post Reply Quote Tim NH Report Post Thanks(0) Quote Reply Posted: 6 minutes ago at 11:13am

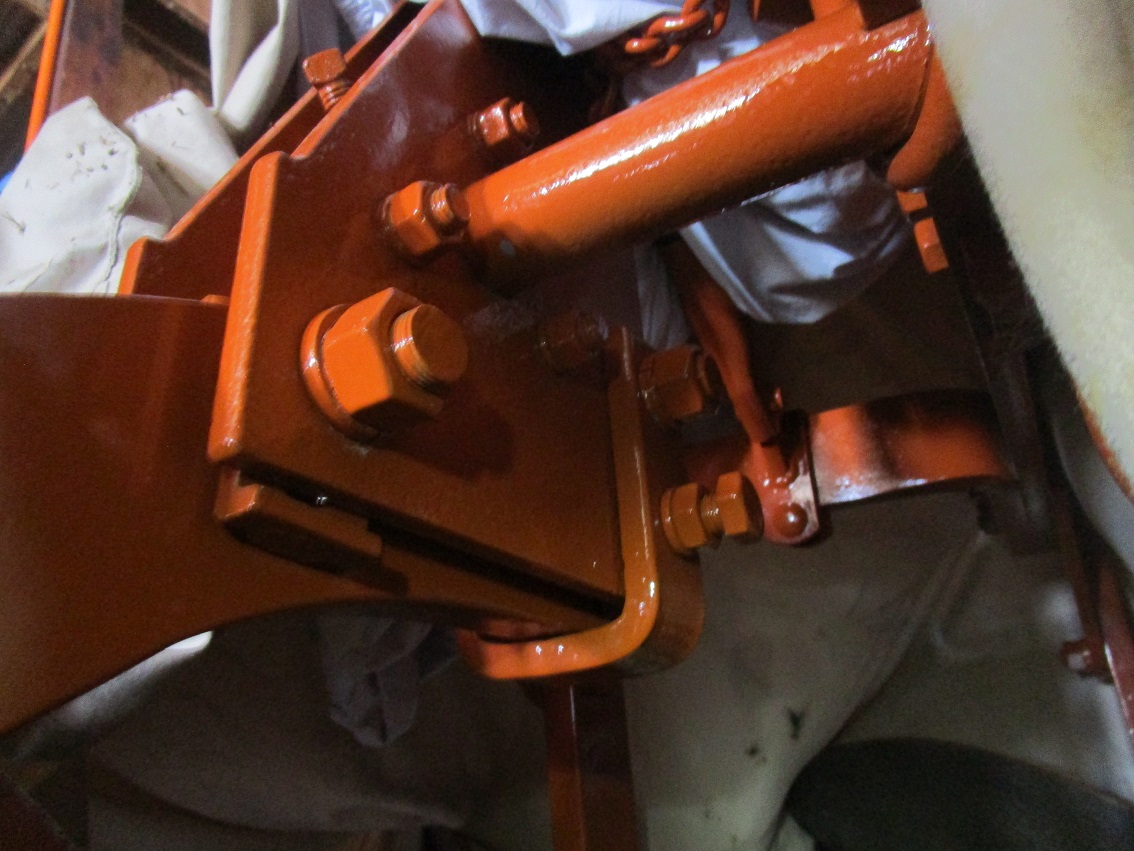

	picture is from my 52 plow I restored last winter. You can see the you bracket, its half inch thick. The plow goes on my WD. But I think the CA uses the same plow.
	1950 WD 1959 D14 1955 WD45 1976 7000 B 207
