Our local Town's Allis Grader, Doesn't get used much, but it does run
Edited by Charlie175 - 14 Nov 2018 at 9:39am |
|
Charlie
'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD |
|
Sponsored Links | |
jerbob
Orange Level Joined: 07 Aug 2017 Location: Michigan Points: 961 |
Post Options
Thanks(0)
|
Nice unit!
|
|
HD16DC, Bobcat 863 Turbo, Oliver 1855, John Deere 855,
|
|
Eric B
Orange Level Joined: 09 Feb 2012 Location: British Columbi Points: 887 |
Post Options
Thanks(0)
|
Probably well maintained if it belongs to the Town...
Pay attention when they want to sell...
|
|
Currently- WD,WC,3WF's,2 D14's B. Previously- I 600,TL745,200,FL9,FR12,H3,816 LBH. Earth has no sorrow that Heaven cannot heal!
|
|
ac fleet
Orange Level Joined: 12 Jan 2014 Location: Arrowsmith, ILL Points: 2197 |
Post Options
Thanks(0)
|
Sweet unit!! thanks; ac fleet
|
|
CAL(KS)
Orange Level Joined: 18 Sep 2009 Location: Chapman, KS Points: 3732 |
Post Options
Thanks(0)
|
i never understood why the little D got hydraulics before the big flagship graders
|
|
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD16,HD20
Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, 2-S77, HD15 |
|
darrel in ND
Orange Level Joined: 22 Nov 2009 Location: Hebron, ND Points: 8578 |
Post Options
Thanks(0)
|
I've wondered that a thousand times myself. For instance, my forty five is a late 50's unit. Hydraulics were plenty adequate by that Era to run all of the functions. It has hydraulics on it for the V plow and the wing. Only explanation I have for it is, there was so much R & D into the knuckle busters that they had to use them for years to re-coop the cost of it. BTW, that is a very nice little D. Thanks for the picture. Darrel |
|
DiyDave
Orange Level Access Joined: 11 Sep 2009 Location: Gambrills, MD Points: 50487 |
Post Options
Thanks(0)
|
My theory is that they had the demand for a little grader, so production began to soar! anything being sold a lot has the demand, so that's where the innovation starts!
|
|
Ian Beale
Orange Level Joined: 03 Oct 2011 Location: New South Wales Points: 932 |
Post Options
Thanks(0)
|
Good question, particularly since Galion started using hydraulics in 1926 IIRC' I also gather that Le Torneau was anti-hydraulics The 45 parts book shows factory hydraulics for moulboard power shift.
Edited by Ian Beale - 15 Nov 2018 at 7:28pm |
|
CAL(KS)
Orange Level Joined: 18 Sep 2009 Location: Chapman, KS Points: 3732 |
Post Options
Thanks(0)
|
My 145T is a '61 and its still mechanical but had optional hydraulic moldboard side shift
|
|
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD16,HD20
Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, 2-S77, HD15 |
|
Charlie175
Orange Level Joined: 11 Sep 2009 Location: Shenandoah, VA Points: 6351 |
Post Options
Thanks(0)
|
Town is talking about selling it. I told them to keep it for the Gravel alleys. The younger guys just use the backhoe for everything.
I think they broke the pivot pin at some point trying to get a rock out on a road. Have to look at it.
|
|
Charlie
'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD |
|
SteveM C/IL
Orange Level Access Joined: 12 Sep 2009 Location: Shelbyville IL Points: 7968 |
Post Options
Thanks(0)
|
You better get it bought before the KIDS tear it up
|
|
Ross D.
Silver Level Joined: 02 Sep 2013 Location: Erin, Ont. Points: 338 |
Post Options
Thanks(0)
|
Good morning.

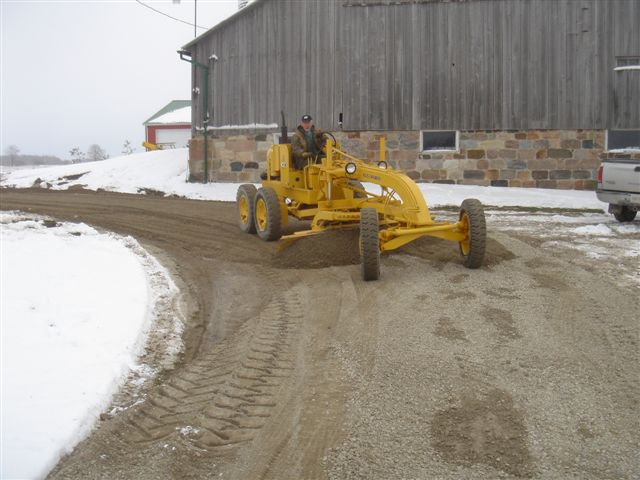

This appears to be a 'sweet' grader. It appears to be manufactured after mid 1961, as it has a 8' beam. It will have a G226, 58HP gas engine (D17). I do not know if it will have Hyd. brakes. Factory cab, leaning front wheels, larger fuel tank, 12 ft. blade (10' was standard), not banged up. Go get it, If it has the auxiliary transmission - BONUS. This Aux. tranny drops the speed in each gear by 66%. The operator could keep his RPM's high in order to maintain the Hyd. operations, while controlling his road speed with proper transmission gearing. With a full blade of gravel you need to maintain your RPM's, while 'rolling' the gravel at the proper ground speed. It appears that this Aux. trans is relatively rare. I believe that it would double the value of the grader. I understand that the 'D' grader was assembled in the A C plant on Dawson Rd. in Guelph Ontario. This plant also produced the electric forklifts, and electric pumps. Here is a picture of my 'D Special' grader with Calvin Schmidt grading one of his many farm driveways. High RPM's, full blade of gravel 'rolling' from the grader. Ross. |
|
DiyDave
Orange Level Access Joined: 11 Sep 2009 Location: Gambrills, MD Points: 50487 |
Post Options
Thanks(0)
|

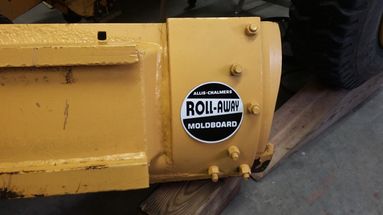

The other good thing, design wise, on AC graders is the Roll Away cutting edge. When pushing a blade full, the spoil rolls away from the top of the pile, instead of compacting, like other graders do...
|
|
Lazyts
Orange Level Joined: 05 Feb 2012 Location: Manitoba Points: 627 |
Post Options
Thanks(0)
|
Ross D- what else do you know about the Canadian plant? I've also seen wheel loaders that say: Manufactured in Canada under license by Allis Chalmers Rumely Ltd (or something like that) . I assume those loaders were manufactured in Guelph as well?
|
|
Calvin Schmidt
Orange Level Joined: 11 Sep 2009 Location: Ontario Can. Points: 4515 |
Post Options
Thanks(0)
|
Ross. It was a low RPM ! just nicely above a fast idle. The Guelph plant made forklifts and some very large forklifts, some models of smaller articulated loaders, assembled some graders etc. One of the main products was industrial pumps. It later became ITT AC pump division. Some products were assembled in Guelph to get around the customs duties in place at the time.
|
|
Nothing is impossible if it is properly financed
|
|
dpower
Orange Level Joined: 11 Sep 2009 Location: Madison Ne Points: 1575 |
Post Options
Thanks(0)
|
Is that the one Calvin you said your friend wanted to put Behlen power steering on??? Hope all is well with you.
|
|
Calvin Schmidt
Orange Level Joined: 11 Sep 2009 Location: Ontario Can. Points: 4515 |
Post Options
Thanks(0)
|
Yes Ross is installing the Behlen power steering
|
|
Nothing is impossible if it is properly financed
|
|
DonBC
Orange Level Access Joined: 12 Sep 2009 Location: Courtenay, BC, Points: 899 |
Post Options
Thanks(0)
|
That is probably why it hasn't been fixed. No one wants to drive it anymore because it doesn't have power steering. My old D grader turned into a different machine once I added power steering.
|
|
Jack of all trades, master of none
|
|
Ross D.
Silver Level Joined: 02 Sep 2013 Location: Erin, Ont. Points: 338 |
Post Options
Thanks(0)
|
Don. No doubt the power steering would probably have been nice for you especially. How many years did you use the D grader to build and maintain the roadways and driveways on the Island? I do not understand why A C did not install more power steering units. I see very few that appear to be factory installed. According to the manuals, A C had many versions of these units and they were all driven by a separate pump assy. that was mounted on the RH side of the engine ( similar to the mounted pump on the LH side of the motor which supplied the main hyd. system ). Most people appear to have tapped into the main hyd. system. rather than installing a separate pump system. It seems to me that I recall you installed a separate pump system which ran off the crankshaft. You also installed a scarifier that was mounted on the back of your grader. The model, 'D Special' appears to have all the options on it as standard equipment, except ----------------- Power Steering. Is this correct? Ross D. |
|
DMiller
Orange Level Access Joined: 14 Sep 2009 Location: Hermann, Mo Points: 29428 |
Post Options
Thanks(0)
|
We had an old AC grader when I worked at Ft. Scott KS, Midwestern Dist. Truck Line. Nothing as far as ID but had a 4cyl Detroit in it and Dog Clutch controls to gear boxes, would beat you into tomorrow if tried to feather them.
|
|
DonBC
Orange Level Access Joined: 12 Sep 2009 Location: Courtenay, BC, Points: 899 |
Post Options
Thanks(0)
|
Yes Ross, I was mainly doing driveway work which involved lots of tight spaces to turn around. It was a nuisance to always have to lower the blade and raise the front wheels off the ground to make it easier to crank the wheels over. The grooves in the crankshaft pulley were worn to the point that it was almost impossible to get the belts that drove the hydraulic pump tight enough to prevent the pump from stalling out if you put too much pressure on it. I had a machinist friend of mine make an adapter with a stub shaft that would bolt on the crankshaft pulley. I then fabricated a bracket to hold the pump and used a flexible coupling to drive the pump. The pump would be rotating in the opposite direction but looking at the blow up in the parts book it appeared as if the pump should be bi-directional by reversing the input and output lines. It worked fine. I then mounted a power steering pump from a car where the hydraulic pump had been and drove it off one of the now spare grooves on the crankshaft pulley. I decided not to use a rotary assist on the steering shaft as I knew how much force it took to steer manually. I was concerned that assist on the shaft might tear up the Ross steering box. I used some components off of an old Cockshut sp combine. It had a control valve that mounted on the drag link and a small hydraulic cylinder the mounted between the front axle and the tie rod. It was so effective that with the grader stationary and the engine idling I could turn the wheels lock to lock with one finger.
|
|
Jack of all trades, master of none
|
|
Ian Beale
Orange Level Joined: 03 Oct 2011 Location: New South Wales Points: 932 |
Post Options
Thanks(0)
|
AD4?
|
|
SteveM C/IL
Orange Level Access Joined: 12 Sep 2009 Location: Shelbyville IL Points: 7968 |
Post Options
Thanks(0)
|
4 or 40.doesnt matter. Both beat you up if you don't push or pull hard and determined.
|
|
Ian Beale
Orange Level Joined: 03 Oct 2011 Location: New South Wales Points: 932 |
Post Options
Thanks(0)
|
Steve I found with our AC 45 that it makes a lot of difference to the action whether they are adjusted according to the Allis manual - or by some wild guess
|
|
DMiller
Orange Level Access Joined: 14 Sep 2009 Location: Hermann, Mo Points: 29428 |
Post Options
Thanks(0)
|
Was taught by an 'Old Timer'!! In or Out, nothing in between, slap them in or pop them out but never to hang on them with a full hand. Makes my teeth hurt thinking on it!
|
|
Ian Beale
Orange Level Joined: 03 Oct 2011 Location: New South Wales Points: 932 |
Post Options
Thanks(0)
|
Well I guess dog clutches do "in" or "out" and aren't too good on" maybe"
|
|
SteveM C/IL
Orange Level Access Joined: 12 Sep 2009 Location: Shelbyville IL Points: 7968 |
Post Options
Thanks(0)
|
....on the 40,when you want to lift front wheels off ground,you sit down and use your feet on the levers....
|
|
Ian Beale
Orange Level Joined: 03 Oct 2011 Location: New South Wales Points: 932 |
Post Options
Thanks(0)
|
Steve I don't know about a 40 but on the 45 you can turn the dog clutches front to back and get new wear surfaces. I'd guess some dis-assembly/assembly required - which could mean yours were never done
|
|
SteveM C/IL
Orange Level Access Joined: 12 Sep 2009 Location: Shelbyville IL Points: 7968 |
Post Options
Thanks(0)
|
Ian.When I was a kid our township had AD4 then purchased a 40 in early 60's. Dad ran the 4 and said they reversed the dogs and levers would almost stay inguaged by themselves. When I started helping in the 70's they had the 40 and it never got the flip done. Was quite a beater if you had to put a lot of force on the blade or turn the circle when blading.
|
|
Ian Beale
Orange Level Joined: 03 Oct 2011 Location: New South Wales Points: 932 |
Post Options
Thanks(0)
|
Steve On the 45 when they're properly adjusted they should fall out if you take your hand off. Most still do, only one I have to watch. When I got it you had to beat them out
|
|
