DAng... i thought this was going to be a "motor refresh"..... you got the old girl stripped NAKED !!.... Rebuild from the ground up !
|
|
Like them all, but love the "B"s.
|
 |
|
Sponsored Links
|
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8311
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Oct 2024 at 7:00pm |
Steve, Allis Folks, Yes I guess we are at that level of this Refurb, Clean and Paint process. I did not do a complete new kit for the engine. Most of the engine components looked pretty good. So maybe saved a few dollars there?? Just a freshened stock HP CA engine. Which means we should see what they were capable of when new. Lots of other tractors in the 2500 -3000 lb classes have mods that may increase horse power? All that spends more money and not sure we would have any more fun?

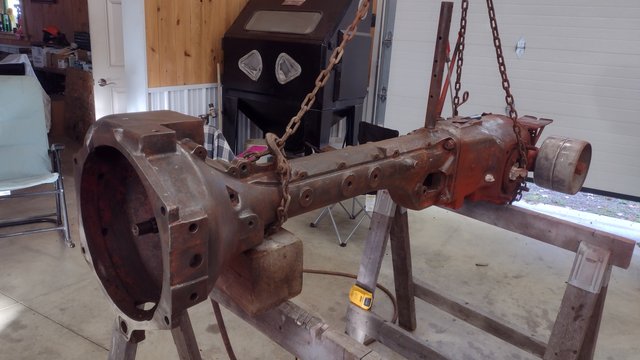

I worked on the torque tube today:
Hope to get the transmission and rear end cleaned up tomorrow?
I did get the oil ring for piston #1 today. So will try to get that and other components installed. Was able to sand blast some CA parts and get them ready for primer soon.
Regards, Chris and Cheryl
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8311
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Oct 2024 at 1:01am |

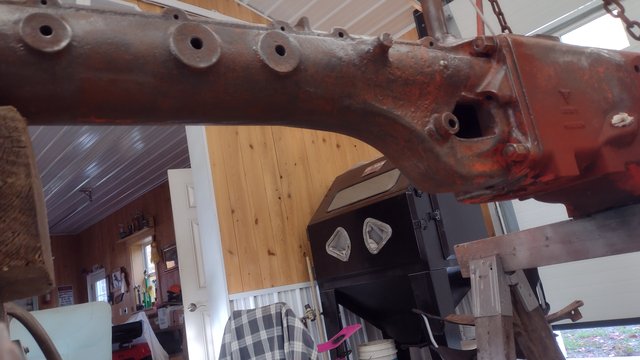

Allis Folks, Not too exciting on this end. Scraping, cleaning, stripping paint, Electrolysis tank prep work, Sand blasting, Some welding, Grinding, A little assembly work..... Might shoot some primer in the next few days? Ordered some lifting eye bolts from McMaster Carr. This is way too much work for an old man!:) Perfect to keep me out of trouble! Cut the grass for the last time with the Jubilee and cleaned up the JD 272 finish mower. Weather is supposed to be nice for a couple days. My friend John has been coming up and helping with parts clean up. New seals for the final drives should be here tomorrow. Going to try to do those while the rear of the tractor is in pieces. Hope things are good in Orange land! We took the Comet out this morning for breakfast. It is handling much better after front end work and alignment. it is the main reason I did not get much done on the CA this year! We have had a lot of good times with it. No regrets. May replace rear springs this winter. Regards, Chris and Cheryl
Edited by Sugarmaker - 18 Oct 2024 at 1:03am
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
tadams(OH)
Orange Level Access
Joined: 17 Sep 2009
Location: Jeromesville, O
Points: 10232
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Oct 2024 at 2:26pm |
|
That red sure reminds me of the 1963 Comet convertible I had. Looking good
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8311
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Oct 2024 at 7:15pm |
Tom, Folks, Glad the old Comet sparks some memories! Cheryl and I have had a wonderful time with this car since we brought it home in January. I just did not get much done today. Helped supervise at Grandson Nic's new building. The crew and helpers have most of the girts on the sides and purlins on front trusses. Tomorrow the rear roof purlins and the lean to rafters portion will be set in place.
I did look at the old CA engine. installed the oil ring and the other three rings on the number one piston. Inserted the piston in the block and the shims between the cap and rod. Torqued all the rod bolt fasteners to 35 ft.lb. and added the sheet metal lock nuts.
I had ordered several pairs of lifting bolts of different sizes, for various projects to be safer to pick things in the shop. These came from McMaster Carr and arrived in one day.

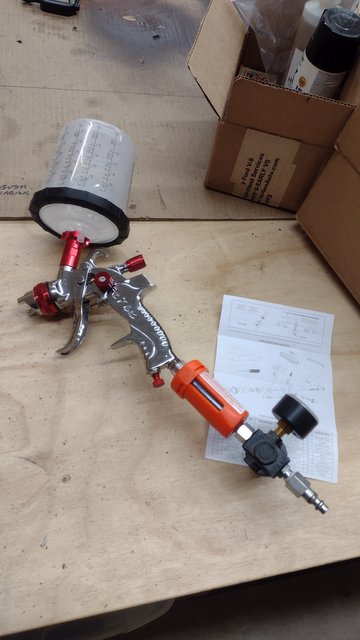

Have some 3M Bondo and a new paint gun on there way also. Seems to be easier to order this stuff on line than any other way. Amazing technology we have available at this time, to get parts for the old CA.
Also now have the rear axle seals ready for me to get enough ambition to start that project improvements on the CA final drives. We did get several components sandblasted and reworked. The worn clutch rod was welded and ground smooth to better fit the clutch pedal.
Hope things are good in orange land. Thanks for checking in on me. Regards, Chris and Cheryl
Edited by Sugarmaker - 19 Oct 2024 at 7:36pm
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8311
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Oct 2024 at 7:32pm |
Allis Folks, Some items are coming together on the CA. Maybe we have turned the corner?? Things change, First gun I have had with the disposable paint cups. Just ordered a bunch of extra cups as this may stretch over several months or longer?

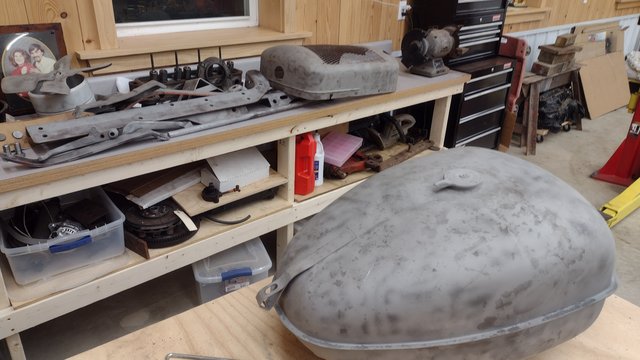

The tank has at least one dent that will need to be filled and sanded. It has been repaired once on the underside. I sandblasted it after it had been through the E tank.

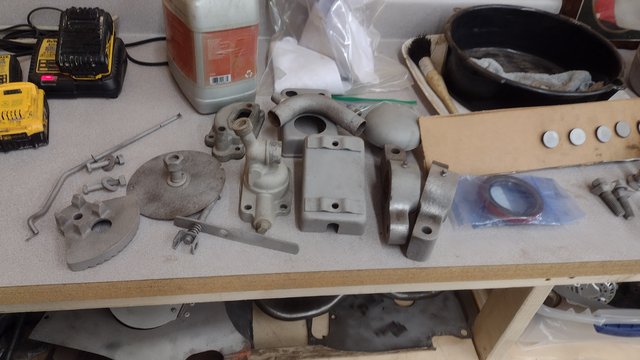

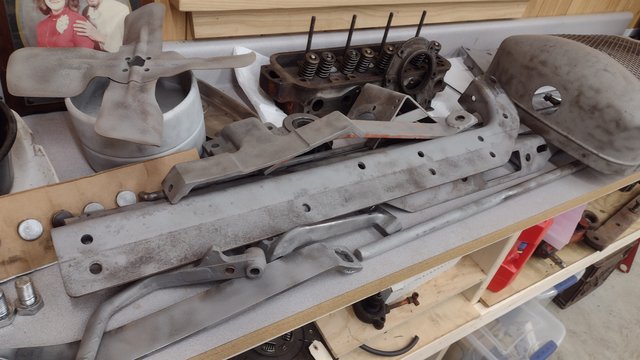

I do have a bunch of parts that are pretty close to being painted.
Some body work will be required to the grill shell and the other sheet metal items.
The torque tube, transmission, and the rear end have been setting in the middle of the shop for several weeks. I have kept going around it cleaning and more cleaning, chasing threads, and more cleaning.

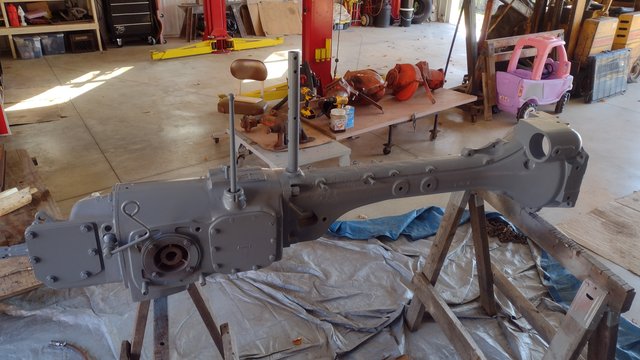

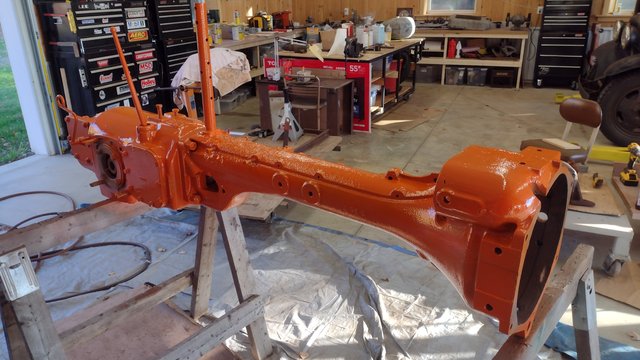

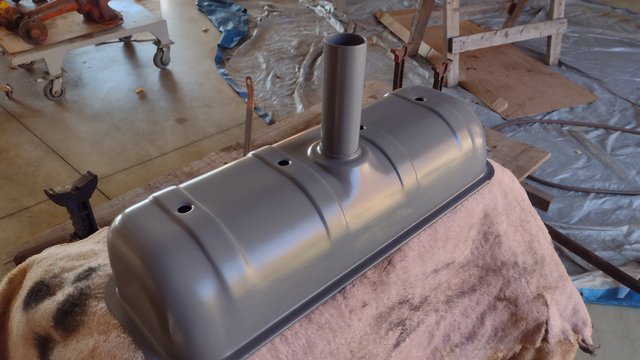

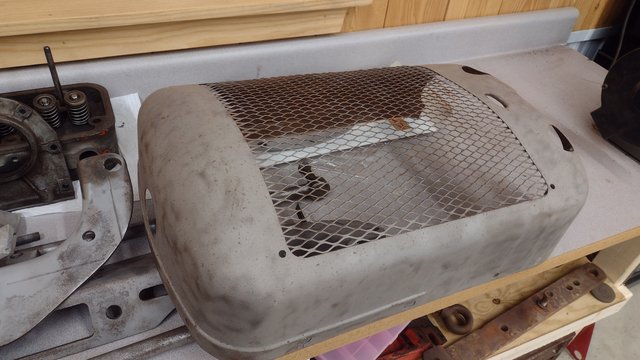

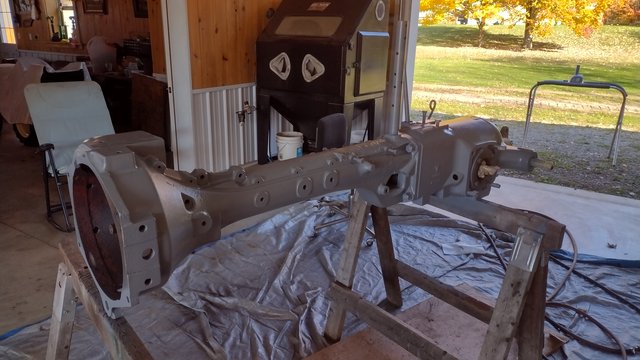

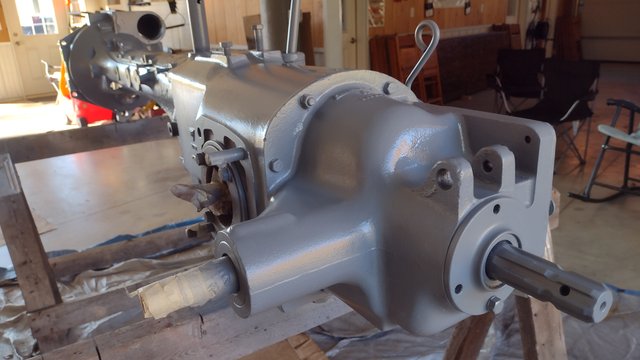

I couldn't take it any more and mixed up some gray epoxy primer. Felt good to lay on some paint!
The cleaned valve cover got in the way and received some attention also.
Might as well try some PO#1
I hope these small steps get me going on the CA project again. Regards, Chris and Cheryl
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
Straanger
Bronze Level
Joined: 10 Dec 2019
Location: Michigan
Points: 40
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Oct 2024 at 10:13pm |
|
Looks great, as always Chris.
|
|
CA13414
Silver Level
Joined: 25 Feb 2024
Location: Nebraska
Points: 270
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Oct 2024 at 5:26am |
|
Awesome job Chris. Great progress and they simply look awesome!
|
|
Helping the aged survive and thrive! 1953 CA
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2782
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Oct 2024 at 6:04am |
|
I agree, looks good!
|
|
plummerscarin
Orange Level Access
Joined: 22 Jun 2015
Location: ia
Points: 3533
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Oct 2024 at 11:50am |
|
Looking good!!!
|
|
tadams(OH)
Orange Level Access
Joined: 17 Sep 2009
Location: Jeromesville, O
Points: 10232
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Oct 2024 at 1:45pm |
|
YES looking good
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8311
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Oct 2024 at 11:26pm |
Allis guys, Thanks for checking in on me! Our weather has been great so I took advantage of it today and painted some of the small items. Using a single stage PPG paint system for the top coat. 4 parts paint, one part catalyst, one part reducer. This was a sticking point in my mind about painting in the shop. I moved the important cars and trucks outside, put down a old tarp and just began painting. The HVLP guns seem to keep the over spray to a minimum. I did not have a 'tarp line' on the floor afterwards. I really like these disposable paint gun cups. The soft liner collapses as the paint is used and there really is minimal clean up. A lot of these CA parts had been cleaned ( blasted) for a while so there were about 40 items. I wanted to get some paint on them to avoid surface rust on the bare metal. My make shift paint booth was set up outside the east door of the shop. The epoxy primer was applied and about 1/2 hour later I painted the orange. After it dried I see a lot of places that I did not get the coverage i needed in some spots. ( but it is probably better than from the factory!) These small irregular parts are not the easiest to cover. And I was probably rushing a little too. So they may stay that way? Will see how bad it bothers me. I did not see any runs or sags so maybe there wasn't as much paint going on as I thought?

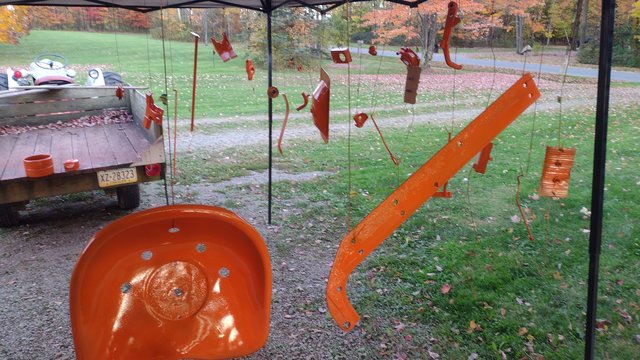

A 10 x 10 easy up was the outside paint booth/ shelter. It made a great place to hang the smalls too. Yep the orange wind chimes!

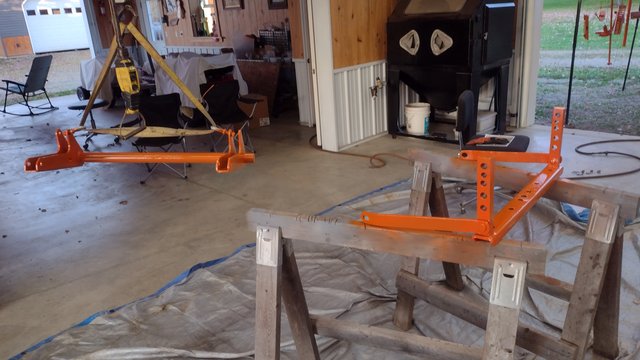

A couple of the larger heavier rear hitch parts got some attention also. It doesn't look like much but I was whooped after setting all these up and trying to get paint on them.
We have a AACA car club dinner event in the shop Wed night so the body work on the CA sheet metal will have to be delayed for a while. I plan to build a wooden buck to attach the hood during the straightening process.
Hope things are good in orange land! Regards, Chris and Cheryl
Edited by Sugarmaker - 22 Oct 2024 at 11:45pm
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
plummerscarin
Orange Level Access
Joined: 22 Jun 2015
Location: ia
Points: 3533
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Oct 2024 at 11:50am |
|
That’s a neat idea for the parts hanger. I will have to look in to getting one specifically for painting as I believe my accountant would have me shot if I tried using the ones we have.
Keep up the good work
|
|
IBWD MIke
Orange Level
Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3795
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Oct 2024 at 12:30pm |
|
That's progress Chris and that always makes one feel good.
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8311
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Oct 2024 at 2:59pm |

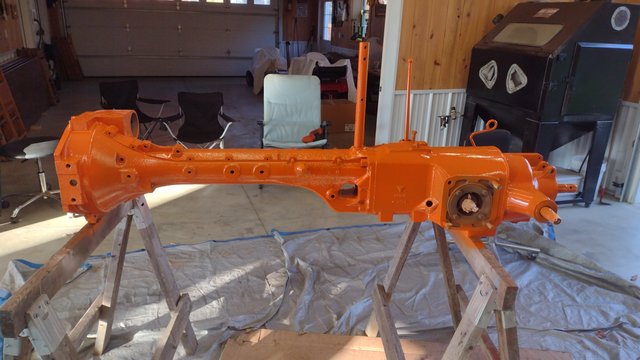

Allis folks, After reviewing the parts they needs more paint. I applied another coat to most of them today. Ordered final drive pan gaskets from Sandy Lake today. Not looking forward to that project. Regards, Chris and Cheryl
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
sparky
Orange Level Access
Joined: 13 May 2011
Location: So. Indiana
Points: 1559
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Oct 2024 at 4:31pm |
|
Replacement of the pan gaskets should be easier since you have them off the torque tube.
|
|
It's the color tractor my grandpa had!
|
|
IBWD MIke
Orange Level
Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3795
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Oct 2024 at 8:44am |
|
Chris, I've replaced several sets of those pan gaskets, on the tractor. Never thought it was that bad of a job. The ironic part is, they were supposed to be serviced every year! How many of them have never been off in 70+ years?
|
|
sparky
Orange Level Access
Joined: 13 May 2011
Location: So. Indiana
Points: 1559
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Oct 2024 at 8:47am |
|
I put a drain plug in pan whenever I take the pan off. Should have been done at the factory.
|
|
It's the color tractor my grandpa had!
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8311
|
Post Options
Thanks(0)
Quote Reply
Posted: 24 Oct 2024 at 7:43pm |

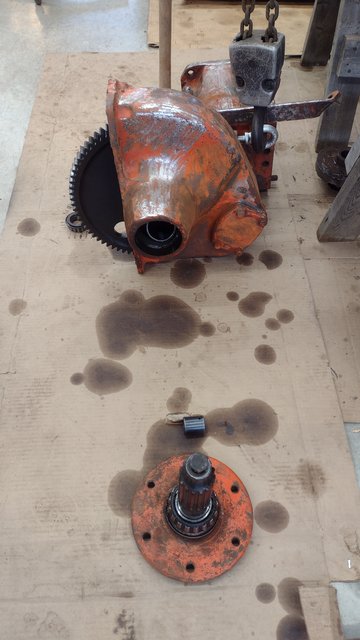

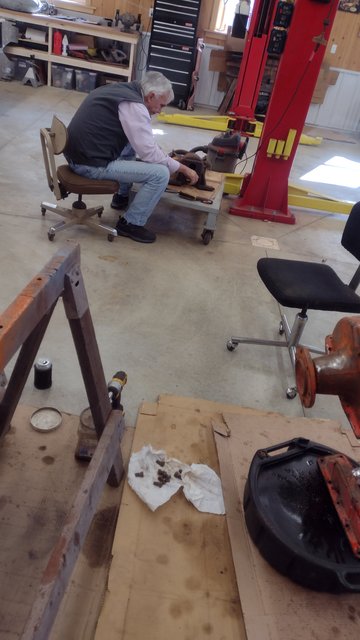

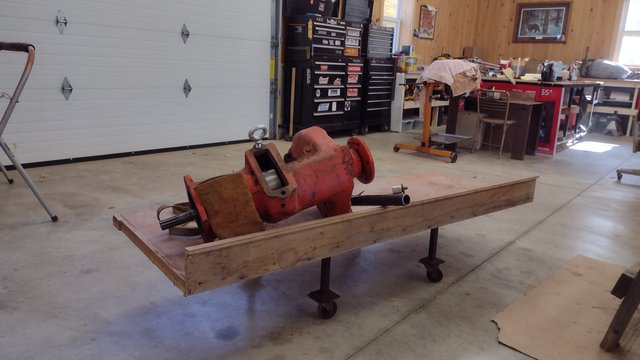

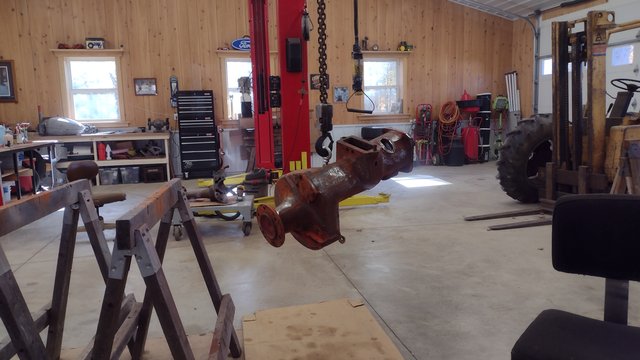

Guys, Well John and I worked on the final drives and the front bolster. mostly cleanup. Moved a bunch of things in the shop to get some room and moved these heavy items under the jib crane. I removed a broken bolt by welding on a washer then a nut on one of their final drives. It will make a good balance picking point to install the drives to the rear end.
Ok couple of things. The brake drum that I did not change out is about 1/8 thick or less, compared to the new one that is a 1/4 in thick. I really don't want to replace that old one but now would be the time to do it. Suggestions? This one is a little ragged on the edges also. Do these drums hold up well when they are this thin??

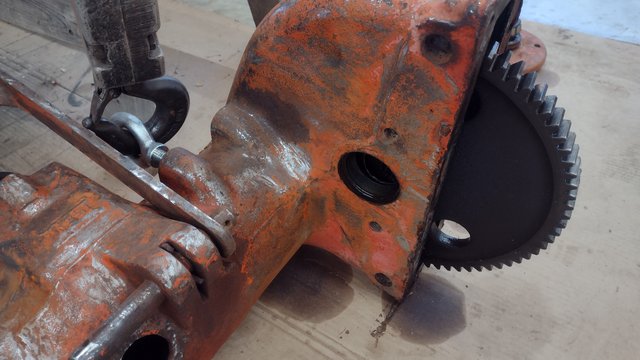

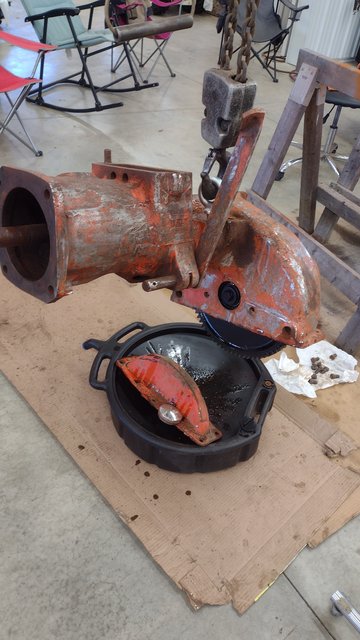

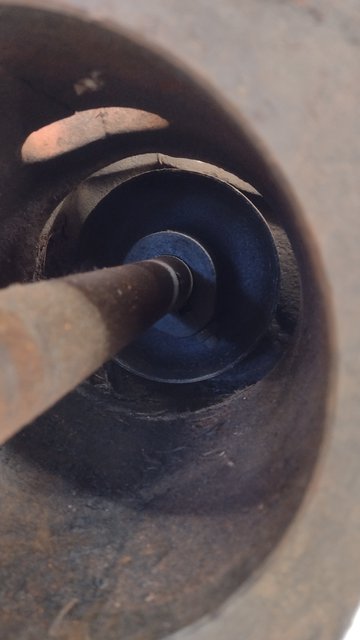

I pulled off the pan and removed the cap and bolt holding the axle in place. But the axle would not budge I took the snap ring off the axle, I hate those and this one was no different. After smacking the bolt in the axle several times and repeat. it was a no go. Seemed the axle and one of the bearings had grown together? I put the snap ring back on with two screw drivers. Not a easy task. So I guess I am not putting a new seal in that drive!
I did recoat most of the parts that I painted a couple days ago. I had forgotten how many nooks and crannies in all these small Allis parts! Also got the E-tank working on cleaning up some of the IH wheel weights. Thanks for checking in on me!
Regards, Chris and Cheryl
Edited by Sugarmaker - 24 Oct 2024 at 8:03pm
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2782
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Oct 2024 at 5:32am |
|
Thanks for sharing!
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8311
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Oct 2024 at 8:10pm |

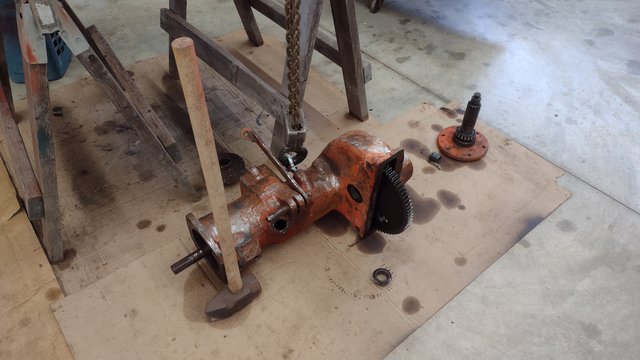

ACinSC, folks, So today I reviewed several you tube segments on the Allis CA axle removal. With a new day and friend John over helping spur me on I decided to look at these axle seals again. The key was to use the 7/8 socket over the bolt to beat on the axle shaft with a BFH!
Before I got started on the bull gear axle I took a review of the brake drum that was not in great condition and quite thin in areas. Several hammer blows, breaking chunks out of the old brake drum, and I was on my way to install a new brake drum in the near future. While whacking on the old brake drum it moved on the shaft and damaged the seal behind the brake drum. So good and bad news. I then heated the hub of the old brake drum and was able to pry and move the broken hub off the shaft. I ordered a new brake drum and upper inner seal from Sandy Lake. Then turned to the axle, removed the snap ring again. set the unit on the floor and used a 8 lb sledge to move the axle out of the light press fit in the inner race of the smaller inside bearing. None of this is for the weak of heart! Brute force and awkwardness is the norm here.

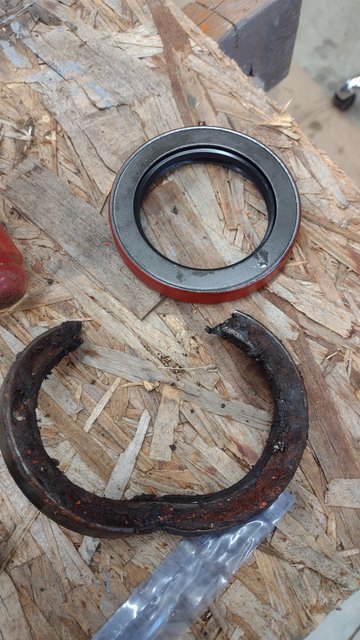

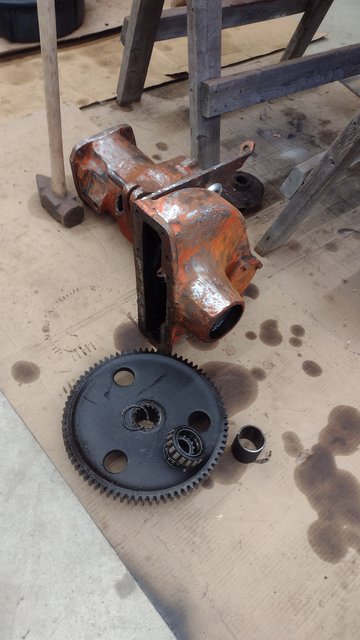

The goal here was to change this outer most lower seal on the finale drive axles. Once that axle is out the large bearing has to be removed before that seal can be installed. I used crude tooling to remove that bearing. Basically a small block of steel between the bearing race and the flange which the wheel bolts to. Then just hammer the block of steel till the bearing begins to move. Beat and repeat!! I did cut the old seal off the axle first. I found that there was a worn spot from the old seal. Humm. cleaned it up and hoping the new seal rides in a different spot on the axle!
Hope to spend some time on the other side of the tractor to be prepared to put in a new outer lower seal also.
By the way if you have been working the numbers on this project, this is how to take a $800 old tractor into a $3500 old tractor. Must be something wrong with me? Regards, Chris and Cheryl
Edited by Sugarmaker - 25 Oct 2024 at 8:47pm
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
ACinSC
Orange Level
Joined: 16 Dec 2015
Location: South Carolina
Points: 2782
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2024 at 5:17am |
|
Truth be told Chris , I think there's something wrong with most of us. I
enjoy your pics and progress!
Edited by ACinSC - 26 Oct 2024 at 1:41pm
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 2017
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2024 at 8:06am |
 Sugarmaker wrote:
By the way if you have been working the numbers on this project, this is how to take a $800 old tractor into a $3500 old tractor. Must be something wrong with me? |
Ha! It's easy to do!
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
tadams(OH)
Orange Level Access
Joined: 17 Sep 2009
Location: Jeromesville, O
Points: 10232
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2024 at 1:28pm |
Yes but just wait till it back together and how nice it will be. Enjoying your pictures and articles. Thanks Tom
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8311
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Oct 2024 at 7:10pm |
Allis guys, Thanks! my phone is on the fritz, so no pictures. I did get the other final drive opened up. Same thing, I had to use the sledge to tease the axle out of the smaller inside bearing race. Now there is a lot of clean up to do, then that side could be put back together. The oil was very black in the sumps. I am trying to clean some of the wheel weights in the Electrolysis tank. Getting some of the red paint and rust off them. I also have the front side weights to dig out and dunk in the E-tank too. Head down keep going on the old CA! Regards, Chris and Cheryl
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8311
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Oct 2024 at 7:15pm |
Guys, I try to do just a little every day on the CA. Today the rear final drive pans went into the E-tank. I started stripping paint on the final drives. Chased the threads for the pan bolts. Removed more layers of orange and cleaned the old gasket off the bottom surface for the pan to fit up. Got side tracked with some Colorado Kool Aid, then a nap, and then took the wife for a ride in the 65 Comet.
Regards, Chris and Cheryl
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
IBWD MIke
Orange Level
Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3795
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Oct 2024 at 8:45am |
|
Nice! And that Comet is a fine looking machine. Buddy of mine had a 66 Fairlane in High School, pretty sure he still has it.
|
|
Ted J
Orange Level
Joined: 05 Jul 2010
Location: La Crosse, WI
Points: 18853
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Oct 2024 at 9:39am |
You are doing GREAT Chris! I hope I live long enough to see the first "driving it today" video! You are doing exceptional work and it shows! That is going to be a great tractor when you get finished. Wanna do another CA? So far you ONLY have 2 years and 1 month stuck into it........
Sugarmaker wrote:
Folks,The owner is getting out of pulling. Guess I am getting into it?
So here is the plan if it comes home: - Maybe adjust the exhaust pipe to something more conventional. - Pull it in some light classes - Have some fun - let the grandson and great grandsons try it out. - get a charging system functioning, probably 12 volt with a Denso alternator. Will try to keep you upto date on this new addition. Regards, Chris |
Sugarmaker wrote:
Folks, The CA is home and have done a few mods on a couple things. You know the new toy syndrome!:) Exhaust was the first thing to come off. This may not be final: |
LOL!!!! May not be final.....LMAO
Sugarmaker wrote:
Dave, Folks, One of those winter projects, on the back burner. Thanks for checking in on me and the Johnny Cash tractor! |
Winter project?? I see the humor in that!! You've gone from a 'steering problem' to where we are today. PROUD of you and all the time you've spent on this,,,,, (excluding all the other time spent on ALL your other projects that got in the way. Nice to see it finally coming together!!!! Shameless would be proud.
|
|
"Allis-Express"
19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17
|
|
Sugarmaker
Orange Level
Joined: 12 Jul 2013
Location: Albion PA
Points: 8311
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Oct 2024 at 7:54pm |

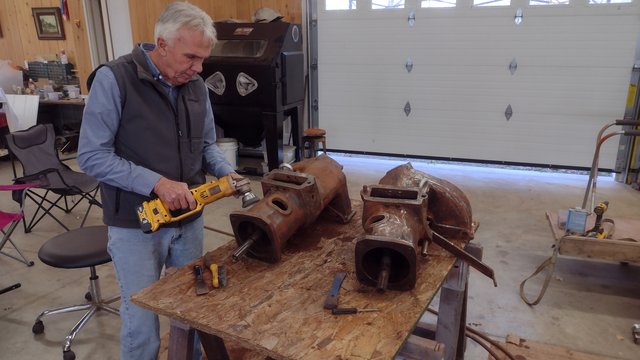

Allis folks, My friend John has been helping clean CA parts. He brings his cars over and uses my shop and lift. So we got the finals up on a table and used paint stripper several times and just scraping and wire brushing to get these free of loose paint. Had about 2 coats.

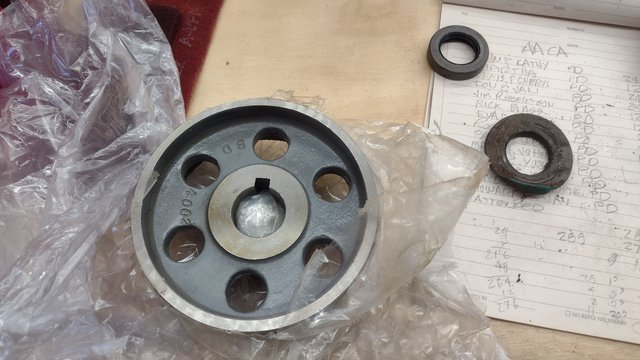

Got the new brake drum today but the wrong seal next to the drum. So that wont be put together for a couple days.
Rolling these over several times to get all the nooks and crannies.
I did get the axle, bearings and final drive seal assembled on one side. I used the fine thread bolt to pull the axle into the bearings which are a light press fit. The axles were cleaned in the E tank then tough paint removed with an air grinder, then sandblasted for final clean up. Chased the threads for the pan bolts. I still don't like the snap ring install. I was lucky a neighbor stopped by and helped me with lighting and screwdriver work to get that snap ring in place. I don't like those! The weather is going to be nice, warmer. I hope to get these bigger parts painted in the next week or so. Thanks for checking in on me.
Regards, Chris and Cheryl
Edited by Sugarmaker - 28 Oct 2024 at 8:02pm
|
|
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4801
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Oct 2024 at 7:36am |
|
There is special type of snap ring pliers that makes removing and installing that type snap ring a breeze. I have a pair
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
